Bike details
Overview
Key information split into simple groups.

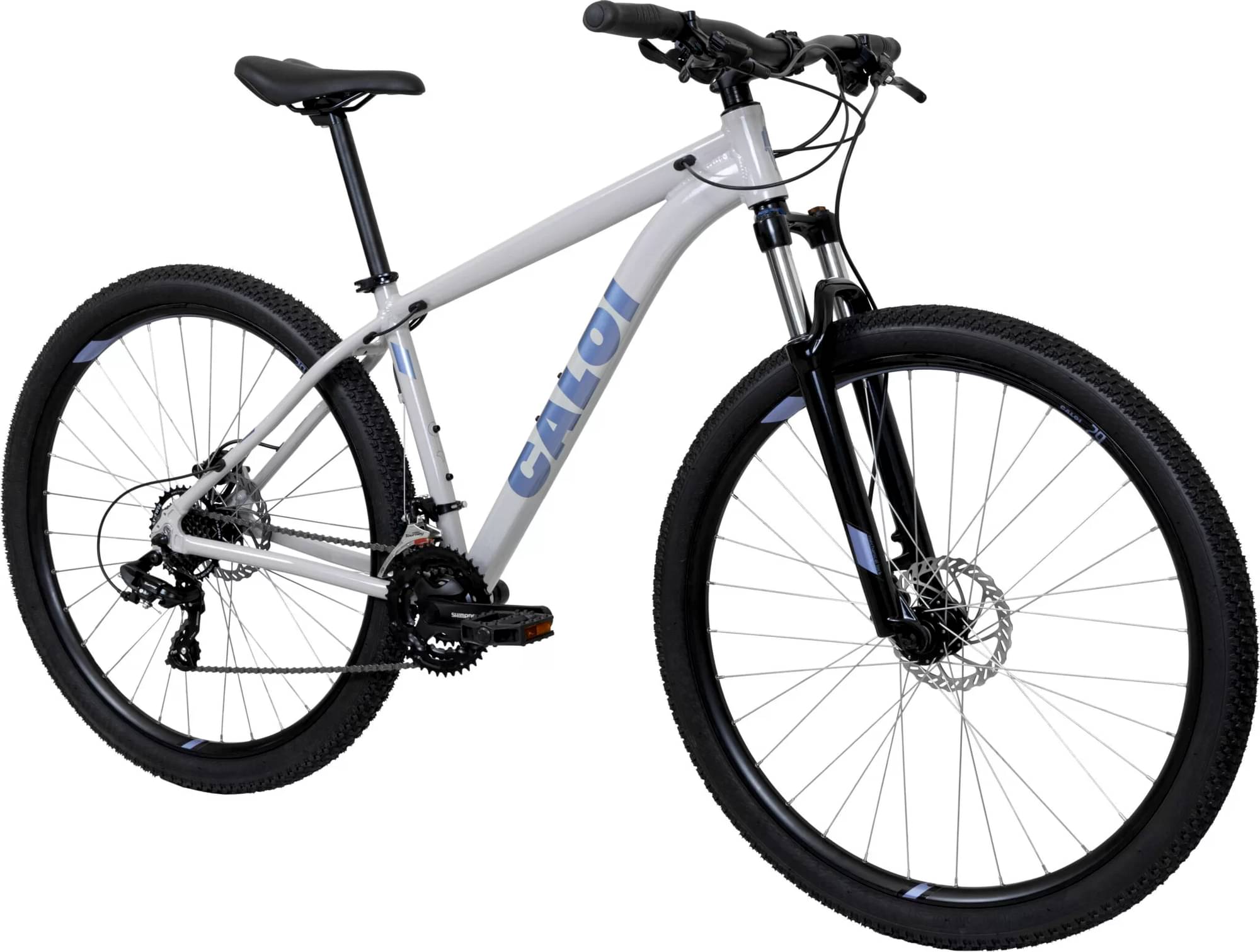

Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Caloi
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Promax Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

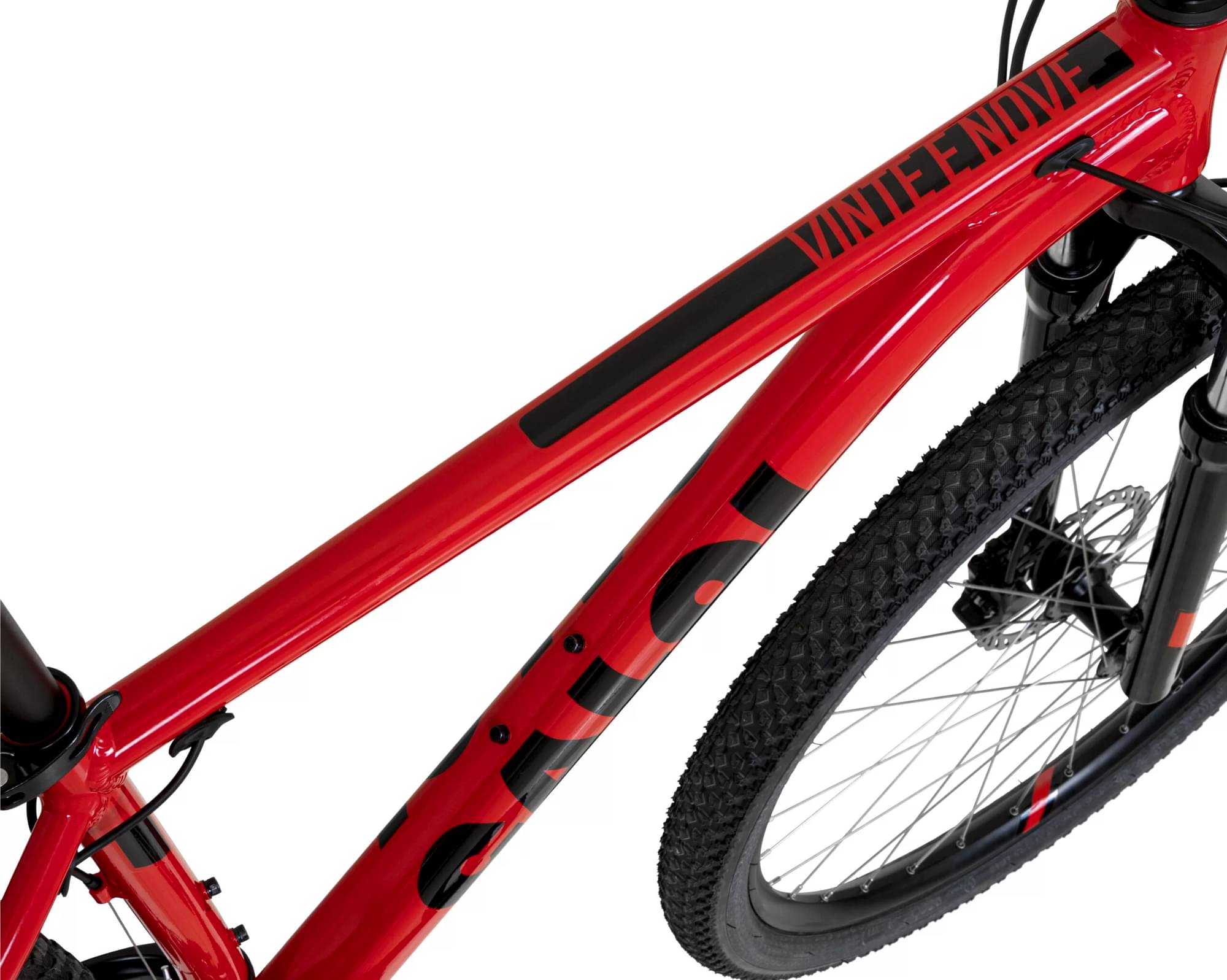

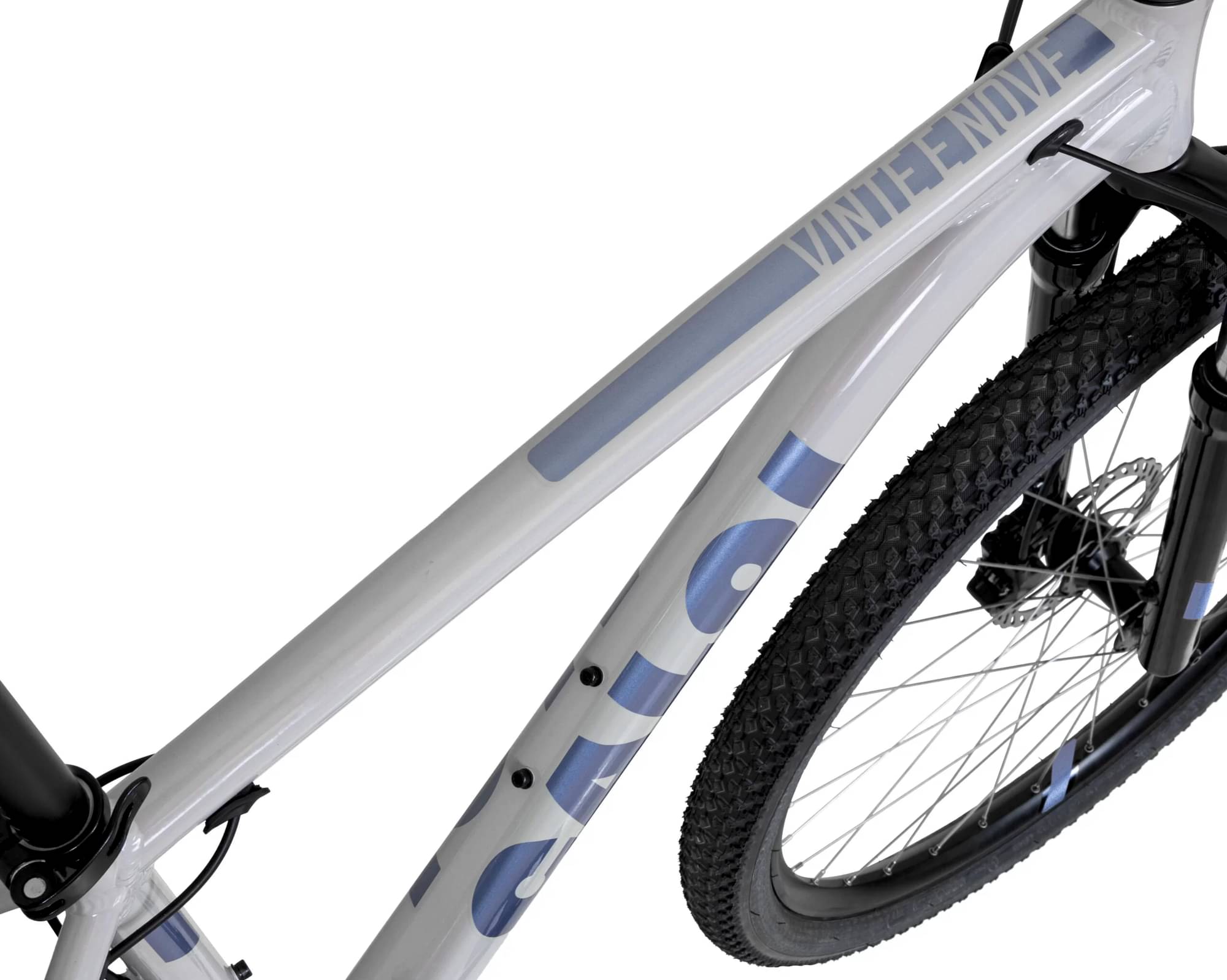

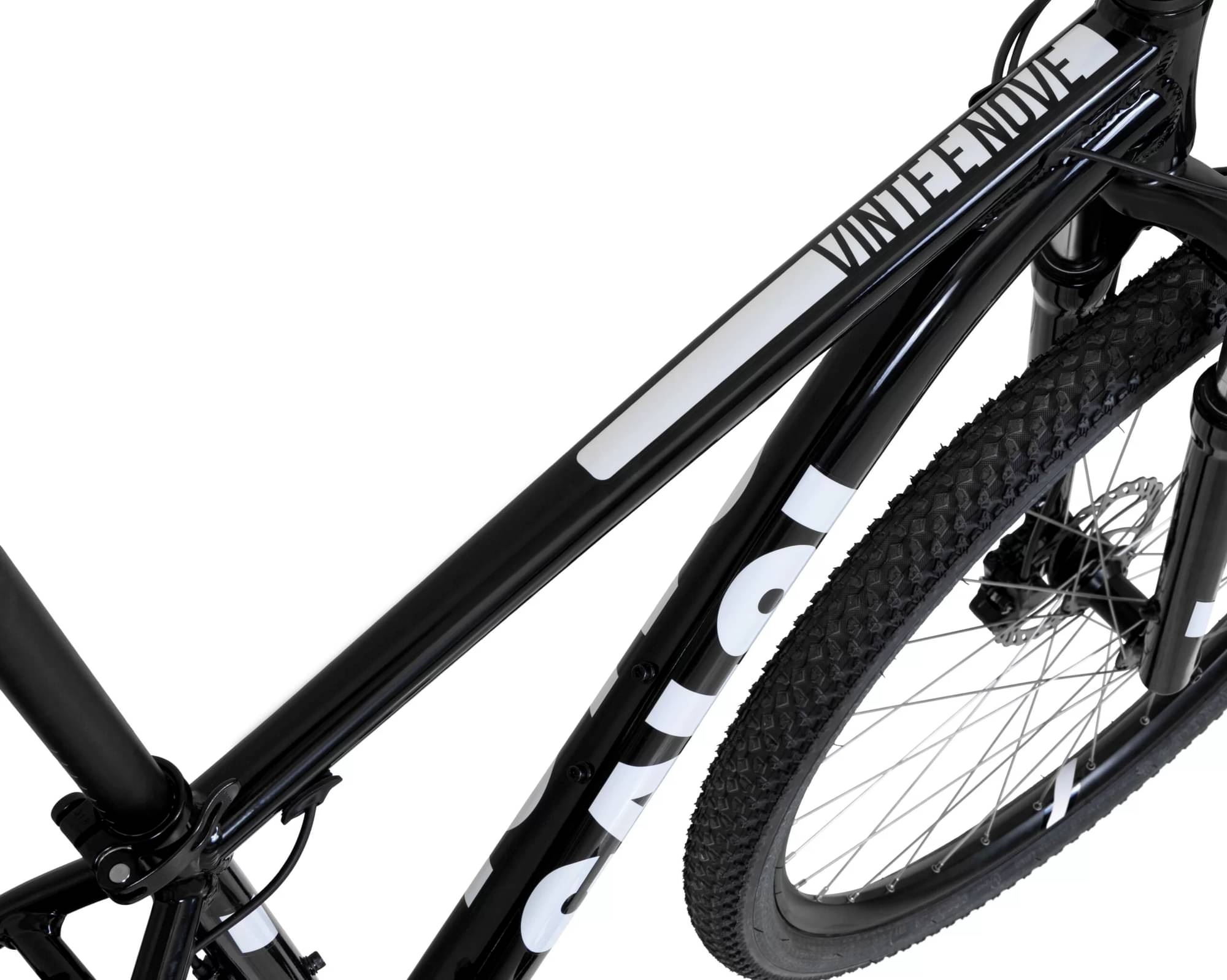

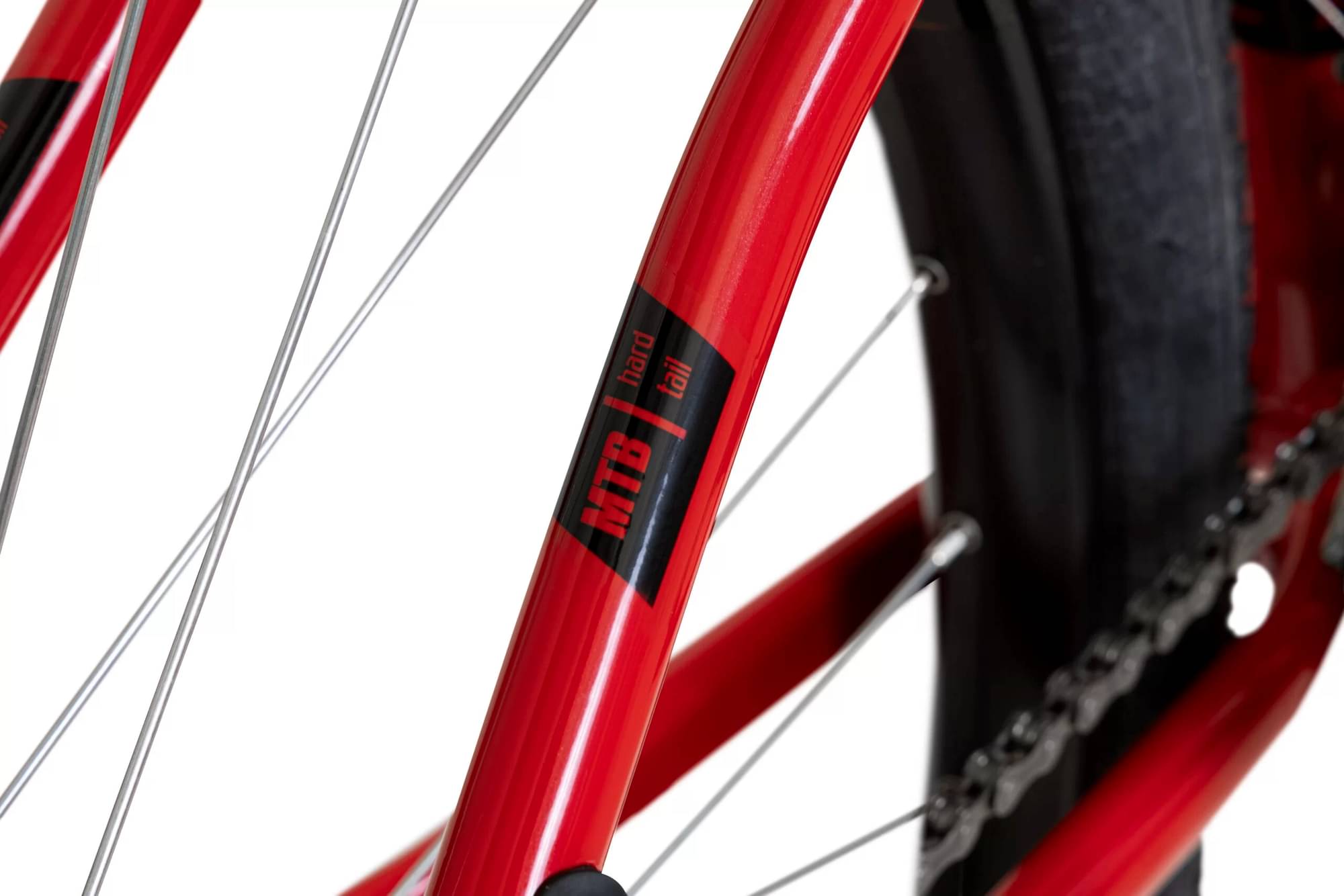

Frame
Frame
Formed 6061 Aluminum, Removable Hook, Forged Disc Brake Dropouts

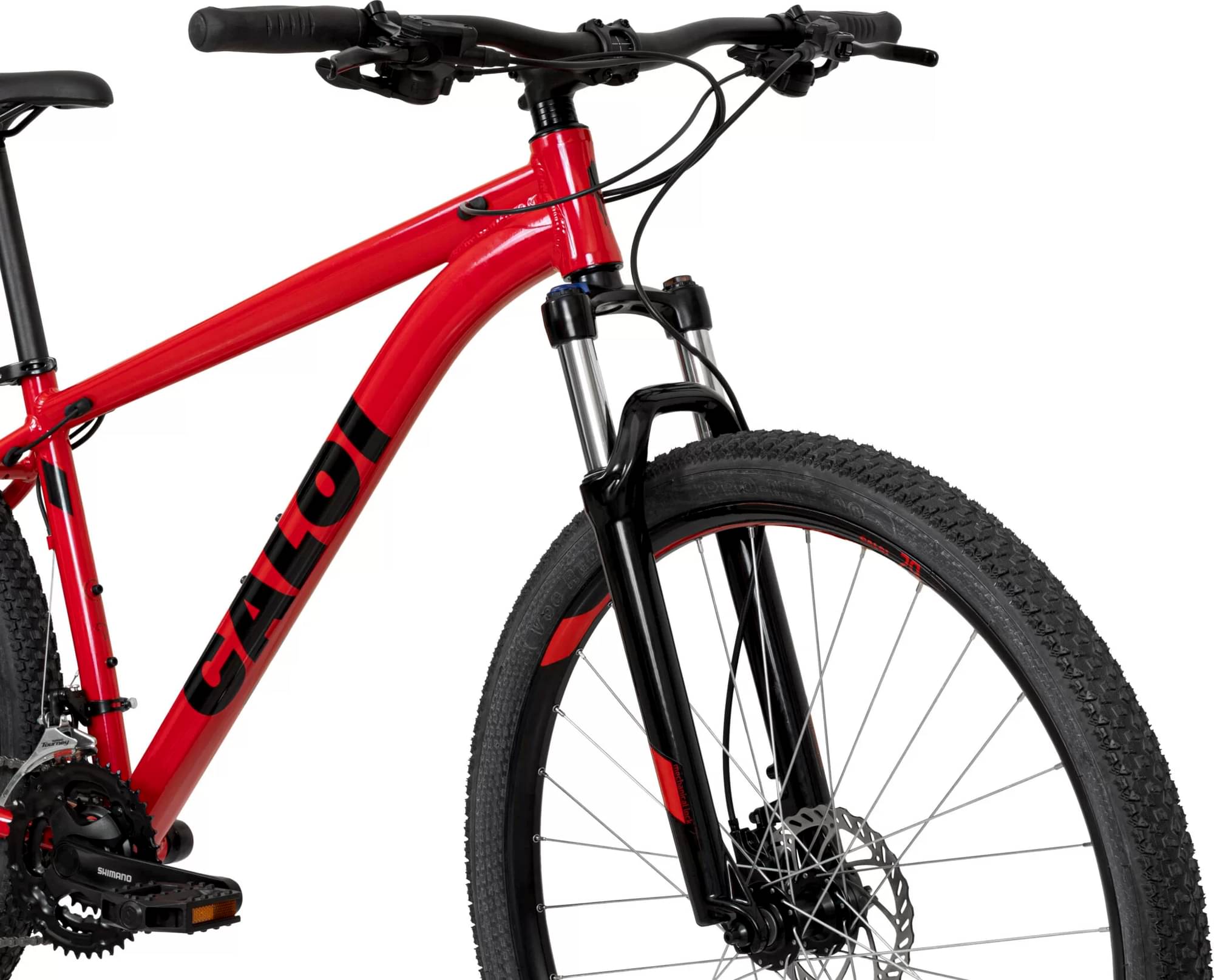

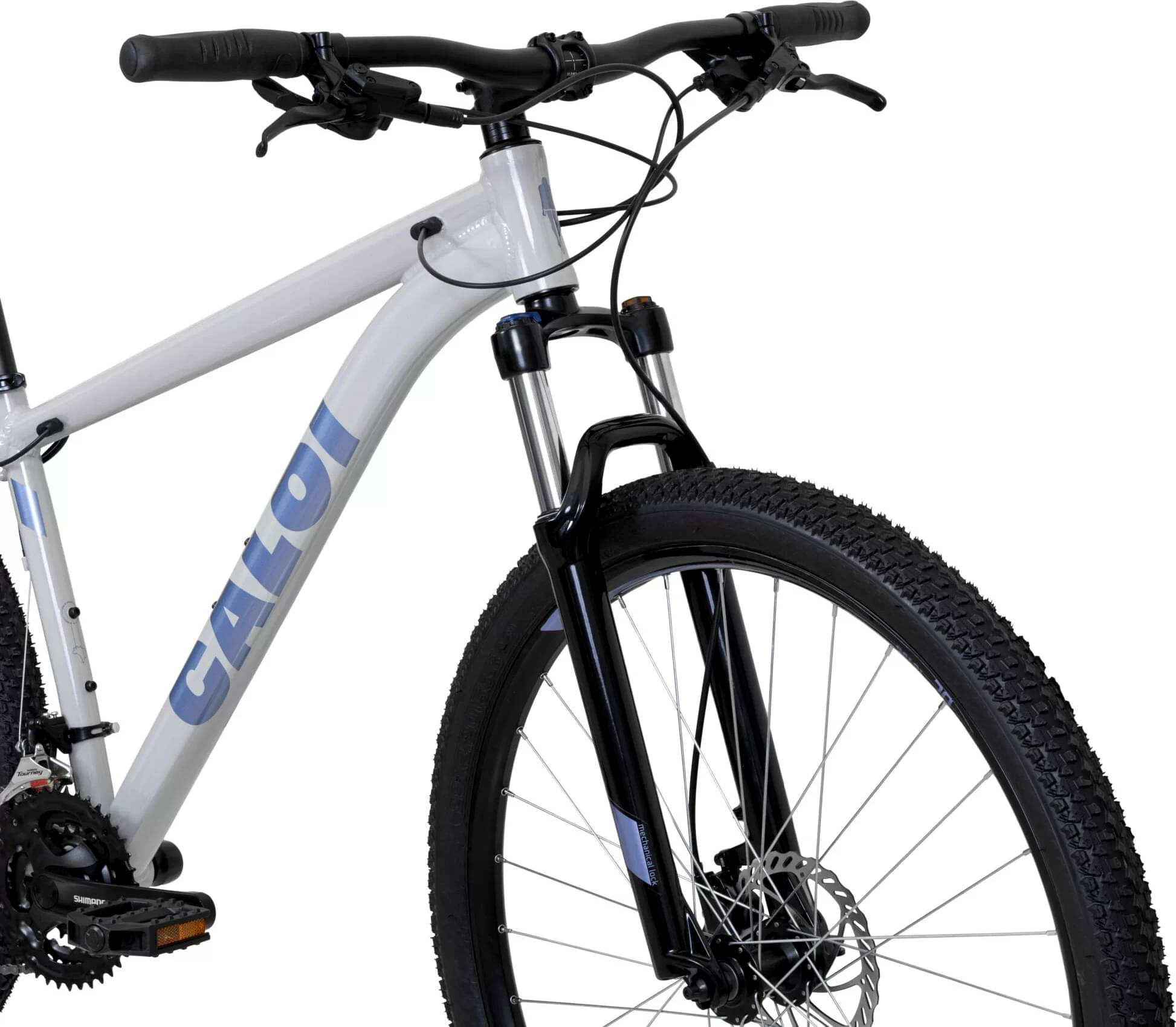

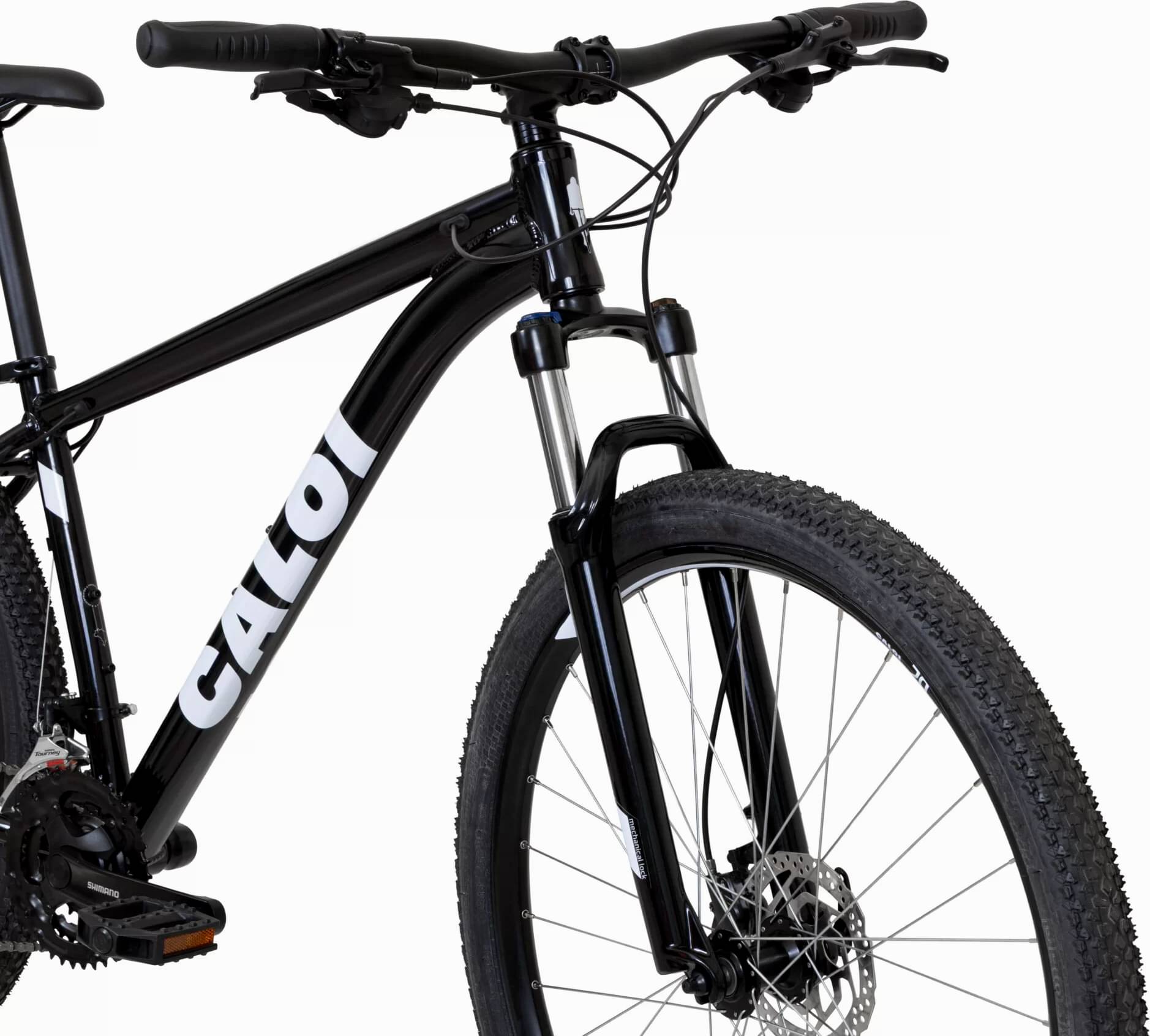

Suspension Fork
Caloi suspension with 100 mm travel and manual hydraulic lock

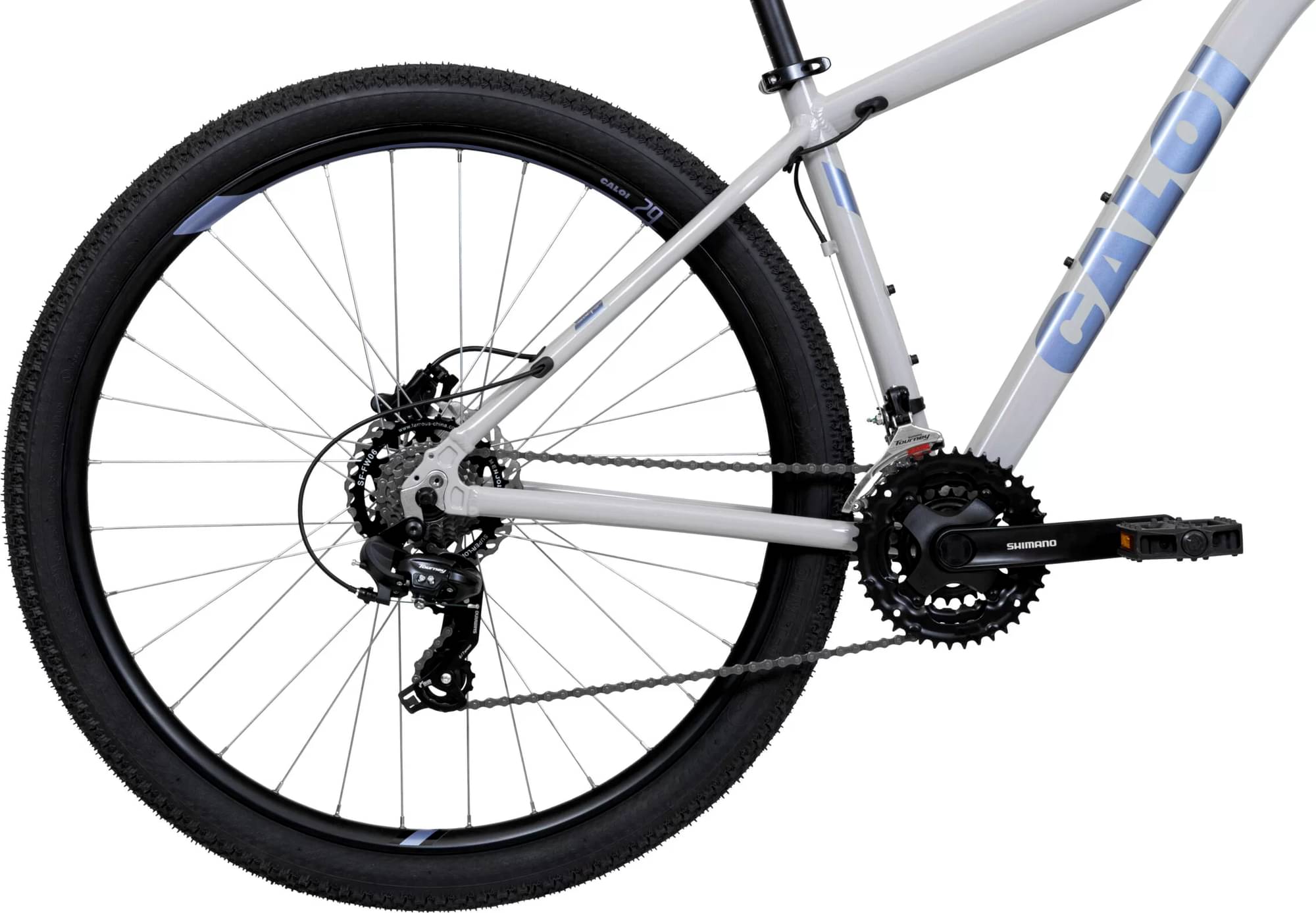

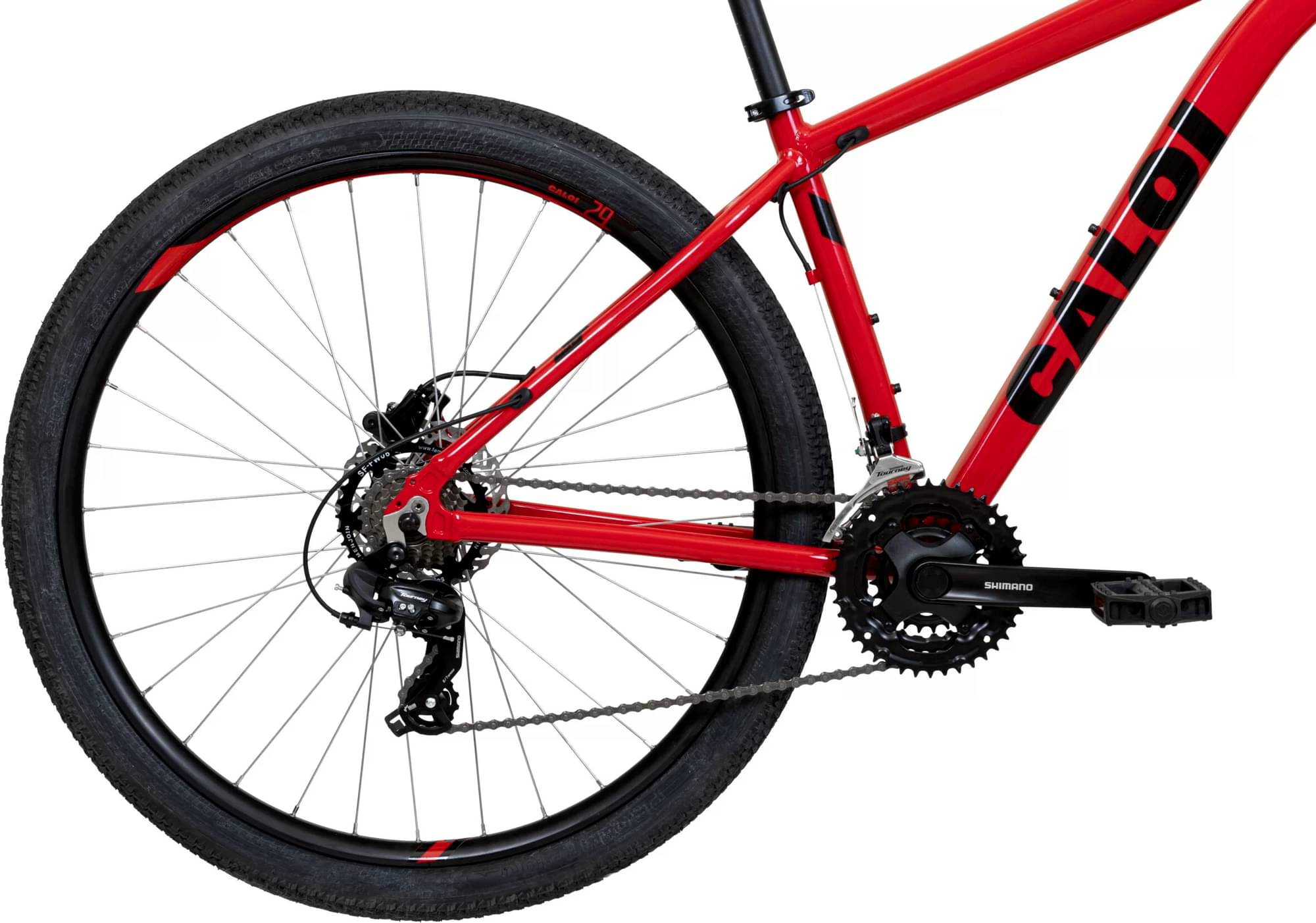

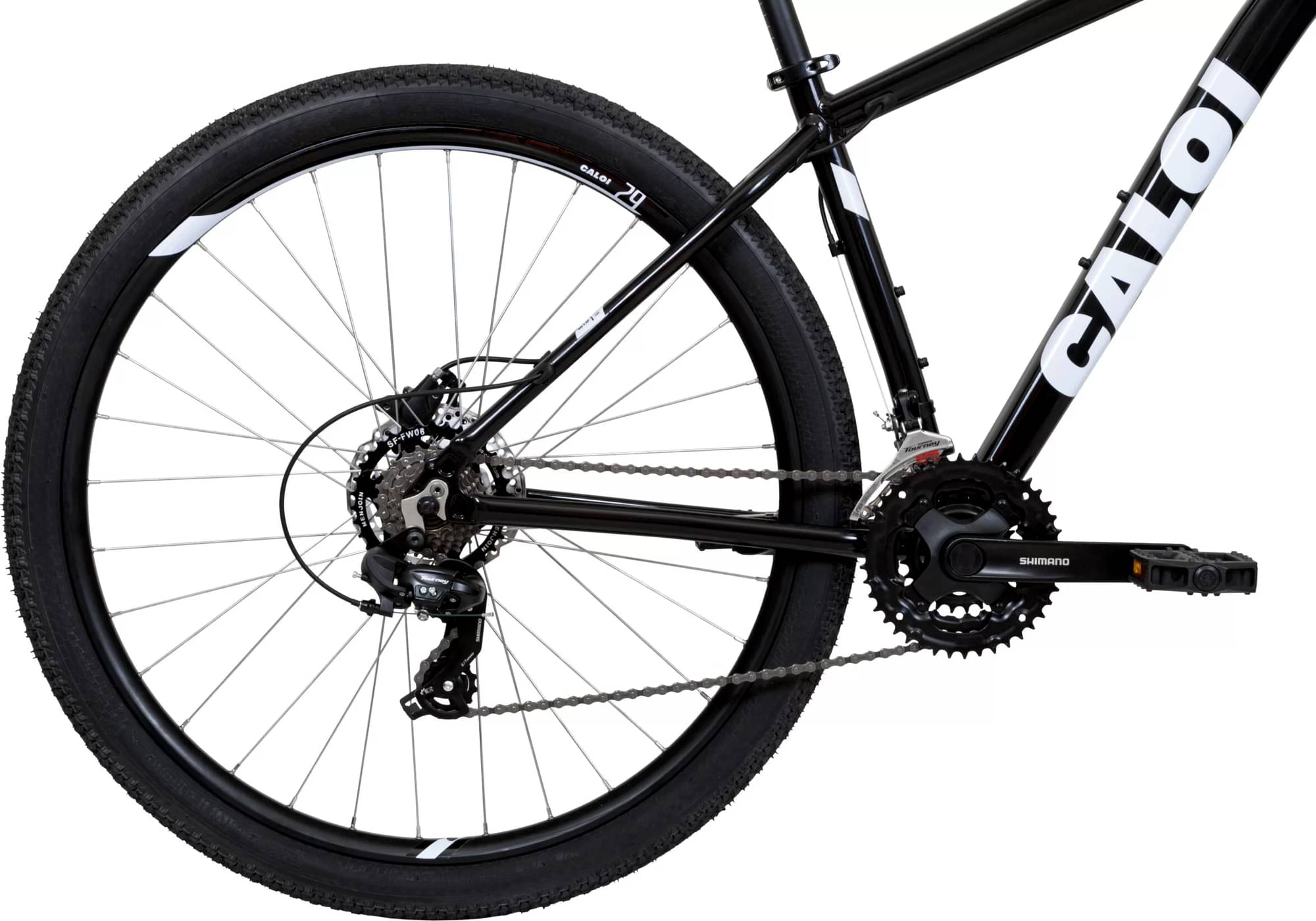

Drivetrain
Rear Derailleur
Shimano RD-TY300 7V
Front Derailleur
Shimano TY300 or TY500
Cassette
Shunfeng Freewheel - 7 Speed - 14-34T
Crank
Shimano TY-301 - 42x34x24T (TP 170mm and TM and TG 175mm)
Pedals
Freestyle MC-04 9/16
Wheels
Rims
Vzan Strike Pro 29" Rim - Double Wall 32 Holes
Tires
Vee Rubber - Pro MT100 - 29x2.20
Brakes
Brakes
Hydraulic - Promax Solve - 160mm Rotors

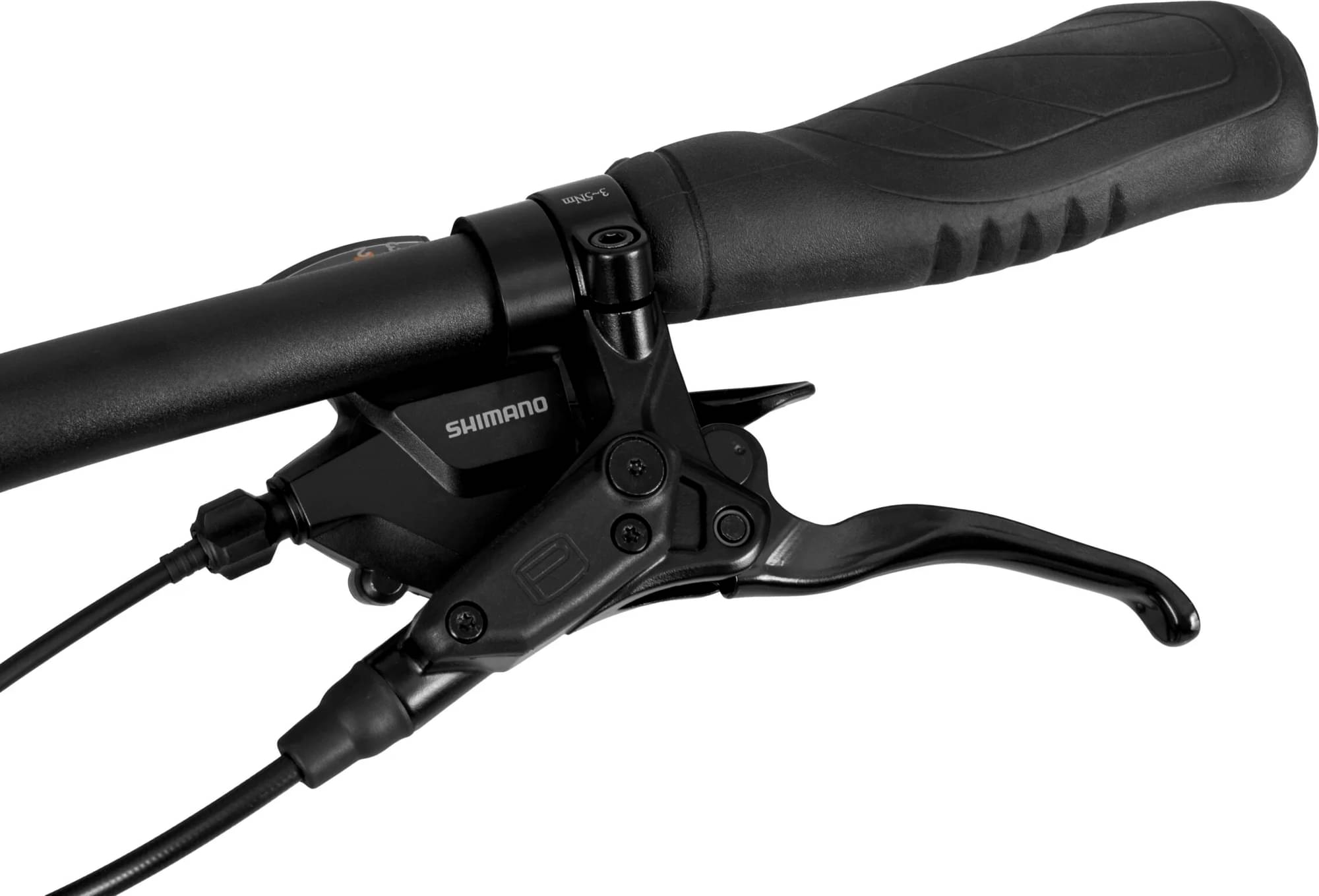

Brake Levers
Aluminum
Cockpit
Handlebar
Aluminum - 31.8X720mm
Seat
Saddle
DDK D5311
Seatpost
Aluminum 27.2x400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | P | MD | G |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
