Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 80mm -
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Logan Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Treated, shaped 6061 aluminum frame with standard disc brake mount and removable dropout.

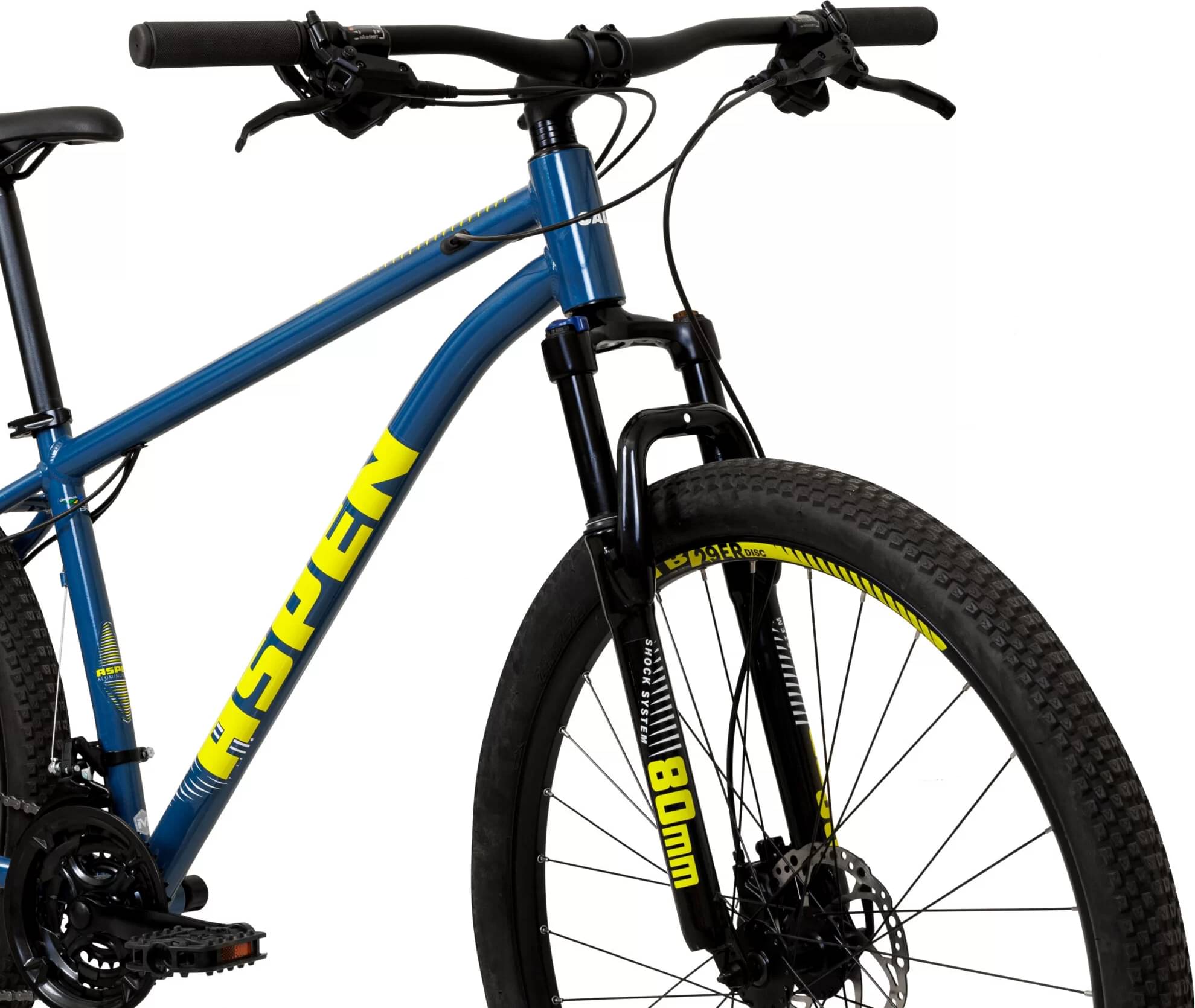

Suspension Fork
Suspension with 80mm of travel and mechanical lock on the fork shoulder

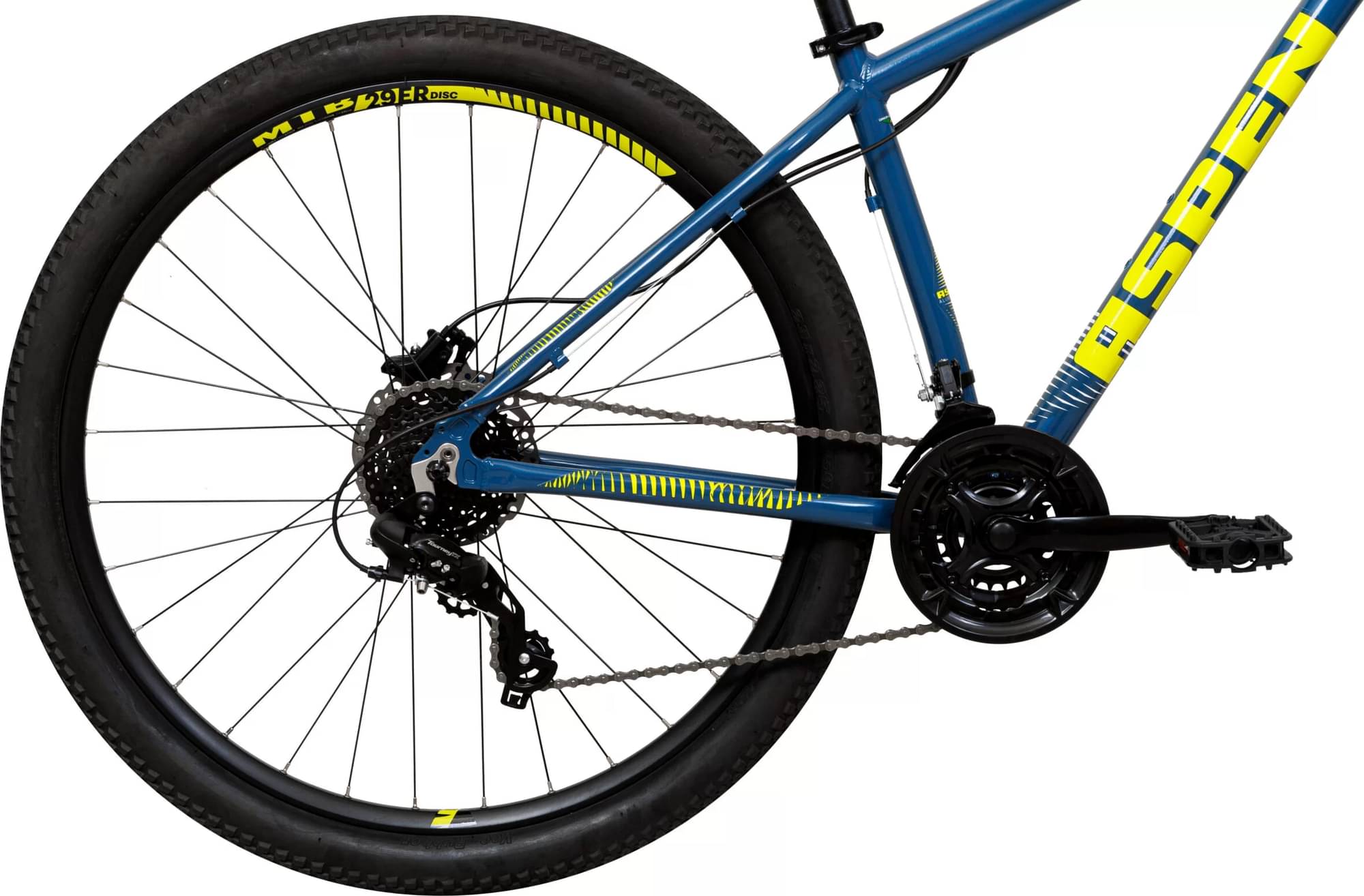

Drivetrain
Rear Derailleur
Shimano Tourney TX800 - 8V
Front Derailleur
Power - 3v
Cassette
Sunrace CS-M55 - 11-34D 8v
Crank
Everestt Aluminum - 3V - 24/34/42T - 170MM
Bottom Bracket
BSA, threaded
Pedals
Feimin FP803B - Plastic
Wheels
Rims
Vzan Rim 29, 32 holes
Tires
MTB - 29X2.20
Brakes
Brakes
Logan HDM500 - Hydraulic

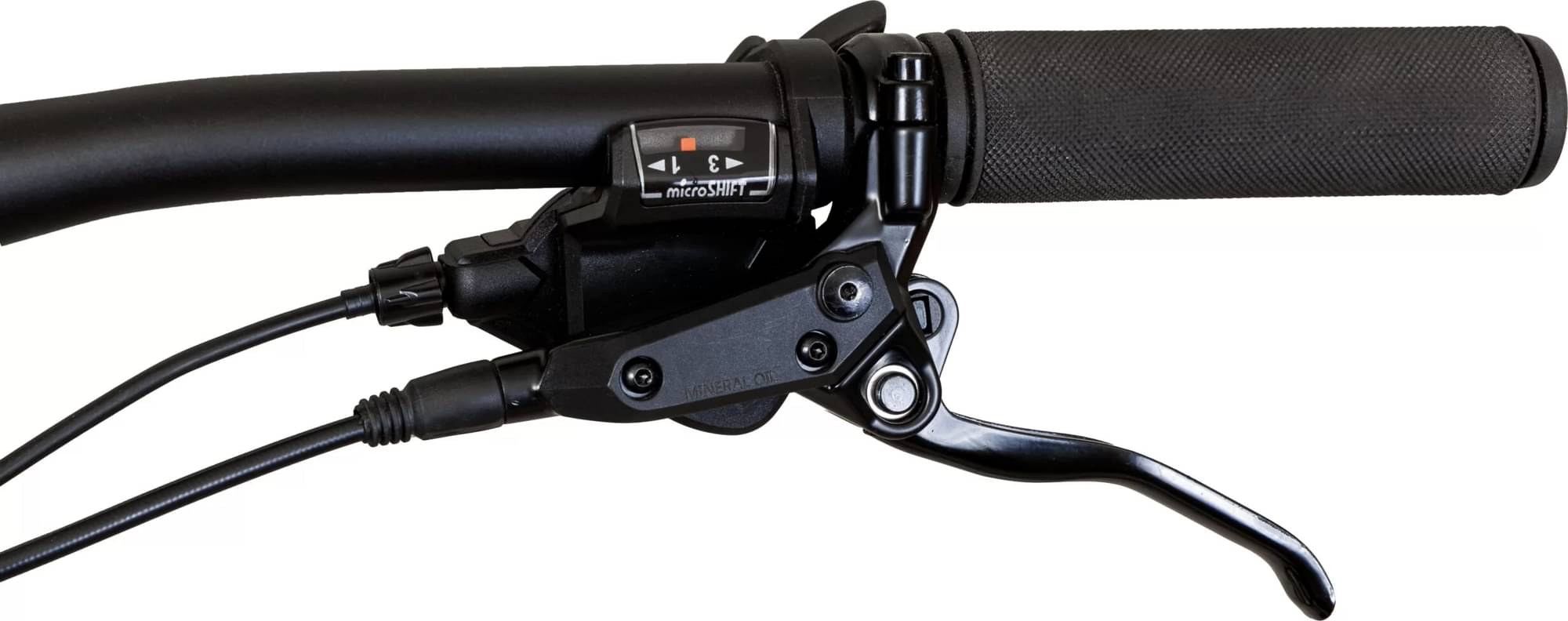

Brake Levers
Logan Aluminum HDM500
Cockpit
Handlebar
MTB Aluminum 31.8x740mm
Seat
Saddle
Royal Cycle - Veloce
Seatpost
Aluminum - 27.2x400 mm - Quick release adjustment
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD |
|---|---|
| Wheels | 29" |
