Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork RockShox Reba
-
Groupset SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

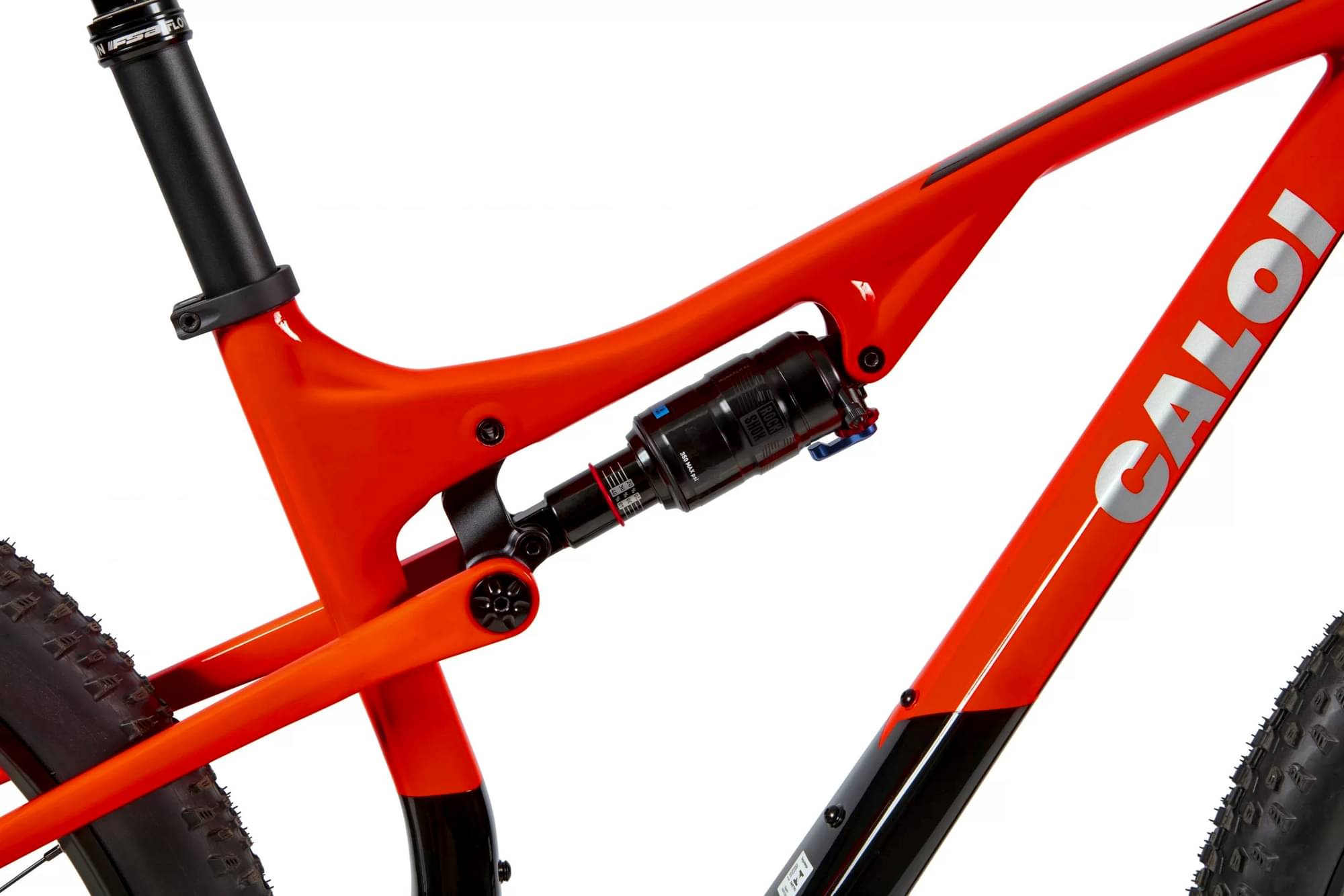

Frame
Frame
Imported carbon, Post Mount disc brake support, 148mm Thru Axle and Tapered Head
Suspension Fork
Rockshox Reba or Suntour Raindon 34 /100mm/Boost/Remote Lock

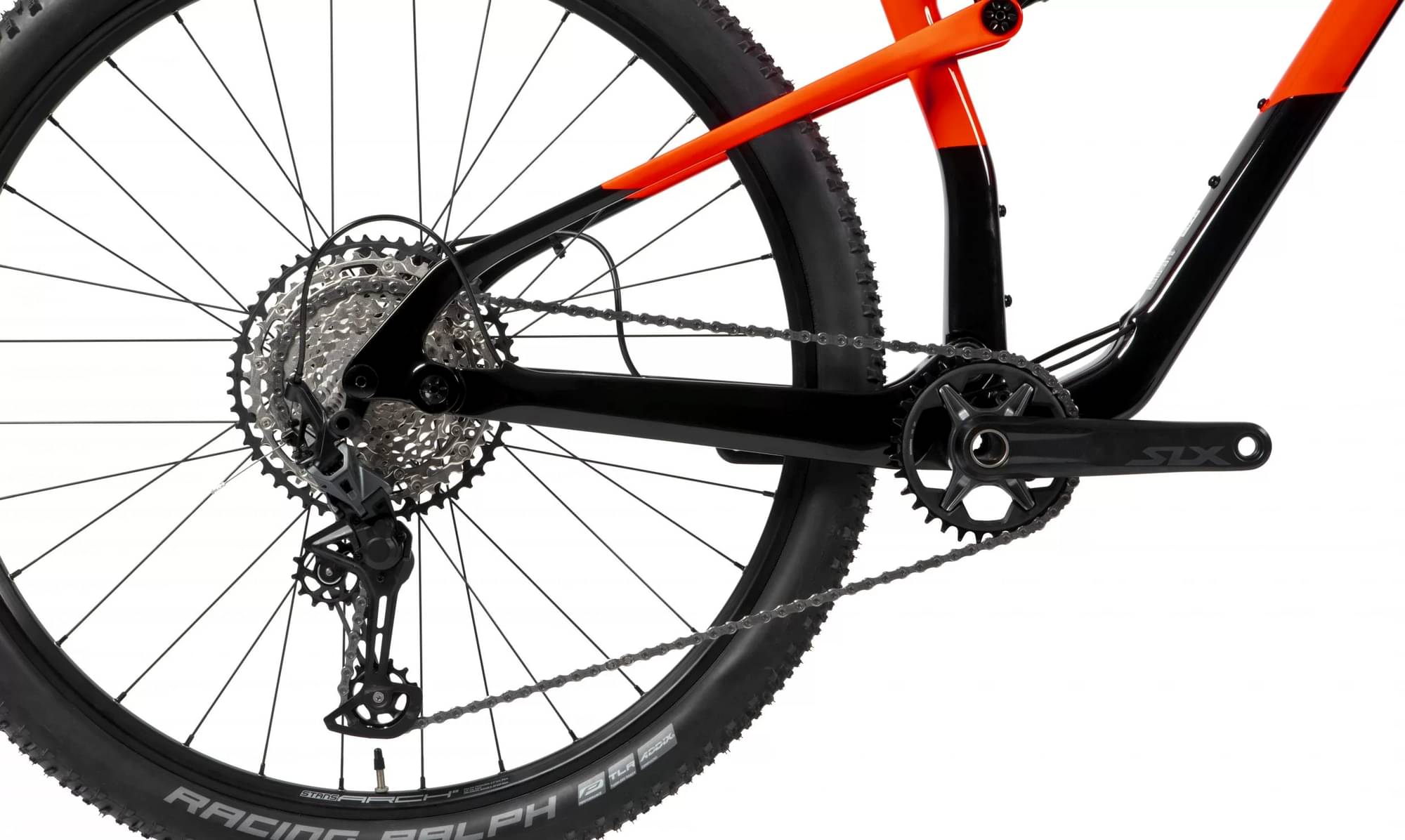

Drivetrain
Rear Derailleur
Shimano SLX - M7100 - 12V
Cassette
Shimano SLX - M7100 - 12V - 10-51D
Crank
Shimano SLX - M7100 - 12V - 175MM (G, M), 170MM (P) - 32T
Chain
Shimano Deore - M6100
Wheels
Tires
Schwalbe Racing Ray/Ralph - 29x2.25 or Schwalbe Nobby Nic - 29x2.25
Brakes
Brakes
Shimano M4100, hydraulic
Brake Levers
Shimano - M4100
Cockpit
Handlebar
FSA Comet or Race face Ride - Flat Bar - 31.8X740MM

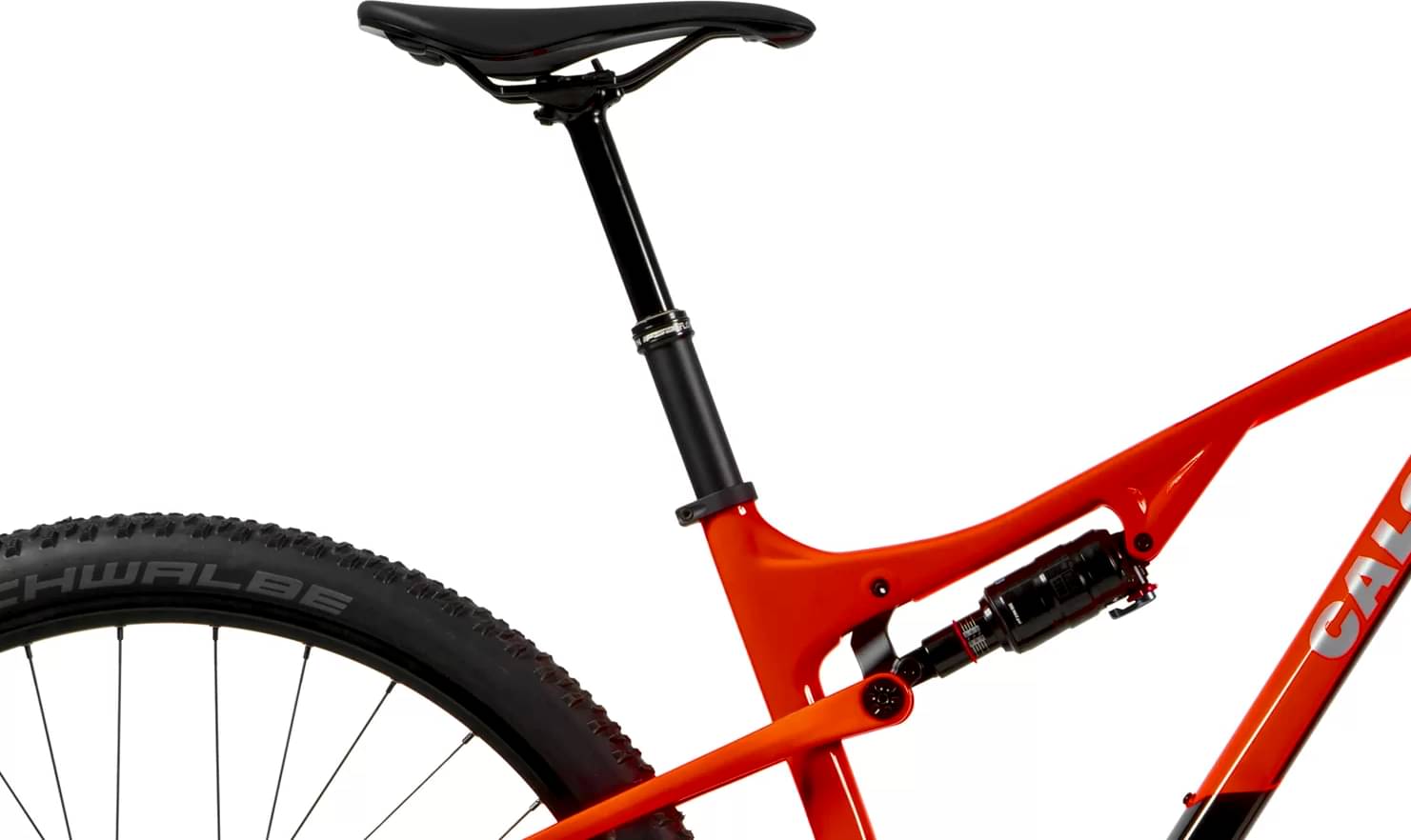

Seat
Saddle
Fabric Scoop Shallow
Seatpost
FSA Flowtron 31.6x401mm or Race Face AEFFECT Retractable - 31.6x380/125mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | MD | 19" |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
