Bike details
Overview
Key information split into simple groups.

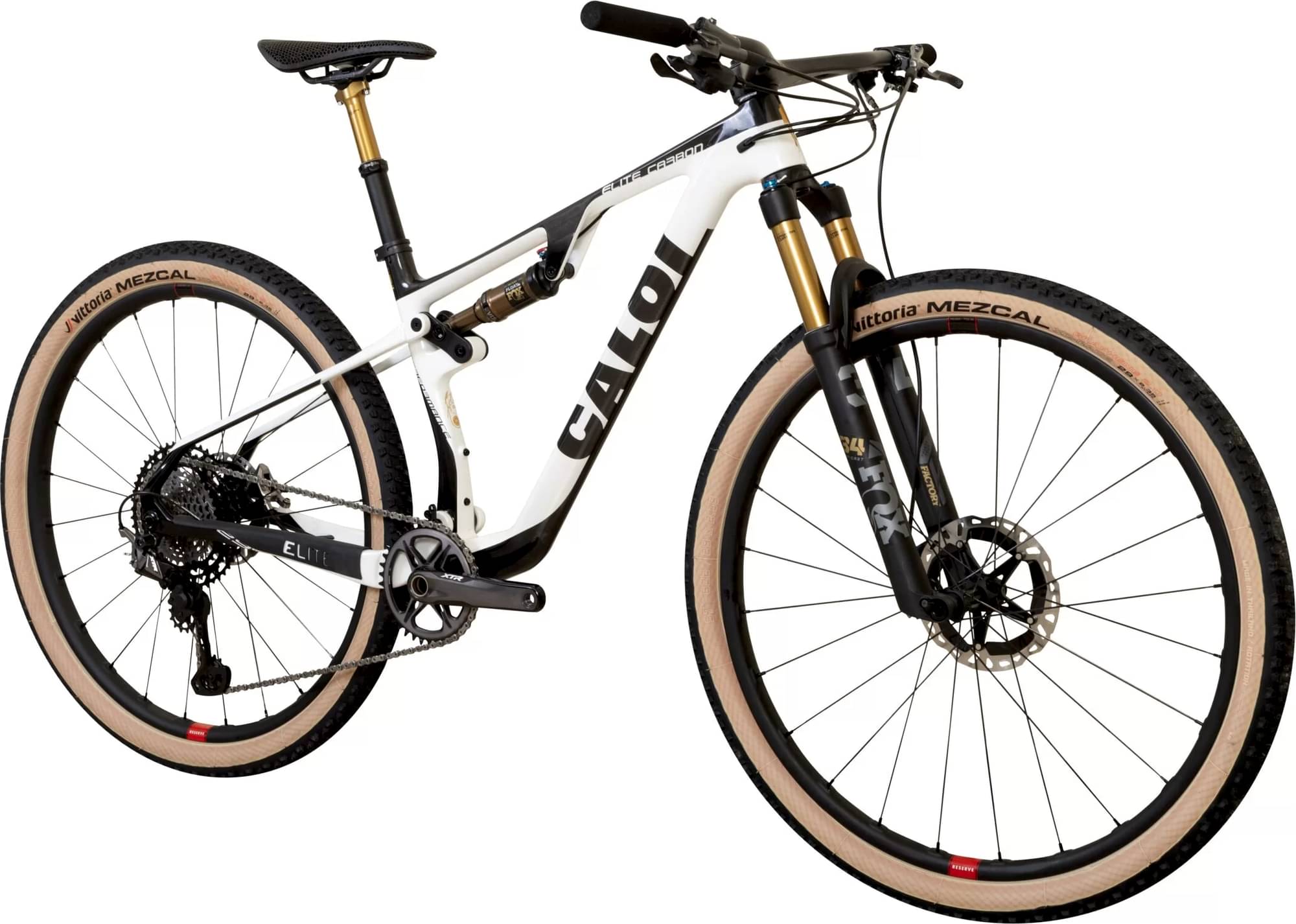

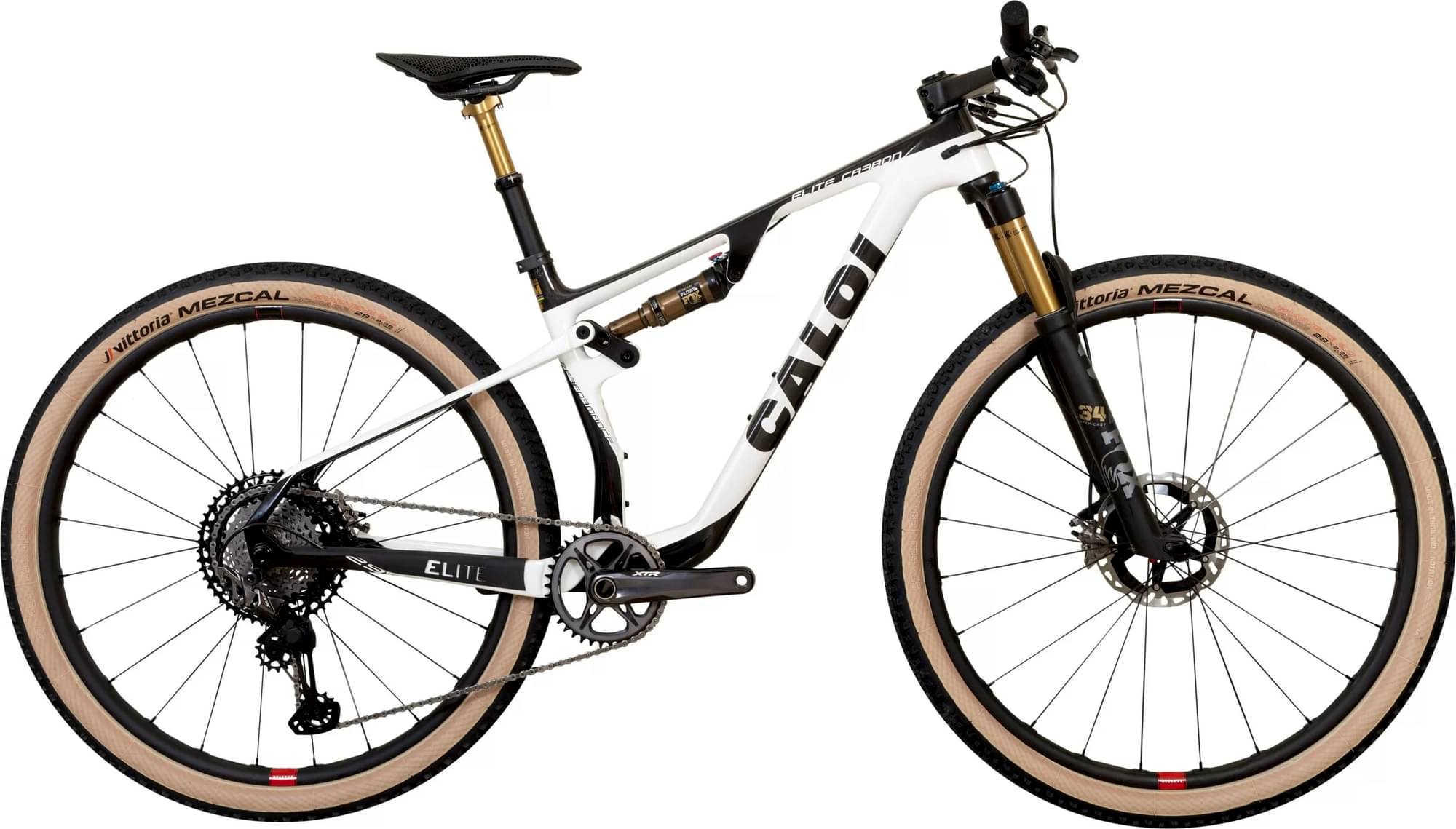

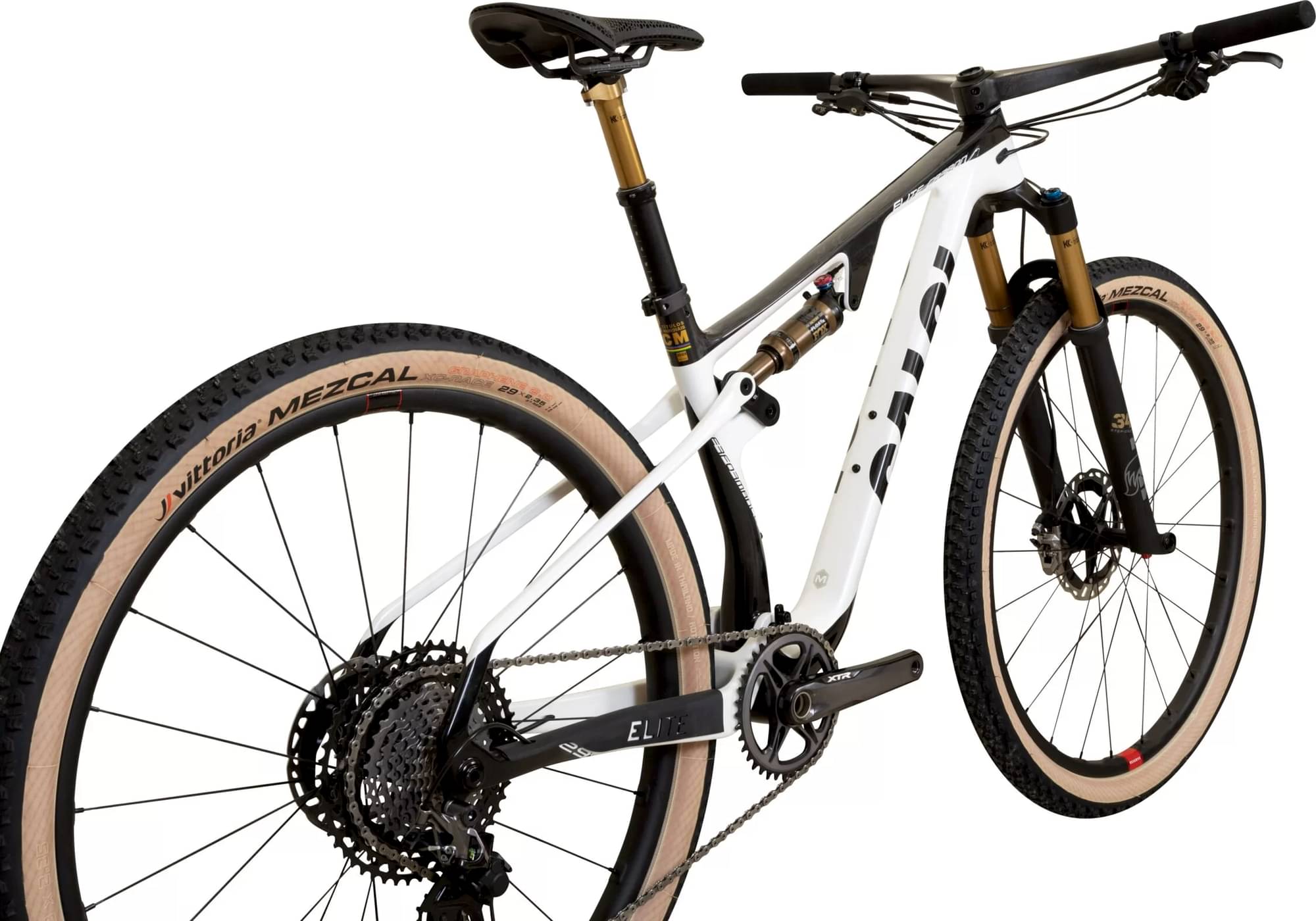

Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset XTR -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

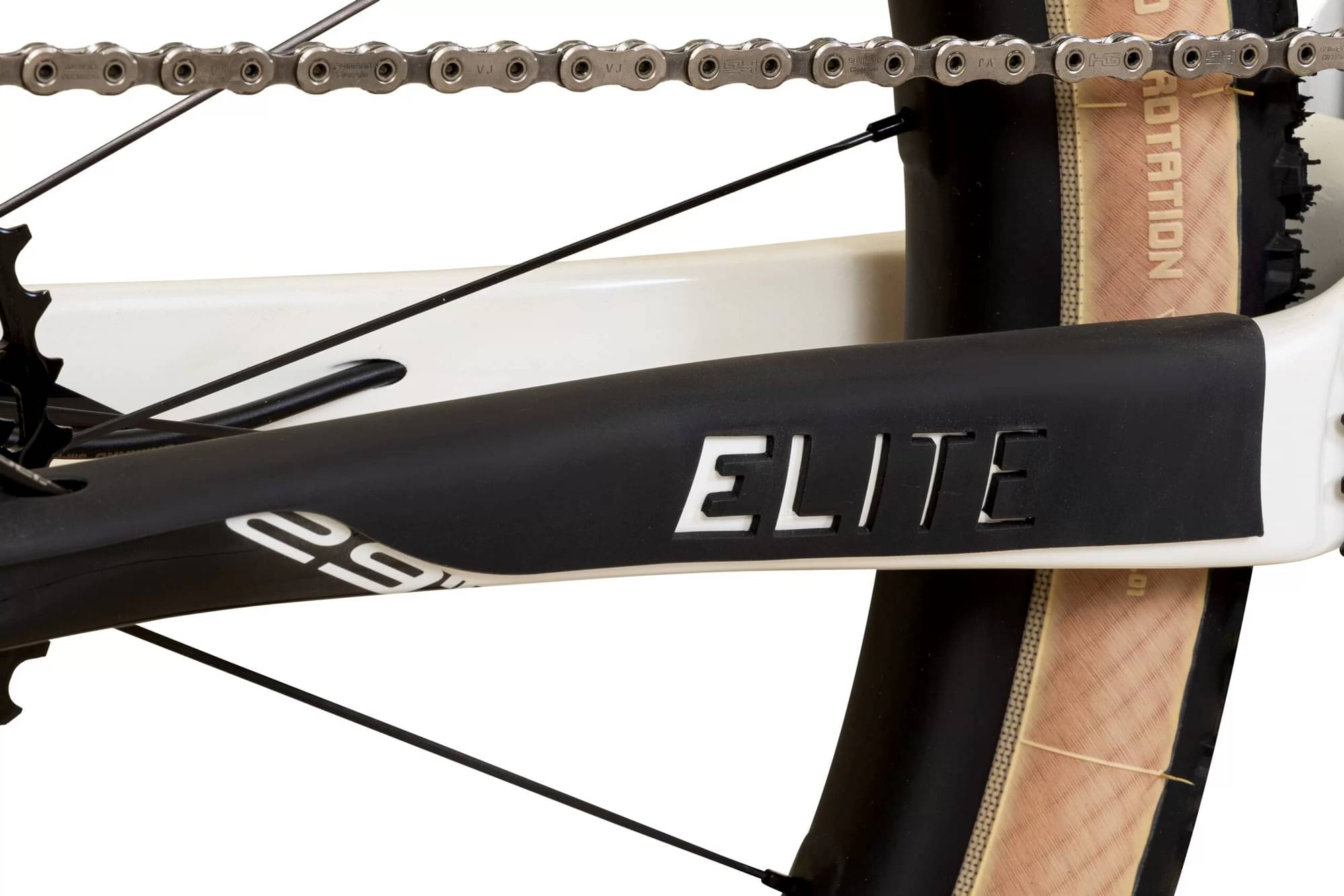

Frame
Frame

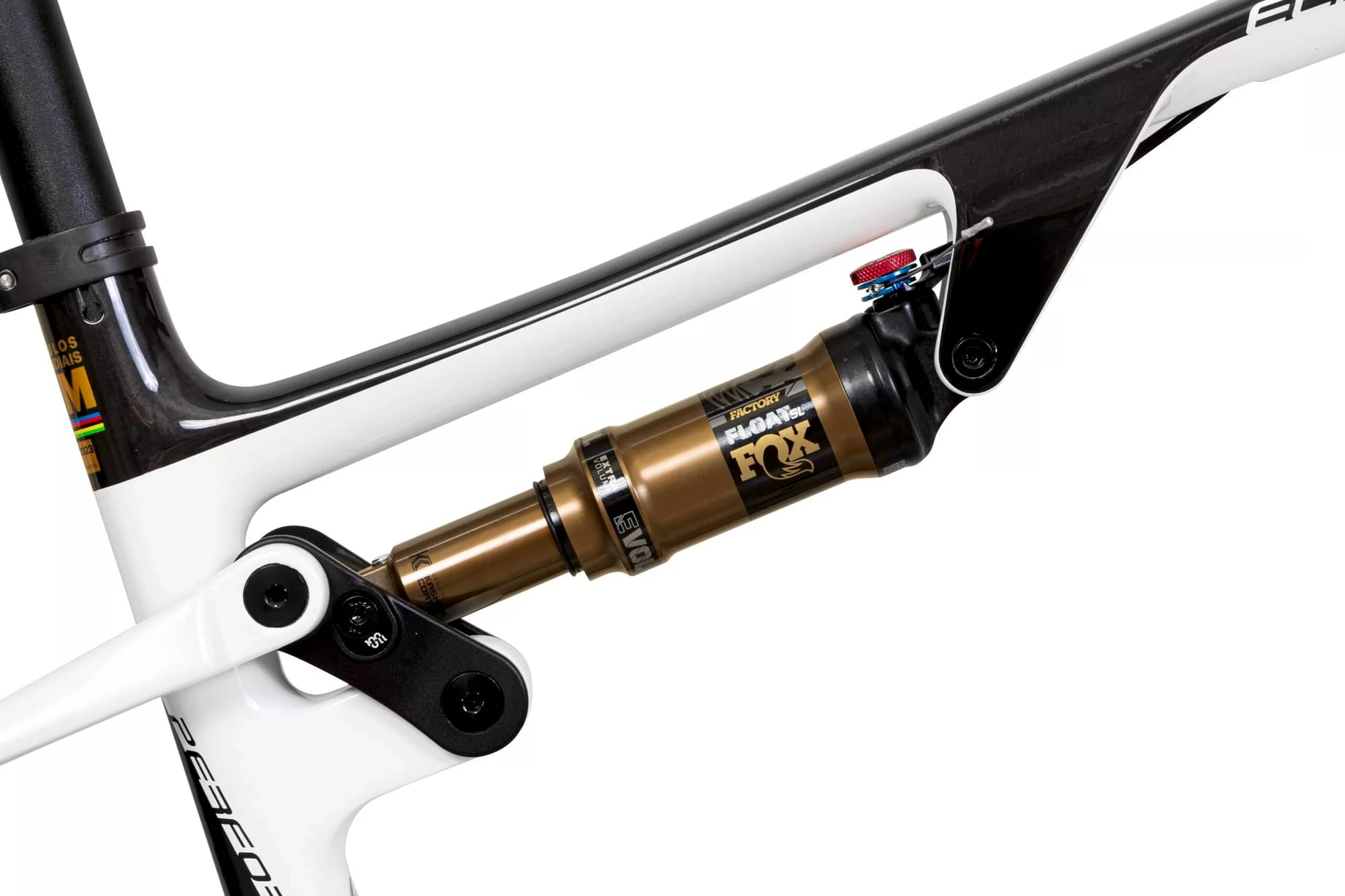

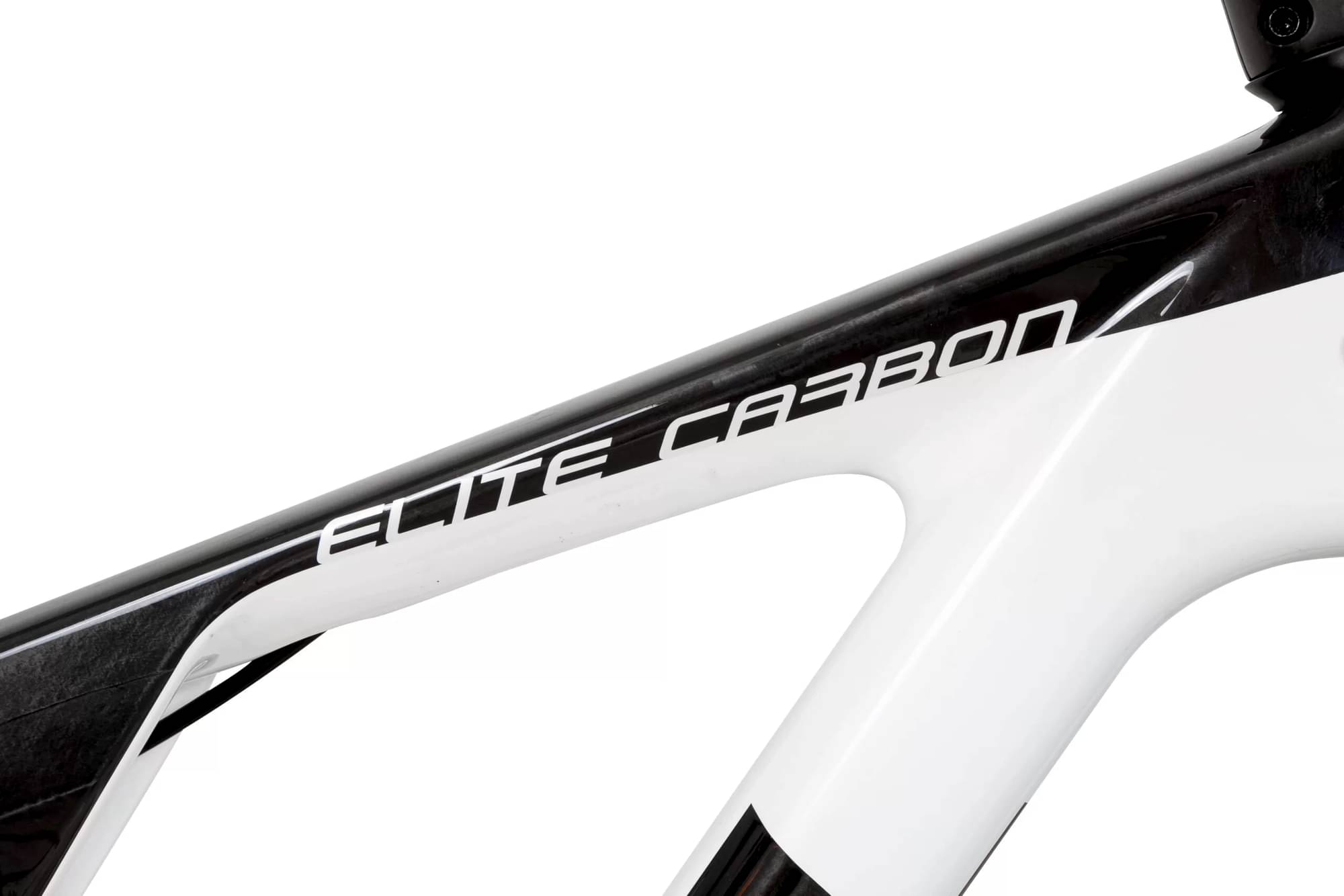

Lightweight Carbon Frame developed by CALOI | Hybrid Travel 100 / 110 mm | 120mm Travel Fork | Internal Cabling | Dropout OLD 148 mm | 92 mm Bottom Bracket | Progressive Kinematics | Single Pivot System | Post Mount Brake fixing system | Developed to fit crowns up to 38T | Tapered head | UDH System | Ready for electronic system | Ready for tires up to 2.4” | Anti-Noise System

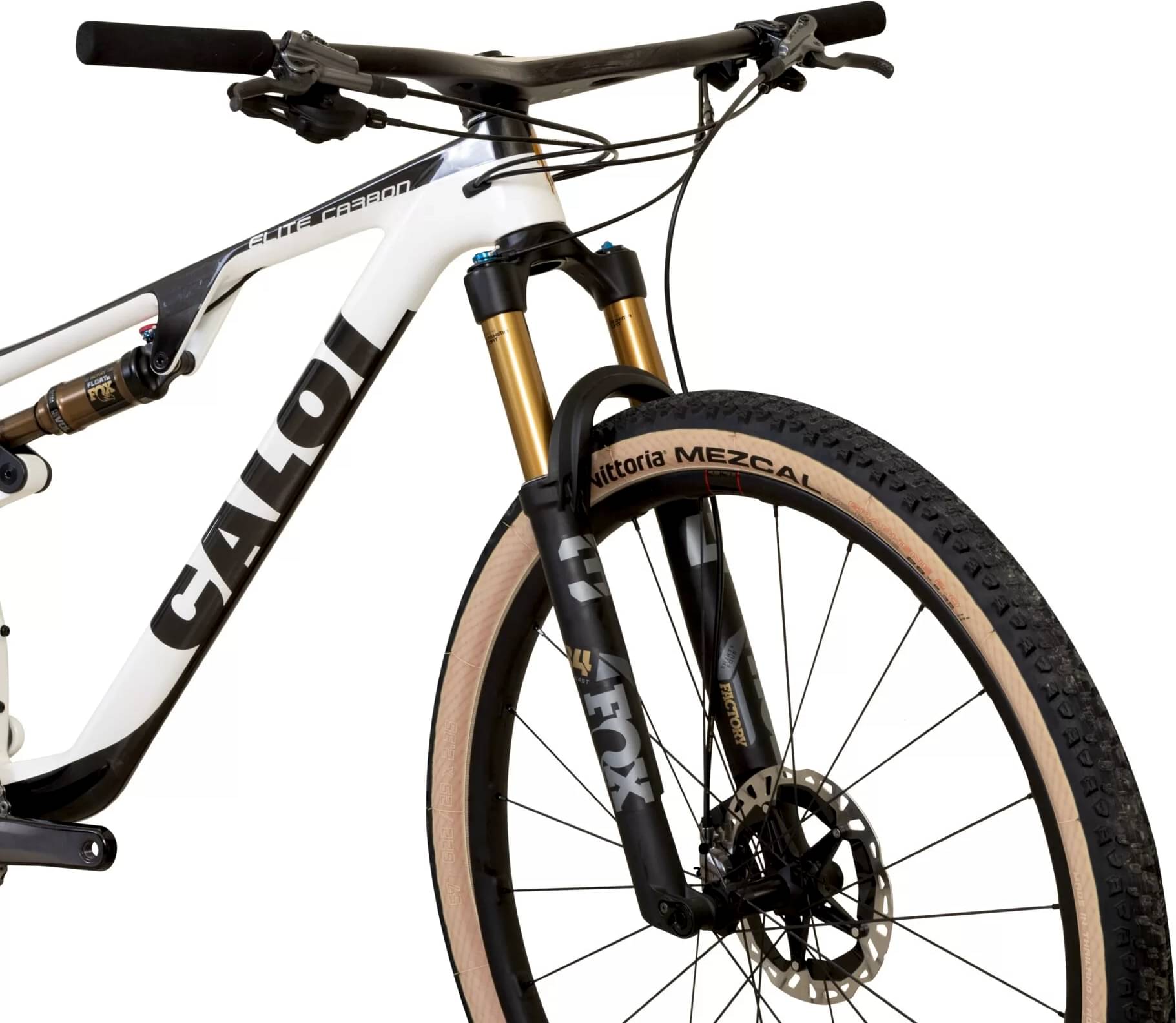

Suspension Fork
Fox Factory 34 120mm 3 drive stages – Boost/ThruAxle

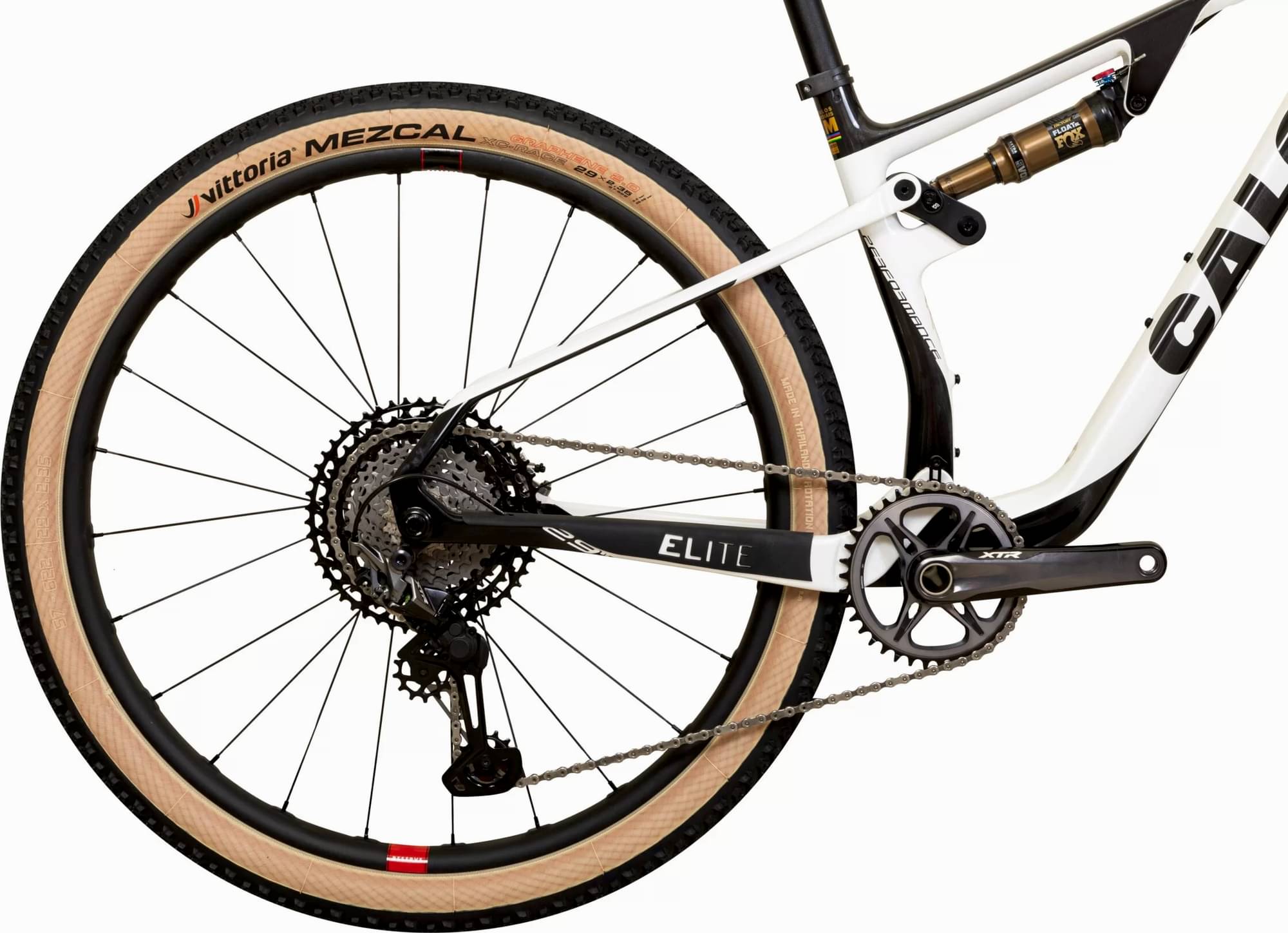

Drivetrain
Rear Derailleur
Shimano XTR- M9100 - 12V
Cassette
Shimano XTR - M9100 - 12V 10-51D
Crank
Shimano XTR- M9100 - 38T - 170mm (S) / 175mm (M, L, XXL)
Chain
Shimano XTR - M9100
Wheels
Tires
Vittoria Mezcal Racing 29X2.35 XCR with stripe
Brakes
Brakes
Shimano XTR - M9100 - Hydraulic - Postmout

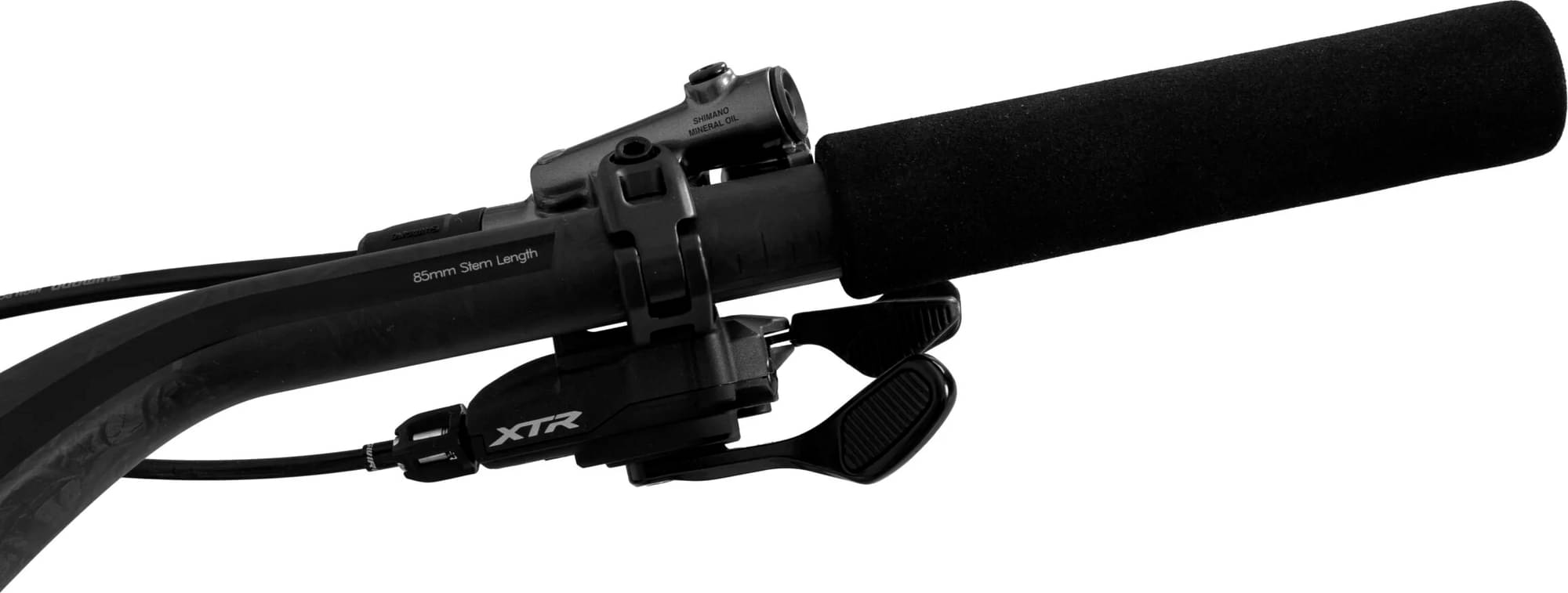

Brake Levers

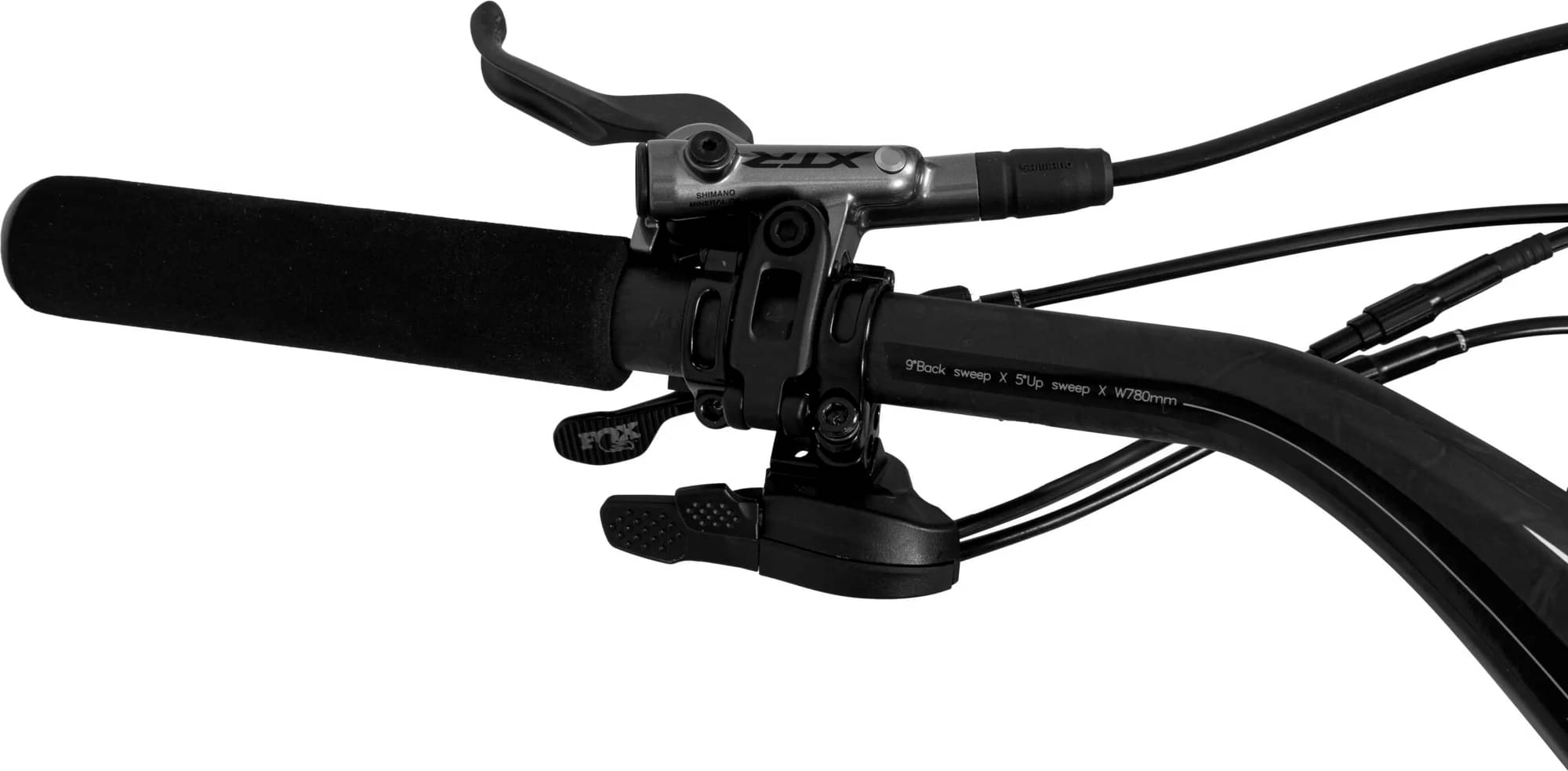

Shimano XTR - M9100 - carbon
Cockpit

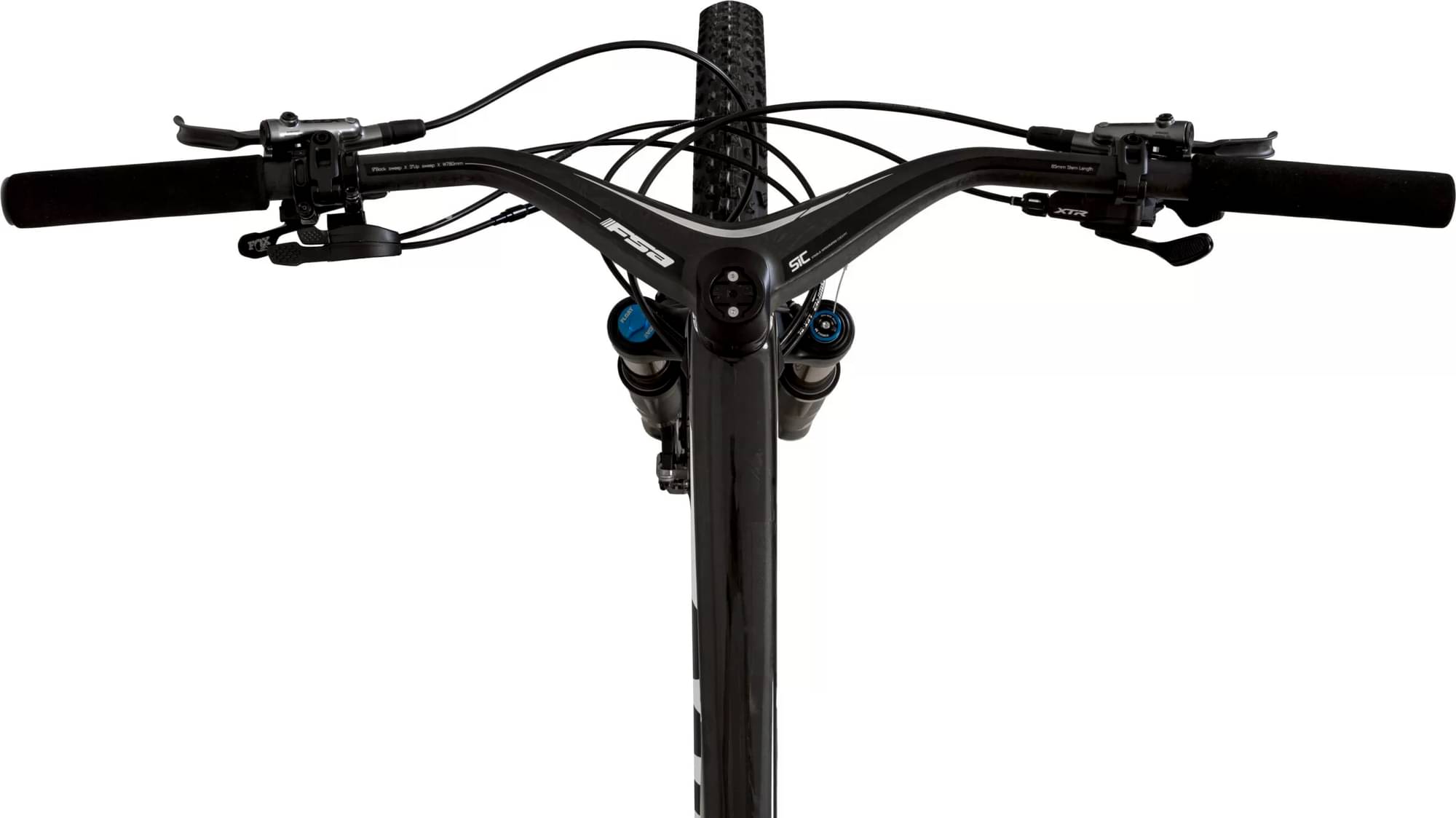

Handlebar
FSA KFX SIC Integrated - 780mm x 65mm (D) / 85mm (M, L, XL) carbon
Seat
Saddle

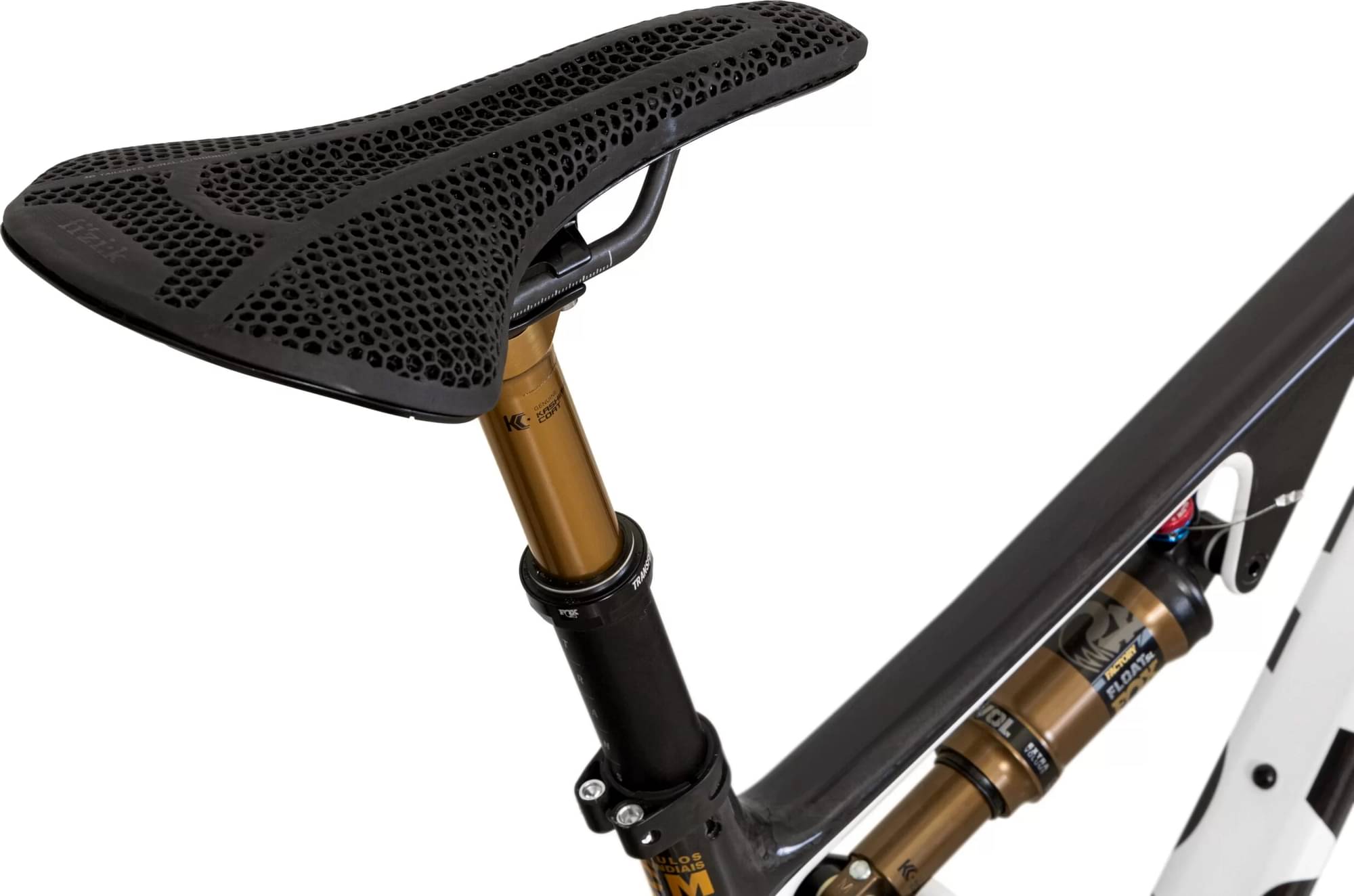

Fizik Vento Antares R1

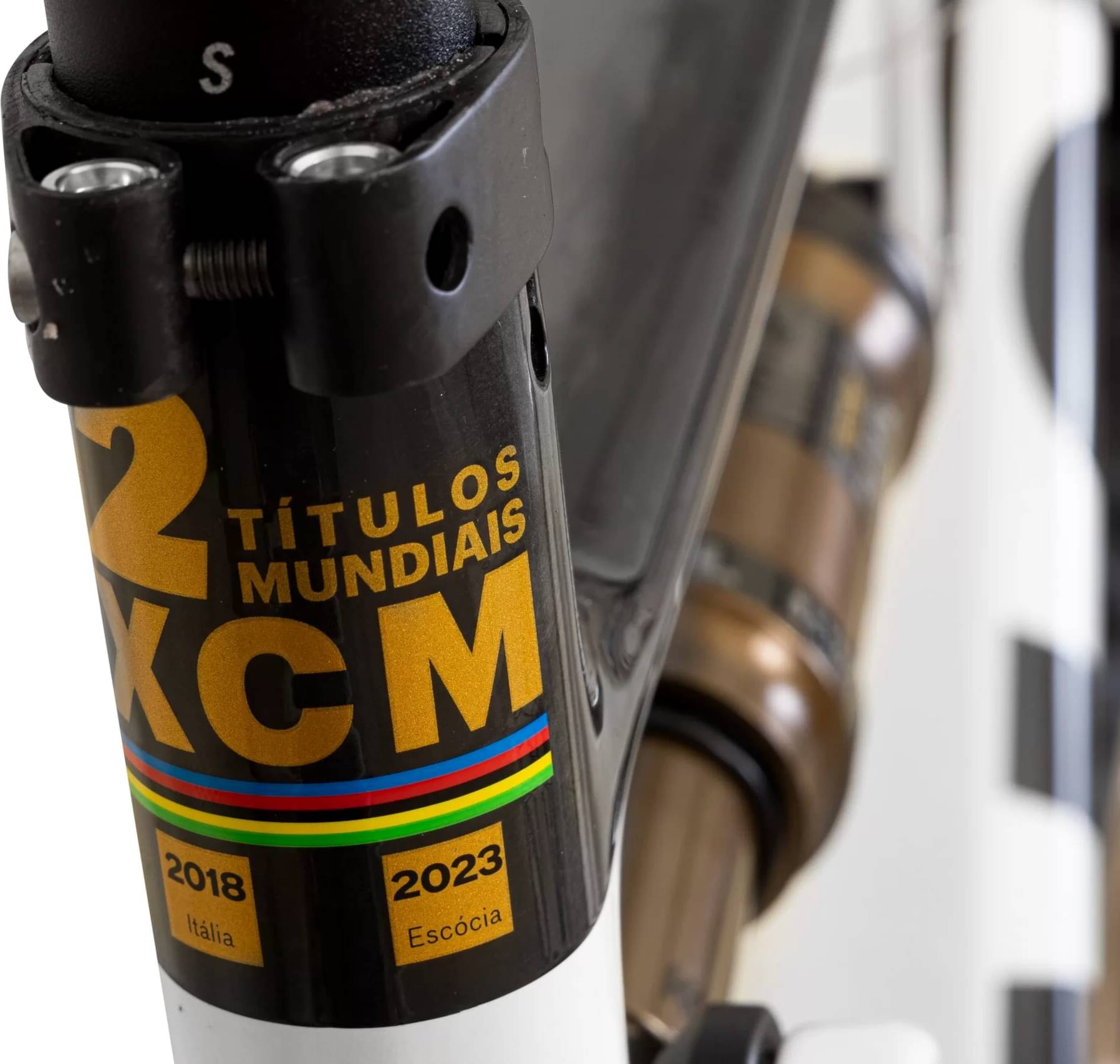

Seatpost
Retractable Fox Transfer F-SK SL- 31.6x75mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | P | MD | G | GG |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
