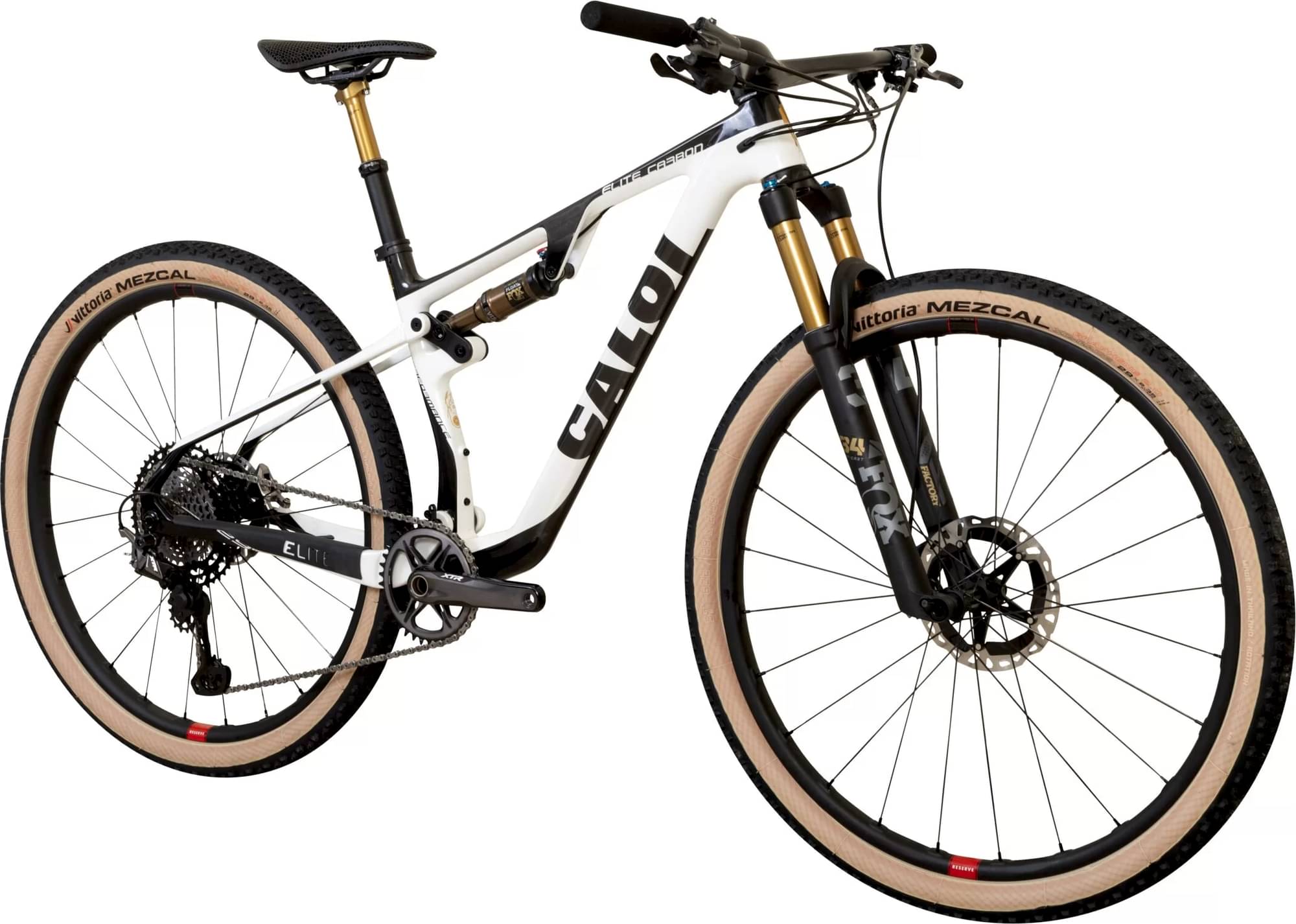

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset XTR -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano XTR Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

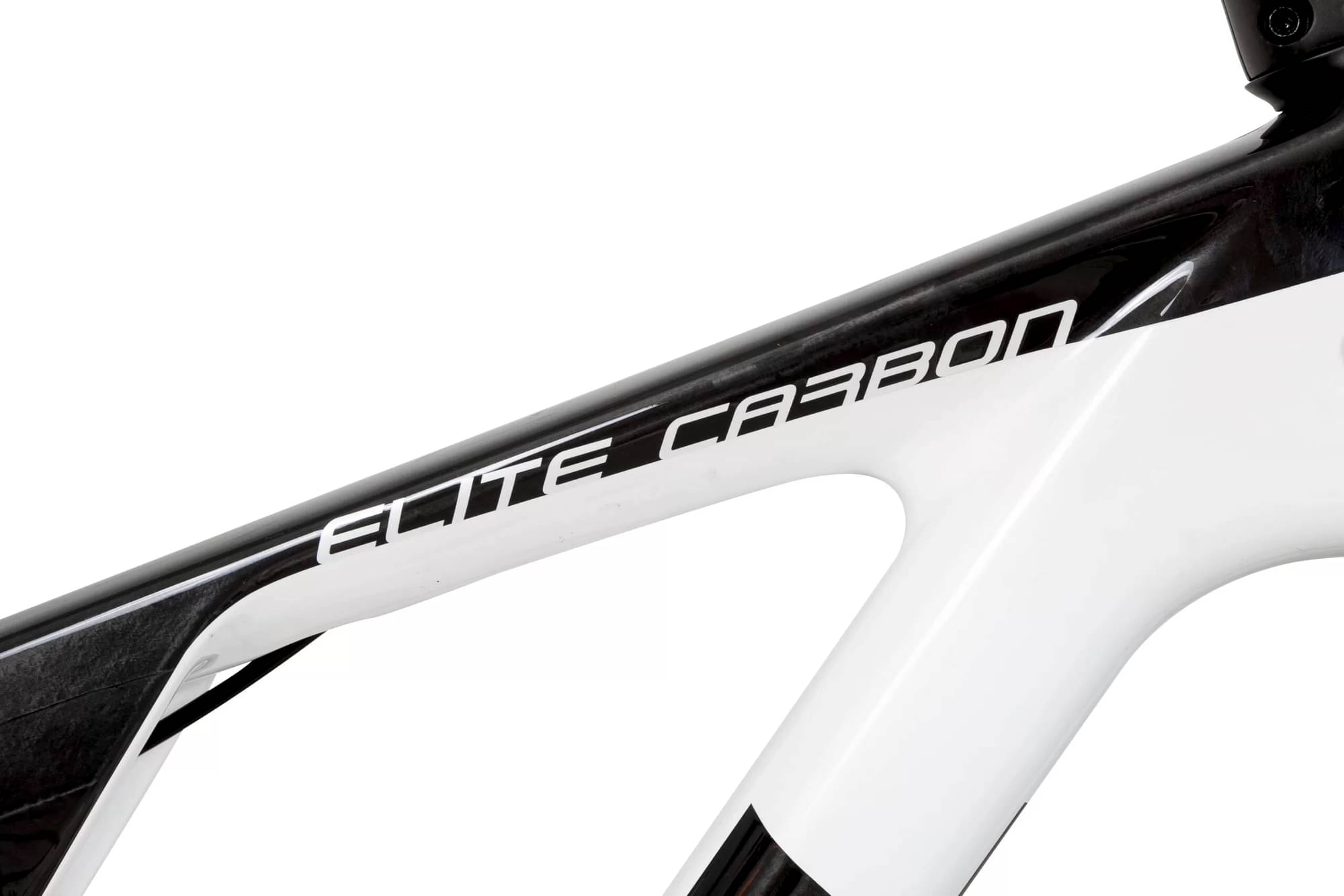

Frame
Frame

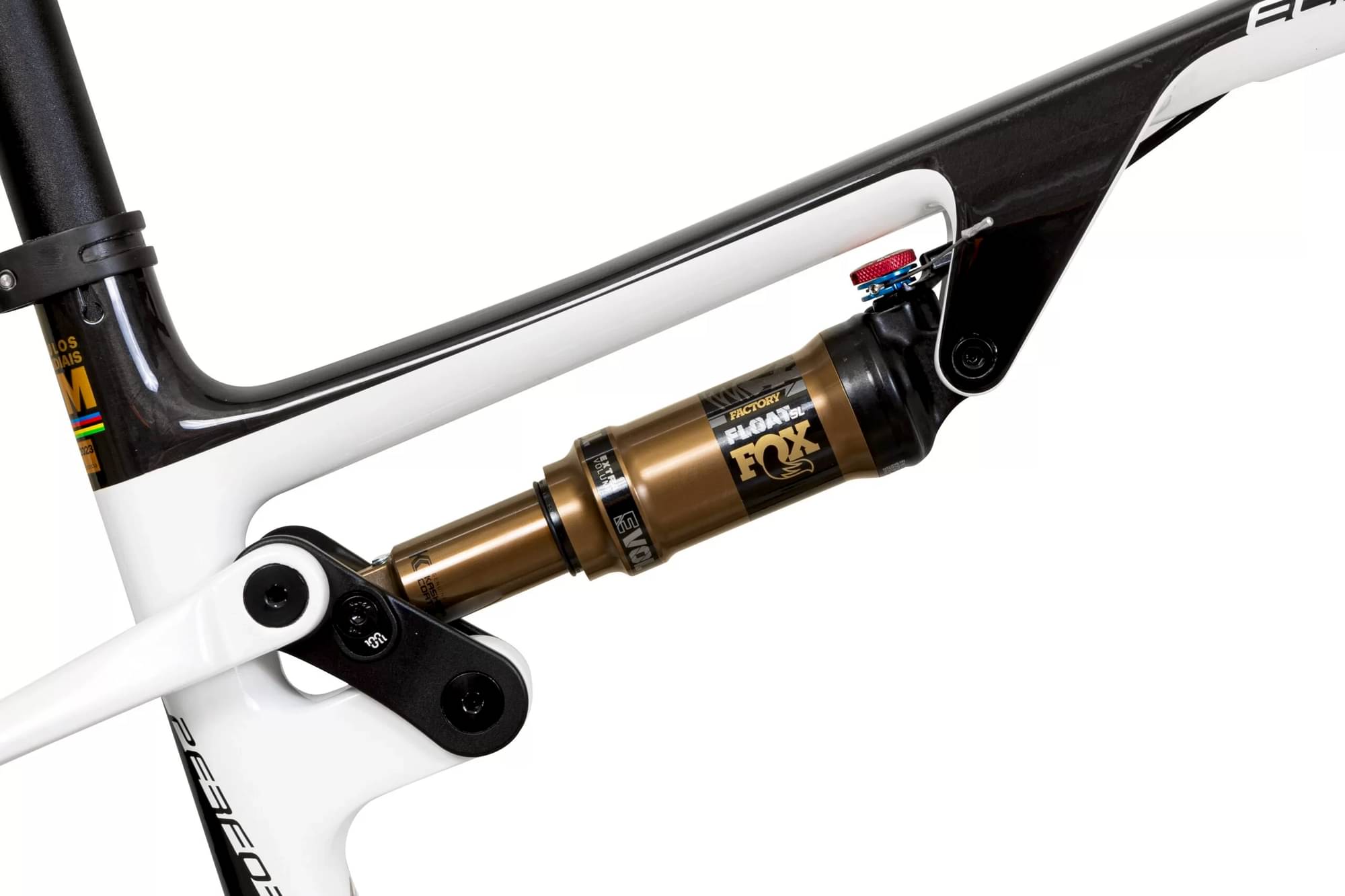

Lightweight Carbon Frame developed by CALOI | Hybrid Travel 100 / 110 mm | 120mm Travel Fork | Internal Cabling | Dropout OLD 148 mm | 92 mm Bottom Bracket | Progressive Kinematics | Single Pivot System | Post Mount Brake fixing system | Developed to fit crowns up to 38T | Tapered head | UDH System | Ready for electronic system | Ready for tires up to 2.4” | Anti-Noise System

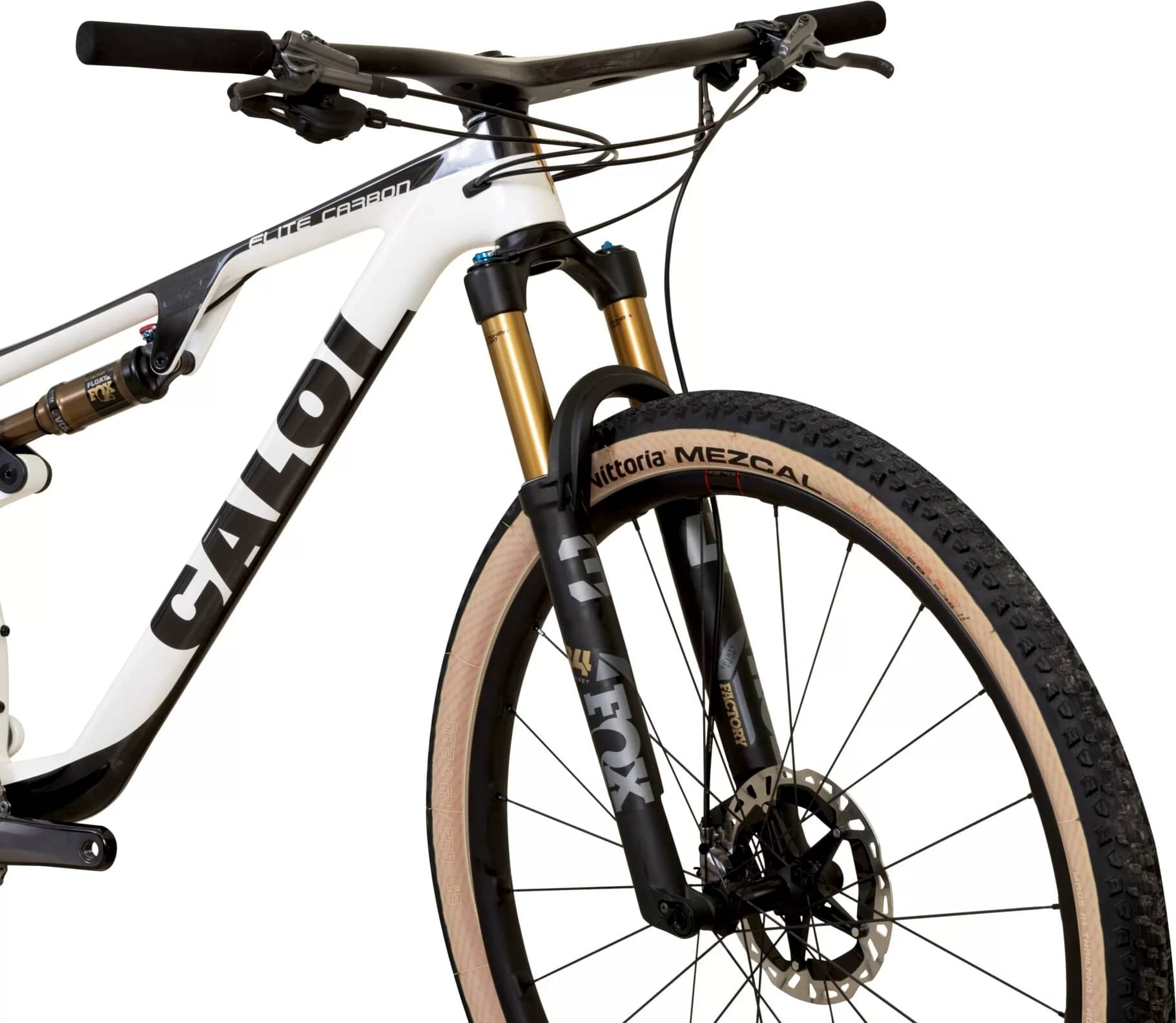

Suspension Fork
Fox Factory 34 120mm 3 drive stages – Boost/ThruAxle

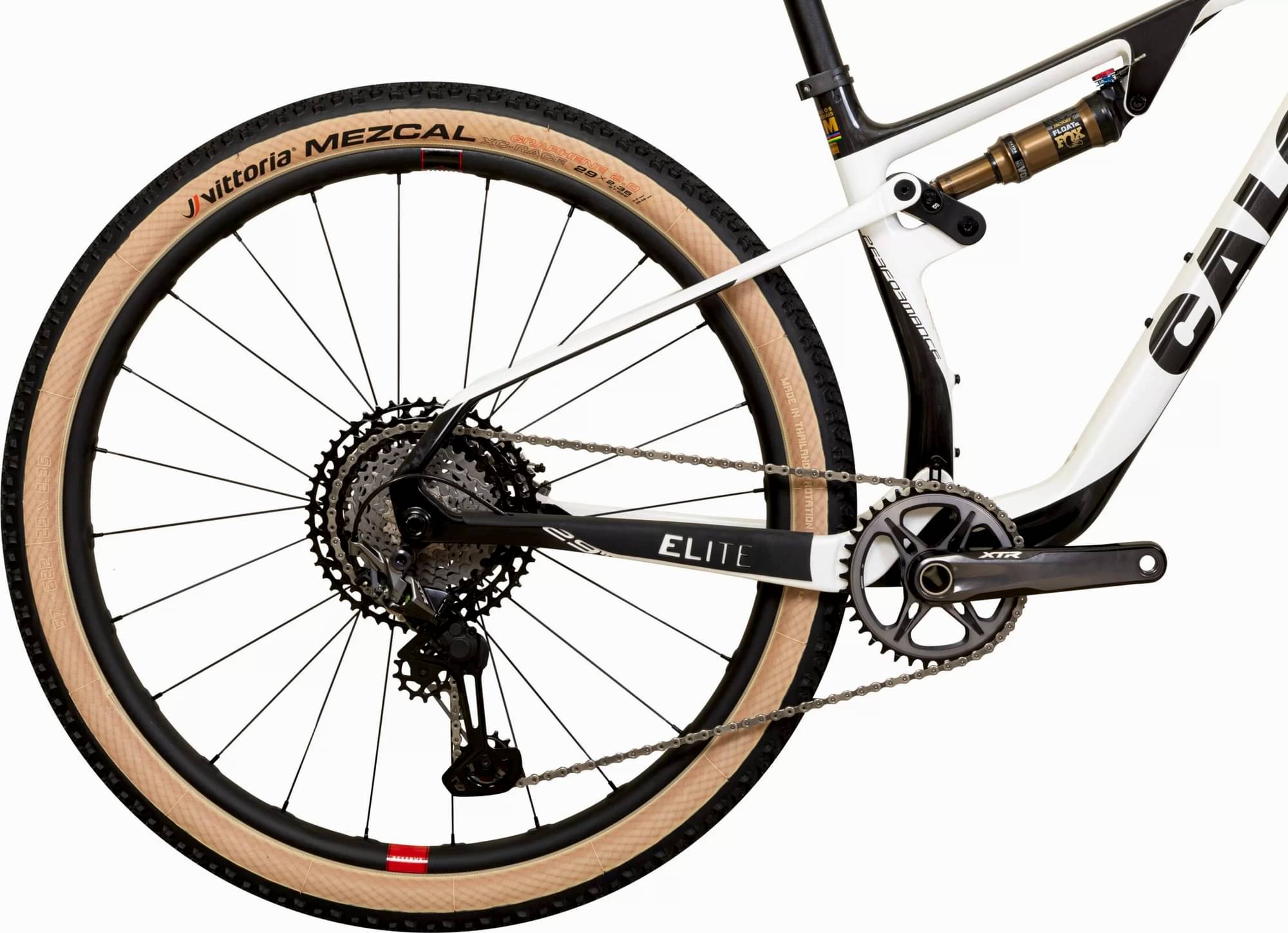

Drivetrain
Rear Derailleur
Shimano XTR- M9100 - 12V
Cassette
Shimano XTR - M9100 - 12V 10-51D
Crank
Shimano XTR- M9100 - 38T - 170mm (S) / 175mm (M, L, XXL)
Wheels
Rims
Reserve 28XC 15X110 and 12X148 wheels with carbon rims and Straight Pull flat spokes
Tires
Vittoria Mezcal Racing 29X2.35 XCR with stripe
Brakes
Brakes
Shimano XTR - M9100 - Hydraulic - Postmout

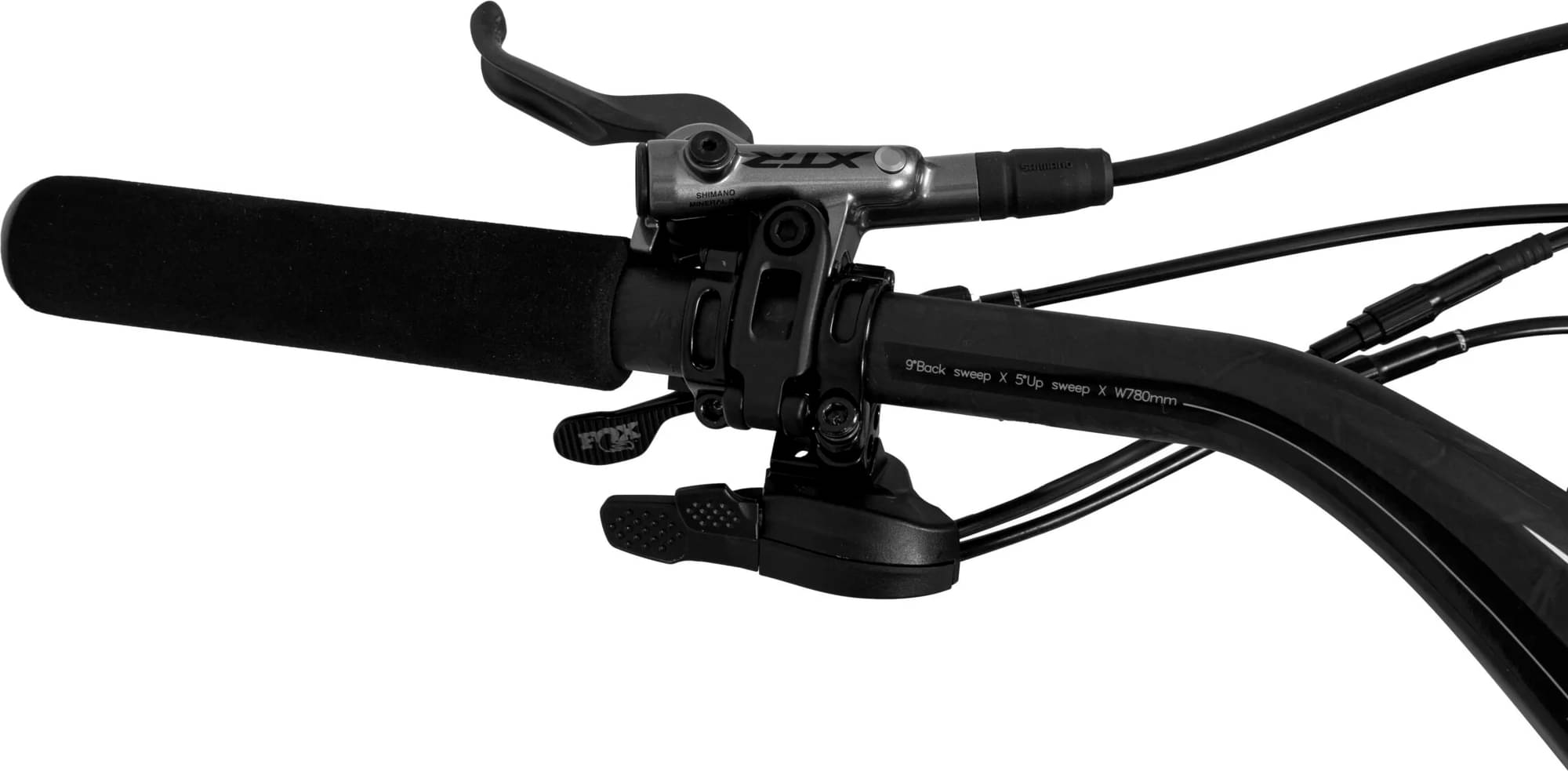

Brake Levers
Shimano XTR - M9100 - carbon
Cockpit

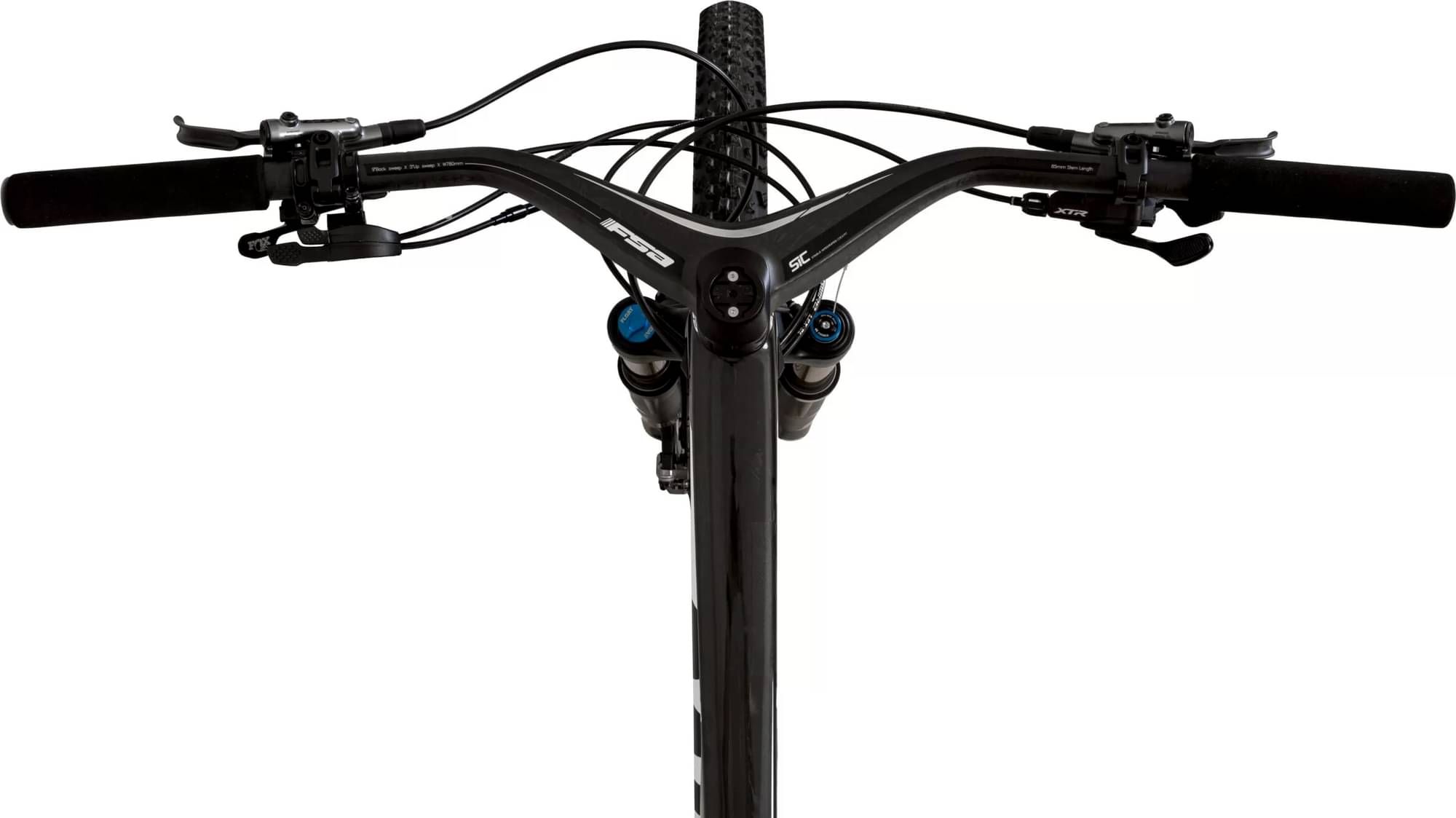

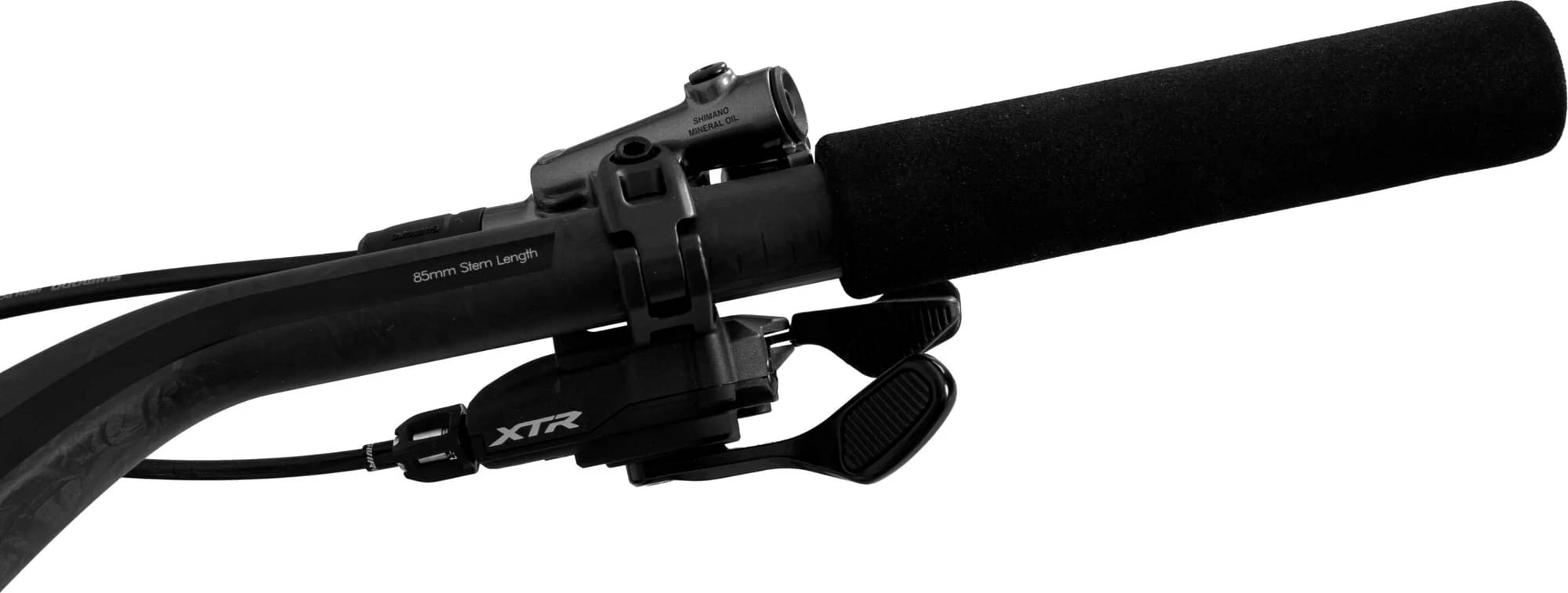

Handlebar
FSA KFX SIC Integrated - 780mm x 65mm (D) / 85mm (M, L, XL) carbon
Seat

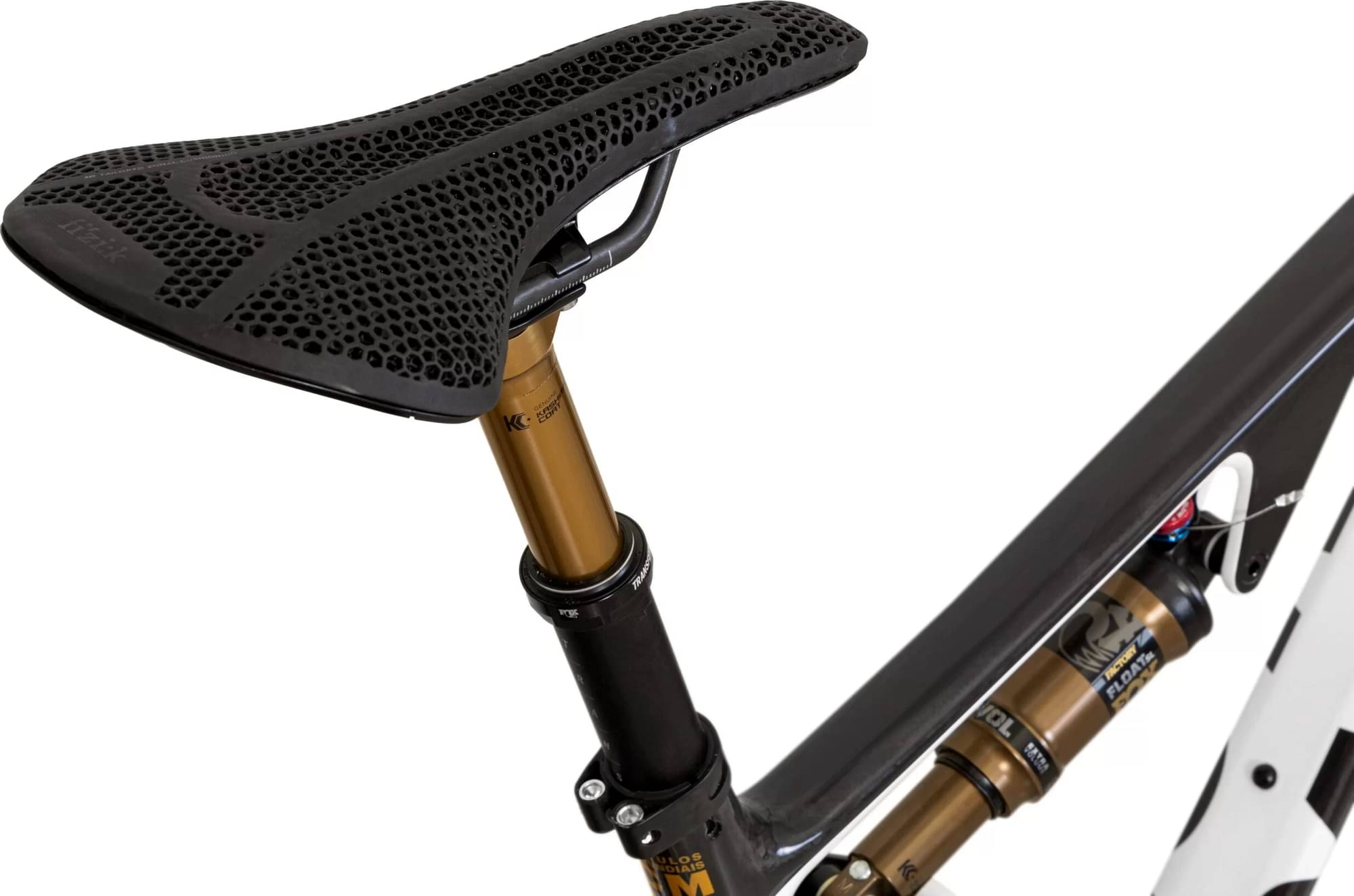

Saddle
Fizik Vento Antares R1
Seatpost
Retractable Fox Transfer F-SK SL- 31.6x75mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | P | MD | G | GG |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
