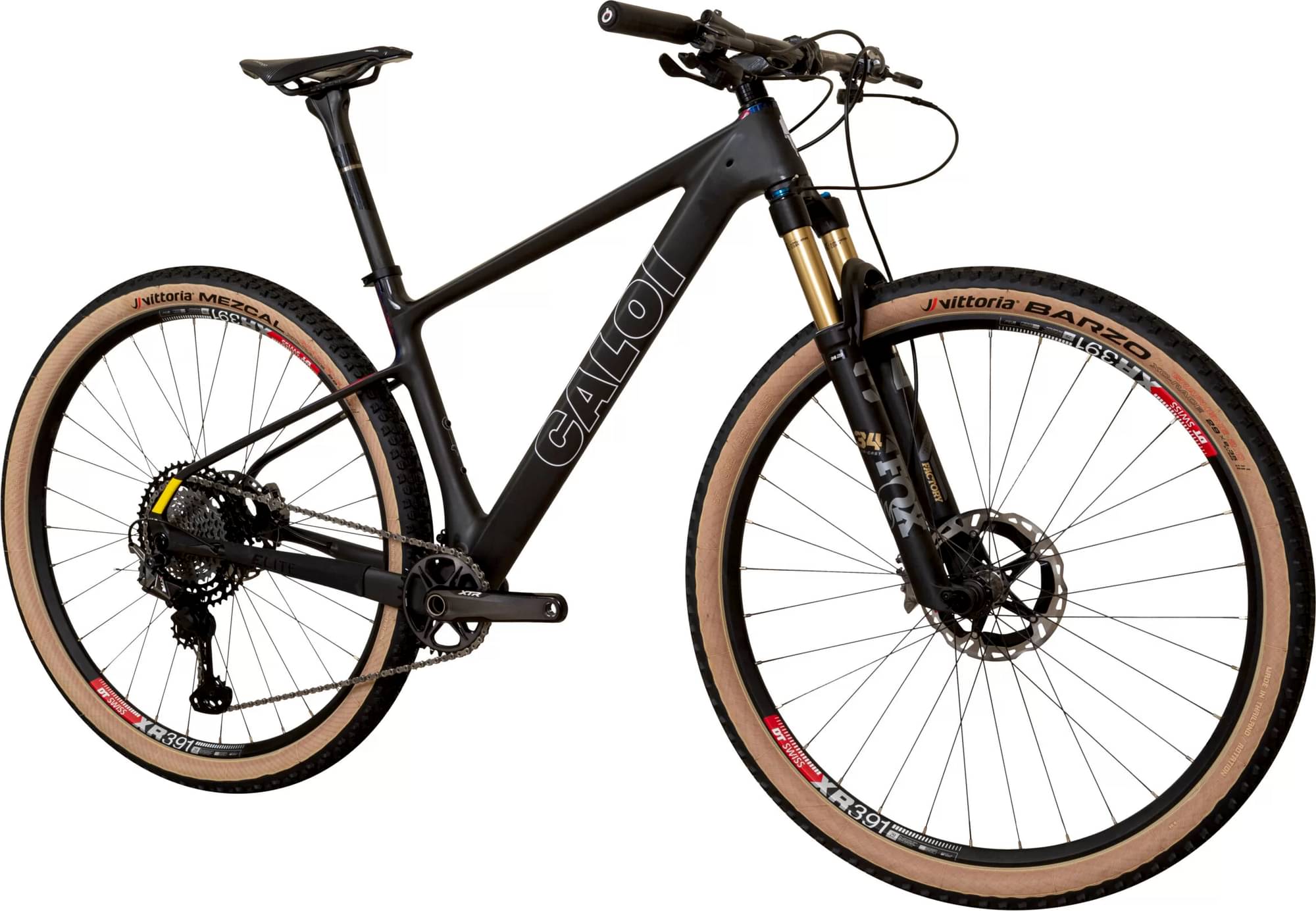

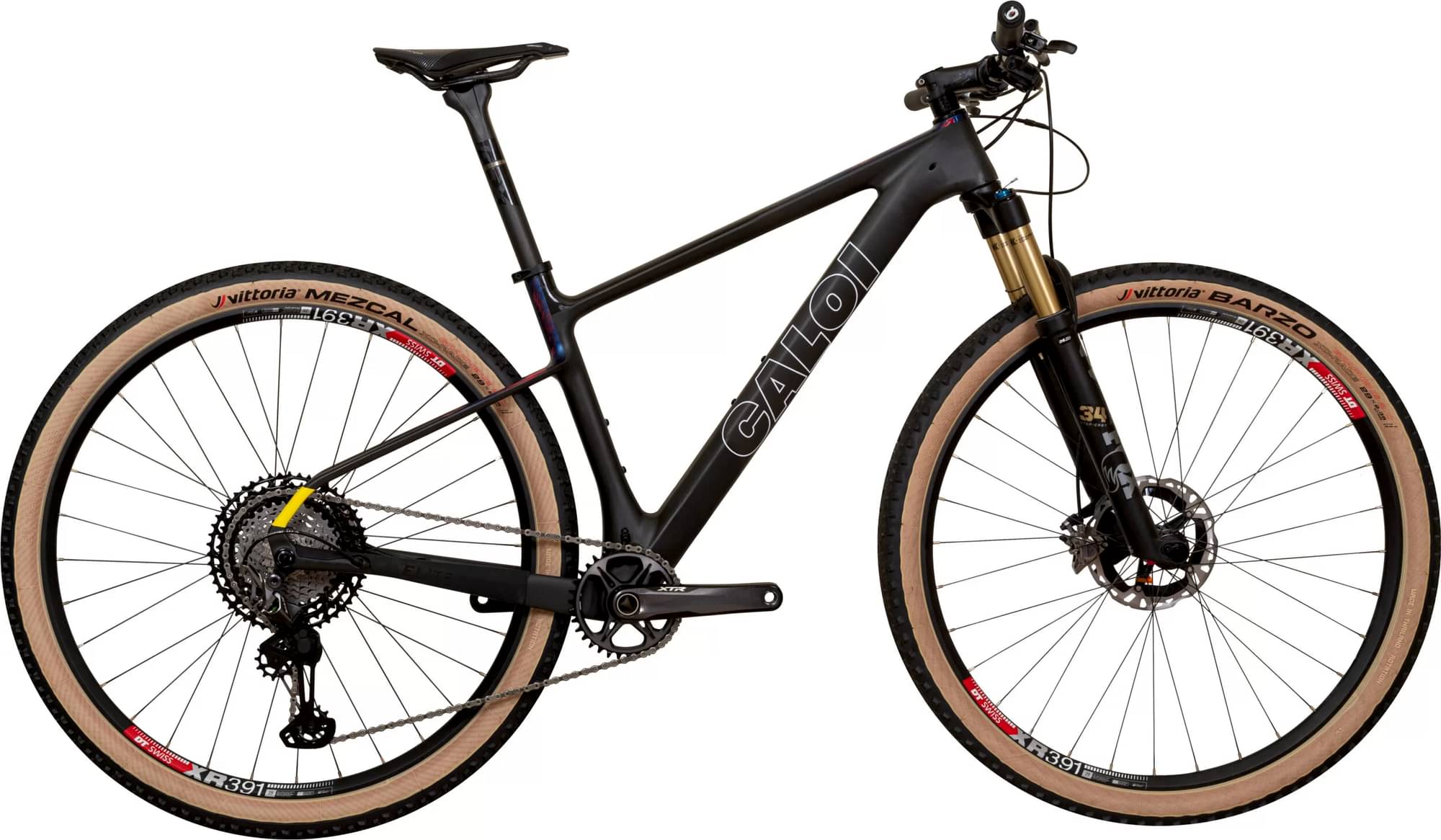

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 110mm -
Fork Fox Factory Float 34
-
Groupset XTR -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

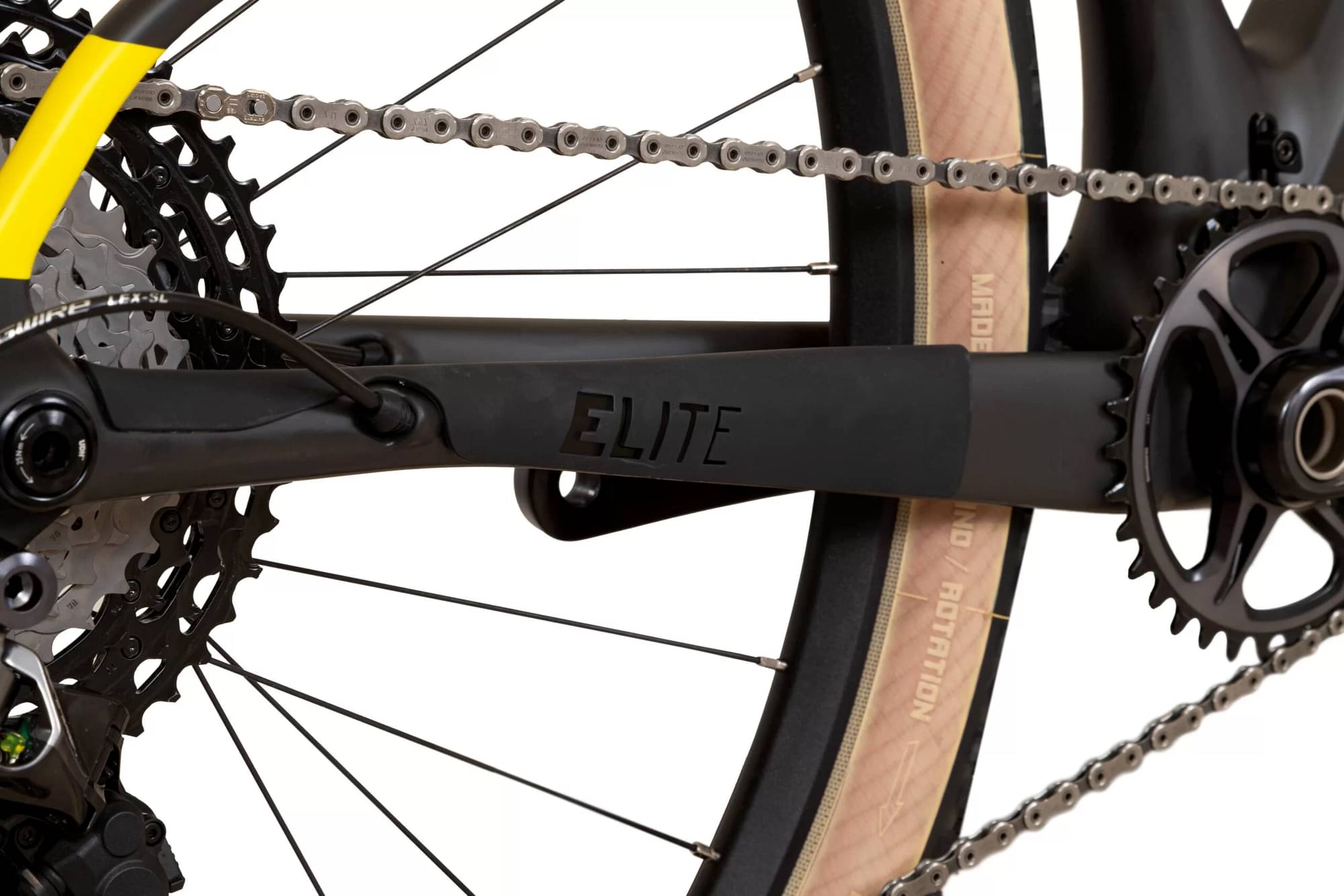

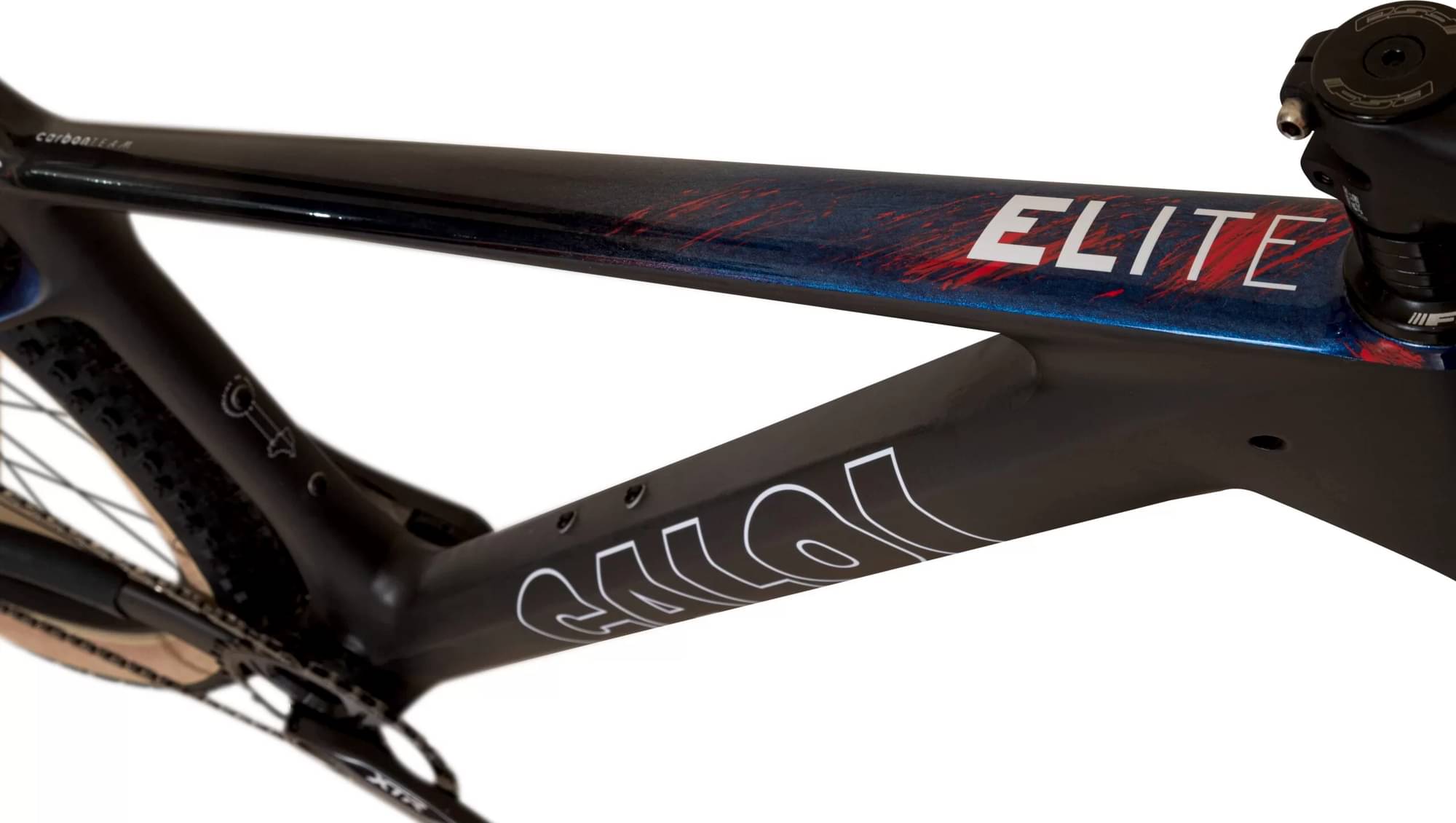

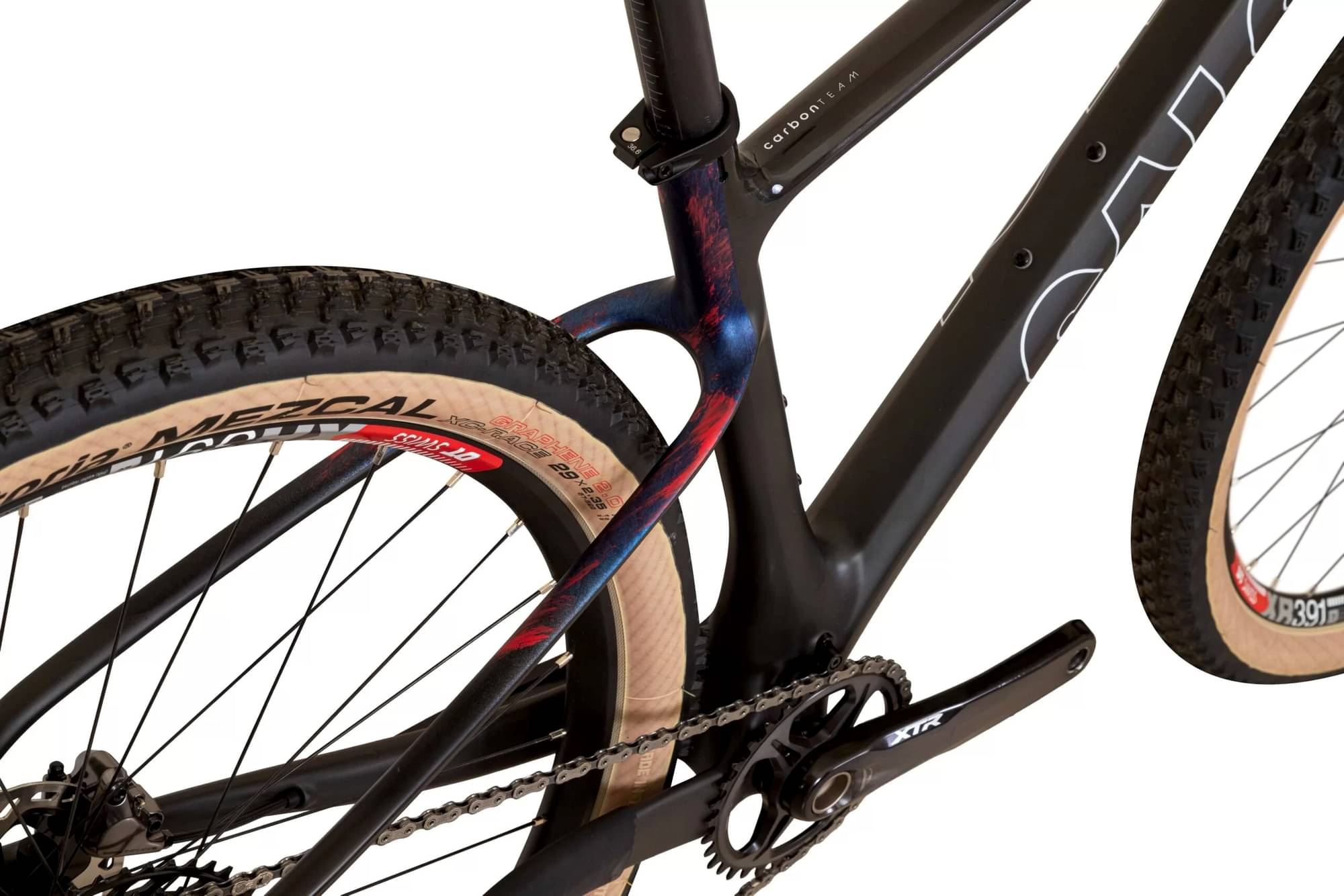

Frame
Frame
CALOI Development Board in Light Carbon | Tapered head | Bottom bracket sleeve 73mm | Rear Thru-axle 12mm | Boost 148mm | Tip for mounting Flat Mount brakes | UDH Hook | Microflexible Seatstays | Internal cabling with anti-noise protectors

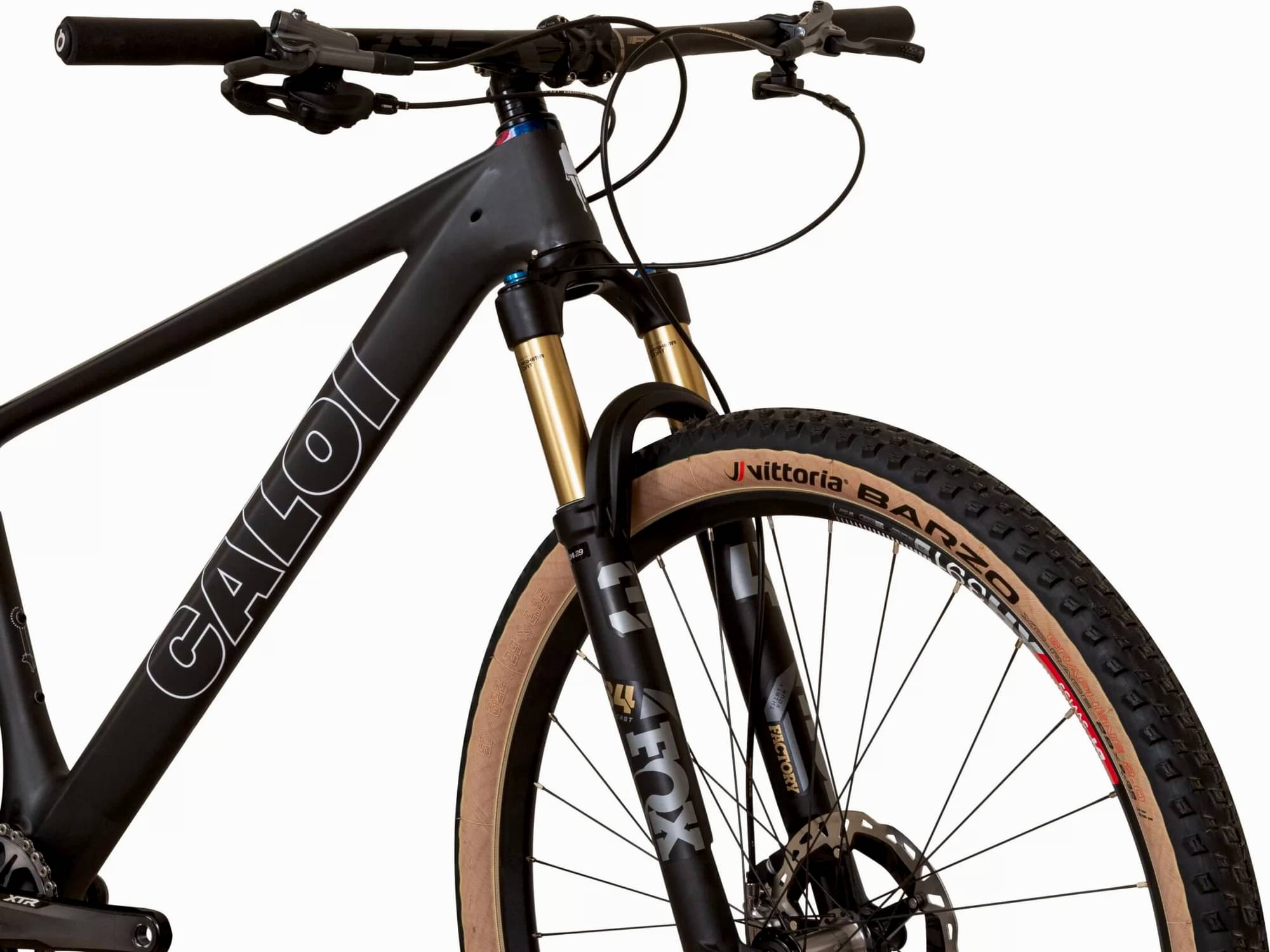

Suspension Fork
FOX 34 Factory K-Float SC Kashima | Boost | Air | 110mm travel

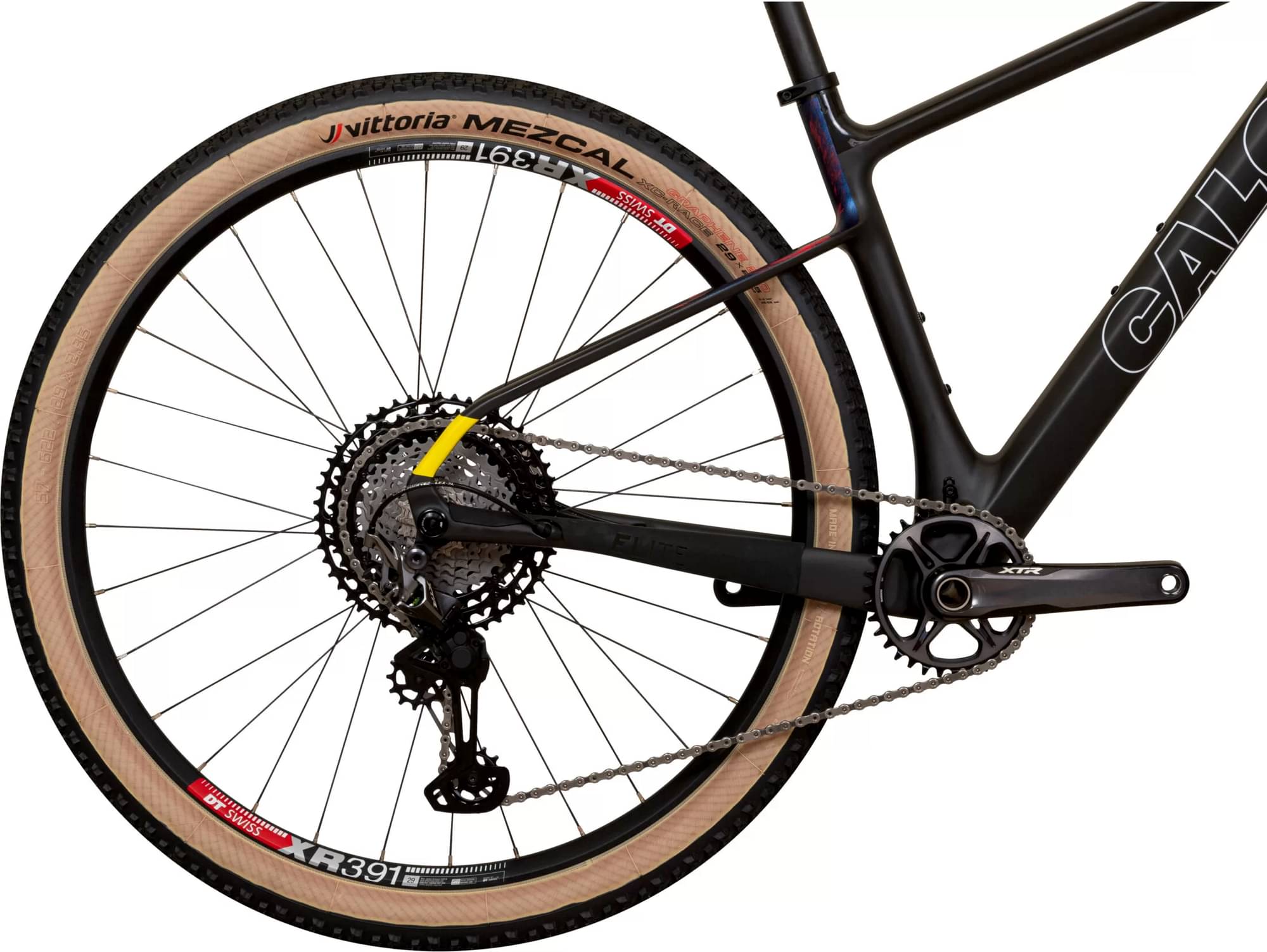

Drivetrain
Rear Derailleur
Shimano XTR M9100 12v

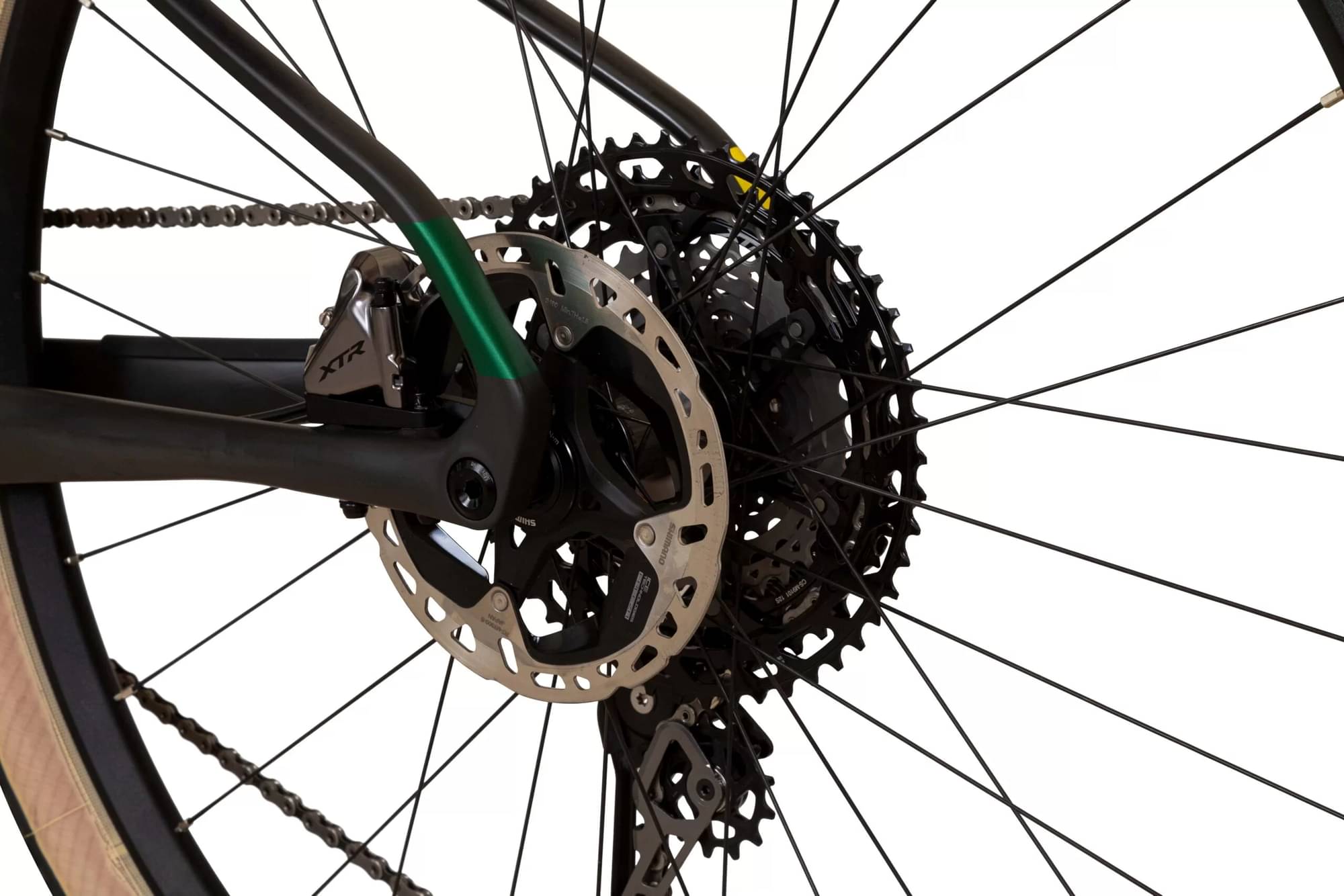

Cassette
Shimano XTR M9100 | 10-51T | 12v
Crank
Shimano XTR M9110 | 34T | 170mm P | 175 M L XL
Chain
Shimano XTR M9100
Wheels
Tires
Vittoria Barzo and Mezcal XC Race| 29X2.35 | Tubeless with band
Brakes
Brakes
Shimano Hydraulic XTR M9100 | 160mm/180mm rotors
Brake Levers
Shimano XTR M9100

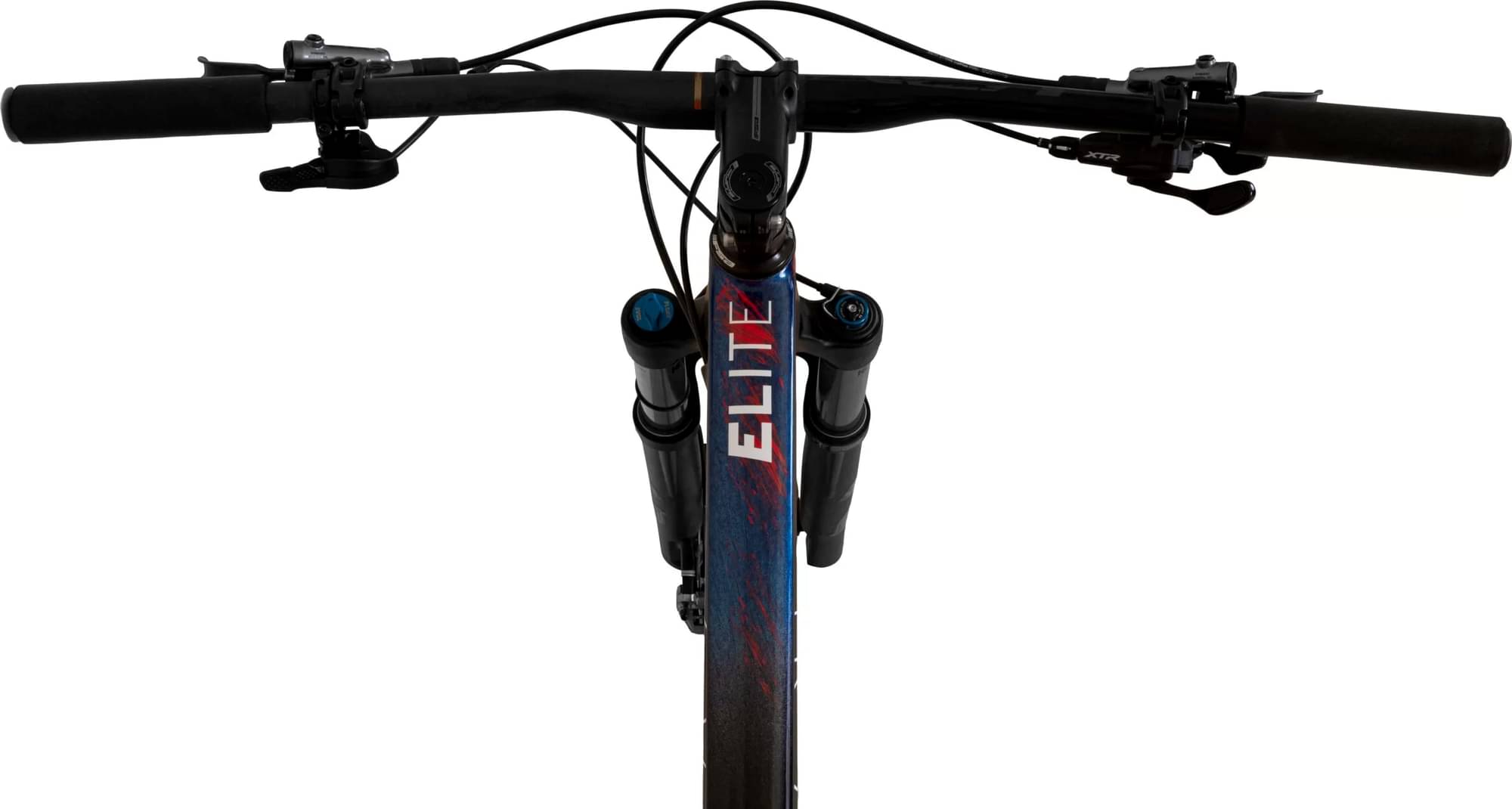

Cockpit
Handlebar
Carbon | Flat | FSA KFX | 31.8mm | 760mm
Seat

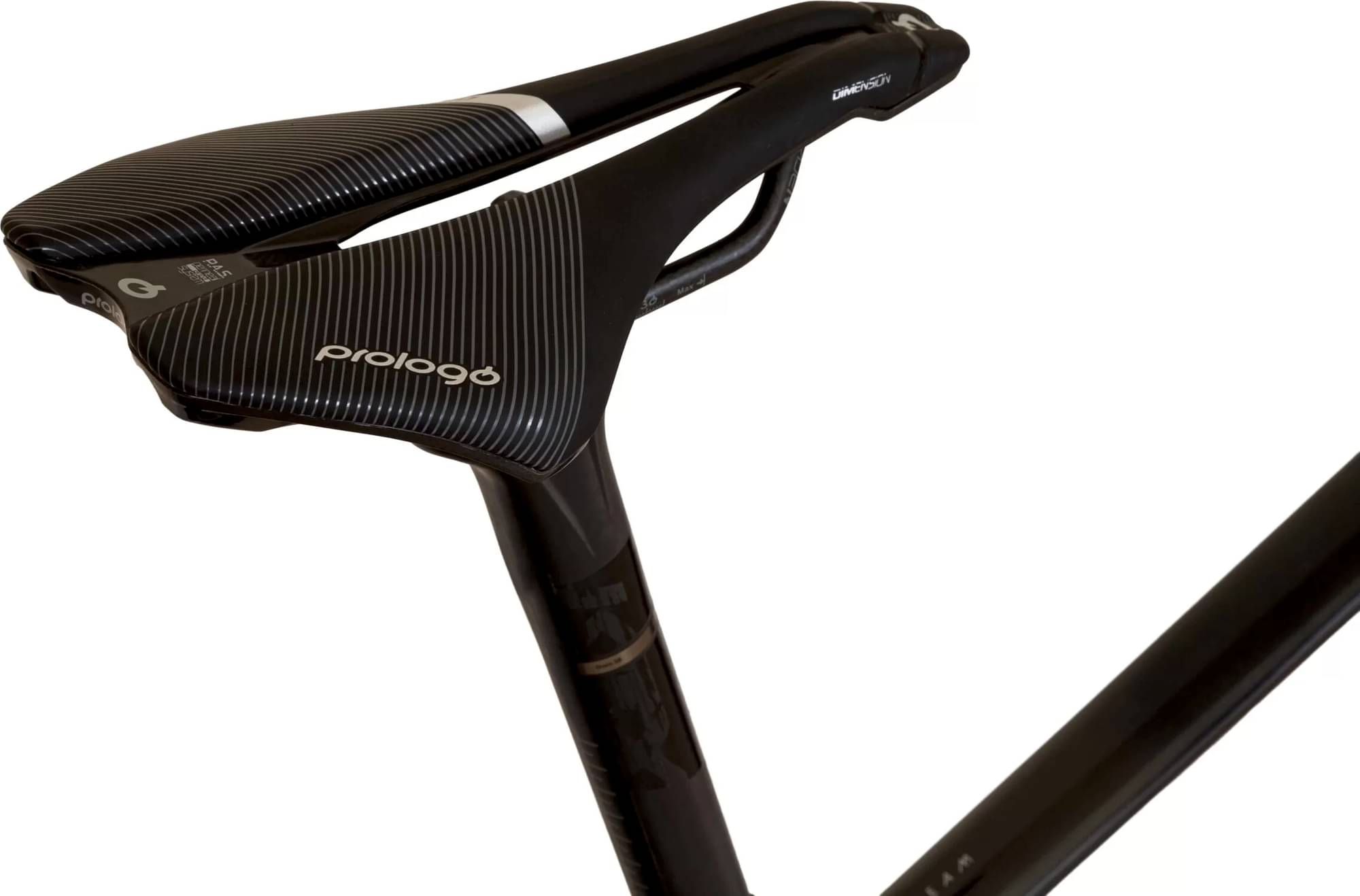

Saddle
Dimension 143 Prologue | RailCarbon
Seatpost
Carbon | FSA KFX | 31.6mm | 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | MD | 19" | 21" |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
