Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RockShox Judy Silver TK
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

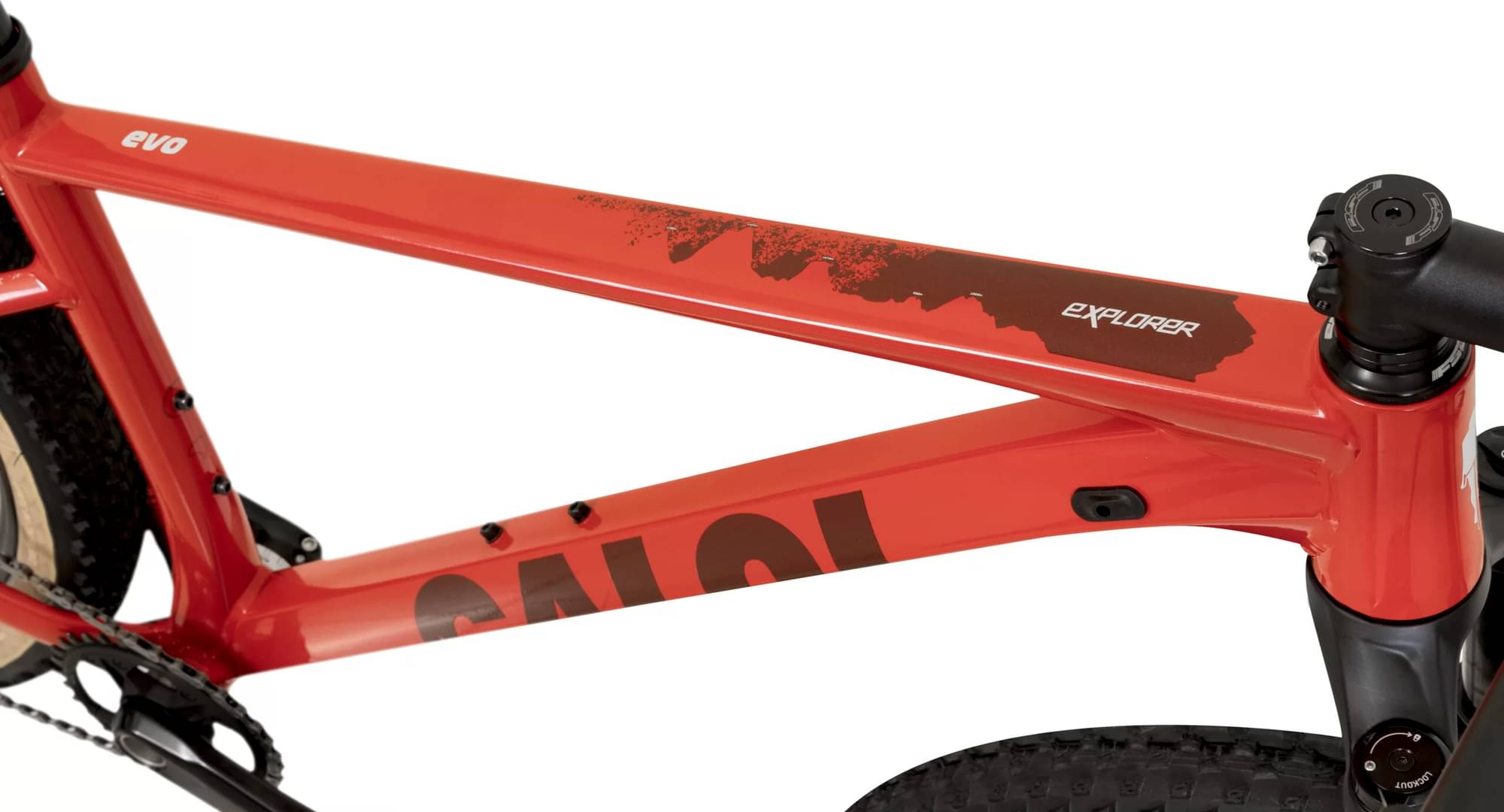

Frame
Frame

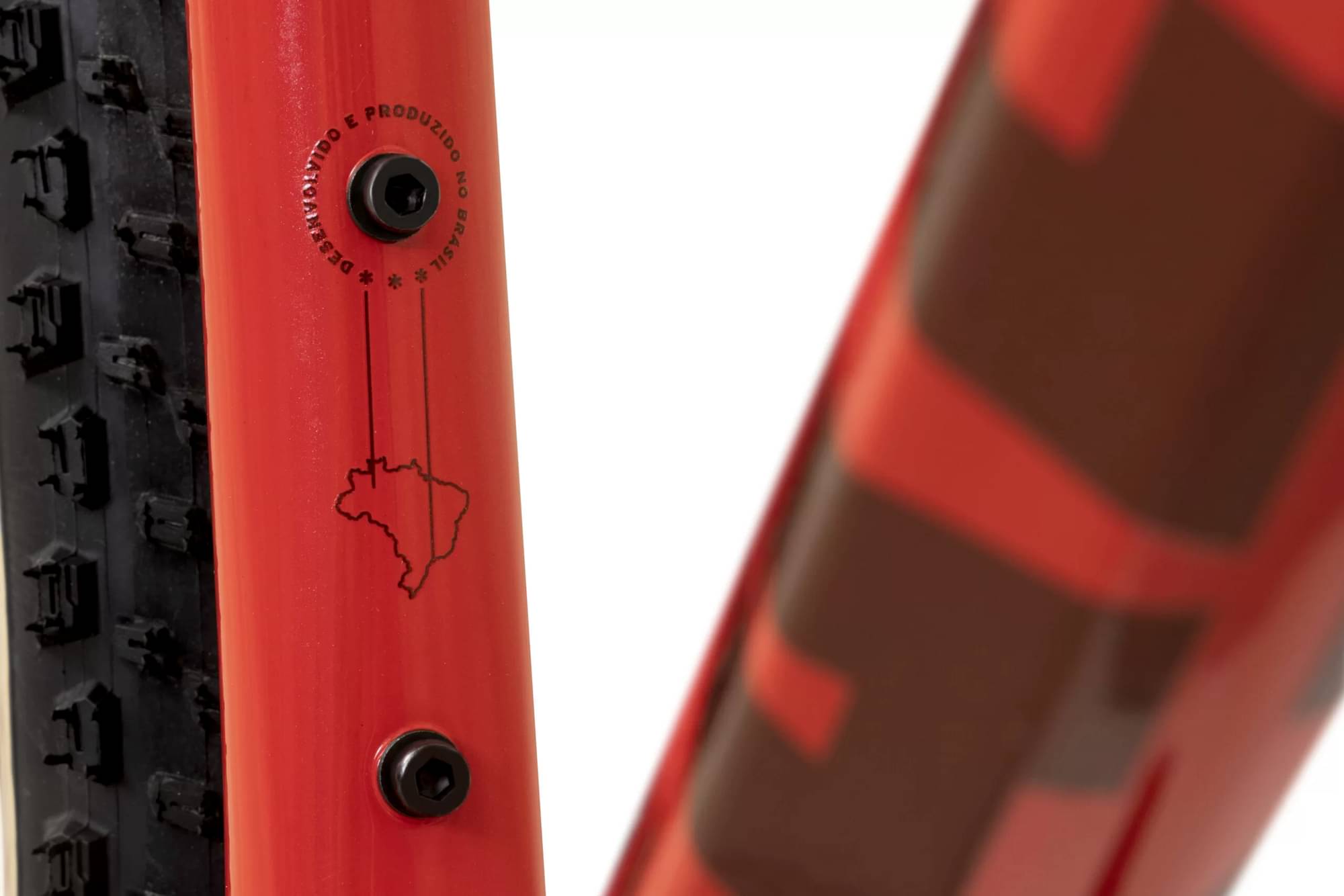

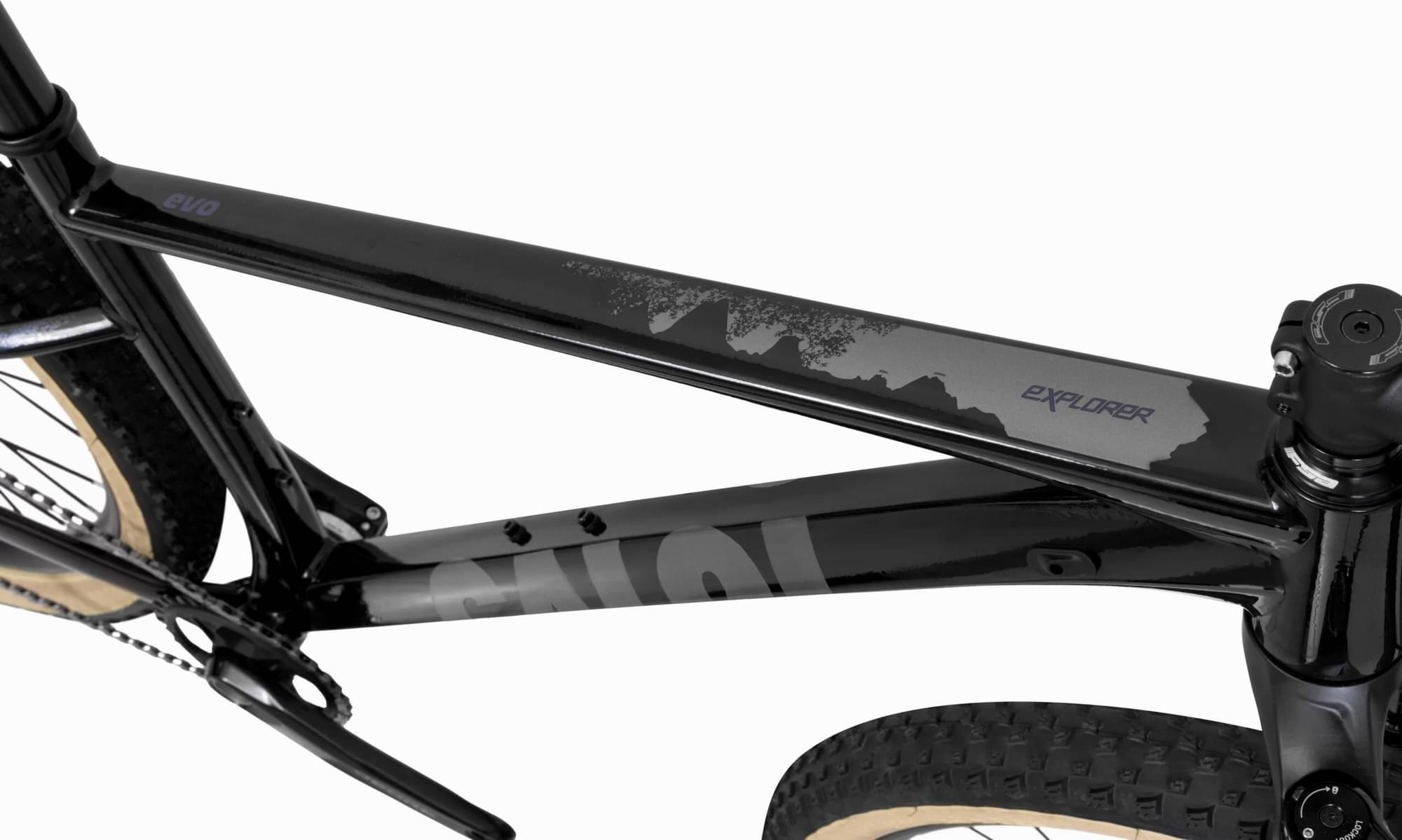

Hydroformed 6069 Aluminum, Tapered, Boost, Removable Hook, Forged Disc Brake Dropouts, Internal Cabling

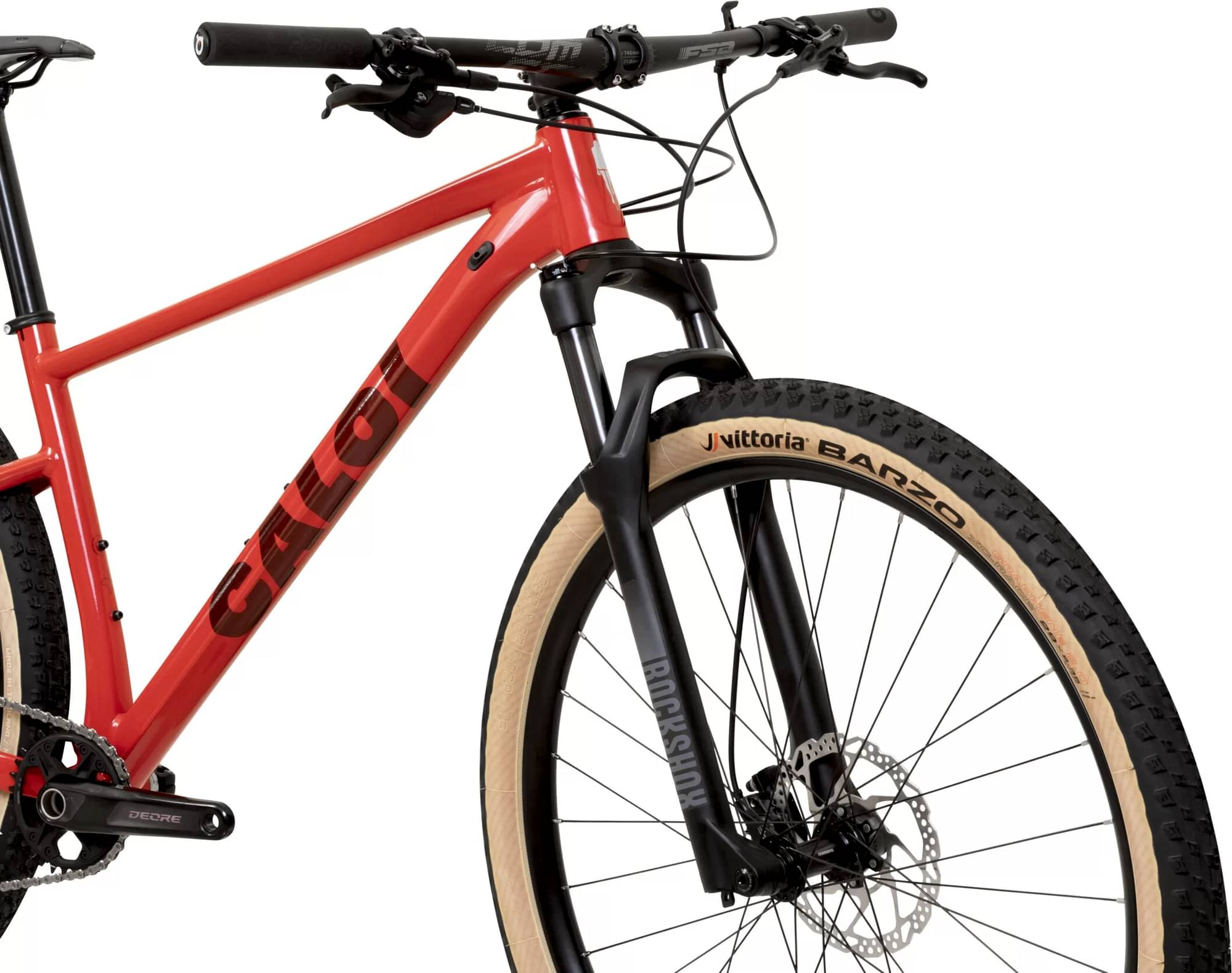

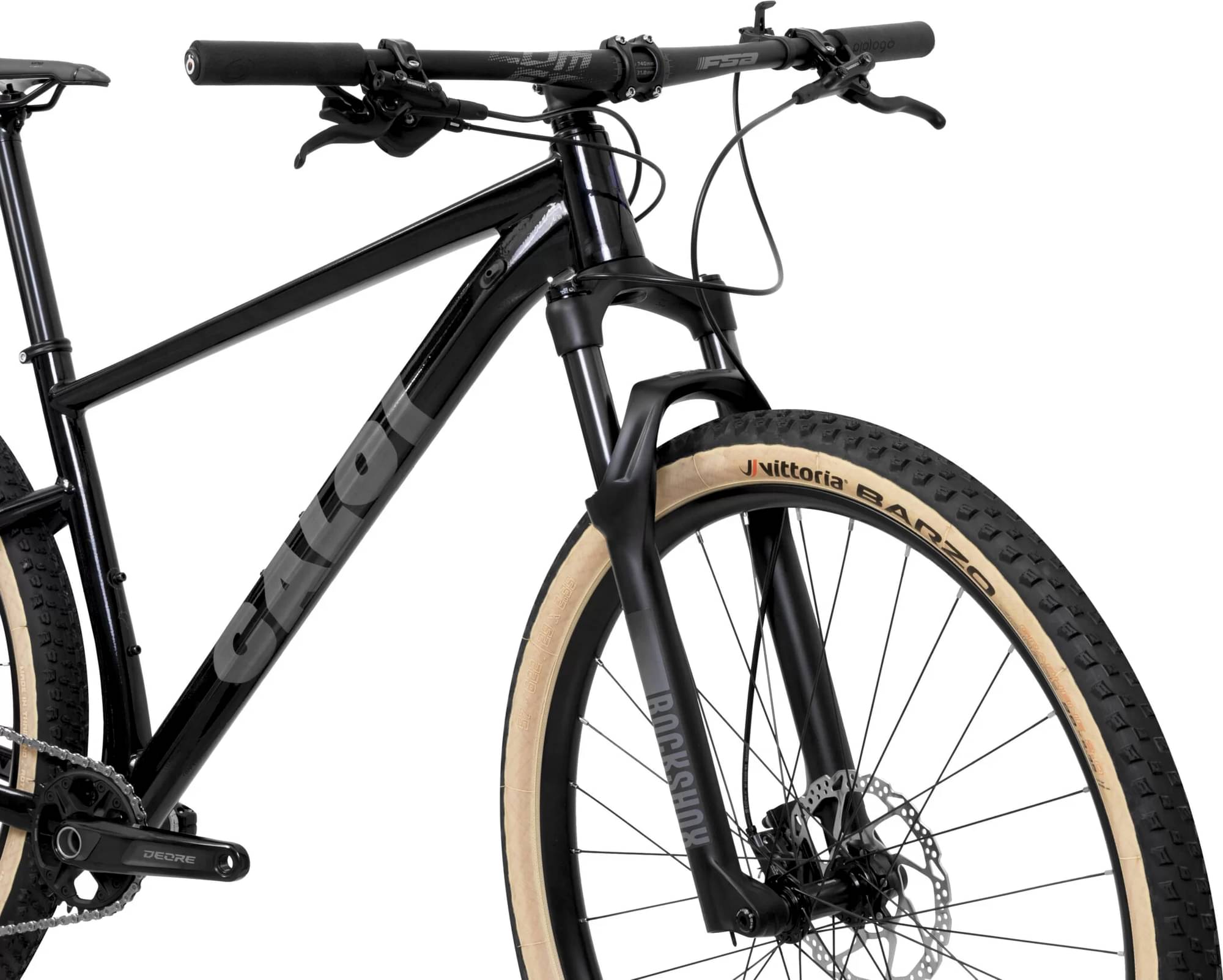

Suspension Fork
RockShox Judy Silver 100mm with Remote Lockout Handlebar

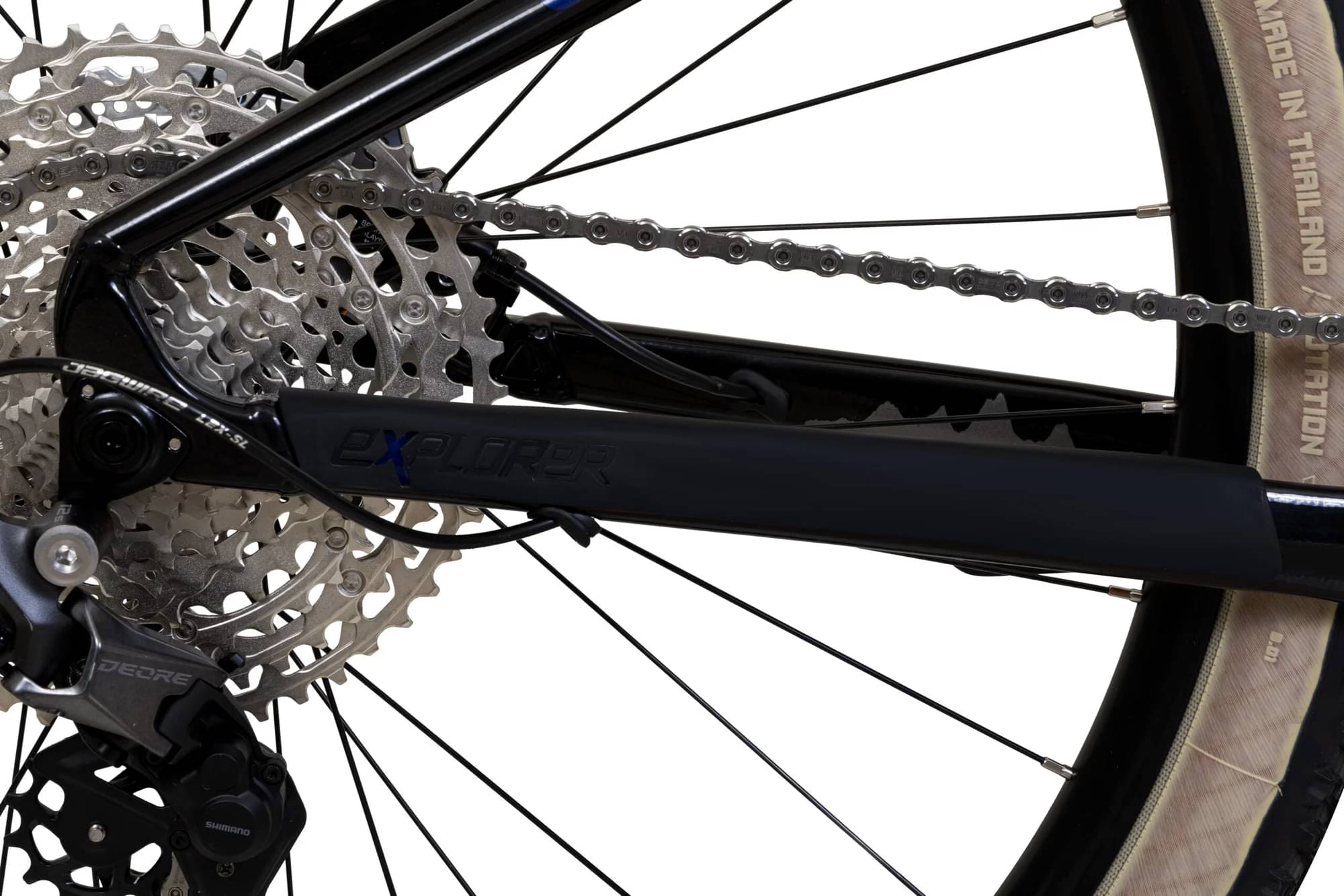

Drivetrain
Rear Derailleur
Shimano Deore M6100 12V

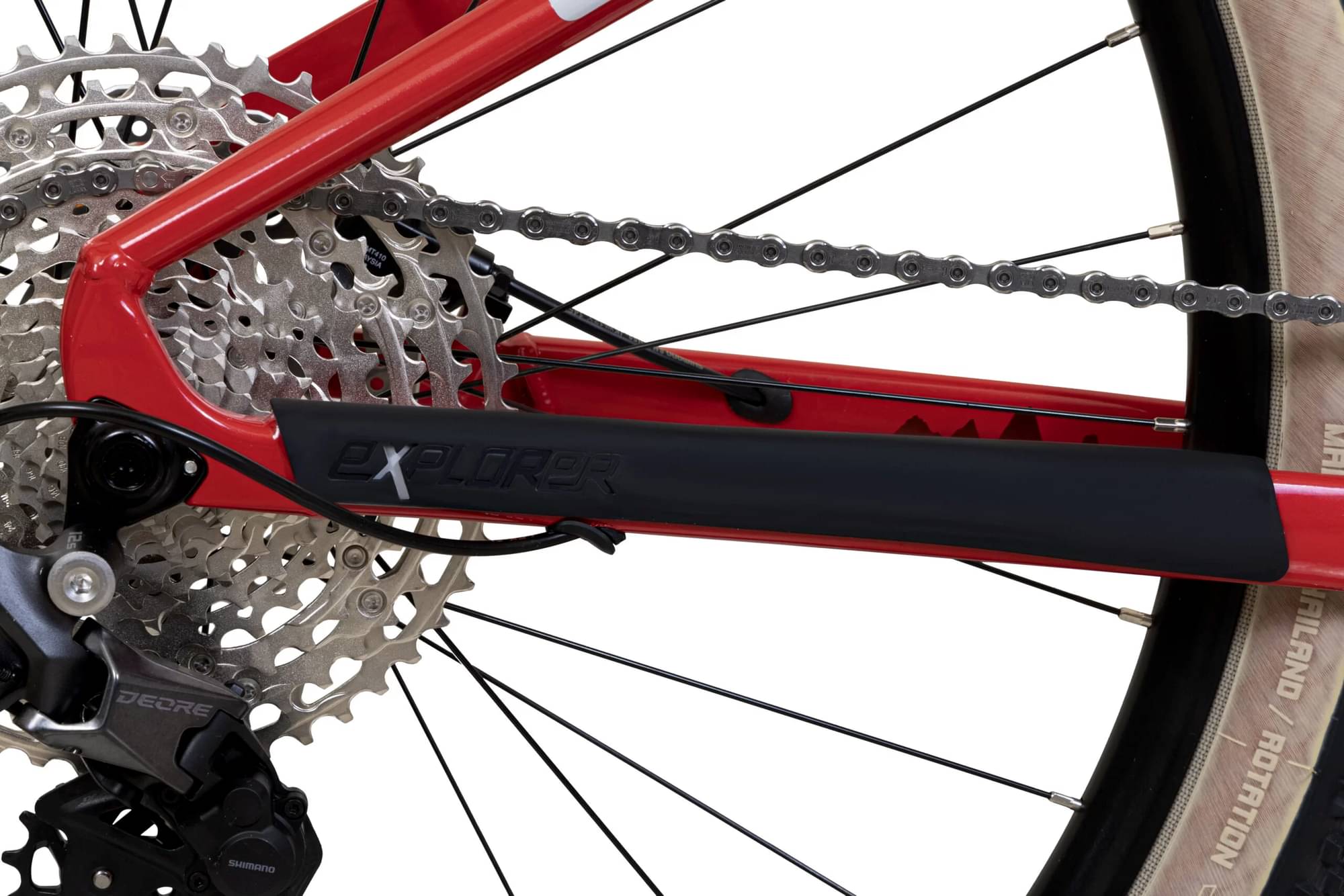

Cassette
Shimano Deore M6100 - 12-speed - 10-51T
Crank
Shimano Deore Integrated M6100 Boost - 32T 170mm (XL and P) 175mm (M, L and XL)
Wheels
Rims
Vzan Overland 32F
Tires

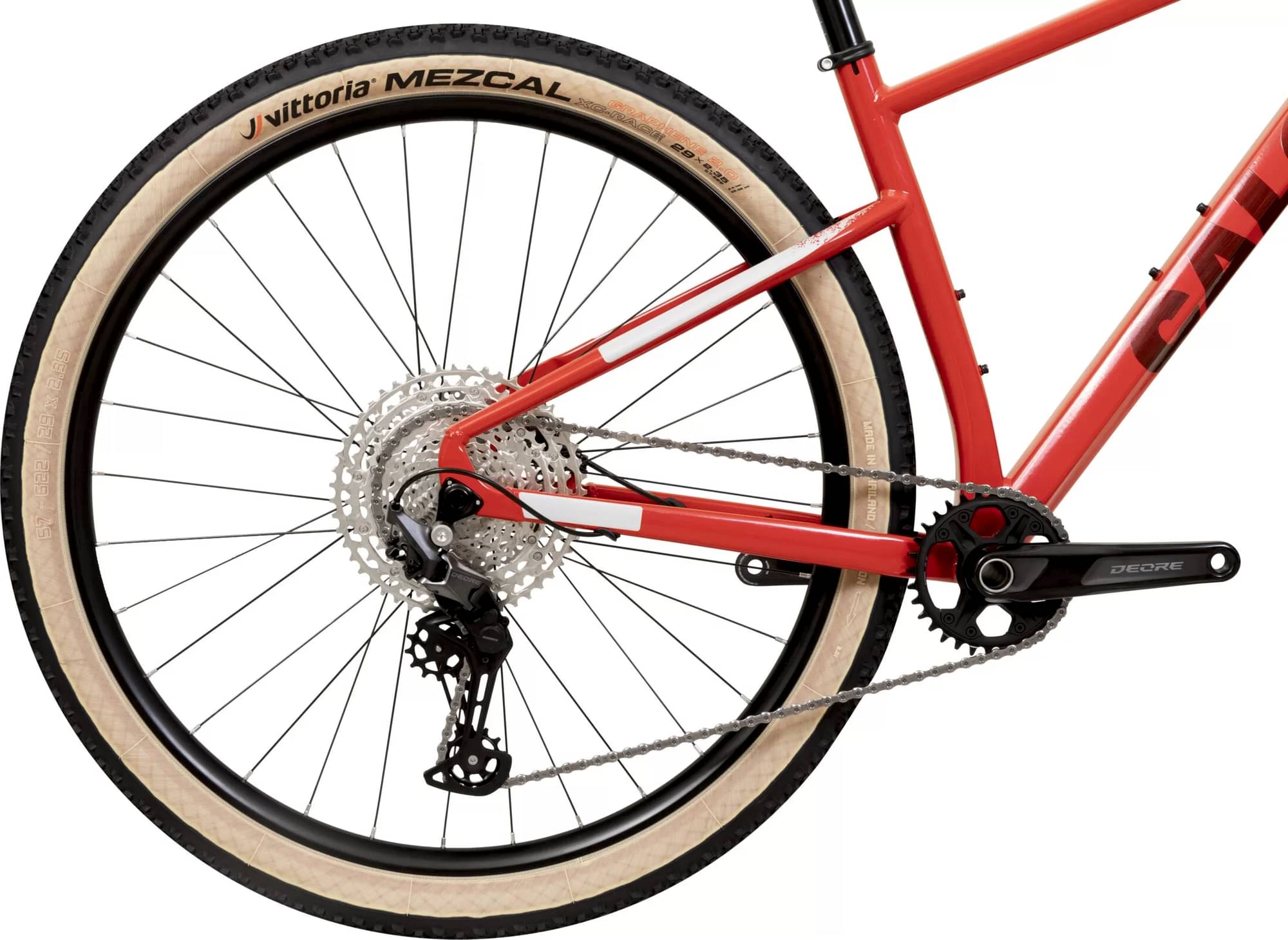

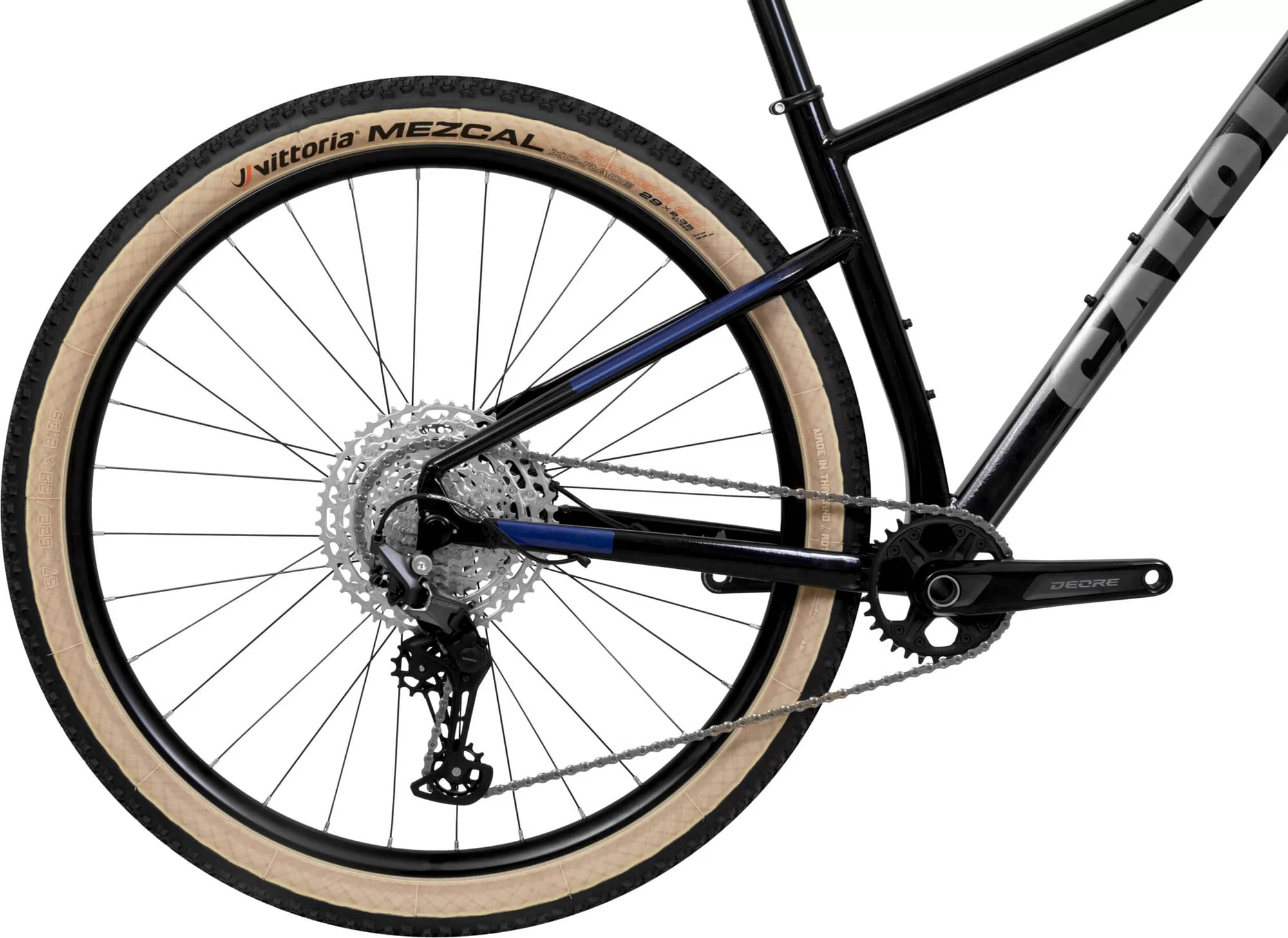

Vittoria Barzo and Mezcal - Foldable, tubeless ready - 29x2.35 - with brown belt

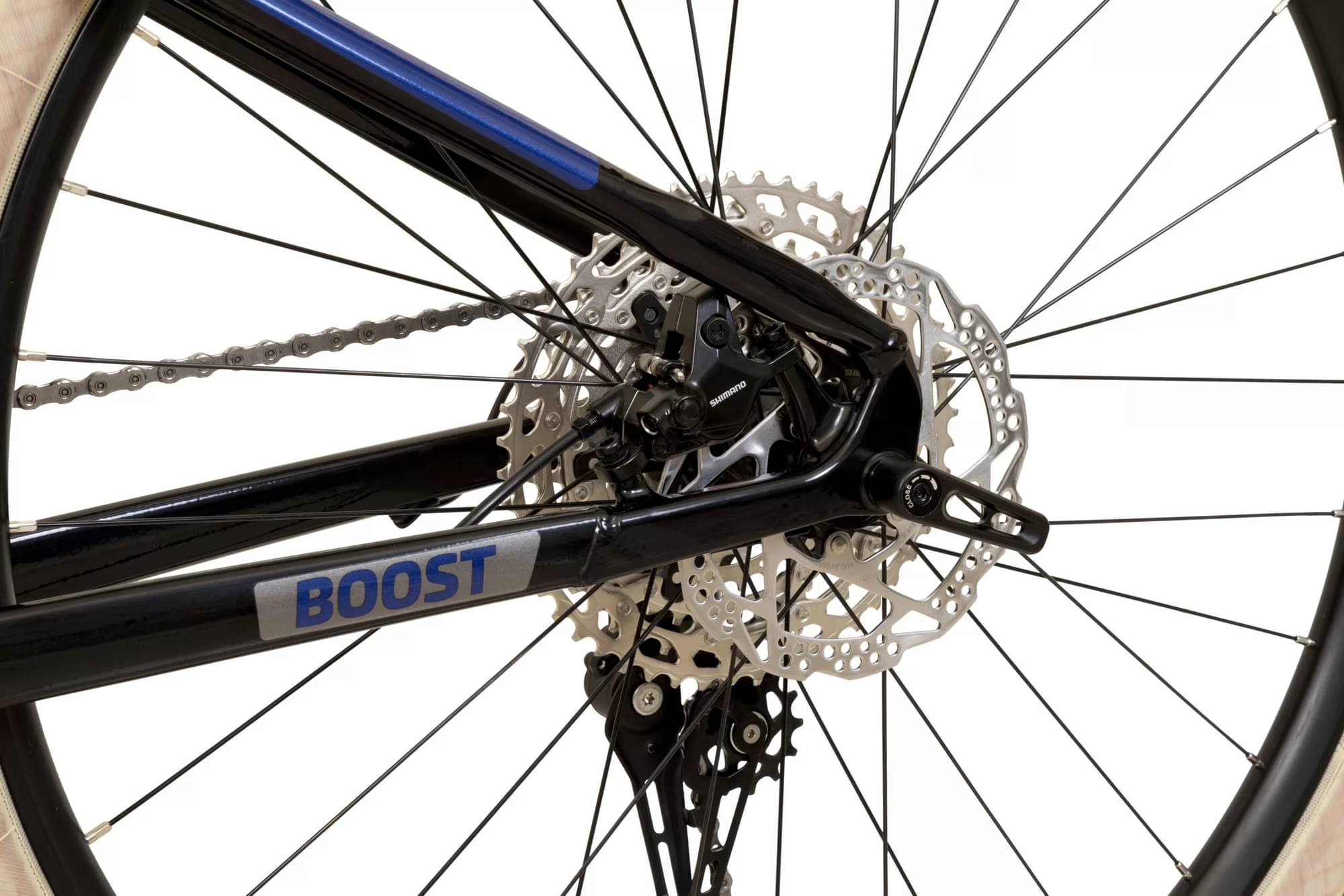

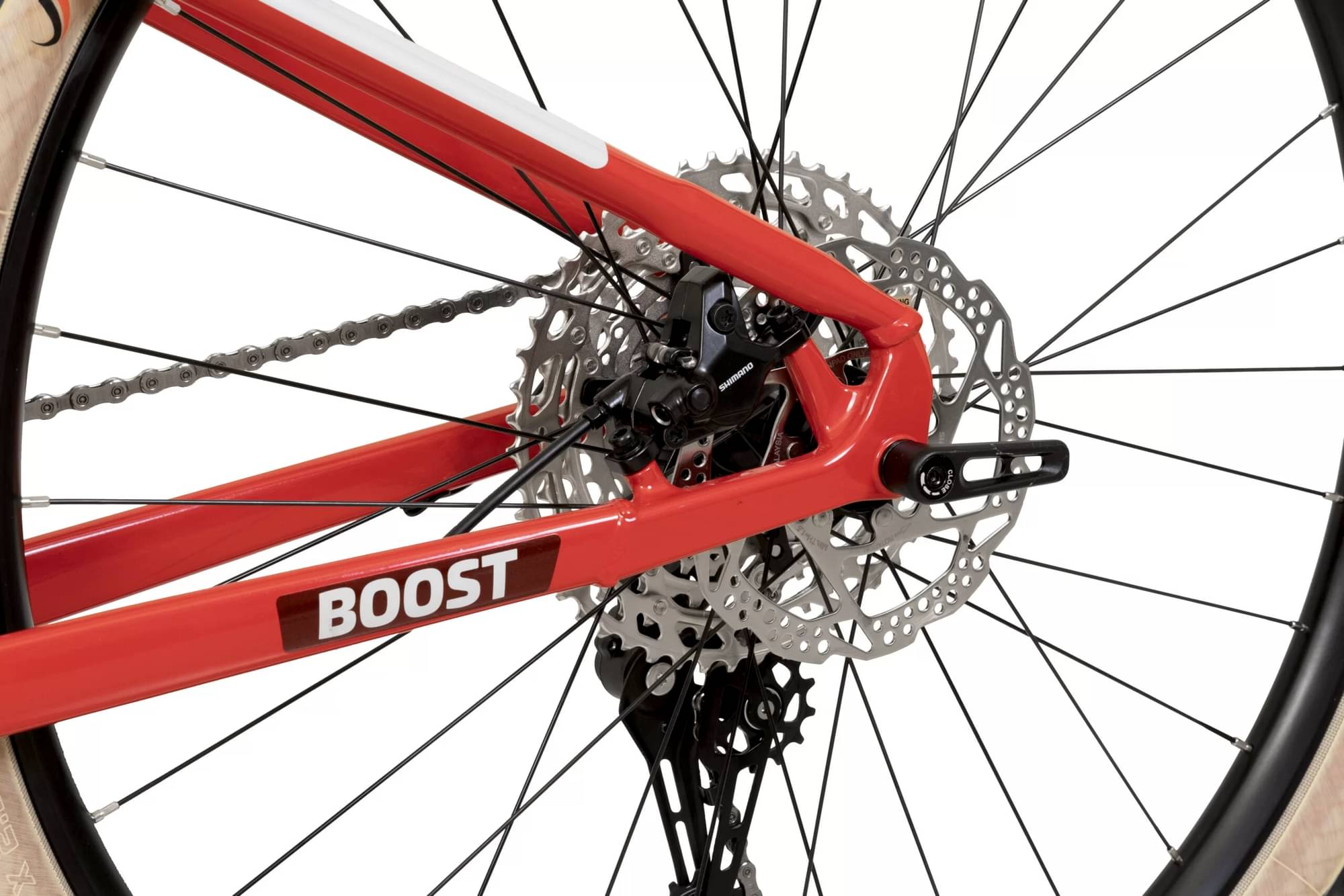

Brakes
Brakes
Shimano M4100 - Hydraulic - 160/180mm Rotors

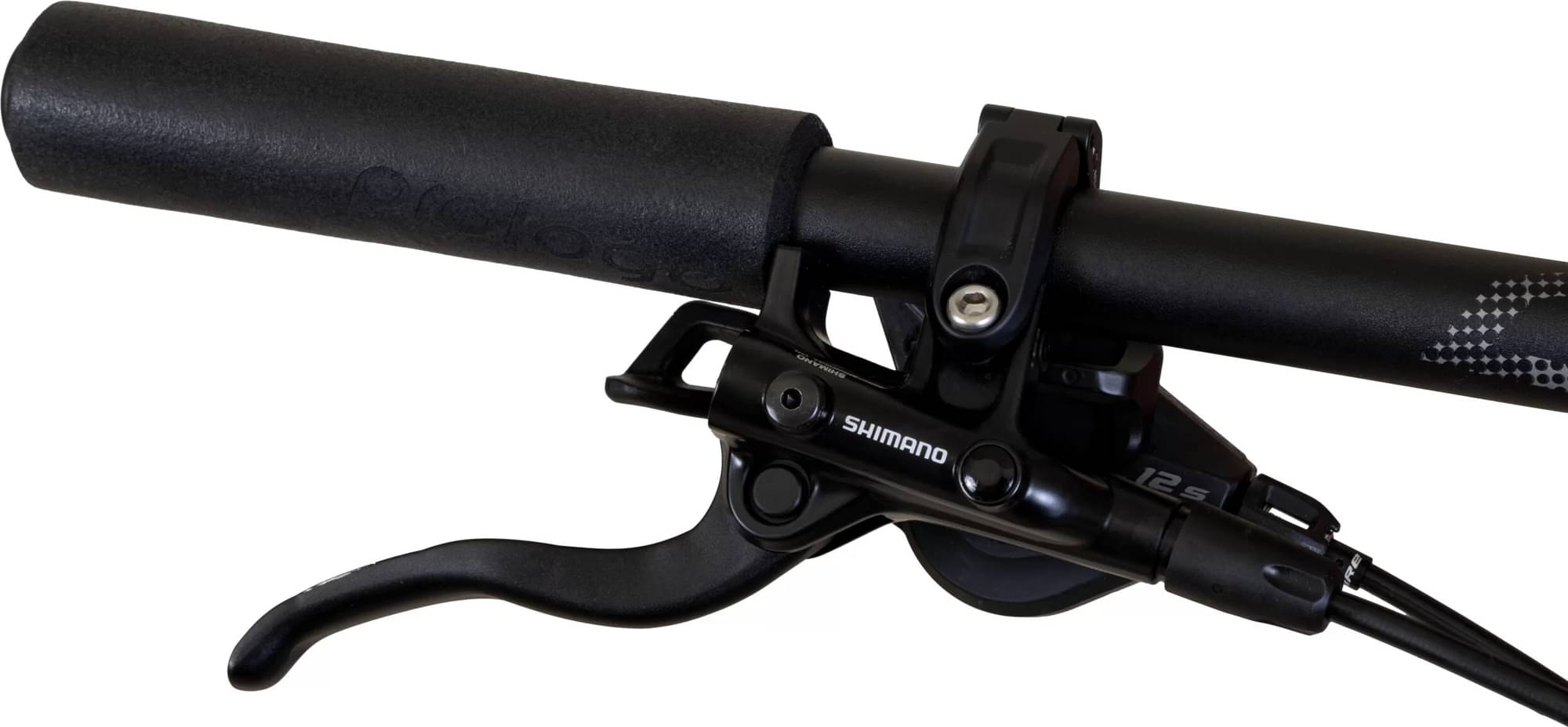

Brake Levers
Aluminum
Cockpit
Handlebar
FSA Comet - Aluminum - 31.8X740mm
Seat
Saddle
Prologue Dimension NDR STN
Seatpost
Aluminum 30.9mm - 300mm (PP-P) / 350mm (M-L) / 400mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | PP | P | MD | G | GG |
|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" |
