Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RockShox Judy
-
Groupset microSHIFT Mezzo -
Suspension Hardtail -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Treated, shaped 6061 aluminum frame with standard disc brake mount and removable dropout.
Suspension Fork
Rock Shox Judy TK - 100mm with remote lock or Suntour XCR32 - 100MM
Drivetrain

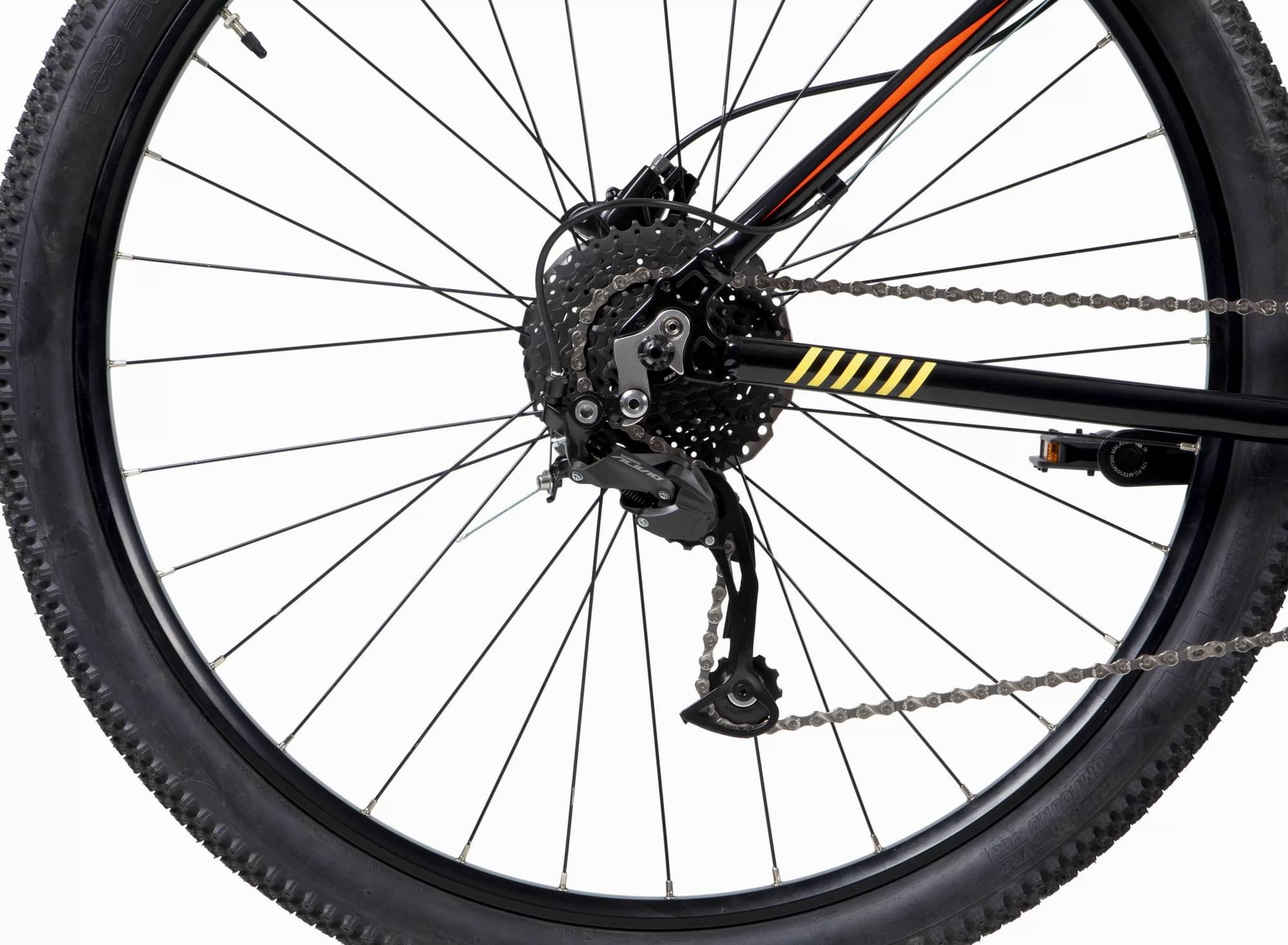

Rear Derailleur
Microshift Mezzo - RD-M36L - 9v or Shimano Alivio - RD-M3100 - 9v
Front Derailleur
Microshift - FD-M292 - 2v or Shimano Altus - FD-M2020 - 2v
Cassette
Sunrace - 9v - 11-36D
Crank
FSA Alpha Drive – 175mm or Shimano MT210 – 175mm (XL, L, M) 170mm (P)
Bottom Bracket
BSA, threaded
Pedals
Plastic
Wheels
Rims
Rodi Blackrock 29 or Stan’s Notubes Arch
Tires
SCHWALBE RACING RAY/RALPH - 29x2.25 OR MAXXIS IKON TANWALL
Brakes
Brakes
Shimano MT200 or Logan Hydraulic
Brake Levers
Shimano MT200 or Logan Hydraulic
Cockpit
Handlebar
MTB Aluminum 31.8x 740mm or 680mm
Seat
Saddle
Selle Royal
Seatpost
Aluminum - 27.2x400 mm - Quick release adjustment
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | MD | 19" | 21" |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
