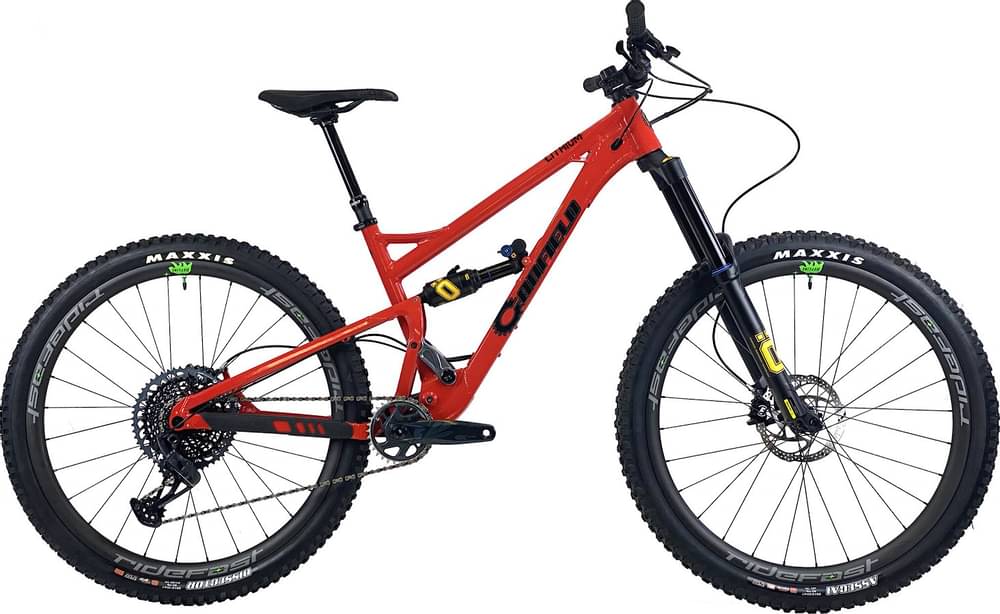

Canfield Lithium 2021
2021 Mountain
Estimate price |
6,799$
Weight | 14.42 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Travel Rear 163mm -
Fork Öhlins
-
Groupset GX Eagle -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Öhlins RXF36 M.2 Air
Rear Shock
Öhlins TTX Air, 230mm x 65mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM GX Eagle XG-1275, 12-speed, 10-52 tooth
Crank
SRAM GX Eagle, 165mm length
Bottom Bracket
73mm threaded
Chain
12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
Canfield Special Blend AM29 wheelset, 110x15mm Boost front, 148x12mm Boost rear, Option: Industry Nine Hydra (with Atomic rims)
Rear Hub
Canfield Special Blend AM29 wheelset, 110x15mm Boost front, 148x12mm Boost rear, Option: Industry Nine Hydra (with Atomic rims)
Rims
Canfield Special Blend AM29 wheelset, Options: Atomik AM35 Carbon, 28mm inner width; RideFast Hotline 29 Carbon wheelset, 30mm inner width
Spokes
Canfield Special Blend AM29 wheelset
Tires
Front: Maxxis Minion DHF, 29" x 2.5", Rear: Maxxis Dissector, 29" x 2.4"
Brakes
Brakes
Option 1: Magura MT5, 4-piston, 203mm front rotor, 180mm rear rotor, Option 2: TRP Quadiem, 4-piston, 203mm front rotor, 180mm rear rotor
Brake Levers
Option 1: Magura MT5, Option 2: TRP Quadiem
Cockpit
Stem
ProTaper, 35mm bar clamp, 45mm length
Handlebar
ProTaper, aluminum, 1" rise, 35mm clamp diameter, 810mm width
Grips
SDG
Headset
44mm upper, 56mm lower
Seat
Saddle
SDG Radar MTN (custom Canfield version)
Seatpost
SDG Tellis dropper, Drop: 150mm (SM/MD), 170mm (LG/XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.43 mm | 1.36 mm | 1.3 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Stack | 632 mm | 637 mm | 641 mm | 646 mm |
| Reach | 422 mm | 447 mm | 472 mm | 497 mm |
| Top Tube Length | 572 mm | 598 mm | 625 mm | 652 mm |
| Seat Tube Angle | 76.7 ° | 76.7 ° | 76.7 ° | 76.7 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 490 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm | 125 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1190 mm | 1218 mm | 1245 mm | 1272 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm | 24 mm |
| Standover Height | 699 mm | 736 mm | 767 mm | 779 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Lithium is part of the Canfield Lithium model. Canfield released 1 bike variation of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Canfield released this model in 2021, its price was 6799$. In conclusion, this bike price is 88.91% more expensive than the price of the average Enduro bike.
Average weight for Enduro bikes
On a deeper look, we notice that the average weight of an Enduro bike is 14.27 kg (31.46 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Canfield Lithium it’s weighing 14.42 kg (31.79 lbs). At this weight, is slightly heavier than average. In short, the average Enduro bike weight is 1.05% lower than this one.
Overview of components
Fork
This bike has the Öhlins fork installed. The fork’s travel is 170mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Lithium has a rear shock with a travel of 163mm. The model Öhlins TTX Air is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, Canfield Lithium 2021, has a 29″ carbon model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canfield Lithium is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Lithium. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
