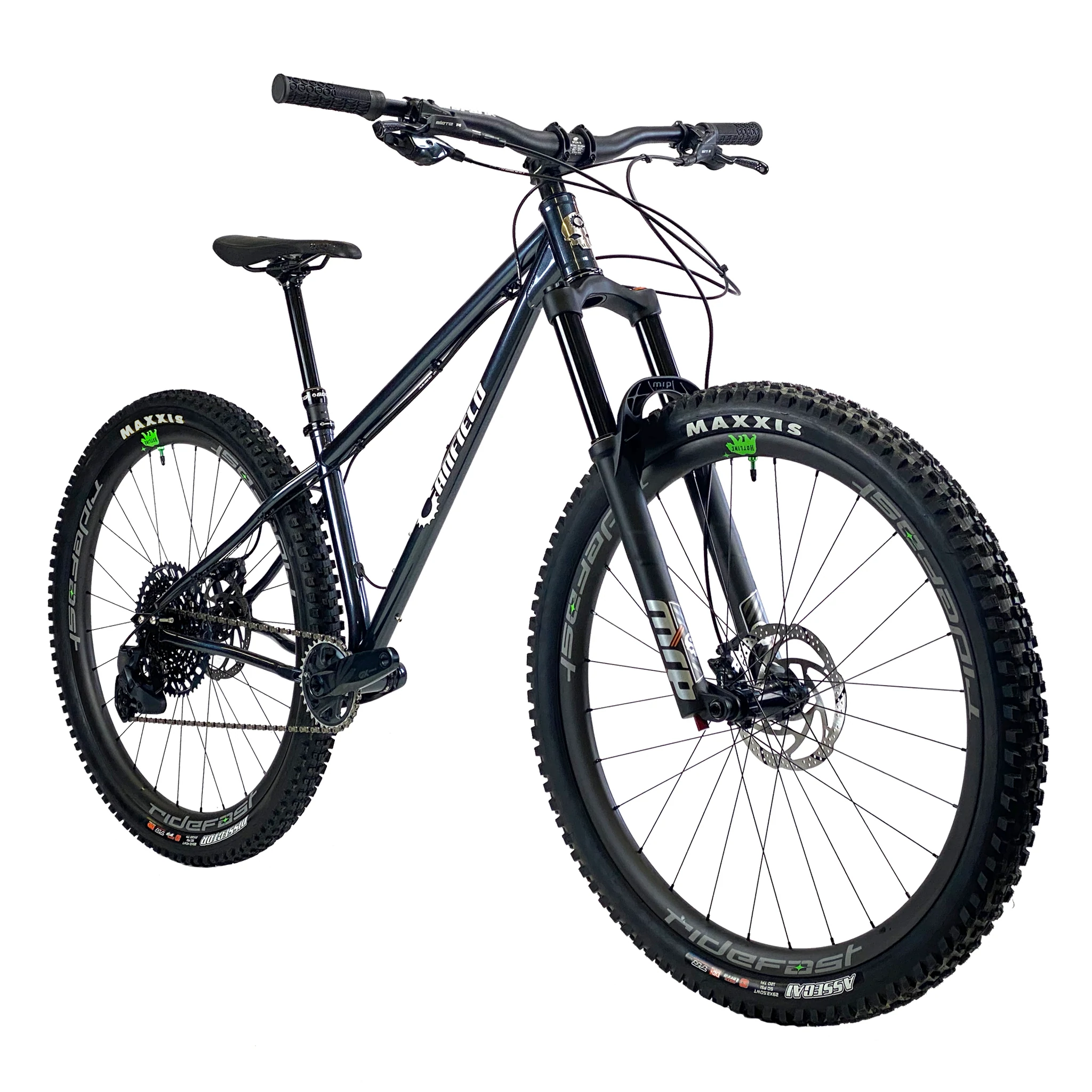

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 150mm -
Fork MRP Ribbon
-
Groupset GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chromoly
Suspension Fork
MRP Ribbon Air, custom Canfield decals
Rear Shock
None
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM GX Eagle XG-1275, 12-speed, 10-52 tooth
Crank
SRAM GX Eagle DUB, 165mm length
Bottom Bracket
SRAM DUB, 73mm threaded
Chain
12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
Canfield Special Blend AM/Enduro wheelset, 110x15mm Boost front, 148x12mm Boost rear, Option: Industry Nine Hydra (with Atomic rims)
Rear Hub
Canfield Special Blend AM/Enduro wheelset, 110x15mm Boost front, 148x12mm Boost rear, Option: Industry Nine Hydra (with Atomic rims)
Rims
Canfield Special Blend AM/Enduro wheelset, Options: Atomik AM35 Carbon, 28mm inner width; RideFast Hotline 29 Carbon wheelset, 30mm inner width
Spokes
Canfield Special Blend AM/Enduro wheelset
Tires
Front: Maxxis Minion DHF, EXO, TR, 29" x 2.6" WT, Rear: Maxxis Dissector, EXO, TR, 29" x 2.4" WT
Brakes
Brakes
Option 1: Magura MT Trail Sport, 4-piston front, 2-piston rear, 180mm rotors, Option 2: TRP Slate T4, 4-piston, 180mm rotors
Brake Levers
Option 1: Magura MT Trail Sport, Option 2: TRP Slate T4
Cockpit
Stem
Spank Split, 45mm length, 35 bar clamp
Handlebar
Spank Spoon, 800mm width, 35mm clamp diameter
Grips
SDG Thrice, 31mm diameter
Headset
Cane Creek 40 Series (includes carbon spacers)
Seat
Saddle
SDG Radar MTN (custom Canfield version)
Seatpost
SDG Tellis dropper, 150mm or 170mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.41 mm | 1.36 mm | 1.31 mm |
| Bottom Bracket Height | 324 mm | 324 mm | 324 mm | 324 mm |
| Front Center | 746 mm | 773 mm | 802 mm | 831 mm |
| Rake | 54 mm | 54 mm | 54 mm | 54 mm |
| Trail | 108 mm | 108 mm | 108 mm | 108 mm |
| Stack | 638 mm | 642 mm | 652 mm | 660 mm |
| Reach | 429 mm | 454 mm | 479 mm | 504 mm |
| Top Tube Length | 574 mm | 601 mm | 629 mm | 656 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 370 mm | 405 mm | 445 mm | 490 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1160 mm | 1187 mm | 1216 mm | 1245 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 749 mm | 784 mm | 804 mm | 834 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Nimble 9 belongs to the Canfield Nimble model. Canfield launched 1 bike of this model so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro bikes
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2021 for 4599$. In conclusion, this bike price is 27.79% more expensive than the price of the average Enduro bike.
Nimble 9 components
Fork
Canfield Nimble 9 2021 bike is equipped with the MRP Ribbon fork, and has 150mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, Canfield Nimble 9 2021, has a 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Nimble 9 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Canfield Nimble 9 comes with a dropper post. Therefore, climbing or descending will be a breeze.
