Bike details
Overview
Key information split into simple groups.

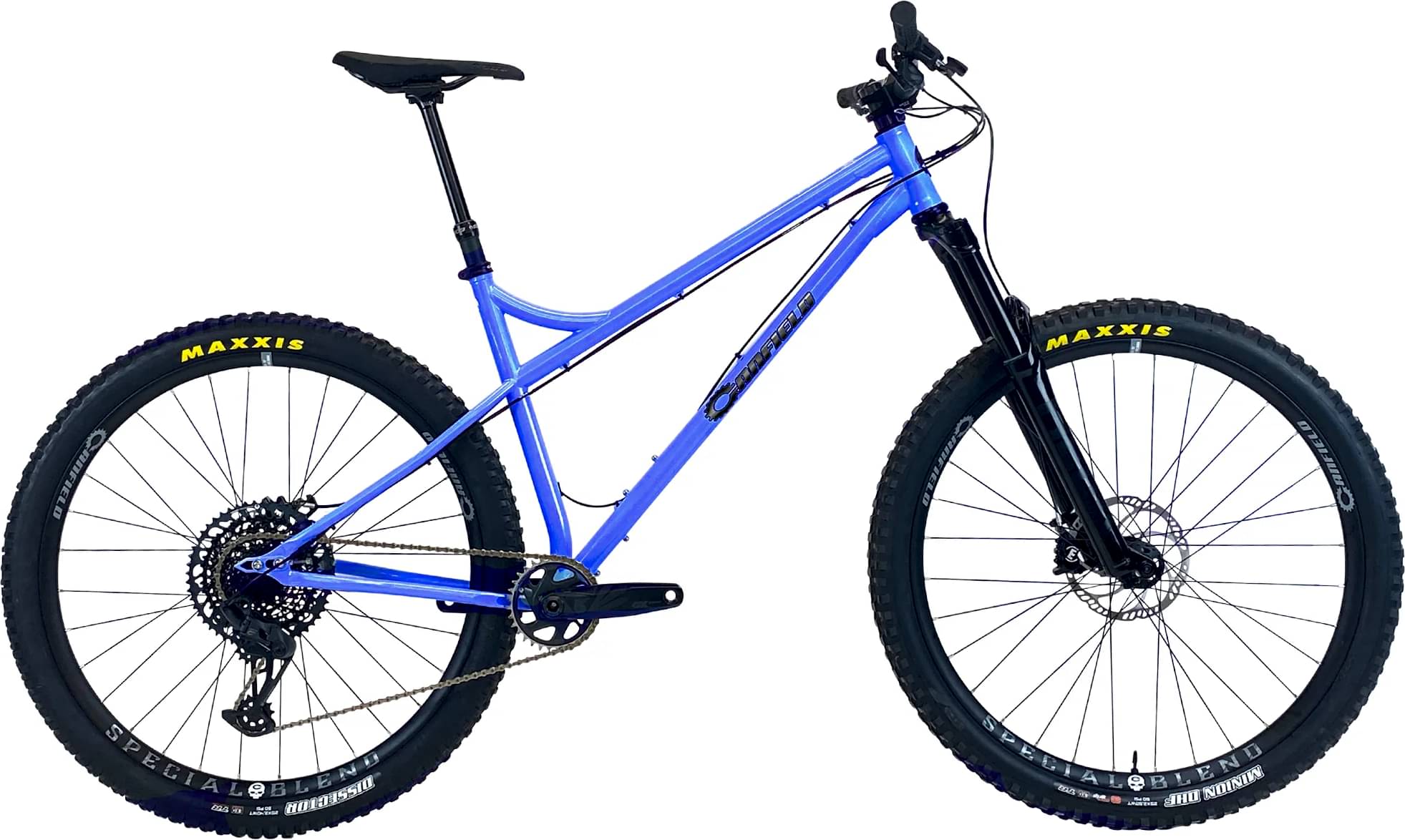

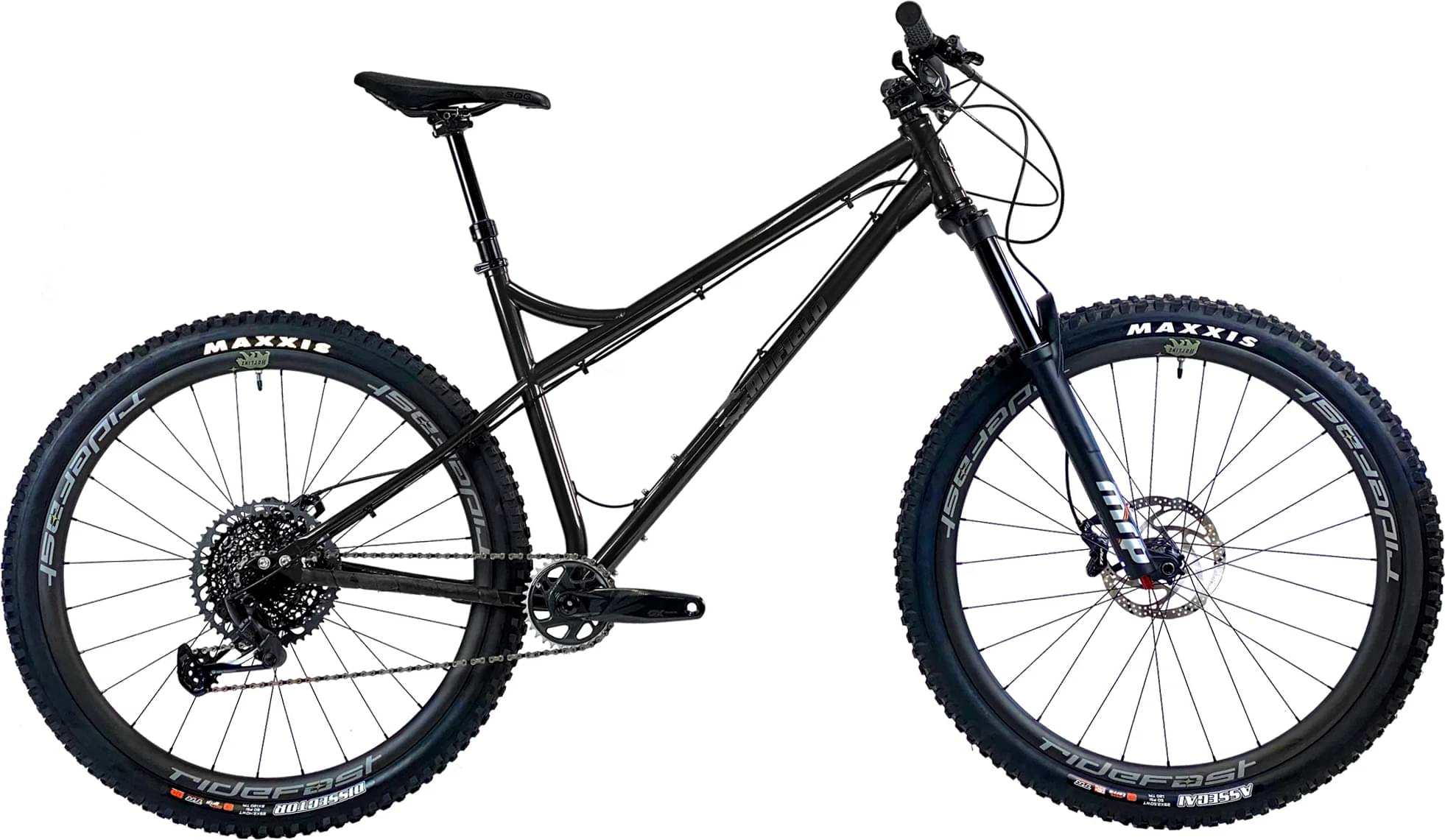

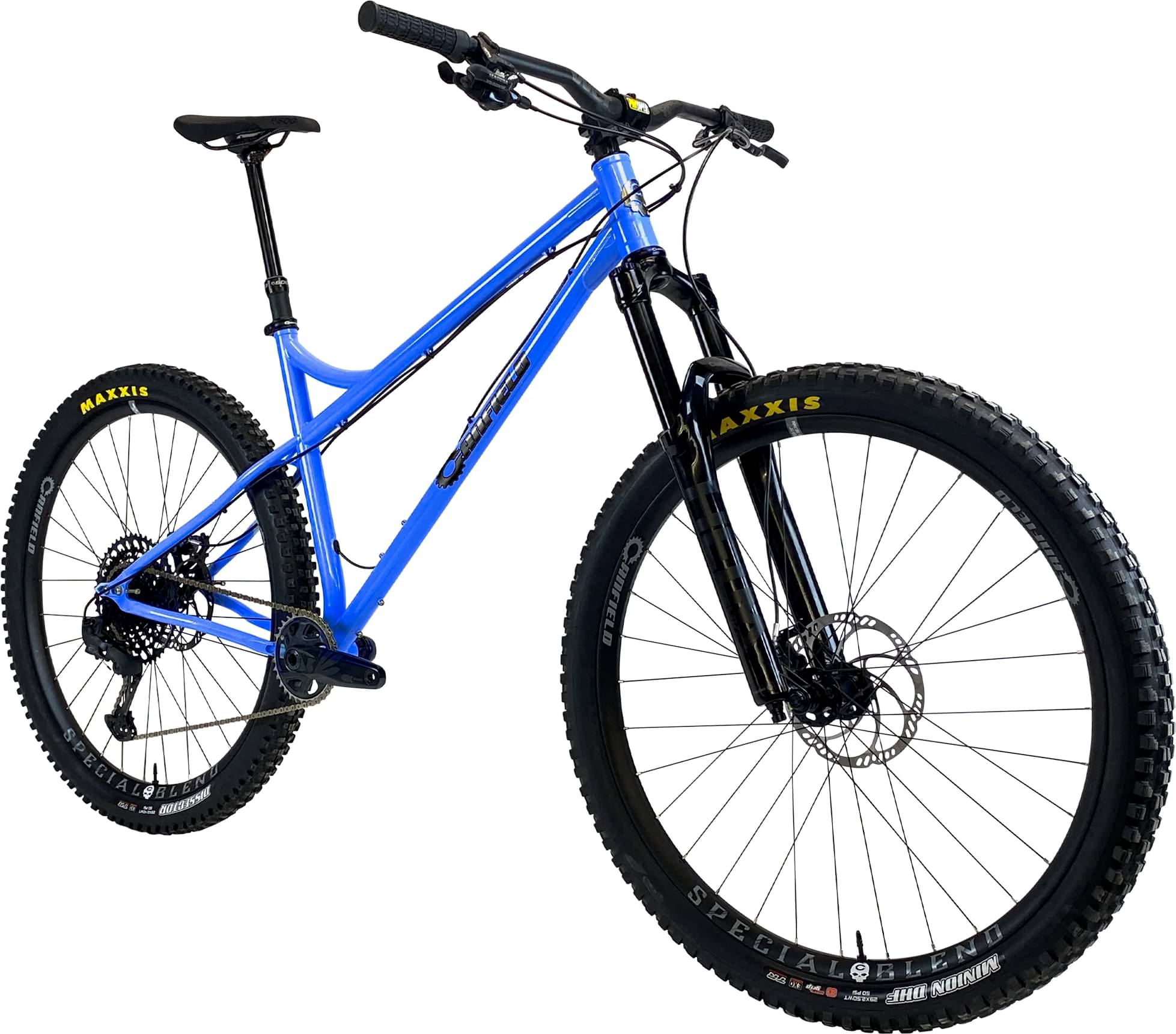

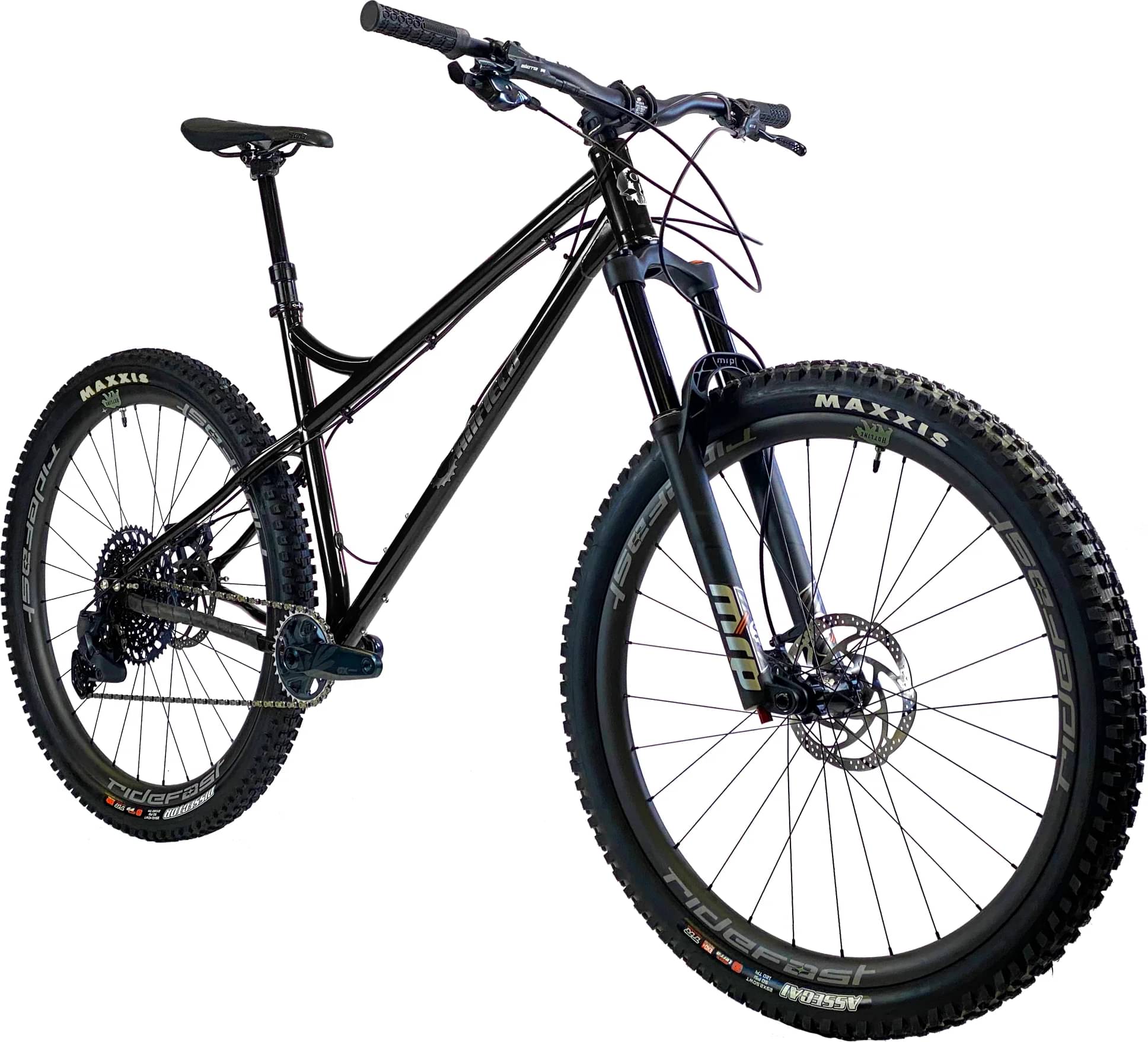

Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 150mm -
Fork RockShox Lyrik Ultimate
-
Groupset GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox Lyrik Ultimate 150mm
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
e*thirteen Helix-R 9-50t
Crank
Canfield AM
Wheels
Rims
e*thirteen LG1+ Enduro
Tires
Maxxis Minion DHF 2.5 / Maxxis Dissector 2.4
Brakes
Brakes
TRP Slate T4
Cockpit
Stem
Canfield Special Blend 40mm
Handlebar
e*thirteen 800mm
Grips
Lizard Skins Charger Evo
Seat
Seatpost
SDG Tellis
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.492 mm | 1.418 mm | 1.364 mm | 1.312 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm |
| Front Center | 746 mm | 773 mm | 802 mm | 831 mm |
| Rake | 54 mm | 54 mm | 54 mm | 54 mm |
| Trail | 108 mm | 108 mm | 108 mm | 108 mm |
| Stack | 634 mm | 638 mm | 648 mm | 656 mm |
| Reach | 425 mm | 450 mm | 475 mm | 500 mm |
| Top Tube Length | 570 mm | 597 mm | 625 mm | 652 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 370 mm | 405 mm | 445 mm | 490 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 1156 mm | 1183 mm | 1212 mm | 1241 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 745 mm | 780 mm | 800 mm | 830 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
