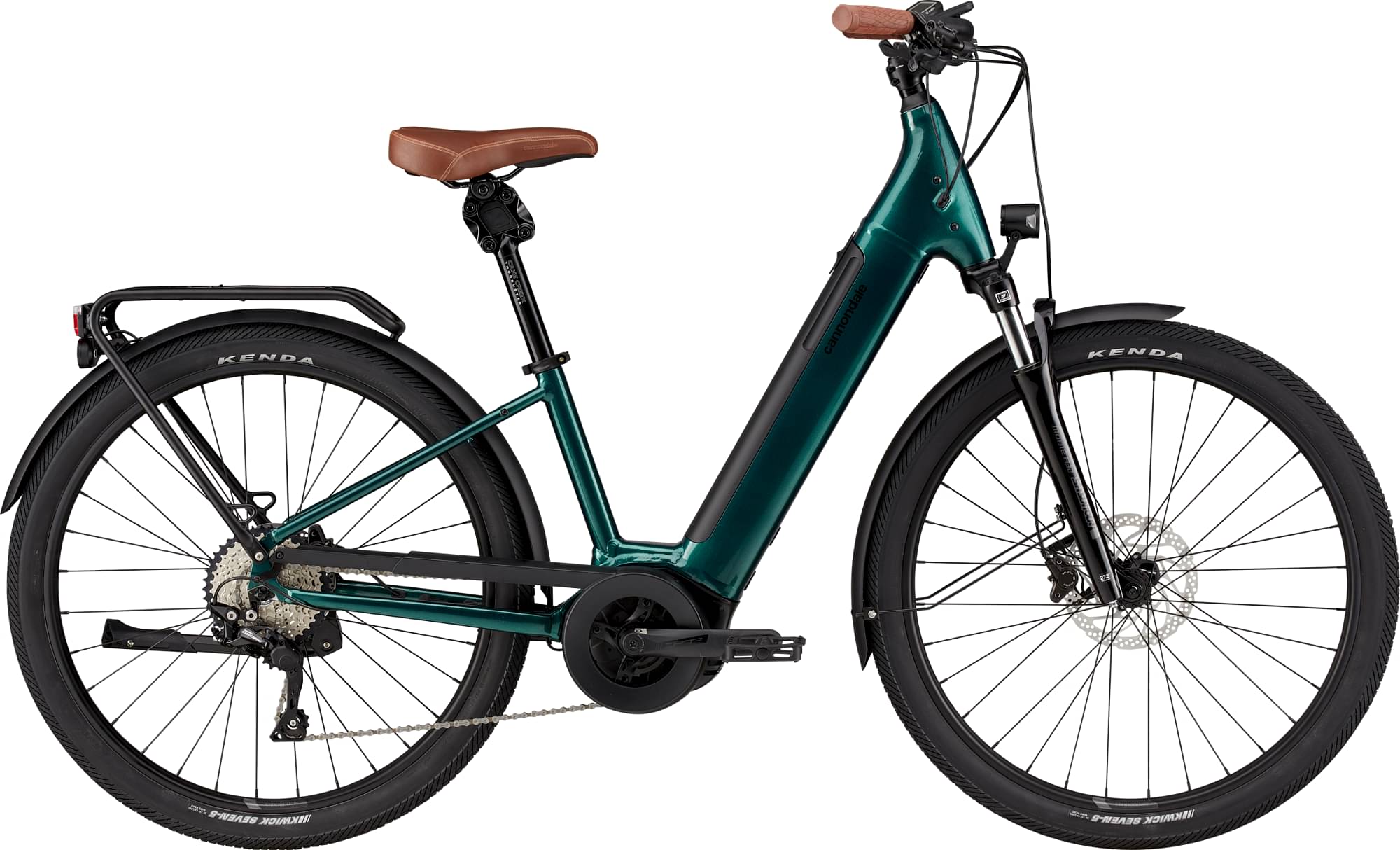

Cannondale Adventure Neo 1 EQ 2024
2024 E-bike
Estimate price |
4,472$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 600W 63Nm mid-drive -
Battery Bosch PowerTube, 625Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
149cm - 172cm
LG
169cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C3 Alloy step-thru frame, removable downtube battery, fully internal cable routing, post mount disc, dual waterbottle headtube mount
Suspension Fork
SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset
Drivetrain
Rear Derailleur
Shimano Deore M4100
Shift Levers
Shimano Deore M4100, 10-speed
Cassette
Shimano M4100, 11-42, 10-speed
Crank
FSA Bosch E-Bike, 38T
Bottom Bracket
Bosch, press-fit
Chain
Shimano Deore, 10-speed
Pedals
Cannondale Comfort
Wheels
Front Hub
(F) Shimano MT400, 15x100mm thru-axle / (R) Shimano TX505, QR
Rear Hub
(F) Shimano MT400, 15x100mm thru-axle / (R) Shimano TX505, QR
Rims
Cannondale 2, double wall
Spokes
Stainless Steel, 14g
Tires
Kenda Kwick Seven.5, 27.5x2.20"
Brakes
Brakes
Shimano MT400 hydraulic disc, 180/160mm RT30 rotors
Brake Levers
Shimano MT400 hydraulic disc
Cockpit
Stem
Cannondale 3 with Intellimount, Alloy, 31.8mm clamp
Handlebar
Cannondale E-Series Alloy, ergo backsweep, 680mm
Grips
Cannondale Comfort
Headset
Semi Integrated, 1-1/8"
Seat
Saddle
Cannondale Adventure Neo, 170mm, steel rails
Seatpost
Cane Creek Thudbuster G4 suspension post, 31.6, 375mm (S), 430mm (L)
Motor & Battery
Motor
Bosch Performance Line Cruise (20mph)
Battery
Bosch PowerTube, 625Wh
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG |
|---|---|---|
| Wheels | 650 | 650 |
| Rider Min Height | 149 cm | 169 cm |
| Rider Max Height | 172 cm | 198 cm |
