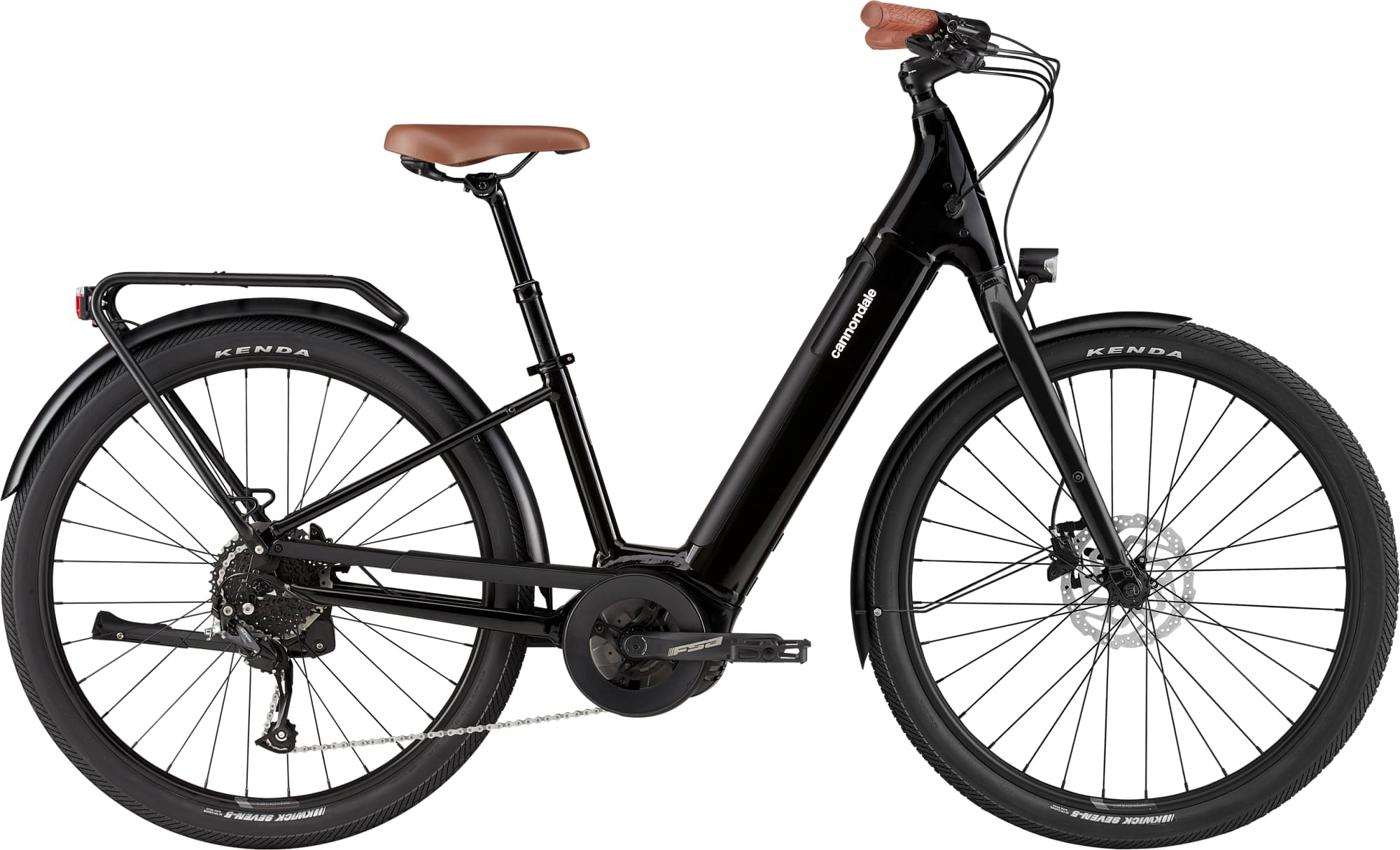

Cannondale Adventure Neo 3.1 EQ 2024
2024 E-bike
Estimate price |
3,096$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT Marvo -
Suspension Rigid -
Motor Bosch 600W 50Nm mid-drive -
Battery Bosch PowerTube, 400Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
149cm - 172cm
LG
169cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C3 Alloy step-thru frame, removable downtube battery, fully internal cable routing, post mount disc, dual waterbottle headtube mount
Suspension Fork
SmartForm C3 Alloy blades, 1-1/8" steerer, post mount disc, mid-blade rack/fender mounts, crown accessory mount, 45mm offset
Drivetrain
Rear Derailleur
microSHIFT M46L
Shift Levers
microSHIFT M859, 9-speed
Cassette
microSHIFT, 11-36, 9-speed
Crank
FSA Bosch E-Bike, 38T
Bottom Bracket
Bosch, press-fit
Chain
KMC Z9, 9-speed
Pedals
Cannondale Comfort
Wheels
Front Hub
(F) Formula DC-51, 15x100mm thru-axle / (R) Formula DC-1422, QR
Rear Hub
(F) Formula DC-51, 15x100mm thru-axle / (R) Formula DC-1422, QR
Rims
Cannondale 2, double wall
Spokes
Stainless Steel, 14g
Tires
Kenda Kwick Seven.5, 27.5x2.20"
Brakes
Brakes
Riderever hydraulic disc, 180/160mm rotors
Brake Levers
Riderever hydraulic disc
Cockpit
Stem
Cannondale 3 with Intellimount, Alloy, 31.8mm clamp
Handlebar
Cannondale E-Series Alloy, ergo backsweep, 680mm
Grips
Cannondale Comfort
Headset
Semi Integrated, 1-1/8"
Seat
Saddle
Cannondale Ergo Comfort
Seatpost
TranzX, suspension dropper post, 31.6, 50mm travel
Motor & Battery
Motor
Bosch Active Line Plus
Battery
Bosch PowerTube, 400Wh
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG |
|---|---|---|
| Wheels | 650 | 650 |
| Rider Min Height | 149 cm | 169 cm |
| Rider Max Height | 172 cm | 198 cm |
