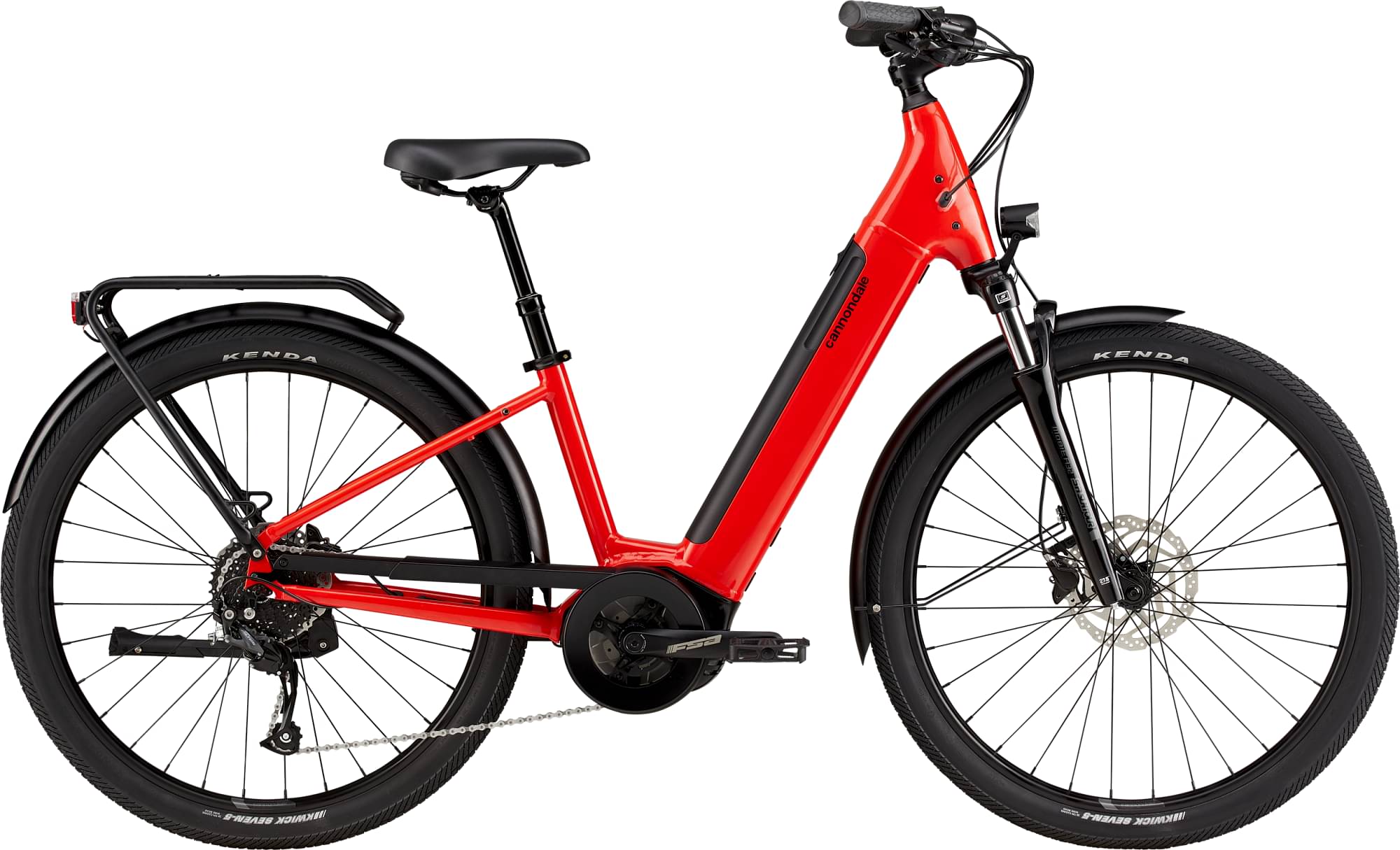

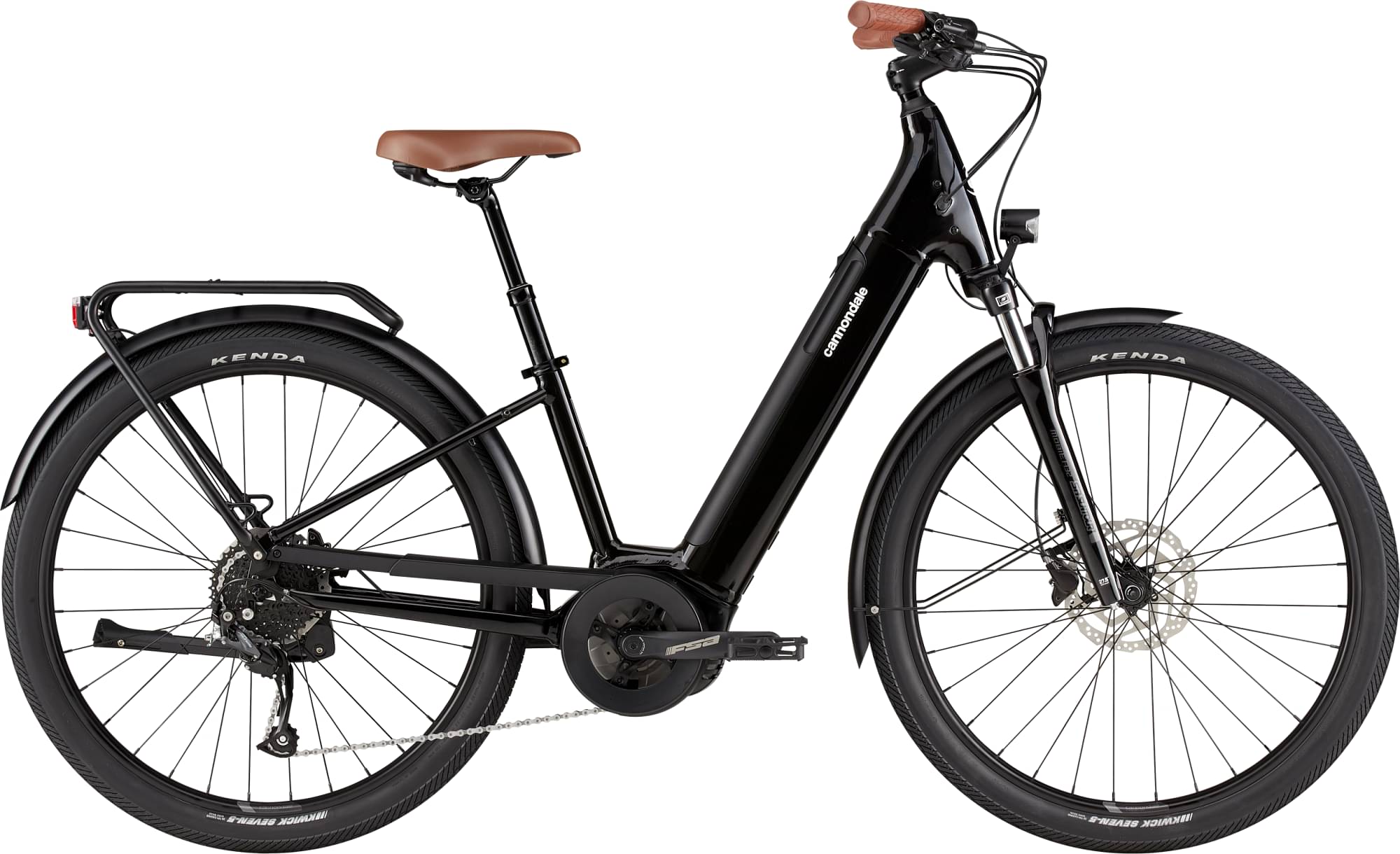

Cannondale Adventure Neo 3 EQ 2024
2024 E-bike
Estimate price |
3,125$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour MOBIE
-
Groupset microSHIFT Marvo -
Suspension Hardtail -
Motor Bosch 600W 40Nm mid-drive -
Battery Bosch PowerTube, 400Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
149cm - 172cm
LG
169cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C3 Alloy step-thru frame, removable downtube battery, fully internal cable routing, post mount disc, dual water bottle headtube mount
Suspension Fork
SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset
Drivetrain
Rear Derailleur
microSHIFT Marvo, 9-speed
Shift Levers
microSHIFT Marvo XPress M859, trigger style, 9-speed
Cassette
microSHIFT, 11-36, 9-speed
Crank
FSA Bosch E-Bike, 38T
Bottom Bracket
Bosch, press-fit
Chain
KMC Z9, 9-speed
Pedals
Cannondale Comfort
Wheels
Front Hub
(F) Formula DC-51, 15x100mm thru-axle / (R) Formula DC-1422, QR
Rear Hub
(F) Formula DC-51, 15x100mm thru-axle / (R) Formula DC-1422, QR
Rims
Cannondale 2, double wall
Spokes
Stainless Steel, 14g
Tires
Kenda Kwick Seven.5, 27.5x2.20"
Brakes
Brakes
Tektro M275 hydraulic disc, 180/160mm rotors
Brake Levers
Tektro hydraulic disc
Cockpit
Stem
Cannondale 3 with Intellimount, Alloy, 31.8mm clamp
Handlebar
Cannondale E-Series Alloy, ergo backsweep, 680mm
Grips
Cannondale Comfort
Headset
Semi-Integrated, 1-1/8"
Seat
Saddle
Cannondale Ergo Comfort
Seatpost
TranzX, suspension dropper post, 31.6, 50mm travel
Motor & Battery
Motor
Bosch Active Line
Battery
Bosch PowerTube, 400Wh
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG |
|---|---|---|
| Wheels | 650 | 650 |
| Rider Min Height | 149 cm | 169 cm |
| Rider Max Height | 172 cm | 198 cm |
