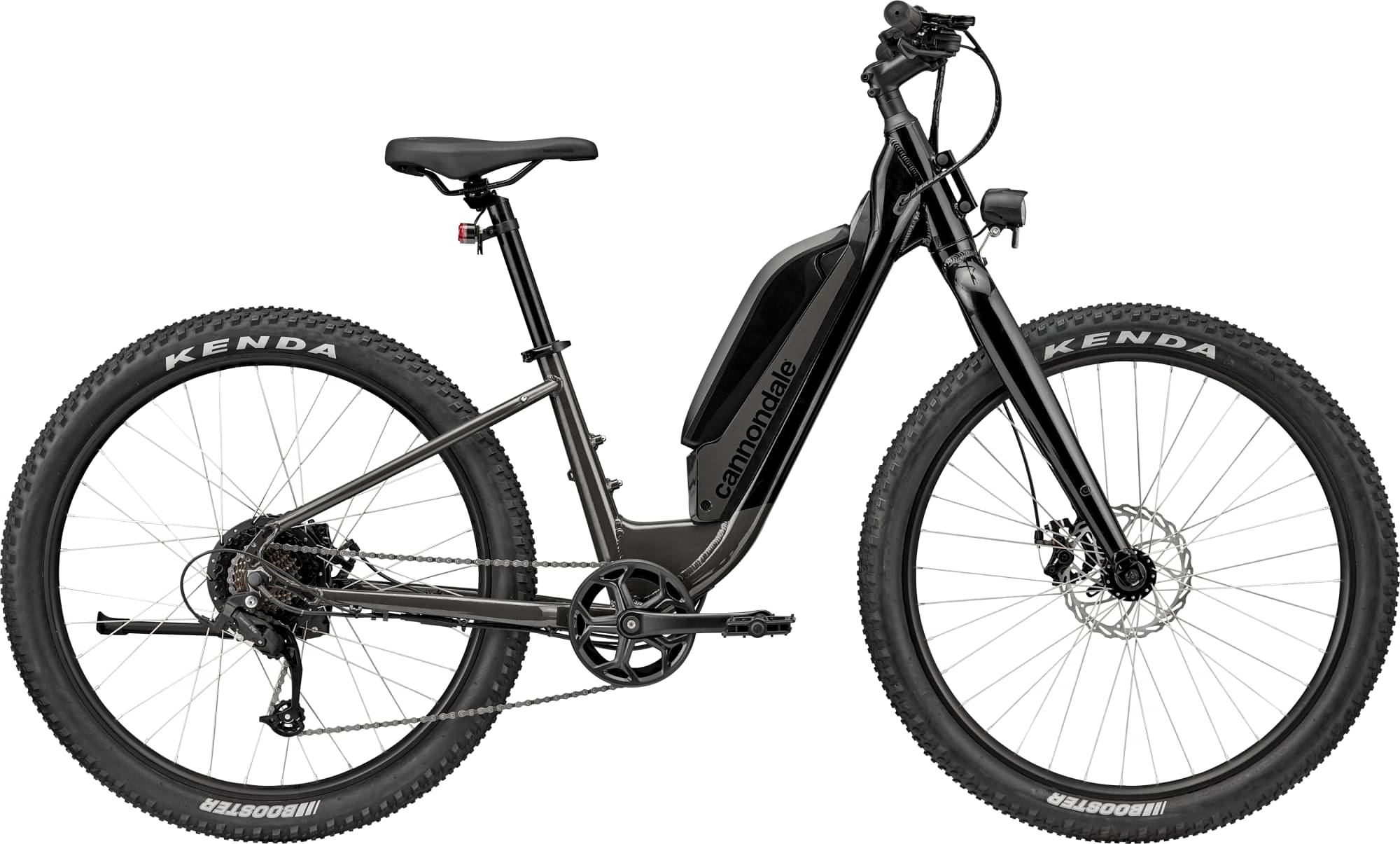

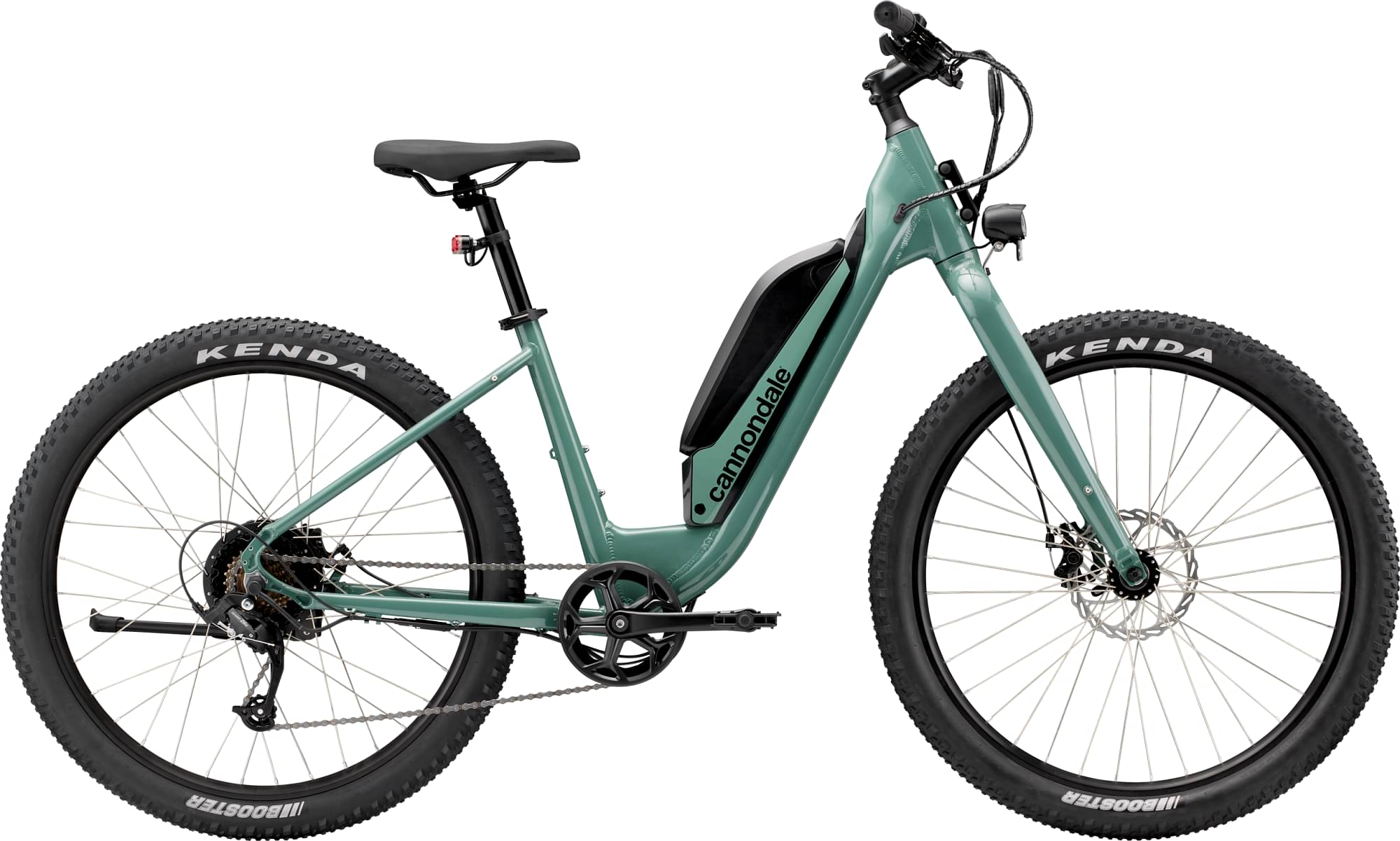

Cannondale Adventure Neo Allroad Low StepThru 2024
2024 E-bike
Estimate price |
1,675$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT -
Suspension Rigid -
Motor Bafang 250W hub-drive -
Battery HWT 36V, 418Wh, Taiwan-made -
Drivetrain 1 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
165cm - 177cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C3 Alloy frame, low step-thru, removable downtube battery, semi-internal cable routing, tapered 1-1/8"-1.5" headtube, post mount disc, waterbottle and headtube rack mounts
Suspension Fork
SmartForm C3 Alloy blades, 1-1/8" steerer, disc mount, mid-blade rack/fender mounts, crown accessory mount, 50mm offset
Drivetrain
Rear Derailleur
microSHIFT RD-M21L
Shift Levers
microSHIFT TS38-7 Thumb Tap, 7-speed
Cassette
microSHIFT, 14-34, 7-speed
Crank
Prowheel, 38T
Bottom Bracket
Bafang SR PA14.32.S Sensor
Chain
KMC Z7, 7-speed
Pedals
Cannondale Fitness
Wheels
Rims
Alloy, double wall, 36h, disc-specific
Spokes
Stainless steel, 13g
Tires
Kenda Booster, 27.5x2.6"
Brakes
Brakes
Tektro mechanical disc, 180/180mm rotors
Brake Levers
3-finger alloy
Cockpit
Stem
Cannondale Alloy, 31.8, 7°
Handlebar
Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 740mm
Grips
Cannondale Comfort
Headset
Semi-Integrated, 1-1/8" with reducer
Seat
Saddle
Cannondale Allroad Comfort
Seatpost
6061 Alloy, 30.9x350mm
Motor & Battery
Motor
Bafang G020 Hub, 250W (20mph)
Battery
HWT 36V, 418Wh, Taiwan-made
Charger
HWT 2A
Fit data

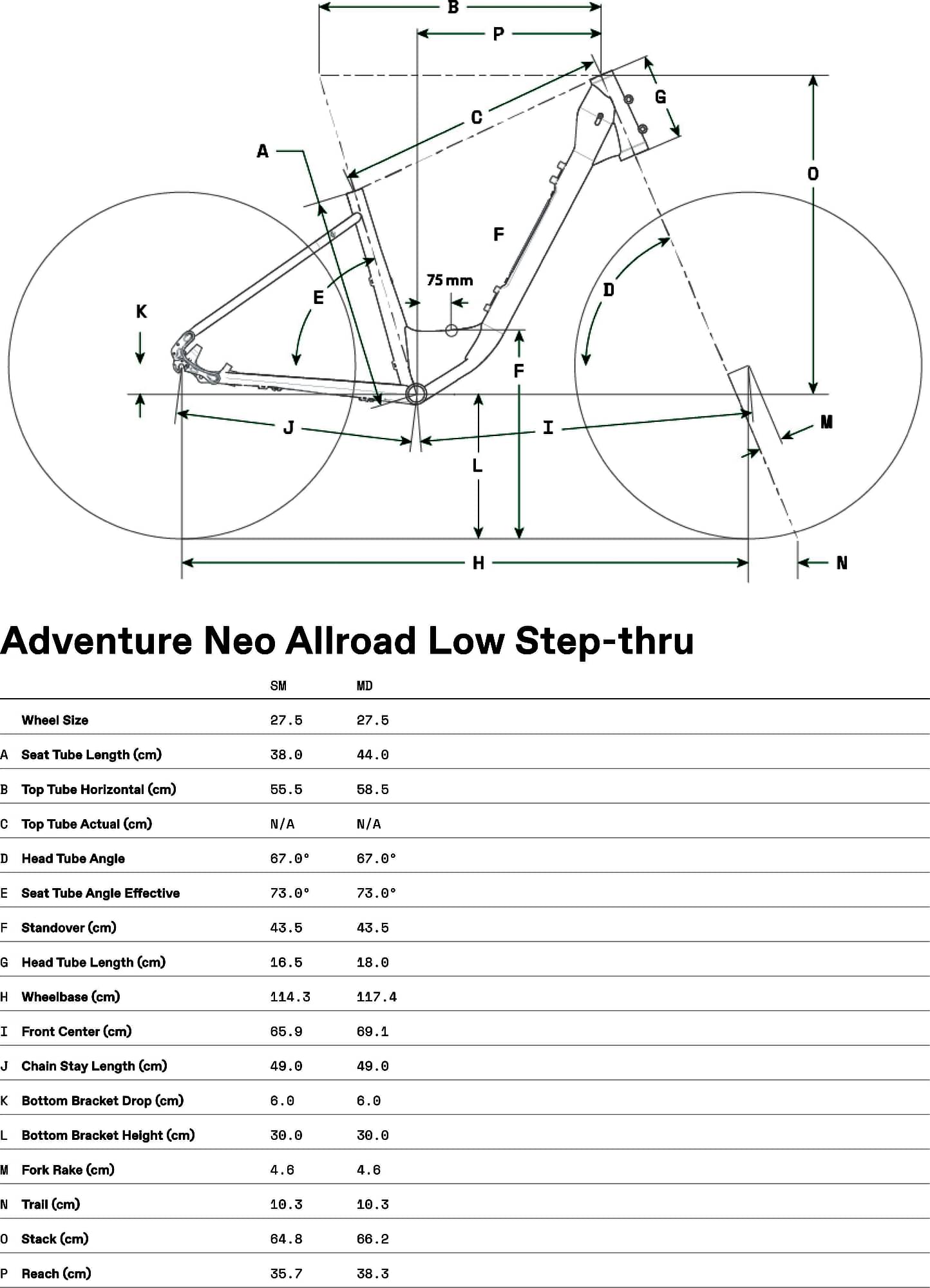

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Wheels | 650 | 650 |
| Rider Min Height | 152 cm | 165 cm |
| Rider Max Height | 170 cm | 177 cm |
