Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Cannondale Lefty LightPipe -
Groupset microSHIFT Mezzo -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 170cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy, integrated Urban Armor bumper, BSA threaded BB, 1-1/8" headtube
Suspension Fork
Lefty LightPipe rigid, integrated SuperNova LED lightstrip, USB rechargeable battery, 1-1/8" steerer
Drivetrain
Rear Derailleur
microSHIFT M36L
Front Derailleur
microSHIFT Dual Pull Compact, Steel Cage, Steel Band Clamp
Shift Levers
microSHIFT, 9-speed
Cassette
Sunrace, 11-32, 9-speed
Crank
Prowheel, 48-32
Bottom Bracket
Cartridge, square taper
Chain
KMC Z9, 9-speed
Pedals
Cannondale Urban Pedal
Wheels
Front Hub
Lefty 50 front
Rear Hub
Formula DC-1422 QR
Rims
Cannondale, double wall, 32h
Spokes
Stainless Steel, 14g
Tires
WTB Byway, 650bx40c
Brakes
Brakes
Tektro M390 hydraulic disc, 160/160mm rotors
Brake Levers
Tektro hydraulic disc
Cockpit
Stem
Bad Boy, 6061 Alloy, 31.8, 60mm
Handlebar
Cannondale 3 Riser, 6061 Alloy, 18mm rise, 8° back, 4° up, 680mm
Grips
Cannondale Comfort
Headset
Semi-Integrated
Seat
Saddle
Cannondale Urban
Seatpost
LightSkin w/ integrated rear LED light, 31.6, USB Rechargeable
Fit data

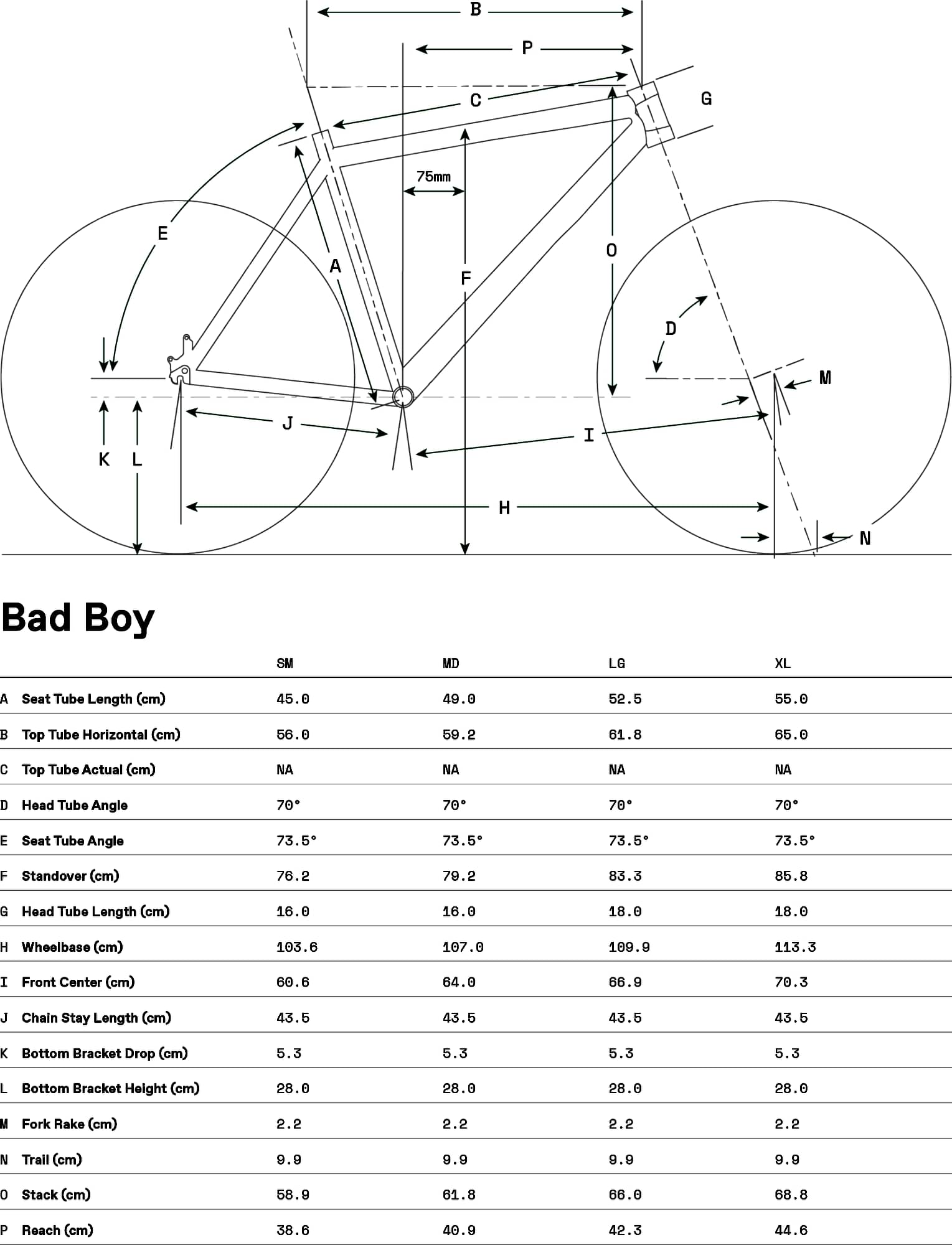

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.526 mm | 1.511 mm | 1.56 mm | 1.543 mm |
| Front Center | 606 mm | 640 mm | 669 mm | 703 mm |
| Rake | 22 mm | 22 mm | 22 mm | 22 mm |
| Trail | 99 mm | 99 mm | 99 mm | 99 mm |
| Stack | 589 mm | 618 mm | 660 mm | 688 mm |
| Reach | 386 mm | 409 mm | 423 mm | 446 mm |
| Top Tube Length | 560 mm | 592 mm | 618 mm | 650 |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 450 mm | 490 mm | 525 mm | 550 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1036 mm | 1070 mm | 1099 mm | 1133 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 762 mm | 792 mm | 833 mm | 858 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 157 cm | 165 cm | 175 cm | 182 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 195 cm |
