Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra, FSA -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
44cm
157cm - 165cm
48cm
160cm - 170cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
177cm - 185cm
58cm
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy, SAVE, tapered headtube, fender mounts, 130x10mm QR
Suspension Fork
CAAD Optimo Full Carbon, 1-1/8" to 1-1/4" steerer, fender mounts, 100x9mm QR
Drivetrain
Rear Derailleur
Shimano Tiagra GS
Front Derailleur
Shimano Tiagra, 31.8mm clamp
Shift Levers
Shimano Tiagra, 10-speed
Cassette
Sunrace, 11-32, 10-speed
Crank
FSA Omega ME Alloy, 50/34
Bottom Bracket
FSA Cartridge
Chain
KMC X10EL, 10-speed
Pedals
Wellgo w/ Clip and Strap
Wheels
Front Hub
Formula RB-31
Rear Hub
Formula RB-32
Rims
RS 3.0, 24h front, 28h rear
Spokes
Stainless Steel, 14g
Tires
Vittoria Zaffiro, 700x25c
Brakes
Brakes
Promax RC-476, dual pivot calipers
Brake Levers
Shimano Tiagra
Cockpit
Stem
6061 Alloy, 31.8, 7°
Handlebar
6061 Alloy, Compact
Grips
Cannondale Bar Tape, 3.5mm
Headset
CAAD Optimo, 1-1/8" to 1-1/4", 25mm top cap
Seat
Saddle
Cannondale Stage CX
Seatpost
Cannondale 4, 6061 Alloy, 27.2x350mm

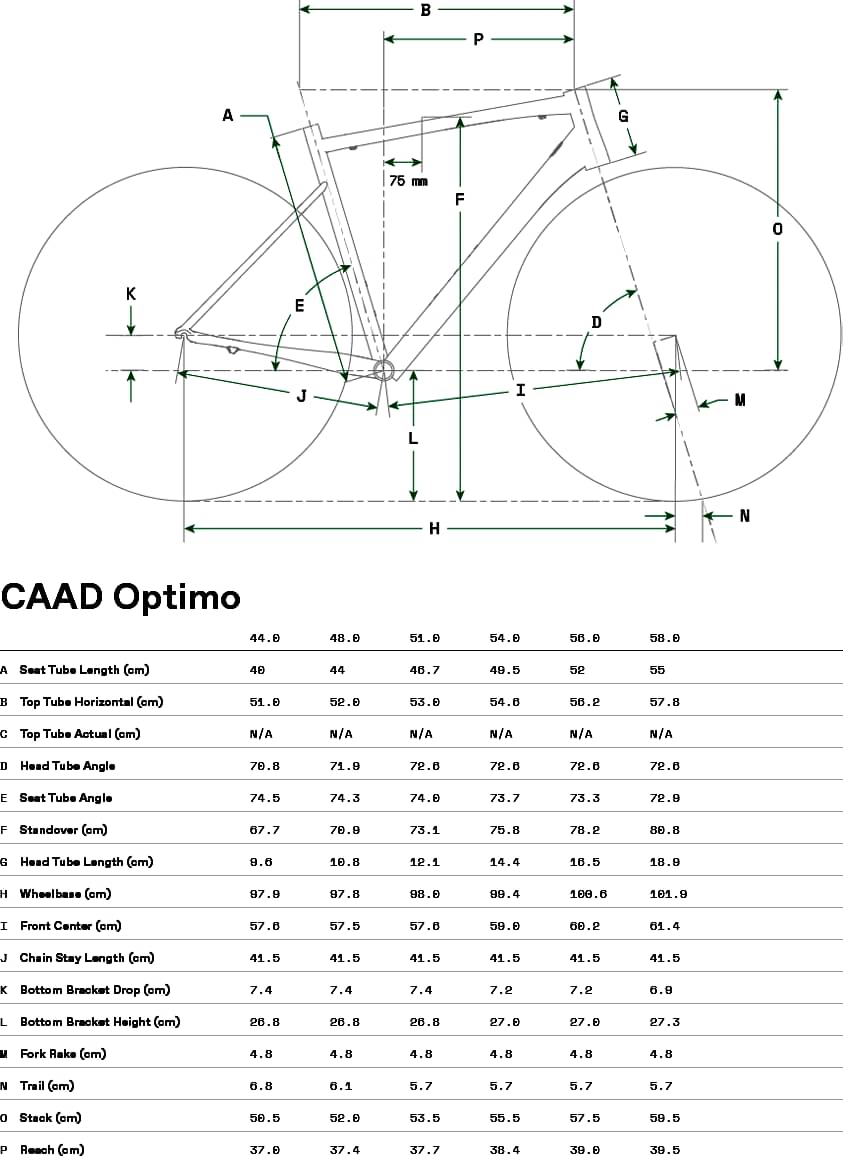

Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 51cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 160 cm | 165 cm | 170 cm | 177 cm | 182 cm |
| Rider Max Height | 165 cm | 170 cm | 175 cm | 180 cm | 185 cm | 193 cm |
