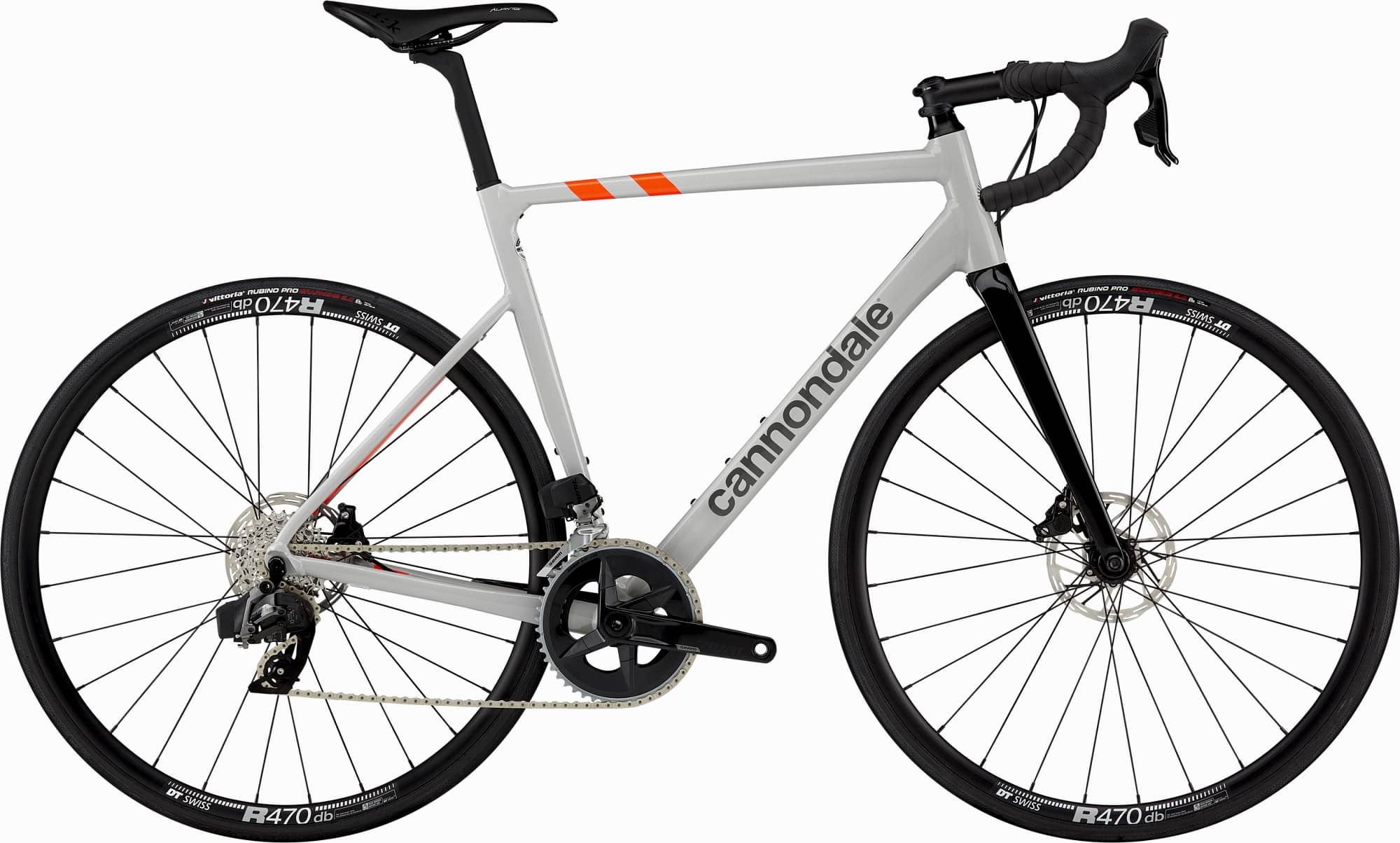

Cannondale CAAD13 Disc Rival AXS 2024
2024 Road
Estimate price |
3,325$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
48cm
160cm - 170cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
177cm - 185cm
58cm
182cm - 193cm
60cm
188cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C1 Premium Alloy, 12x142 Speed Release thru-axle, flat-mount disc, integrated cable routing w/ Switchplate, SAVE, BB30a, Di2 ready
Suspension Fork
CAAD13 Full Carbon, SAVE, 1-1/8" to 1-1/4" steerer, integrated crown race, 12x100mm Speed Release thru-axle, flat mount disc, internal routing, 55mm offset (47-54cm) 45mm offset (56-62cm)
Drivetrain
Rear Derailleur
SRAM Rival eTap AXS
Front Derailleur
SRAM Rival eTap AXS, braze-on
Shift Levers
SRAM Rival eTap AXS HRD
Cassette
SRAM Rival XG-1250, 10-36, 12-speed
Crank
SRAM Rival DUB X-Range, 48/35
Bottom Bracket
SRAM DUB BB30A Road 73mm
Chain
SRAM Rival, 12-speed
Pedals
Not included
Wheels
Front Hub
(F) Formula CL-712, 12x100mm centerlock / (R) Formula RXC-400, 12x142mm centerlock
Rear Hub
(F) Formula CL-712, 12x100mm centerlock / (R) Formula RXC-400, 12x142mm centerlock
Rims
DT Swiss R470 db, 28h
Spokes
Stainless Steel, 14g
Tires
Vittoria Rubino Pro Bright Black, 700x25c
Brakes
Brakes
SRAM Rival hydraulic disc, 160/160mm Paceline rotors
Brake Levers
SRAM Rival eTap AXS HRD
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 3, 6061 Alloy, Compact
Grips
Cannondale Bar Tape, 3.5mm
Headset
CAAD13, integrated, 1-1/8" - 1-1/4
Seat
Saddle
Fizik Aliante Delta, S-alloy rails
Seatpost
HollowGram 27 SL KNØT, Carbon, 2 bolt clamp, 330mm, 0mm offset (44-48cm), 15mm offset (51-62cm)
Fit data

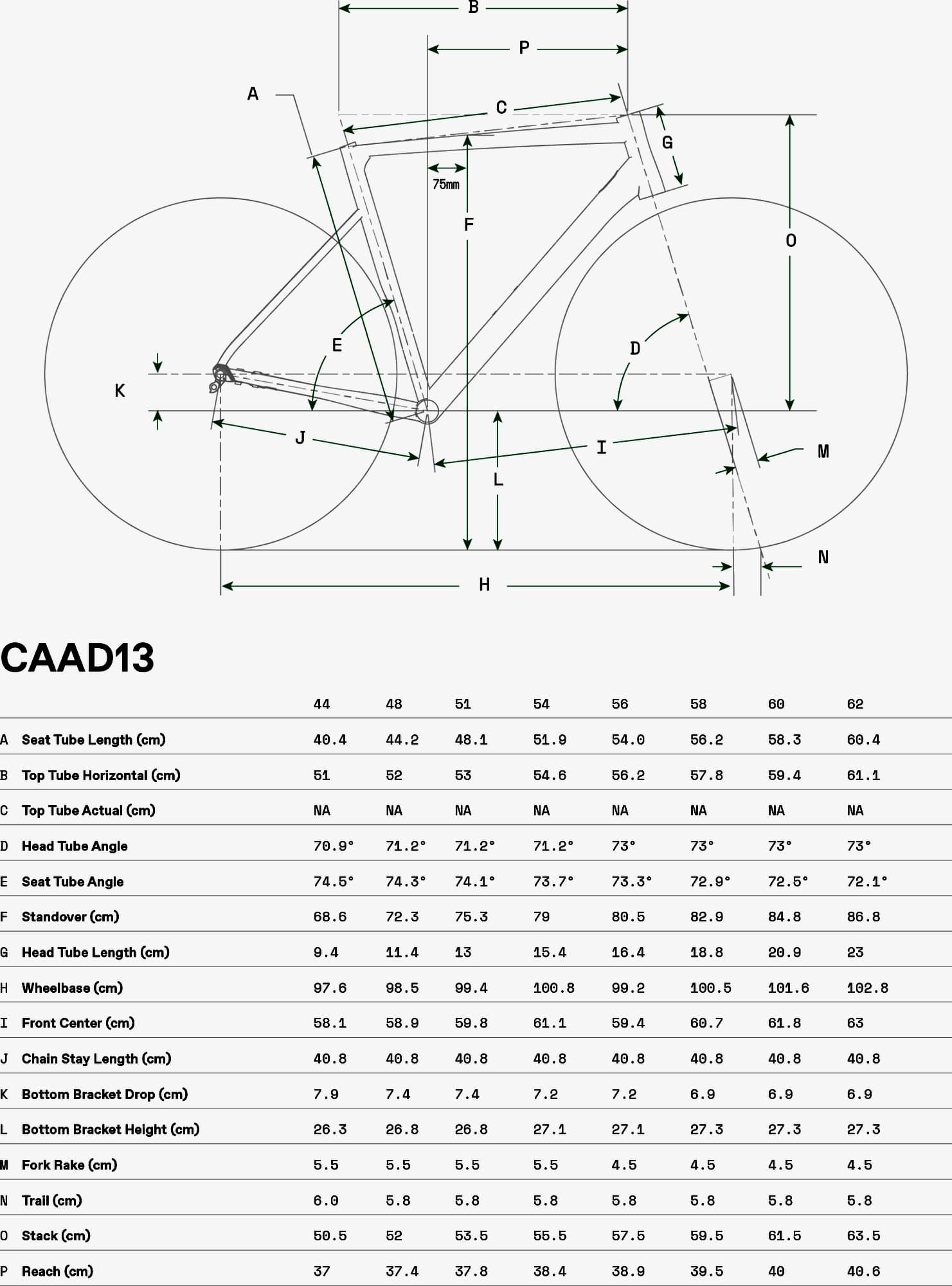

Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.415 mm | 1.445 mm | 1.478 mm | 1.506 mm | 1.538 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 271 mm | 271 mm | 273 mm | 273 mm |
| Front Center | 589 mm | 598 mm | 611 mm | 594 mm | 607 mm | 618 mm |
| Rake | 55 mm | 55 mm | 55 mm | 45 mm | 45 mm | 45 mm |
| Trail | 56 mm | 56 mm | 56 mm | 55 mm | 56 mm | 56 mm |
| Stack | 520 mm | 535 mm | 555 mm | 575 mm | 595 mm | 615 mm |
| Reach | 374 mm | 378 mm | 384 mm | 389 mm | 395 mm | 400 mm |
| Top Tube Length | 520 mm | 530 mm | 546 mm | 562 mm | 578 mm | 594 mm |
| Seat Tube Angle | 74.3 ° | 74.1 ° | 73.7 ° | 73.3 ° | 72.9 ° | 72.5 ° |
| Seat Tube Length | 442 mm | 481 mm | 519 mm | 540 mm | 562 mm | 583 mm |
| Head Tube Angle | 71.2 ° | 71.2 ° | 71.2 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 114 mm | 130 mm | 154 mm | 164 mm | 188 mm | 209 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm |
| Wheelbase | 985 mm | 994 mm | 1008 mm | 992 mm | 1005 mm | 1016 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 72 mm | 72 mm | 69 mm | 69 mm |
| Standover Height | 723 mm | 753 mm | 790 mm | 805 mm | 829 mm | 848 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 165 cm | 170 cm | 177 cm | 182 cm | 188 cm |
| Rider Max Height | 170 cm | 175 cm | 180 cm | 185 cm | 193 cm | 198 cm |
