Cannondale Compact Neo 2024
2024 E-bike
Estimate price |
2,677$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 20" -
Groupset microSHIFT -
Suspension Rigid -
Motor 250W hub-drive -
Battery Hyena, 250Wh -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
OS
134cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Compact Neo, SmartForm C2 Alloy, hidden downtube battery, 135x9mm, BSA 73, post mount disc
Suspension Fork
Compact Neo SmartForm C2 Alloy, 1-1/8" steerer, post mount disc, 100x9mm
Drivetrain
Rear Derailleur
microSHIFT M26S Short-Cage
Shift Levers
microSHIFT 39-8R Thumb-Tap, 8-speed
Cassette
Sunrace, 11-34, 8-Speed
Crank
Samox, 48T
Bottom Bracket
Hyena torque sensor
Chain
KMC X8, 8-Speed
Pedals
Cannondale Folding
Wheels
Front Hub
(F) Formula DC-1420, 100mm QR / (R) Hyena 250W Rear Hub Motor MRC-250
Rear Hub
(F) Formula DC-1420, 100mm QR / (R) Hyena 250W Rear Hub Motor MRC-250
Rims
Cannondale, lightweight alloy, 20", 32h Front / 36h Rear
Spokes
(F) Stainless Steel, 14g / (R) 13g
Tires
Kenda K-Rad, 20x2.35"
Brakes
Brakes
Tektro HD-R280 hydraulic disc, 160/160mm rotors
Brake Levers
Tektro
Cockpit
Stem
TranzX Folding Stem
Handlebar
Cannondale Cruise Control riser, 6061 Alloy, 31.8mm, 15° back, 740mm
Grips
Cannondale Comfort
Headset
Semi-Integrated, 1-1/8"
Seat
Saddle
Cannondale Treadwell, 170mm, steel rails
Seatpost
Cannondale 4, 6061 Alloy, 31.6x540mm
Motor & Battery
Motor
Hyena MRC-250, 250W
Battery
Hyena, 250Wh
Charger
2A
Fit data

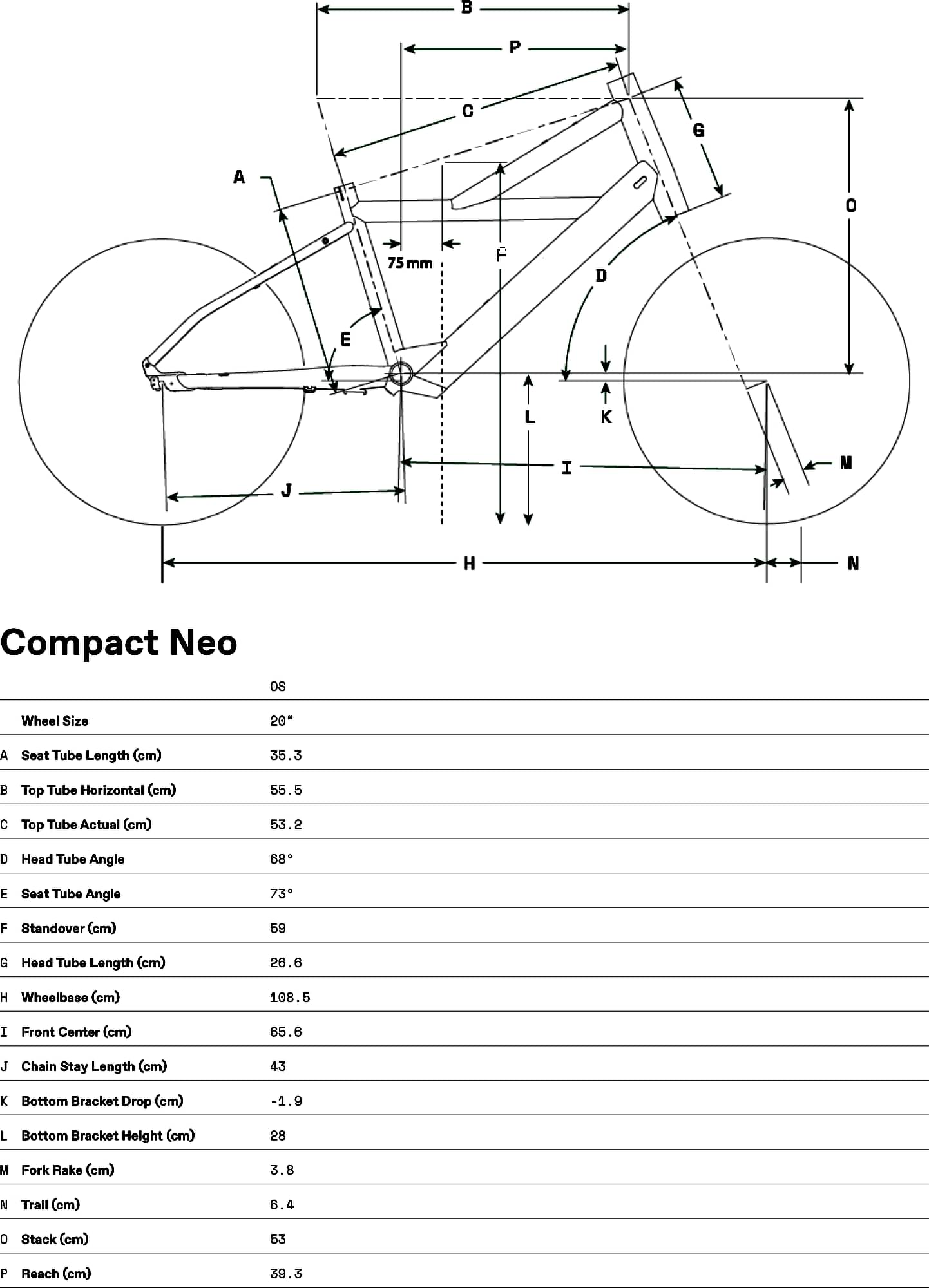

Geometry
Numbers for sizing and ride feel.
| Size | OS |
|---|---|
| Wheels | 20" |
| Rider Min Height | 134 cm |
| Rider Max Height | 185 cm |
