Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Suntour XCM
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano STEPS BT-E8020, 504Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 165cm
MD
167cm - 175cm
LG
172cm - 182cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
130mm travel, SmartForm C2 Alloy, removable downtube battery, tapered headtube, 148x12mm thru-axle, alloy skid plate
Suspension Fork
SR Suntour XCM34, 130mm, Coil, 15X110mm thru-axle
Rear Shock
RockShox Deluxe R, DebonAir
Drivetrain
Rear Derailleur
Shimano Deore GS
Shift Levers
Shimano Deore, 10-speed
Cassette
Shimano HG500, 11-42, 10-speed
Crank
Shimano FC-E8000, 165mm, X-Sync, 34t
Chain
Shimano HG54, 10-speed
Pedals
Not Included
Wheels
Front Hub
Shimano MT400 15x110
Rear Hub
Shimano MT400 12x148
Rims
WTB STX i29 TCS, 32h, tubeless ready
Spokes
DT Swiss Champion
Tires
WTB Ranger Comp, 27.5 x 2.8", DNA Compound
Brakes
Brakes
Shimano MT200 hydro disc, 180/180 RT30 rotors
Brake Levers
Shimano MT200 hydro disc
Cockpit
Stem
Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0°
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Grips
Cannondale Locking Grips
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Fabric Scoop Shallow Sport, steel rails
Seatpost
Cannondale 3, 6061 Alloy, 31.6 x 350mm
Motor & Battery
Motor
Shimano STEPS DU-E8000 250W
Battery
Shimano STEPS BT-E8020, 504Wh
Charger
Shimano STEPS EC-E6000
Fit data

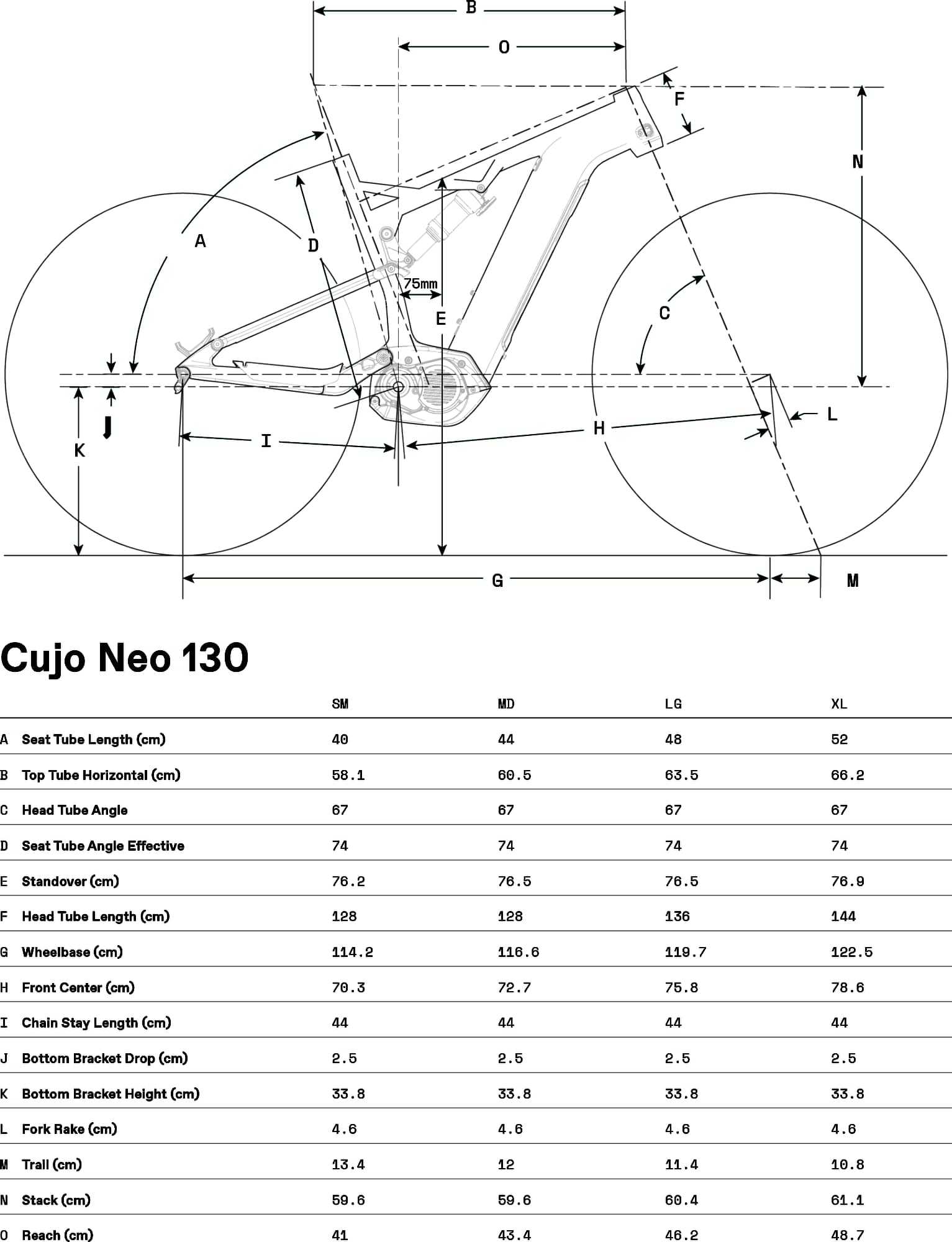

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.454 mm | 1.373 mm | 1.307 mm | 1.255 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Stack | 596 mm | 596 mm | 604 mm | 611 mm |
| Reach | 410 mm | 434 mm | 462 mm | 487 mm |
| Top Tube Length | 581 mm | 605 mm | 635 mm | 662 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1142 mm | 1166 mm | 1197 mm | 1225 mm |
| Standover Height | 762 mm | 765 mm | 765 mm | 769 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 157 cm | 167 cm | 172 cm | 185 cm |
| Rider Max Height | 165 cm | 175 cm | 182 cm | 195 cm |
Model Overview
Cujo Neo 130 belongs to the Cannondale E Cujo model. Cannondale launched 9 e-bikes of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The fork installed on this bike is the Suntour XCM model. The travel on this model is 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Cannondale Cujo Neo 130 e-bike has the RockShox Deluxe R model installed, and has a travel of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the Cujo Neo 130 e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 157 cm – 195 cm (5.15 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
