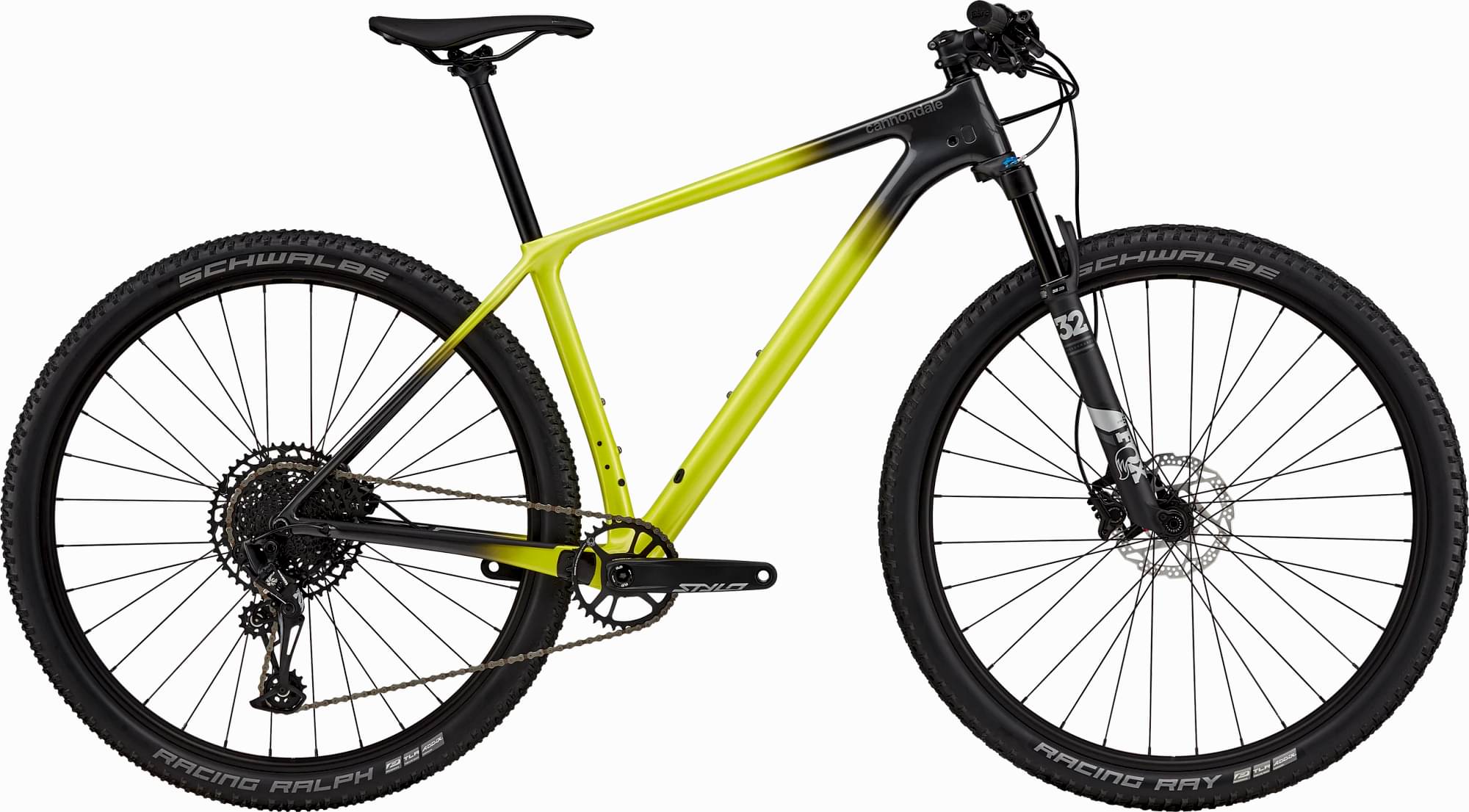

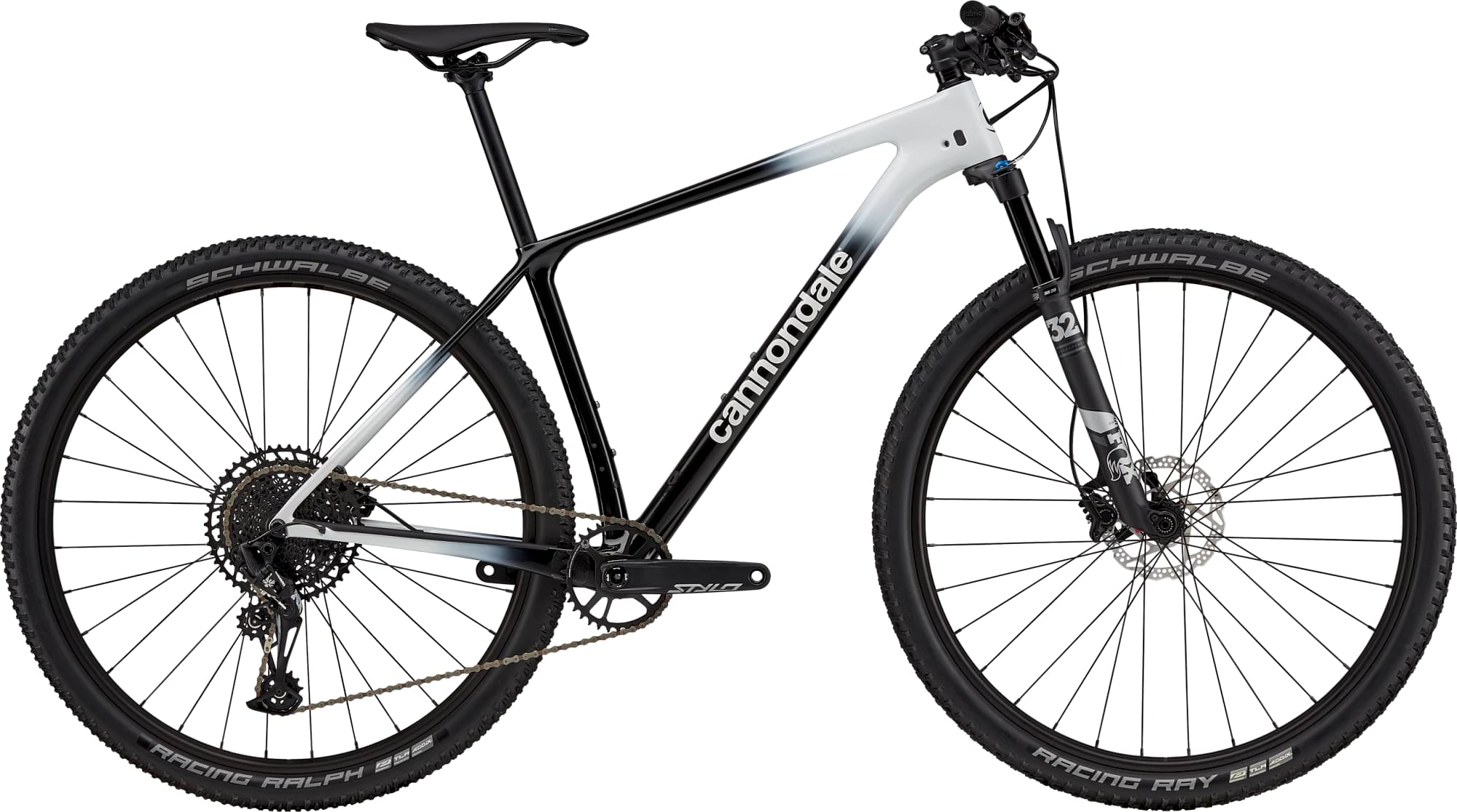

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork Fox Float 32
-
Groupset NX Eagle, Truvativ Stylo -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 165cm
MD
167cm - 175cm
LG
172cm - 182cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BallisTec Carbon, SAVE, PF30-83, tapered head tube, Speed Release 12mm thru axle, Ai Offset
Suspension Fork
Fox float 32 SC, 100mm , 15x100mm thru-axle , remote lockout , tapered steerer , 51mm offset.
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle, 12-speed
Cassette
SRAM SX Eagle, 11-50, 12-speed
Crank
Truvativ Stylo 6K DUB, 34T, Ai offset
Bottom Bracket
SRAM DUB PF30 MTB83
Chain
SRAM SX Eagle, 12-speed
Pedals
Not included
Wheels
Front Hub
Shimano MT400, 15x110mm thru-axle
Rear Hub
Shimano MT400, 12x148mm thru-axle
Rims
WTB STX i23 TCS, 32h, tubeless ready
Spokes
DT Swiss Champion
Tires
(F) Schwalbe Racing Ray Performance, 29x2.25", Addix Compound, tubeless ready, (R) Schwalbe Racing Ralph Performance, 29x2.25", Addix Compound, tubeless ready
Brakes
Brakes
Shimano MT500 hydraulic disc, 160/160mm RT54 rotors
Brake Levers
Shimano MT500 hydraulic disc
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 3 Flat, 6061 double-butted Alloy, 31.8mm, 3° rise, 8° sweep, 760mm
Grips
Fabric FunGuy
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings (Integrated steer stop size small and extra small only)
Seat
Saddle
Fabric Scoop Shallow Sport, steel rails
Seatpost
Cannondale 3, 6061 Alloy, 27.2x400mm
Fit data

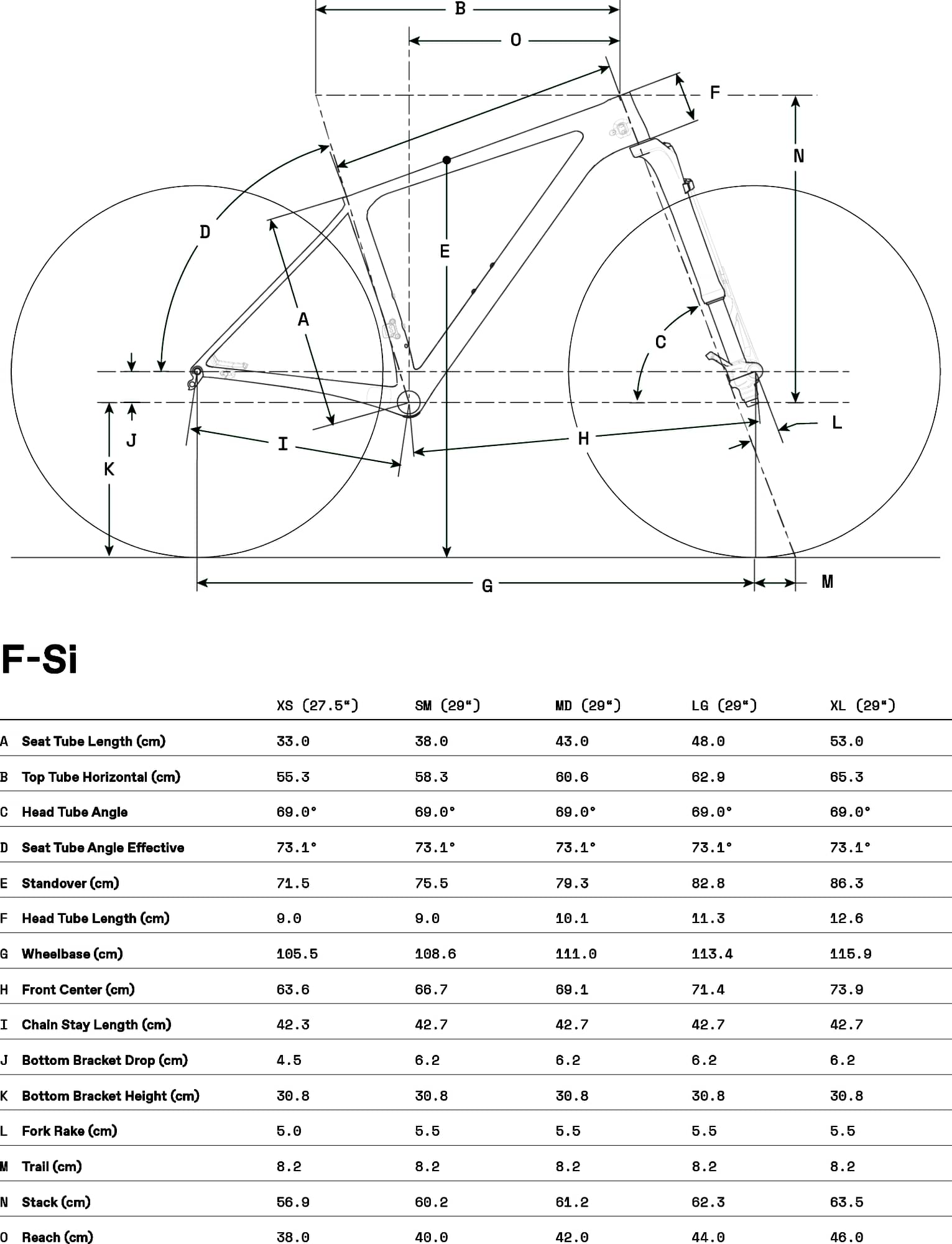

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 167 cm | 172 cm | 185 cm |
| Rider Max Height | 165 cm | 175 cm | 182 cm | 195 cm |
