Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Suntour XCR Air
-
Groupset microSHIFT Advent X -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
OS
137cm - 157cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C3 Alloy, 120mm travel, 1-1/8" to 1-1/2" tapered headtube, IS disc mount, StraightShot internal cable routing, dropper post compatible, BSA-73, 142x12mm thru-axle, UDH derailleur hanger
Suspension Fork
SR Suntour XCR34, 120mm travel, air spring, 12x110 Boost thru-axle, 46mm offset
Rear Shock
X-Fusion O2 Pro w/ Rebound Adjust
Drivetrain
Rear Derailleur
microSHIFT Advent X
Shift Levers
microSHIFT Advent X, trigger style, 10-speed
Cassette
microSHIFT, 11-48, 10-speed
Crank
Prowheel, Charm 30T
Bottom Bracket
Sealed cartridge bearing, square taper
Chain
KMC X10, 10-speed
Pedals
Cannondale Platform
Wheels
Front Hub
(F) Formula 15x110mm thru-axle / (R) Formula, 12x148mm thru-axle
Rear Hub
(F) Formula 15x110mm thru-axle / (R) Formula, 12x148mm thru-axle
Rims
WTB STX i25, 32h
Spokes
Stainless Steel, 14g
Tires
WTB Vigilante 26x2.4"
Brakes
Brakes
Tektro M275 hydraulic disc, 160/160mm rotors
Brake Levers
Tektro hydraulic disc
Cockpit
Stem
6061 Alloy, 31.8, 7°
Handlebar
Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm
Grips
Cannondale Dual-Density
Headset
Semi-Integrated, 1-1/8"
Seat
Saddle
Cannondale Stage 3
Seatpost
Cannondale 3, 6061 Alloy, 31.6x350mm

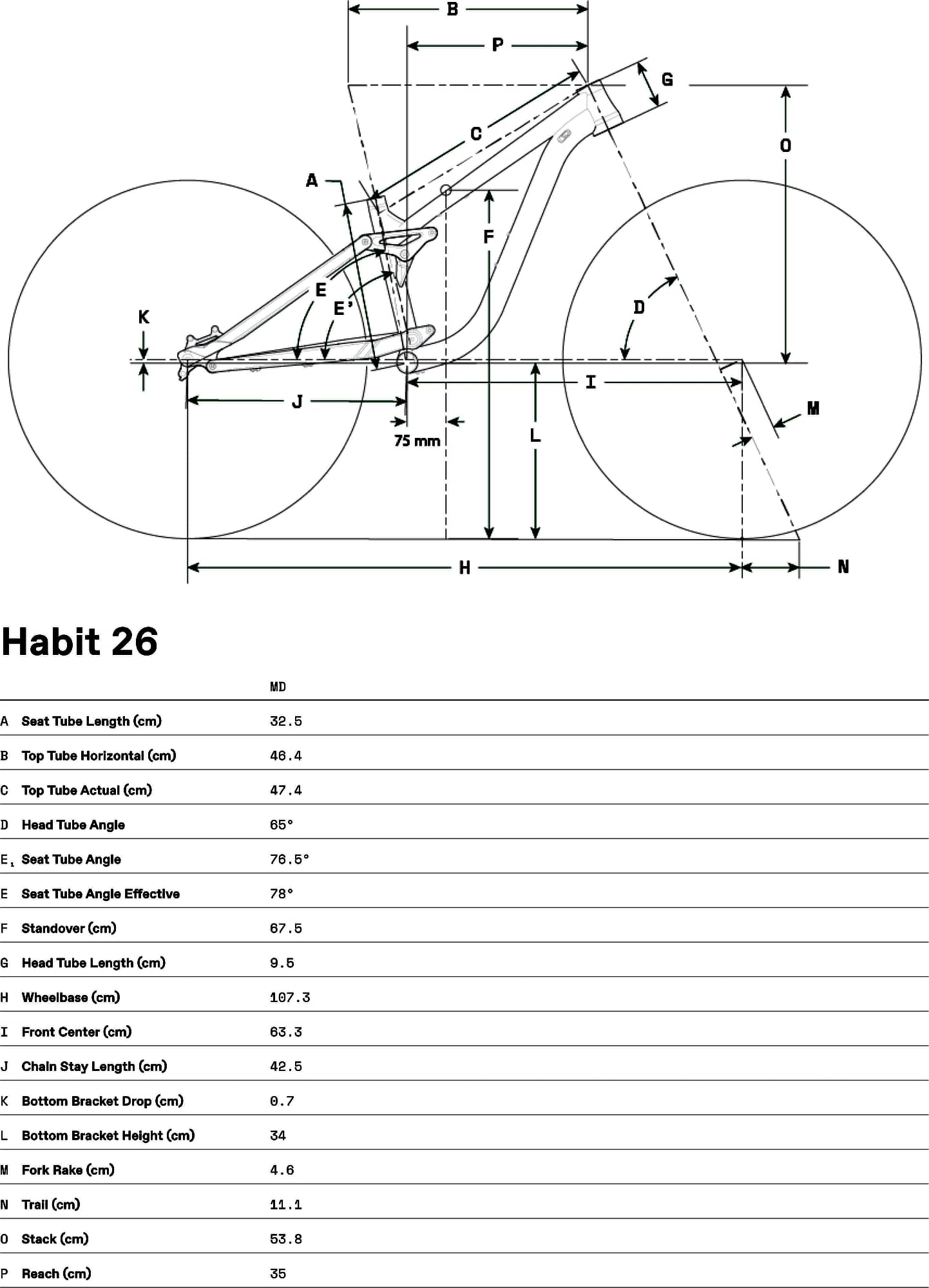

Fit data
Geometry
Numbers for sizing and ride feel.
| Size | OS |
|---|---|
| Wheels | 26" |
| Rider Min Height | 137 cm |
| Rider Max Height | 157 cm |
