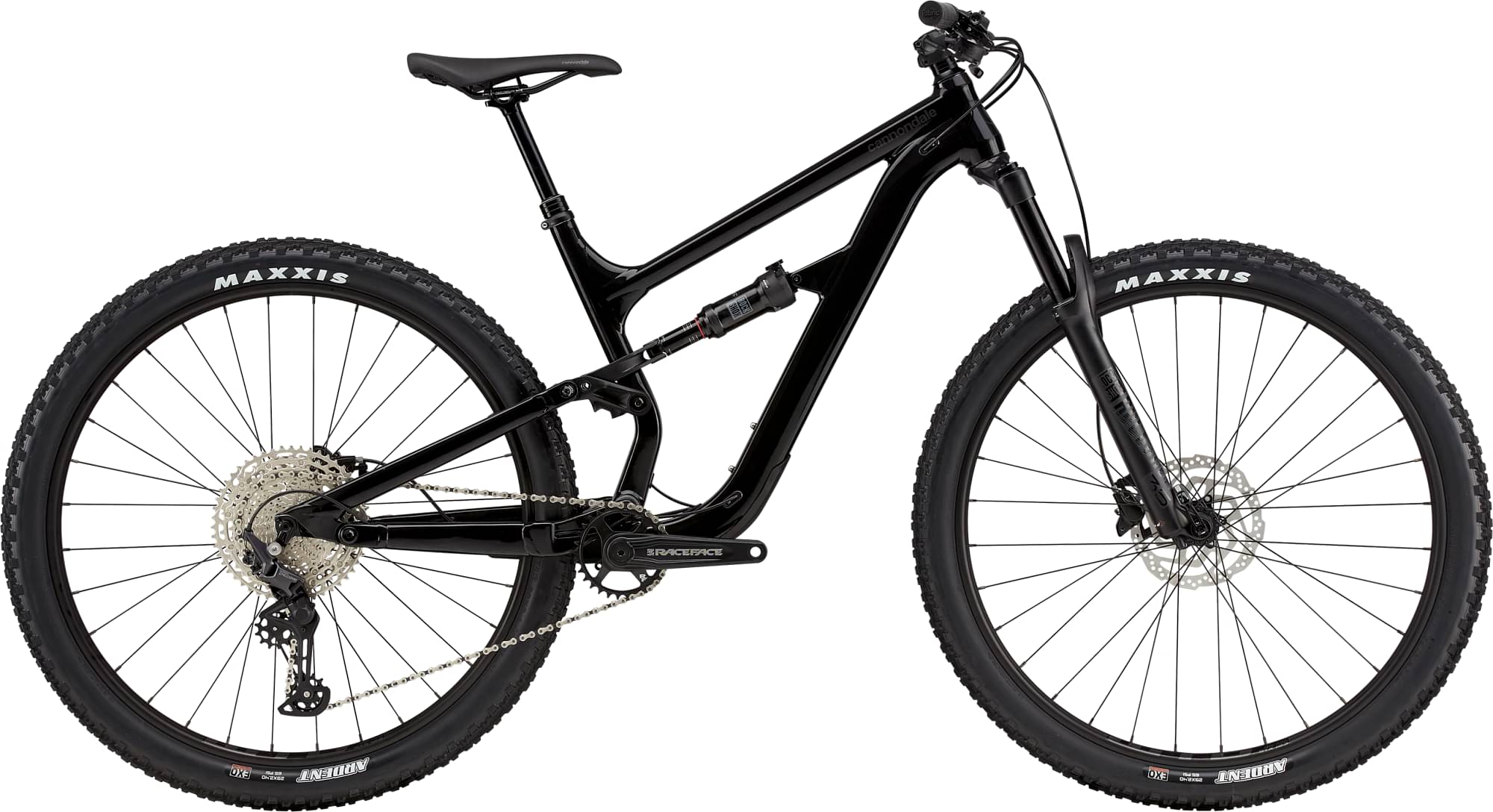

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox 35 Silver
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 165cm
MD
167cm - 175cm
LG
172cm - 182cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
130mm travel, SmartForm C1 Alloy, Proportional Response Tuned, Ai offset drivetrain, ISCG05, BSA 83, post mount brake, tapered headtube
Suspension Fork
RockShox 35 Silver R, 140mm, Coil, 15x110mm thru-axle, tapered steerer, 51mm offset
Rear Shock
RockShox Deluxe Select, DebonAir, adjustable rebound
Drivetrain
Rear Derailleur
Shimano Deore M5100
Shift Levers
Shimano Deore M5100, 11-speed
Cassette
Shimano Deore M5100, 11-51, 11-speed
Crank
RaceFace Ride Cinch, 30T
Bottom Bracket
Race Face BSA
Chain
KMC X11, 11-speed
Pedals
Not included
Wheels
Front Hub
Shimano MT400, 15x110mm thru-axle
Rear Hub
Shimano MT400, 12x148mm thru-axle
Rims
WTB STX i23 TCS, 32h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
Maxxis Ardent, 29x2.4", EXO casing
Brakes
Brakes
Tektro M275 hydraulic disc, 180/180mm rotors
Brake Levers
Tektro hydraulic disc
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 0°
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Grips
Fabric FunGuy
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings
Seat
Saddle
Cannondale Ergo XC
Seatpost
TranzX Dropper, 31.6, Internal Routing, 100mm (S), 120mm (M-XL)
Fit data

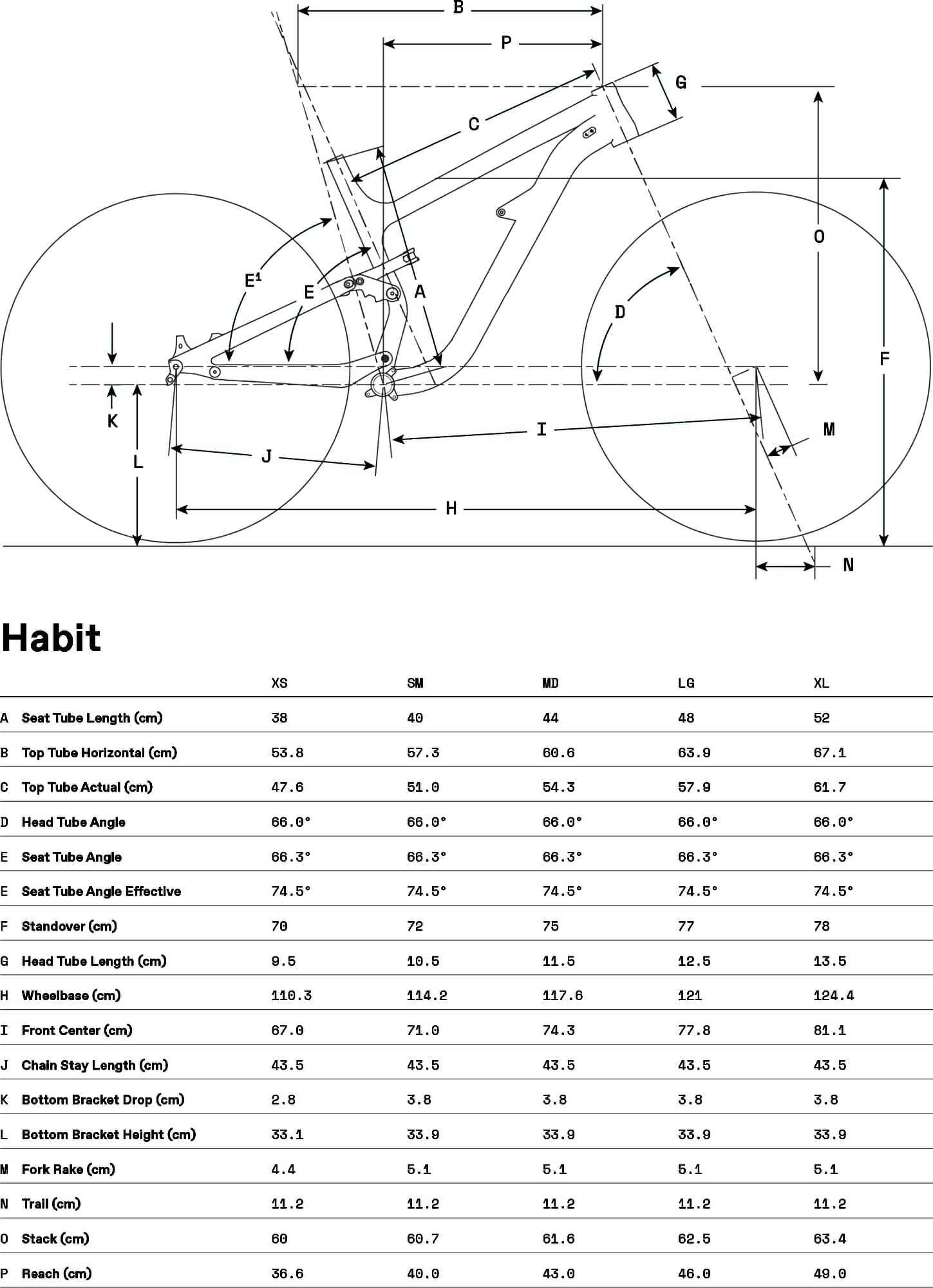

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.518 mm | 1.433 mm | 1.359 mm | 1.294 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 710 mm | 743 mm | 778 mm | 811 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 112 mm | 112 mm | 112 mm | 112 mm |
| Stack | 607 mm | 616 mm | 625 mm | 634 mm |
| Reach | 400 mm | 430 mm | 460 mm | 490 mm |
| Top Tube Length | 573 mm | 606 mm | 639 mm | 671 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1142 mm | 1176 mm | 1210 mm | 1244 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 720 mm | 750 mm | 770 mm | 780 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 167 cm | 172 cm | 185 cm |
| Rider Max Height | 165 cm | 175 cm | 182 cm | 195 cm |
