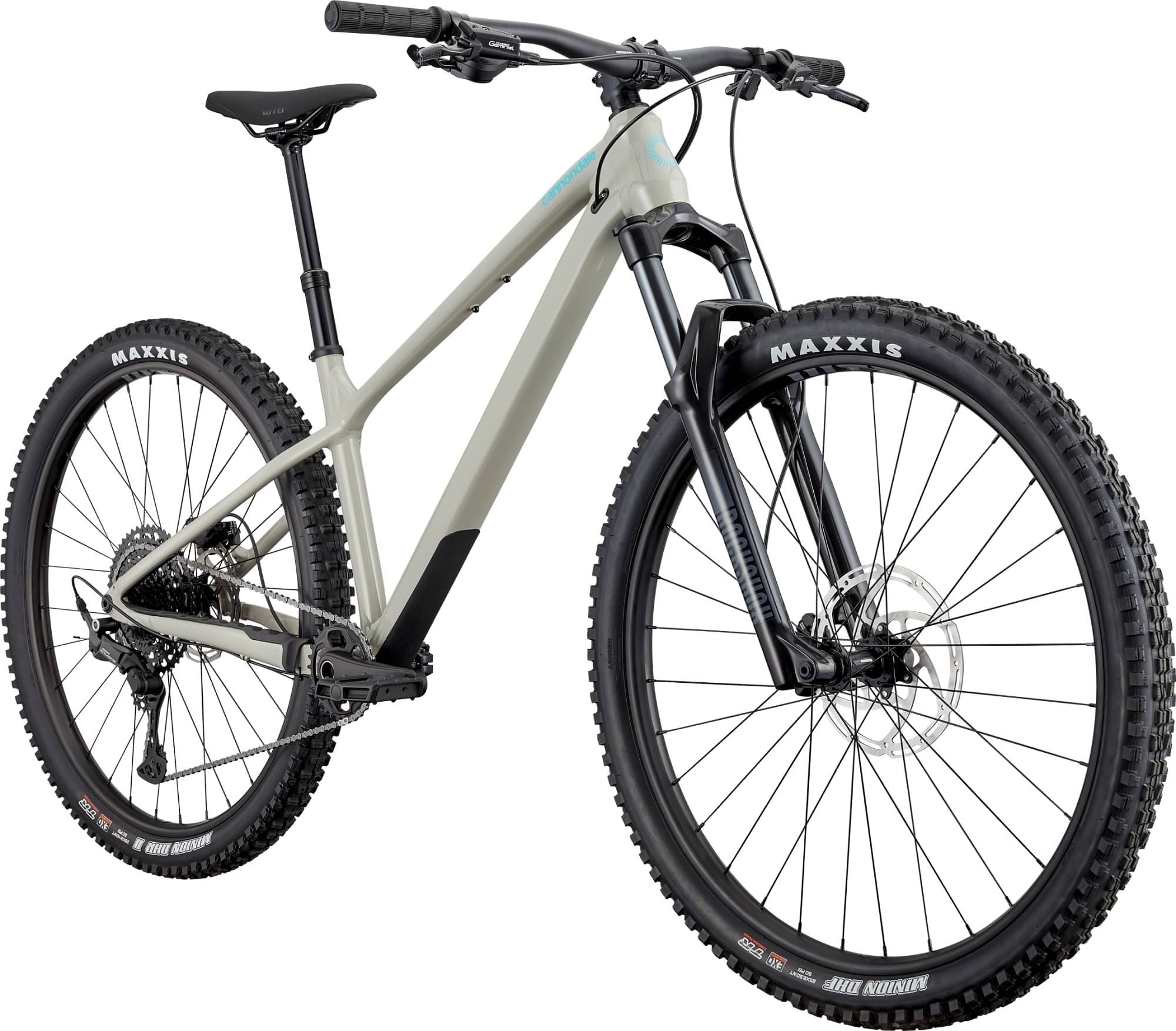

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 130mm -
Fork RockShox Recon Silver RL
-
Groupset CUES -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes TRP Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 165cm
MD
162cm - 175cm
LG
172cm - 182cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Habit HT, SmartForm C2 Alloy, tapered headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA 73, 12mm thru axle, Boost 148, 55mm chainline, UDH hanger.
Suspension Fork
RockShox Recon Silver RL, 130mm, DebonAir, 15x110mm thru-axle, tapered steerer, 42mm offset
Drivetrain

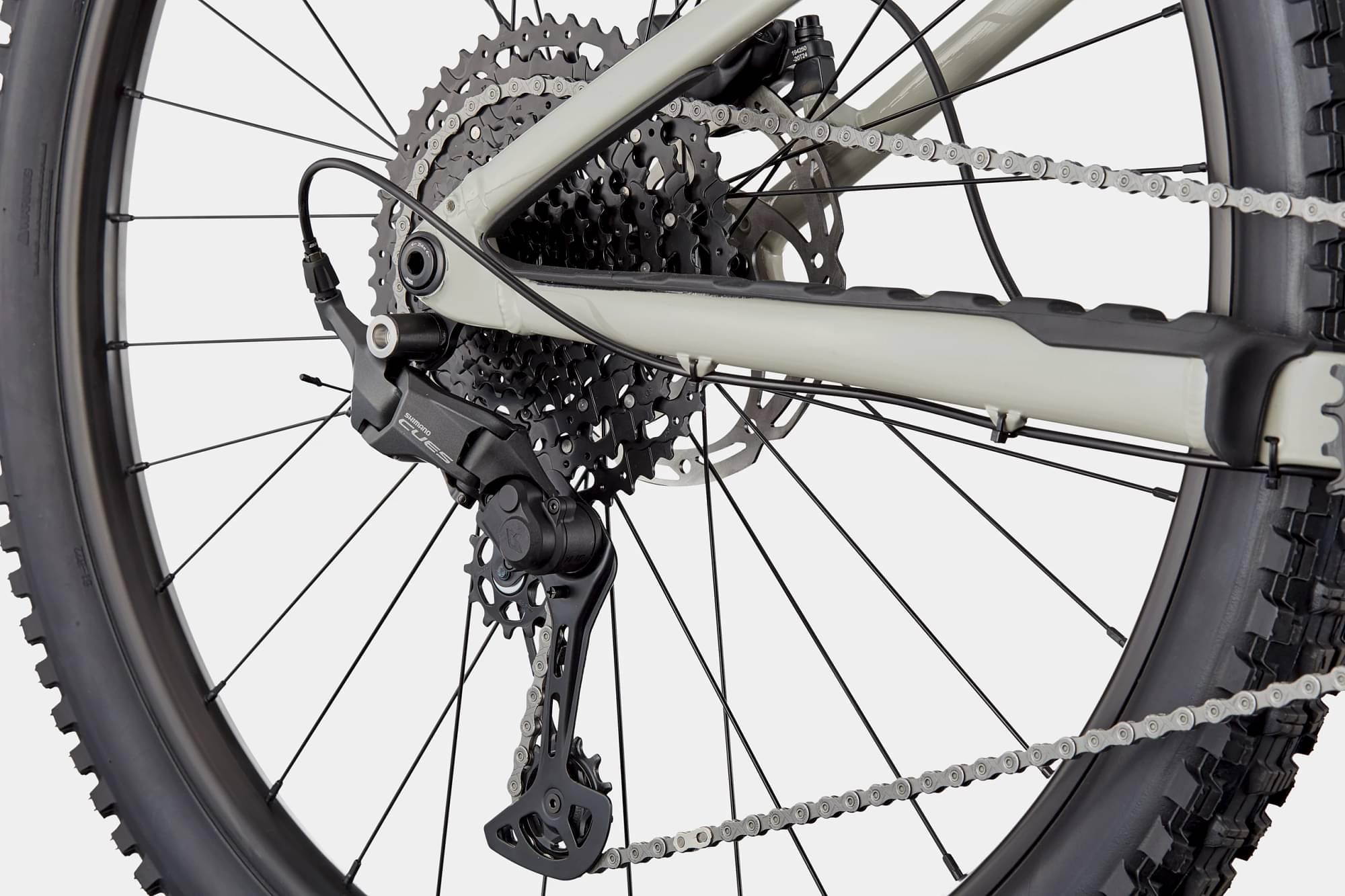

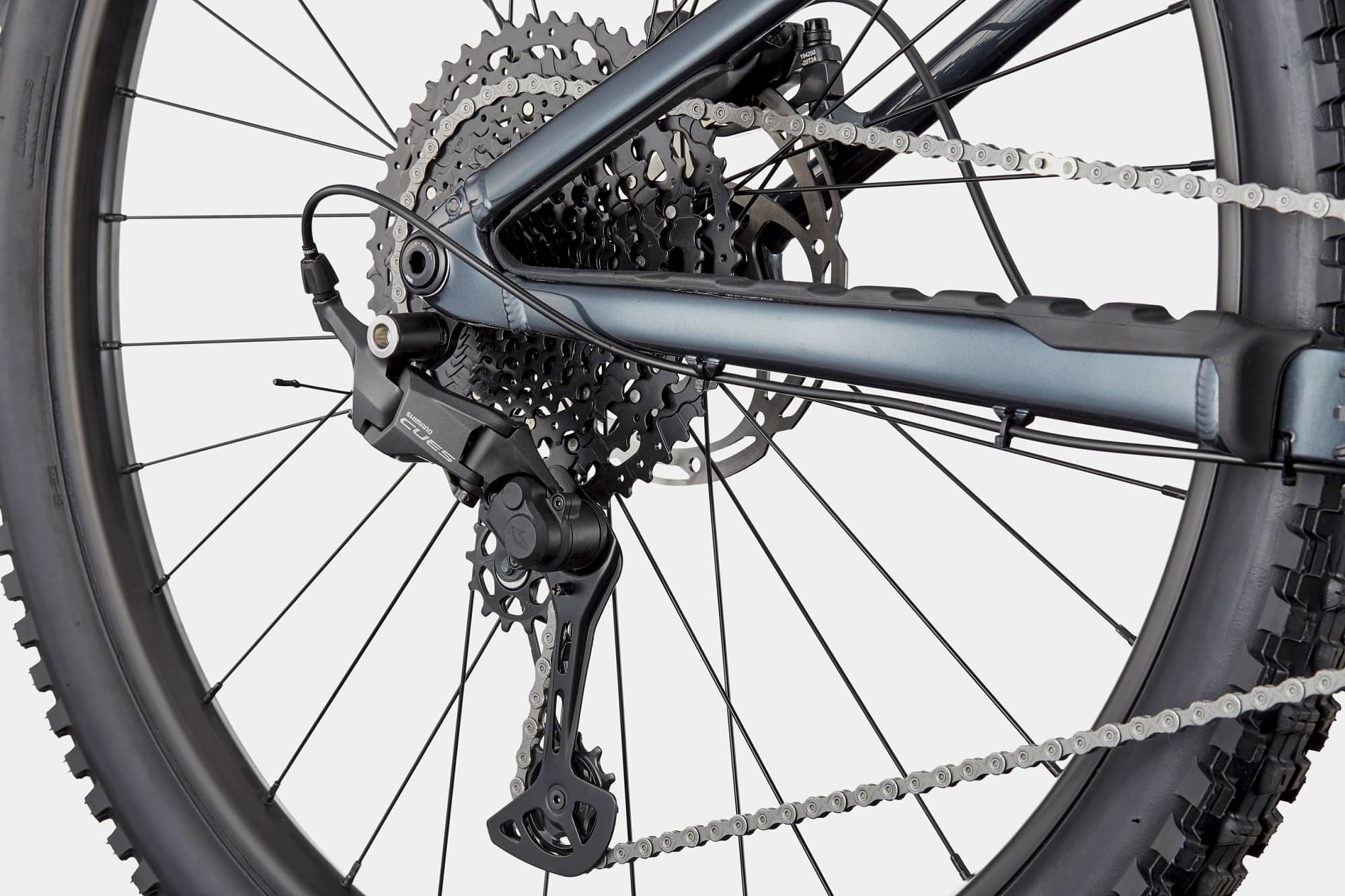

Rear Derailleur
Shimano CUES U6000
Shift Levers
Shimano CUES U6000, 11-speed
Cassette
Sunrace, 11-50, 11-speed

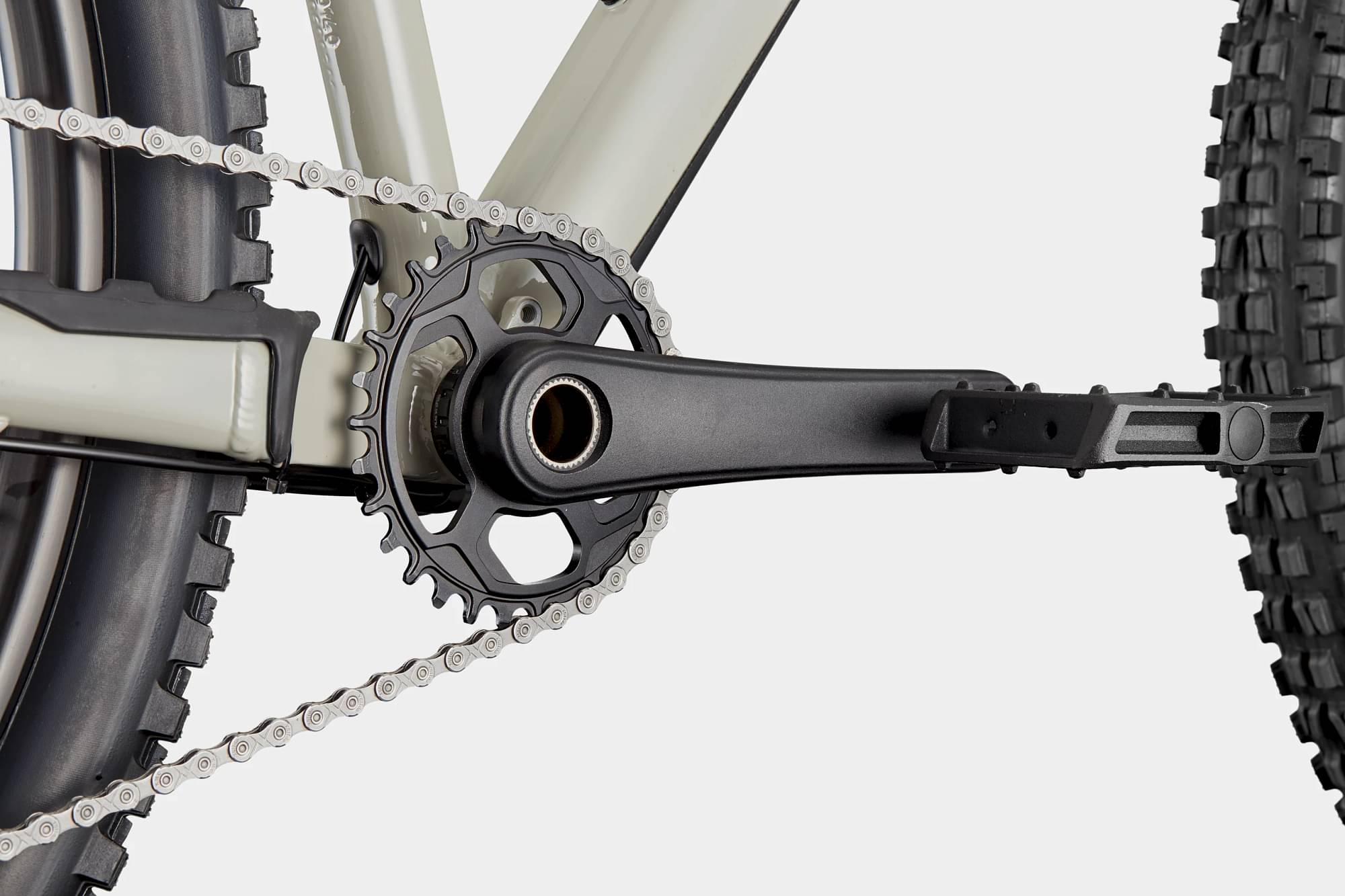

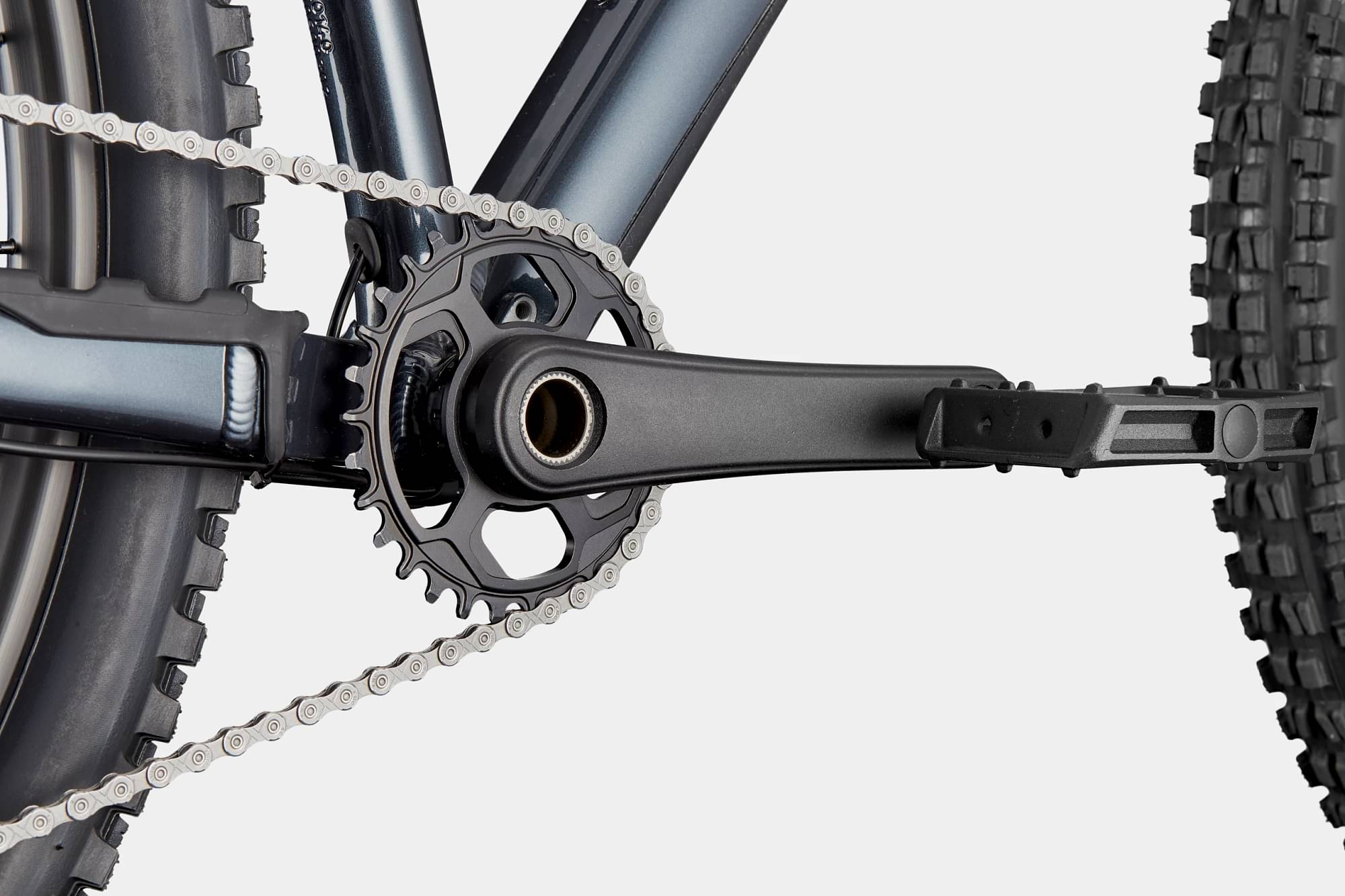

Crank
Prowheel, 30T
Bottom Bracket
ProWheel BSA 73
Chain
Shimano CUES, 11-speed
Pedals
Not Included
Wheels
Front Hub
Shimano TC500, 15x110mm
Rear Hub
Shimano TC500, 12x148mm
Rims
WTB ST i30 TCS 2.0, 32h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
(F) Maxxis Minion DHF, 29x2.5", EXO, tubeless ready / (R) Maxxis DHR II, 29x2.4", EXO tubeless ready
Brakes
Brakes
TRP Gemini 4-piston hydraulic disc, 203/180mm rotors
Brake Levers
TRP Gemini hydraulic disc
Cockpit
Stem
Cannondale 1, 7075 Alloy, 1-1/8", 35mm, 0°

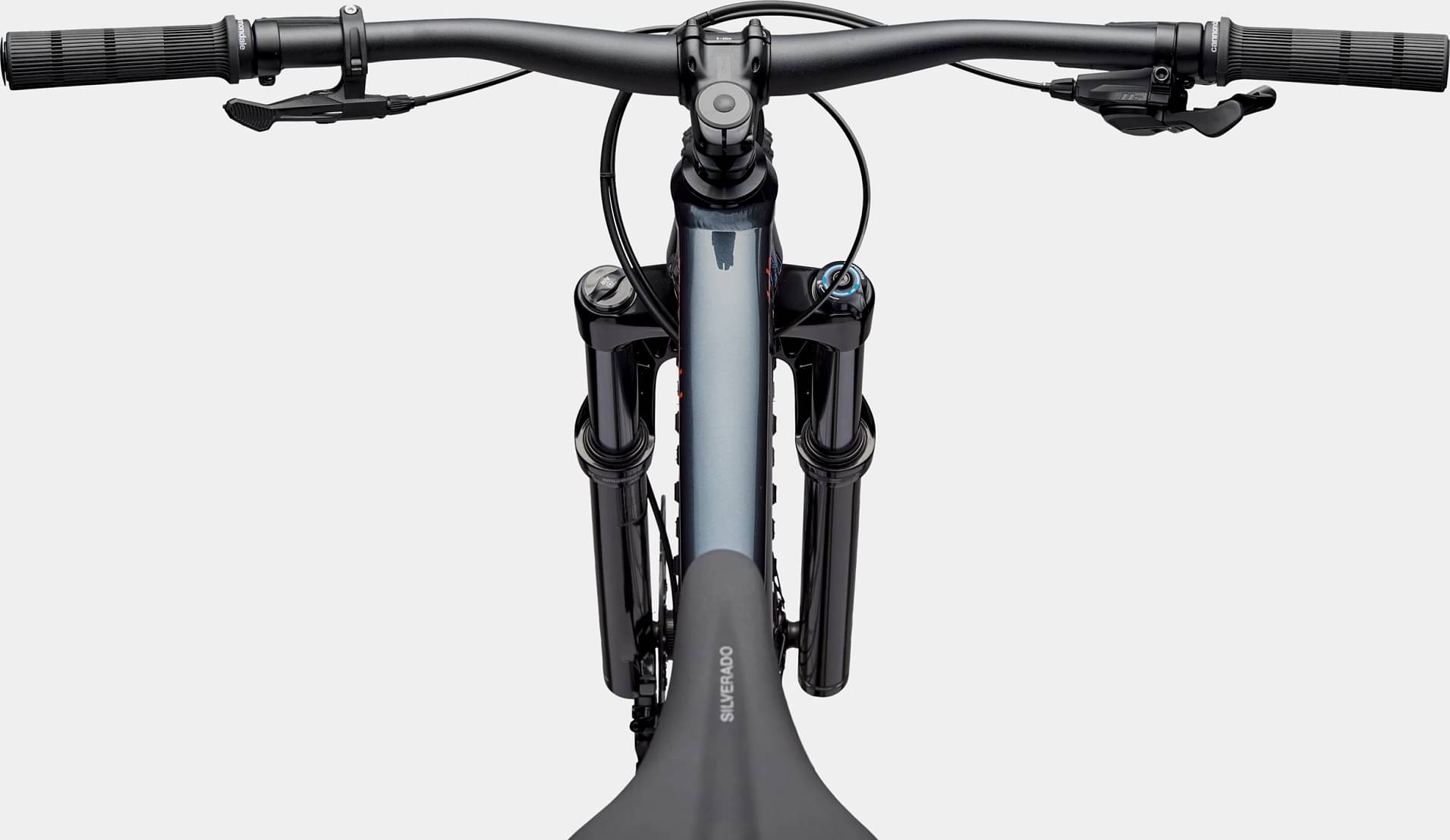

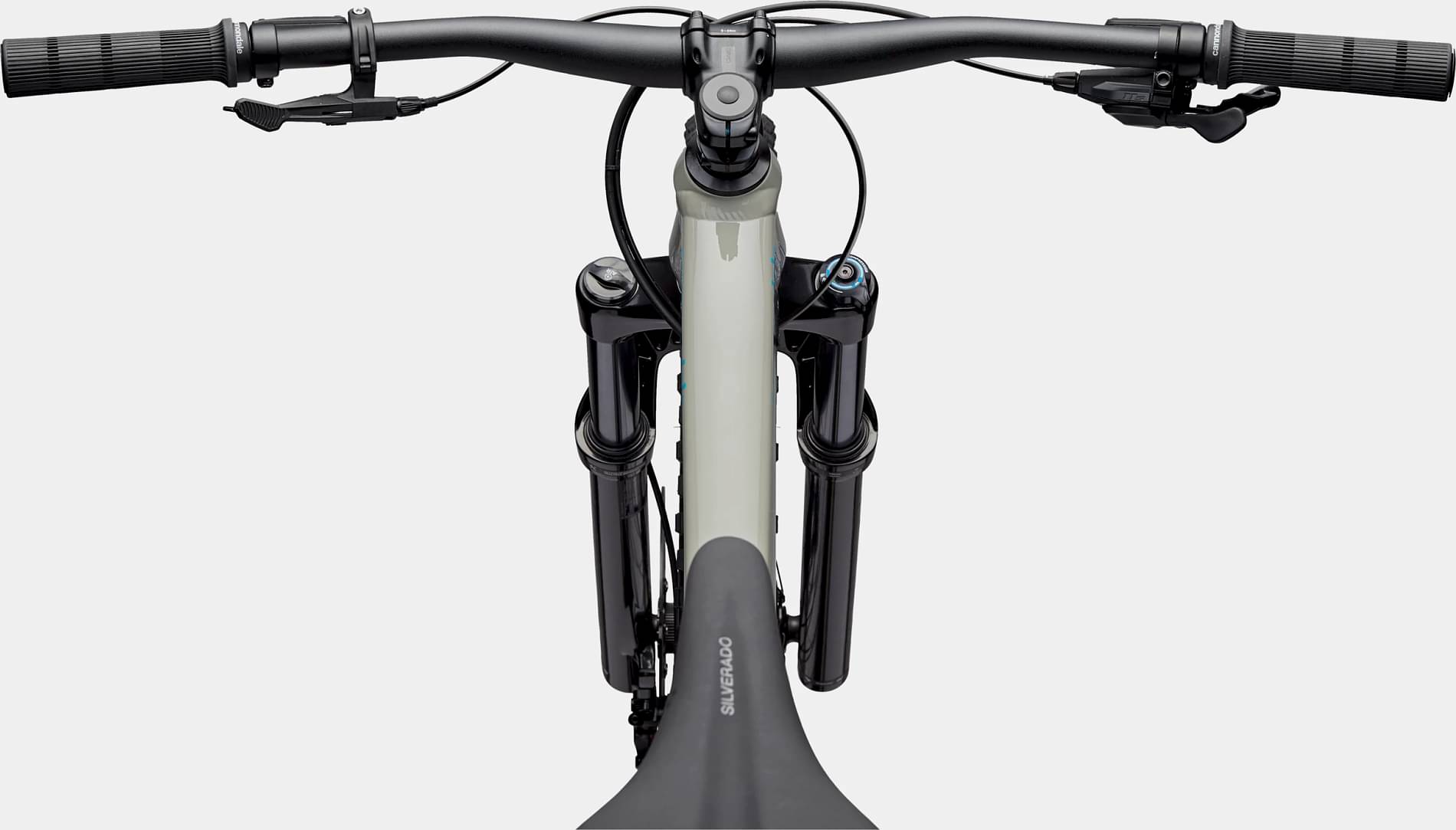

Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Grips
Cannondale TaperRidge
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
WTB Solano, cro-mo rails
Seatpost
TranzX dropper, internal routing, 31.6, 100mm (S), 120mm (M), 130mm (L-XL)
Fit data

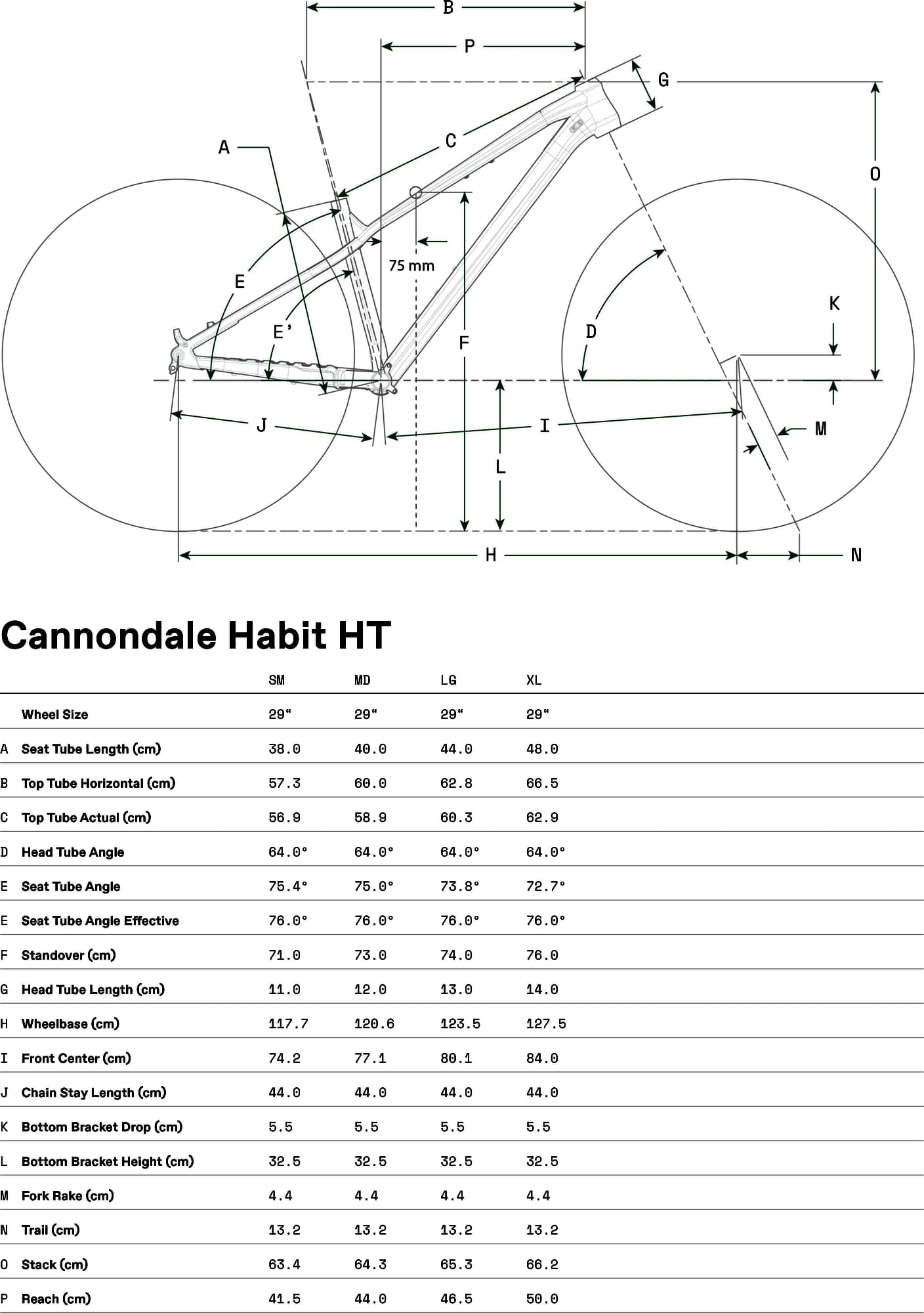

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 162 cm | 172 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 182 cm | 195 cm |
