Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Fork RockShox Judy
-
Groupset microSHIFT Advent X -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 165cm
MD
162cm - 175cm
LG
172cm - 182cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Habit HT, SmartForm C2 Alloy, tapered headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA 73, 12mm thru axle, Boost 148, 55mm chainline, UDH hanger
Suspension Fork
RockShox Judy TK, 130mm, Solo Air, 15x110mm thru-axle, tapered steerer, 42mm offset
Drivetrain
Rear Derailleur
microSHIFT Advent X Pro
Shift Levers
microSHIFT Advent X Pro, 10-speed
Cassette
microSHIFT Advent X Pro, 11-48, 10-speed
Crank
Prowheel, 30T, 55mm chainline
Bottom Bracket
ProWheel BSA 73
Chain
KMC X10, 10-speed
Pedals
Not included
Wheels
Front Hub
(F) Formula alloy, 15x110mm thru-axle / (R) Formula alloy 12x148mm thru-axle
Rear Hub
(F) Formula alloy, 15x110mm thru-axle / (R) Formula alloy 12x148mm thru-axle
Rims
WTB STX i30 TCS, 32h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
(F) WTB Vigilante, 29x2.5" (R) WTB Vigilante, 29x2.4"
Brakes
Brakes
SRAM Level hydraulic disc 180/180mm CenterLine Rotors
Brake Levers
SRAM Level hydraulic disc
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 0°
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Grips
Cannondale TrailShroom
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Cannondale Ergo XC
Seatpost
TranzX dropper, internal routing, 31.6, 100mm (S), 120mm (M), 130mm (L-XL)
Fit data

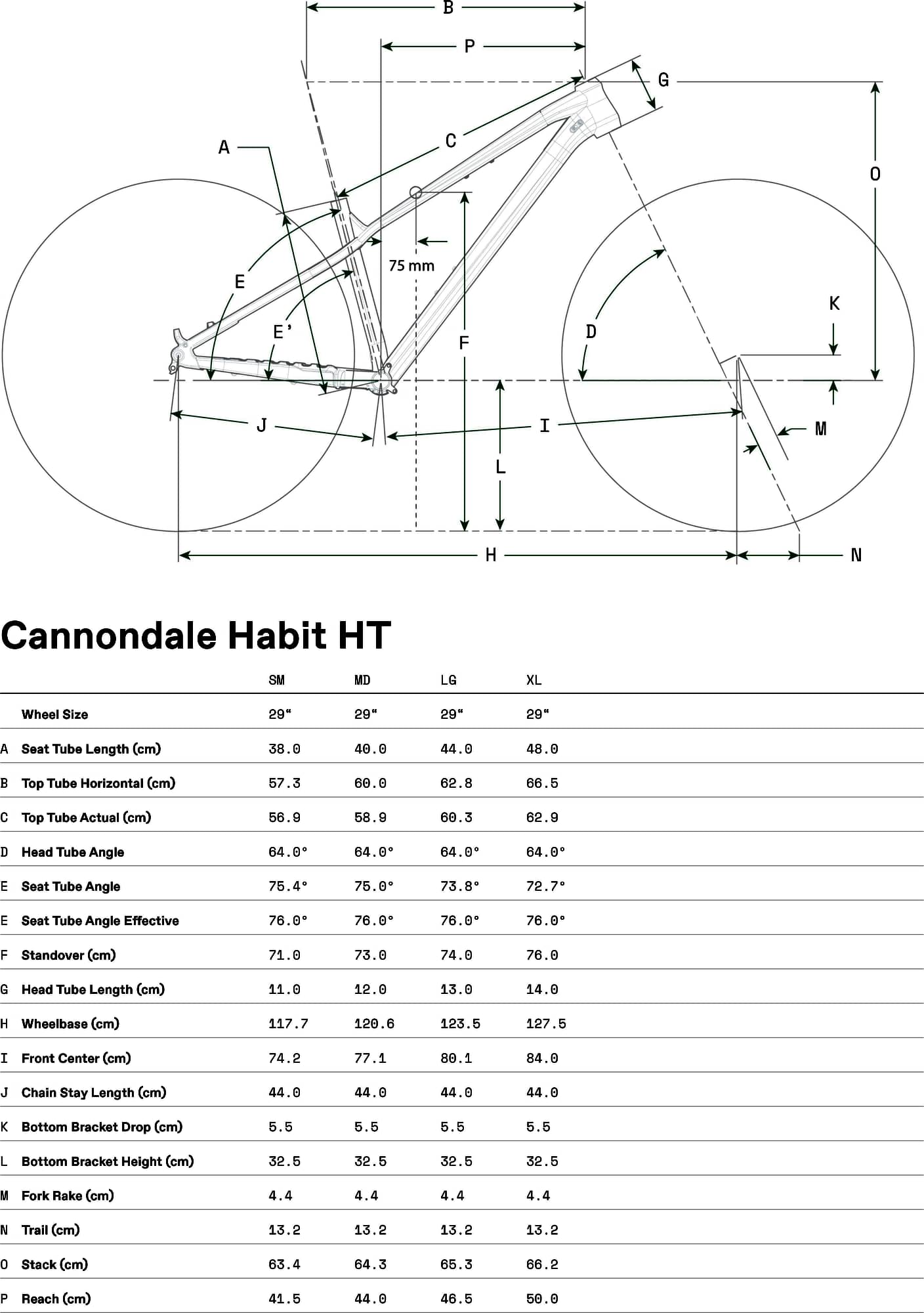

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 162 cm | 172 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 182 cm | 195 cm |
