Bike details
Overview
Key information split into simple groups.

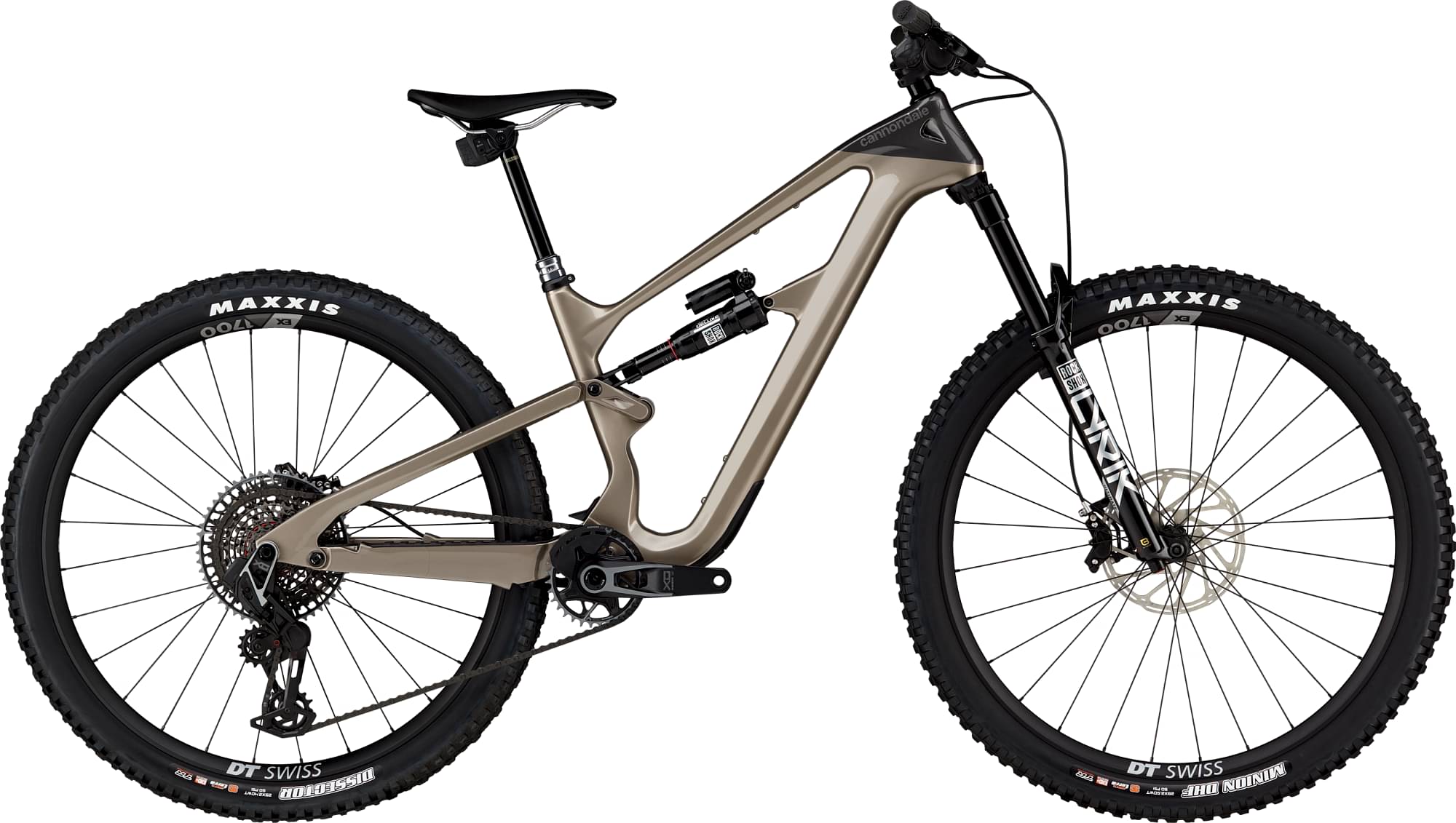

Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Lyrik Ultimate
-
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 157cm
SM
154cm - 165cm
MD
162cm - 175cm
LG
172cm - 182cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Habit Full Carbon, 140mm travel, Proportional Response Suspension and Geo, 55mm chainline, ISCG05, BSA threaded BB, post mount brake, tapered headtube, DirectLine internal cable routing, UDH hanger
Suspension Fork
RockShox Lyrik Ultimate, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 42mm offset
Rear Shock
RockShox Super Deluxe Ultimate, DebonAir, 2-Pos mode adjust, adjustable rebound
Drivetrain
Rear Derailleur
SRAM XO Eagle AXS, T-Type
Shift Levers
SRAM AXS T-Type Pod Controller
Cassette
SRAM XO Eagle, 10-52, T-Type, 12-speed
Crank
SRAM XO Eagle T-Type, X-Sync, 30t
Bottom Bracket
SRAM DUB BSA MTB73 Wide
Chain
SRAM XO Eagle T-Type, 12-speed
Pedals
Not included
Wheels
Front Hub
(F) DT Swiss 350, 15x110mm thru-axle / (R) DT Swiss 350 with Ratchet System 36T SL, 12x148mm thru-axle
Rear Hub
(F) DT Swiss 350, 15x110mm thru-axle / (R) DT Swiss 350 with Ratchet System 36T SL, 12x148mm thru-axle
Rims
DT Swiss EX1700 Spline, 28h, tubeless ready
Spokes
DT Competition Race, straight pull
Tires
(F) Maxxis Minion DHF, 29x2.4" (27.5x2.4" - XS), 3C, EXO+, tubeless ready / (R) Maxxis Dissector, 29x2.4" (27.5x2.4" - XS), 3C, EXO+, tubeless ready
Brakes
Brakes
SRAM G2 RSC hydraulic disc, 200/200mm HS2 rotors, centerlock
Brake Levers
SRAM G2 RSC hydraulic disc
Cockpit
Stem
Cannondale 1, 7075 Alloy, 1-1/8", 35mm, 0°
Handlebar
HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm
Grips
Cannondale TrailShroom
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Cannondale Flat Race, Ti rails
Seatpost
RockShox Reverb AXS, 31.6, 125mm (XS-S), 150mm (M) 170mm (L-XL)
Fit data

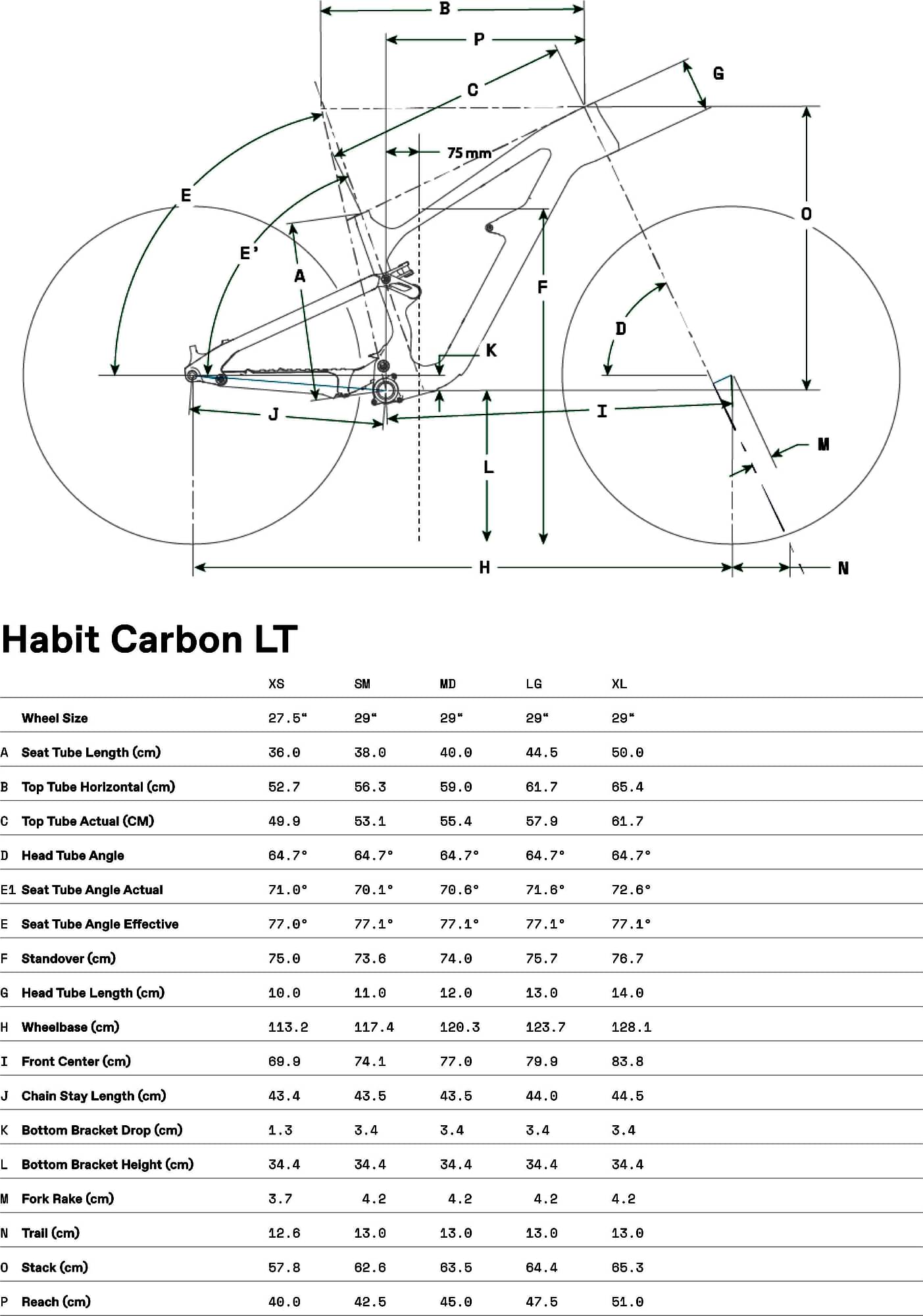

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 154 cm | 162 cm | 172 cm | 180 cm |
| Rider Max Height | 157 cm | 165 cm | 175 cm | 182 cm | 195 cm |
