Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Yari RC
-
Groupset X1, SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 165cm
MD
162cm - 175cm
LG
172cm - 182cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
130mm travel, SmartForm C1 Alloy, Proportional Response Tuned, Ai offset drivetrain, ISCG05, BSA 83, post mount brake, tapered headtube
Suspension Fork
Rockshox Yari RC, 140mm, 15x110, 51mm offset
Rear Shock
RockShox Deluxe Select, DebonAir, adjustable rebound
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle, 12-speed
Cassette
SRAM SX Eagle, 11-50, 12-speed
Crank
SRAM X1-1000 Eagle DUB, 30T, Ai offset
Bottom Bracket
SRAM DUB BSA MTB83
Chain
SRAM SX Eagle, 12-speed
Pedals
Not included
Wheels
Front Hub
Shimano MT400, 15x110mm thru-axle
Rear Hub
Shimano MT400, 12x148mm thru-axle
Rims
WTB ST i29 TCS, 32h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
(F) Maxxis Minion DHF, 29x2.5", EXO casing, tubeless ready (R) Maxxis Minion DHR II, 29x2.4", EXO casing, tubeless ready
Brakes
Brakes
SRAM G2 R hydraulic disc, 200/180mm CenterLine rotors
Brake Levers
SRAM G2 R hydraulic disc
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 0°
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Grips
Fabric FunGuy
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Fabric Magic Saddle, steel rails
Seatpost
Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M-XL)
Fit data

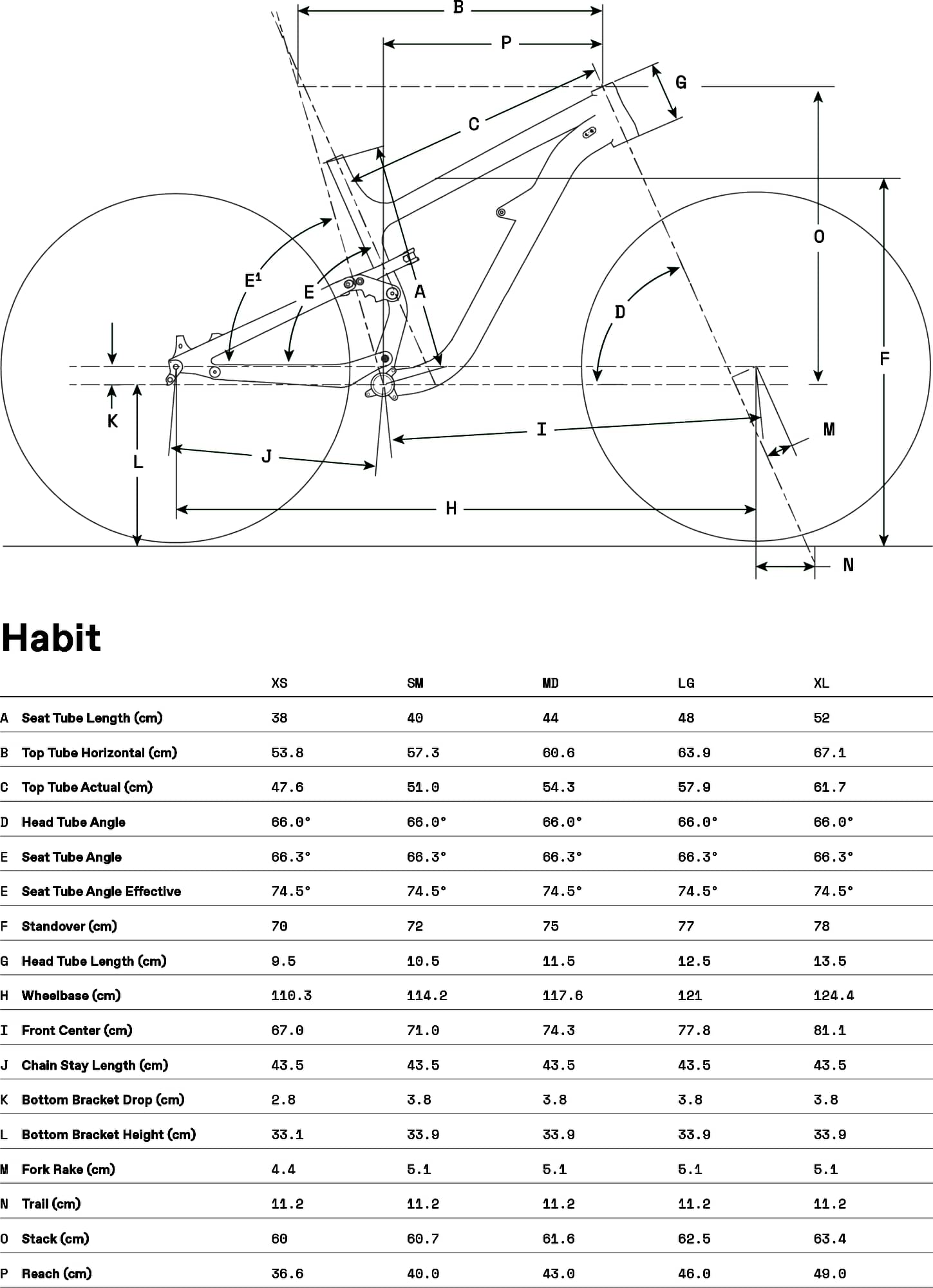

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.518 mm | 1.433 mm | 1.359 mm | 1.294 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 710 mm | 743 mm | 778 mm | 811 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 112 mm | 112 mm | 112 mm | 112 mm |
| Stack | 607 mm | 616 mm | 625 mm | 634 mm |
| Reach | 400 mm | 430 mm | 460 mm | 490 mm |
| Top Tube Length | 573 mm | 606 mm | 639 mm | 671 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1142 mm | 1176 mm | 1210 mm | 1244 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 720 mm | 750 mm | 770 mm | 780 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 162 cm | 172 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 182 cm | 195 cm |
