Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Pike Select
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 159cm
SM
156cm - 165cm
MD
167cm - 175cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
130mm travel, BallisTec Carbon front triangle, SmartForm C1 Alloy swingarm, Proportional Response Tuned, Ai offset drivetrain, ISCG05, PF30, Post mount brake, tapered headtube
Suspension Fork
RockShox Pike Select, 140mm, DebonAir, 15x110mm thru-axle, tapered steered, 51mm offset
Rear Shock
RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound
Drivetrain
Rear Derailleur
Shimano XT
Shift Levers
Shimano SLX, 12-speed
Cassette
Shimano SLX, 10-51, 12-speed
Crank
HollowGram, BB30a, OPI SpideRing, 32T, Ai offset
Bottom Bracket
Cannondale Alloy PressFit30
Chain
Shimano SLX, 12-speed
Pedals
Not included
Wheels
Front Hub
Shimano MT400, 15x110mm thru-axle
Rear Hub
Shimano MT510, 12x148mm thru-axle
Rims
WTB ST i25 TCS, 32h, tubeless ready
Spokes
DT Swiss Champion
Tires
(F) Maxxis Minion DHF, 27.5/29x2.5", EXO casing, tubeless ready (R) Maxxis Dissector, 27.5/29x2.4", EXO casing, tubeless ready
Brakes
Brakes
Shimano SLX 4-piston disc, 180/180mm RT64 rotor
Brake Levers
Shimano SLX hydraulic disc
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 0°
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 760mm (XS, S), 780mm (M)
Grips
Fabric FunGuy
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Fabric Scoop Women's Sport, 155mm width, steel rails
Seatpost
Cannondale DownLow Dropper, internal routing, 31.6, 125mm (XS-S), 150mm (M)
Fit data

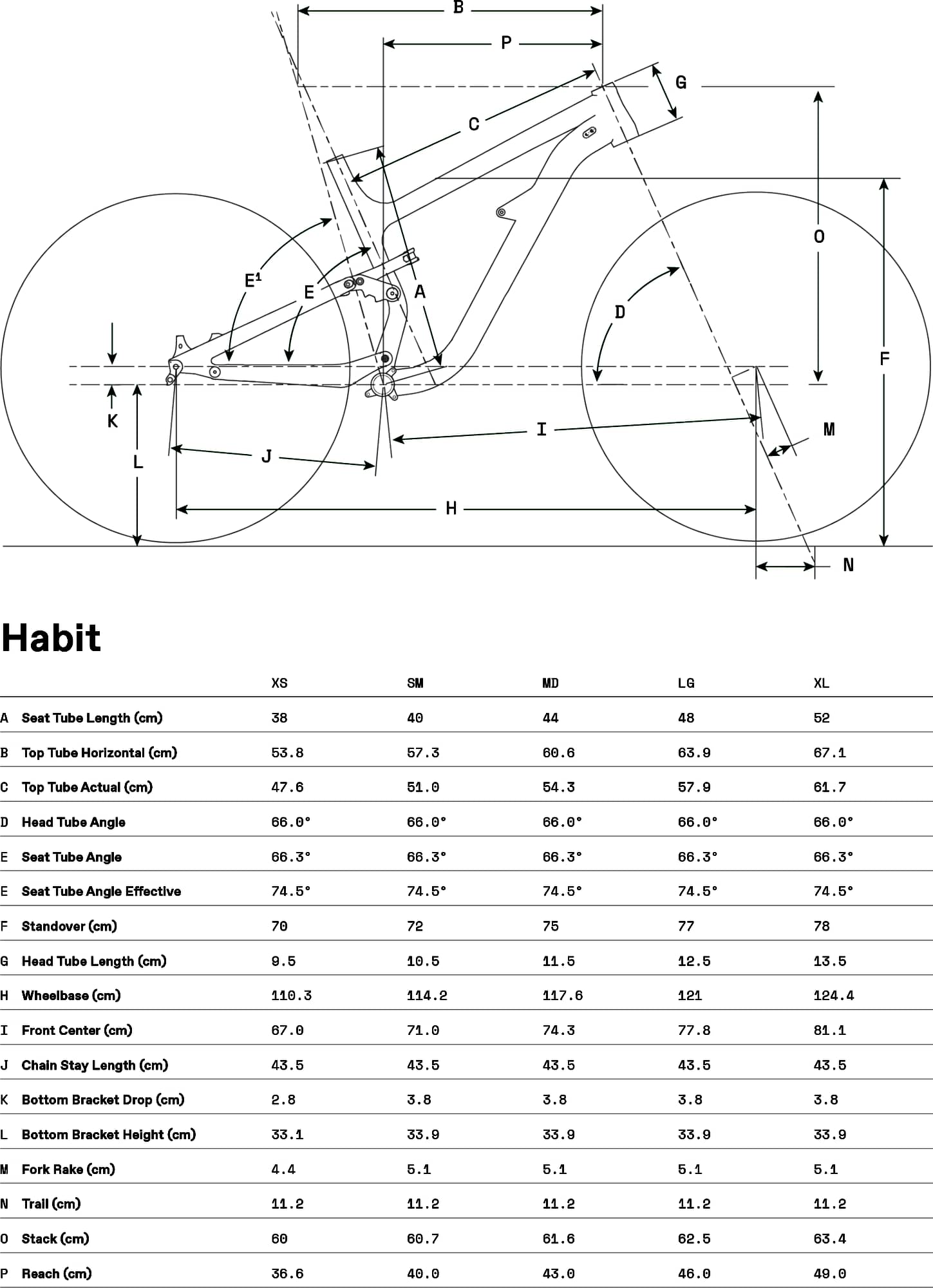

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.639 mm | 1.518 mm | 1.433 mm |
| Bottom Bracket Height | 331 mm | 339 mm | 339 mm |
| Front Center | 670 mm | 710 mm | 743 mm |
| Rake | 44 mm | 51 mm | 51 mm |
| Trail | 112 mm | 112 mm | 112 mm |
| Stack | 600 mm | 607 mm | 616 mm |
| Reach | 366 mm | 400 mm | 430 mm |
| Top Tube Length | 538 mm | 573 mm | 606 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 400 mm | 440 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1103 mm | 1142 mm | 1176 mm |
| Bottom Bracket Drop | 28 mm | 38 mm | 38 mm |
| Standover Height | 700 | 720 mm | 750 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 156 cm | 167 cm |
| Rider Max Height | 159 cm | 165 cm | 175 cm |
