Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 165mm -
Fork Fox Factory Float 38
-
Groupset X1, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 165cm
MD
162cm - 175cm
LG
172cm - 182cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
165mm travel, Carbon, Proportional Response Tuned, Guidler idler pulley/chainguide, BSA 73, ISCG05, tapered head tube, Ai Offset
Suspension Fork
Fox Float Factory 38, 170mm, 15x110mm thru-axle, tapered steerer, 44mm offset
Rear Shock
Fox Float Factory X2, 205x65 Metric Trunnion, Air, Adjustable High Speed/Low Speed Compression, High Speed/Low Speed Rebound
Drivetrain
Rear Derailleur
SRAM GX Lunar Eagle
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM XG-1275, GX Eagle, 10-52, 12-speed
Crank
SRAM X1 Eagle B148 CL55, 30T
Bottom Bracket
SRAM DUB BSA MTB73
Chain
SRAM NX Eagle, 12-speed
Pedals
Not included
Wheels
Front Hub
(F) Formula, 15x110mm thru-axle / (R) SRAM MTH 700, 12x148mm, XD Driver
Rear Hub
(F) Formula, 15x110mm thru-axle / (R) SRAM MTH 700, 12x148mm, XD Driver
Rims
WTB KOM Trail i30 TCS, 32h, tubeless ready
Spokes
DT Swiss Factory J -Bend
Tires
(F) Maxxis Assegai, 29x2.5", 3C compound, EXO+ puncture protection, tubeless ready, (R) Maxxis Minion DHR II, 29x2.4", EXO+, tubeless ready
Brakes
Brakes
SRAM Code RSC hydraulic disc, 220/200mm CenterLine rotors
Brake Levers
SRAM Code RSC hydraulic disc
Cockpit
Stem
FSA Grid 35, 35mm
Handlebar
Cannondale 1 Riser, Carbon, 30mm rise, 8° sweep, 5° rise, 780mm
Grips
Cannondale TrailShroom
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Fabric Scoop Shallow Elite, hollow cro-mo rails
Seatpost
Cannondale DownLow Dropper w/ Matchmaker lever, 31.6, 125mm (S), 150mm (M-XL)

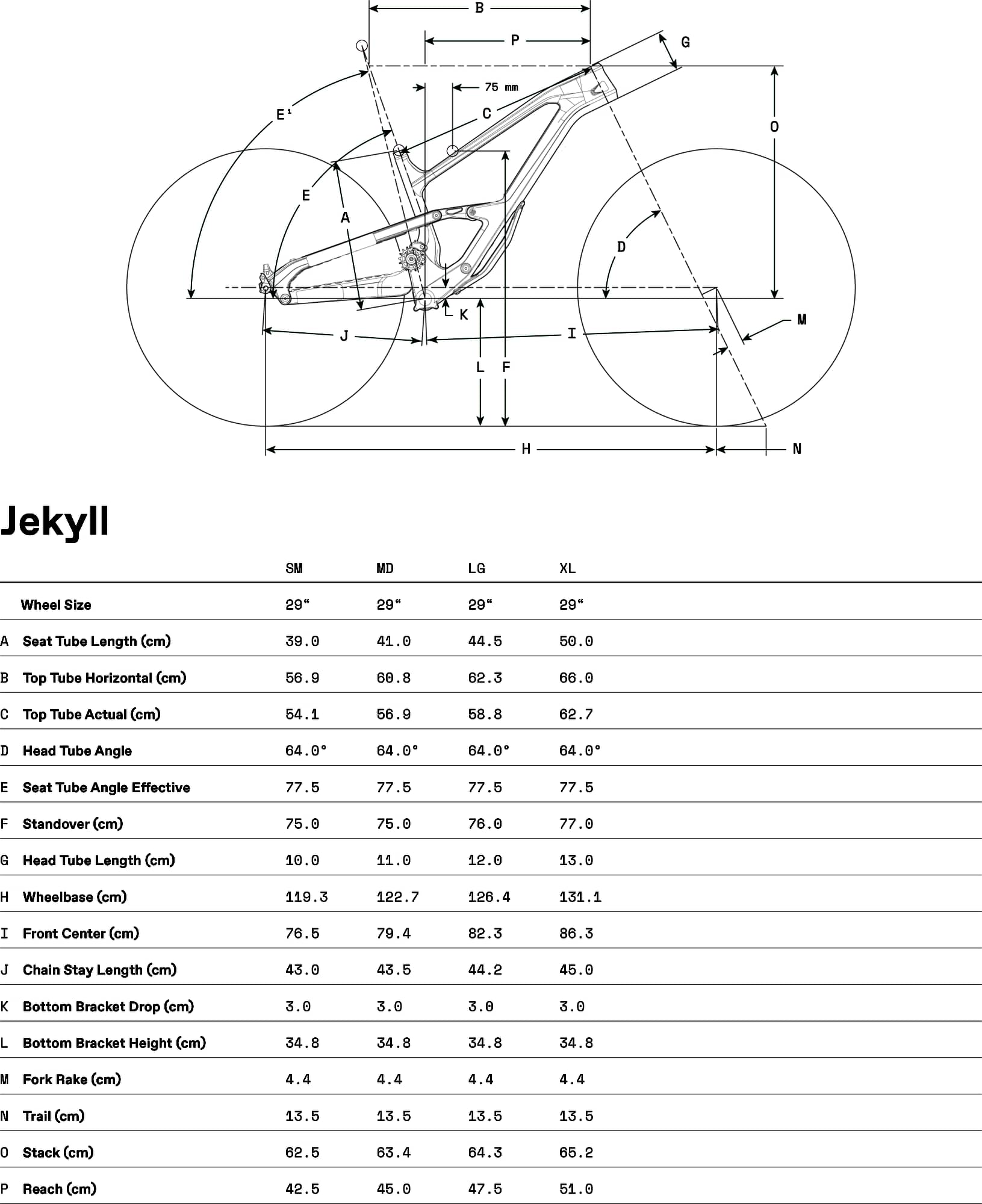

Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 162 cm | 172 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 182 cm | 195 cm |
