Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 165mm -
Fork RockShox ZEB Select
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 165cm
MD
162cm - 175cm
LG
172cm - 182cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
165mm travel, Carbon, Proportional Response Tuned, Guidler idler pulley/chainguide, BSA 73, ISCG05, tapered head tube, Ai Offset
Suspension Fork
RockShox Zeb Select, 170mm, 15x110mm thru-axle, tapered steerer, 44mm offset
Rear Shock
Fox Float X Performance Elite, Air, piggyback reservoir, 2 position firm mode, low speed compression adjustable, 205x65 Metric Trunnion
Drivetrain
Rear Derailleur
Shimano Deore M6100
Shift Levers
Shimano Deore M6100, 12-speed
Cassette
Shimano Deore M6100, 10-51, 12-speed
Crank
Shimano Deore 6120, 30T, 55mm CL
Bottom Bracket
Shimano Deore BSA 73
Chain
Shimano Deore 6100, 12-speed
Pedals
Not included
Wheels
Front Hub
(F) Shimano MT400, 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
Rear Hub
(F) Shimano MT400, 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
Rims
WTB STX i30 TCS, 32h, tubeless ready
Spokes
Stainless steel, 14g
Tires
(F) Maxxis Assegai, 29x2.5", Dual compound, EXO+ puncture protection, tubeless ready, (R) Maxxis Minion DHR II, 29x2.4", EXO+, tubeless ready
Brakes
Brakes
Shimano M6120 hydraulic disc, 203/203mm RT64 rotors
Brake Levers
Shimano M6120 hydraulic disc
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 0°
Handlebar
Cannondale 3 Riser, 6061 Alloy, 30mm rise, 8° sweep, 6° rise, 780mm
Grips
Cannondale TrailShroom
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Cannondale Stage 3
Seatpost
TranzX dropper, internal routing, 31.6, 130mm (S), 150mm (M-XL)
Fit data

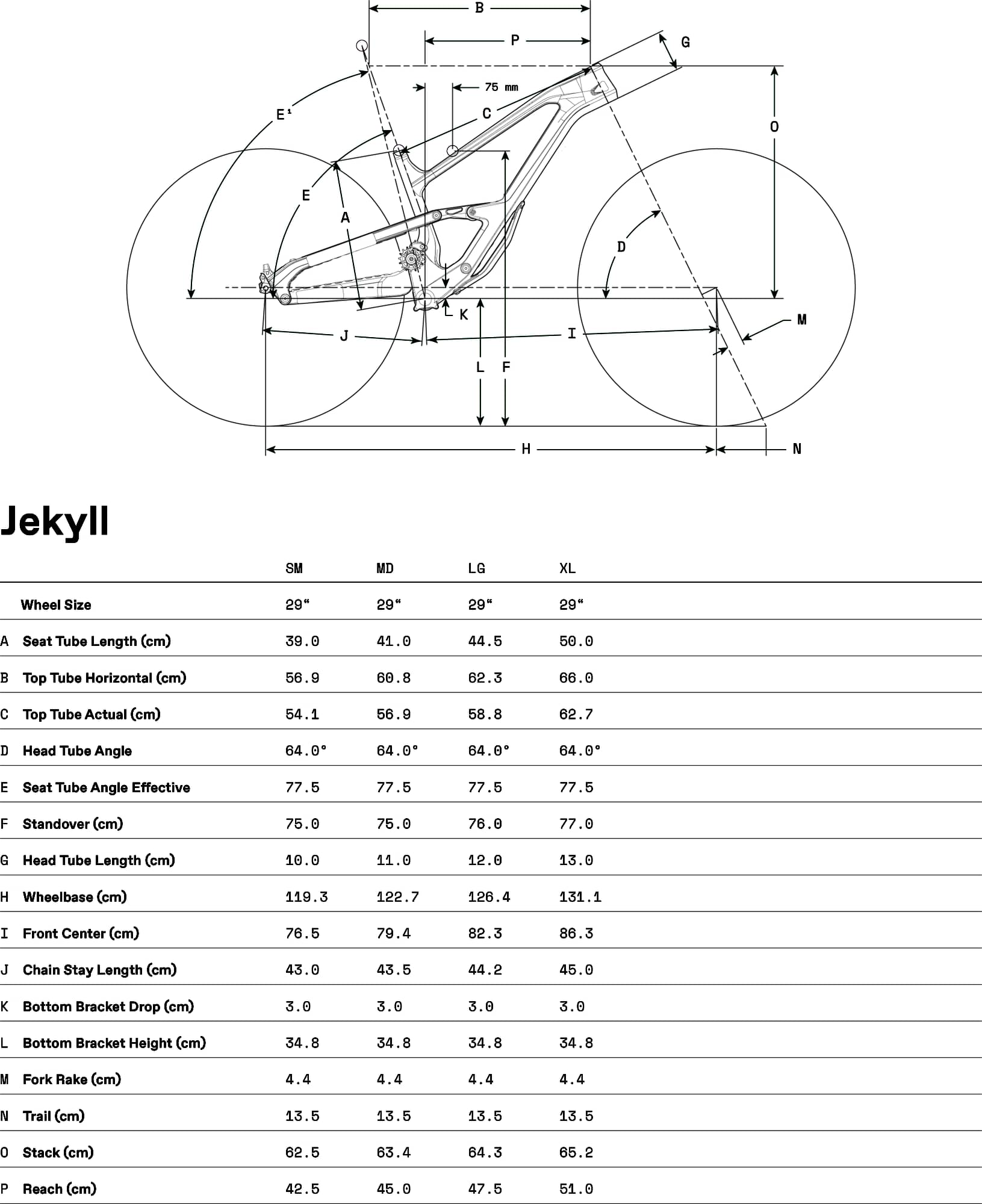

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 162 cm | 172 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 182 cm | 195 cm |
