Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tourney -
Suspension Rigid -
Drivetrain 1 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
OS
121cm - 144cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C3 Alloy, smooth welding
Suspension Fork
SmartForm C3 Alloy, 1-1/8" steerer, IS disc mount
Drivetrain
Rear Derailleur
Shimano Tourney
Shift Levers
Shimano Tourney Revo Twist Shifter, 8-speed
Cassette
Sunrace, 11-34, 8-speed
Crank
Prowheel w/ Double Guard, 30T, 130mm
Bottom Bracket
Cartridge, square taper
Chain
KMC Z8.1, 8-speed
Pedals
Wellgo Composite Platform w/ Reflectors
Wheels
Front Hub
Alloy Disc QR, 28H
Rear Hub
Alloy Disc Cassette QR, 28H
Rims
Cannondale Disc, lightweight alloy, double wall, 20", 29mm inner width, 28h
Spokes
Stainless Steel, 14g
Tires
Kenda Slant Six, 24x2.6"
Brakes
Brakes
Tektro mechanical disc, 160/160mm rotors
Brake Levers
Tektro 3 finger
Cockpit
Stem
Alloy Ahead, 30mm
Handlebar
Alloy 600mm width x 30mm rise
Grips
Cannondale Kid's Performance
Headset
FSA, Alloy, 1-1/8" Ahead, semi-integrated
Seat
Saddle
Cannondale Ergo
Seatpost
Lightweight alloy, 25.4mm
Fit data

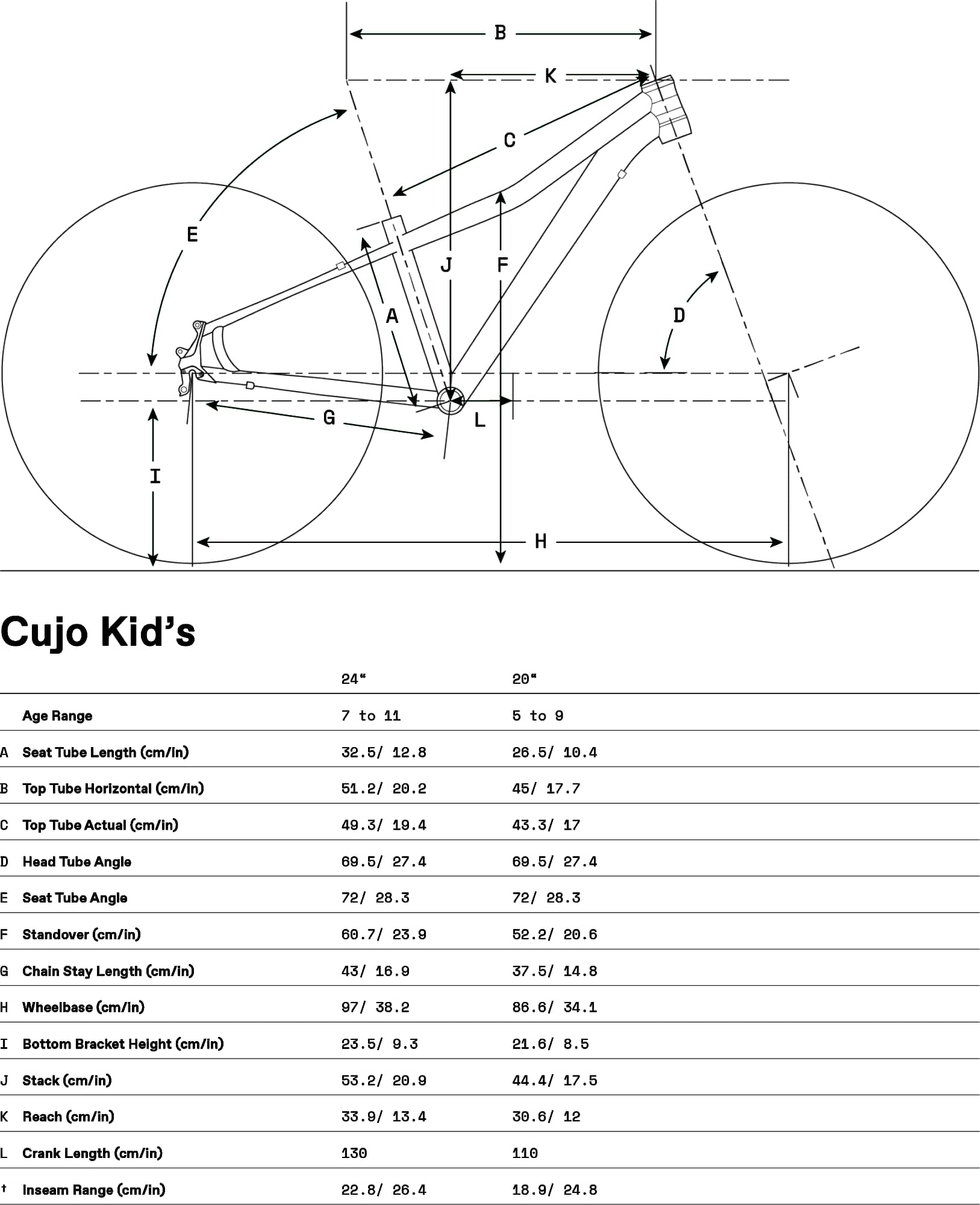

Geometry
Numbers for sizing and ride feel.
| Size | OS |
|---|---|
| Wheels | 24" |
| Rider Min Height | 121 cm |
| Rider Max Height | 144 cm |
