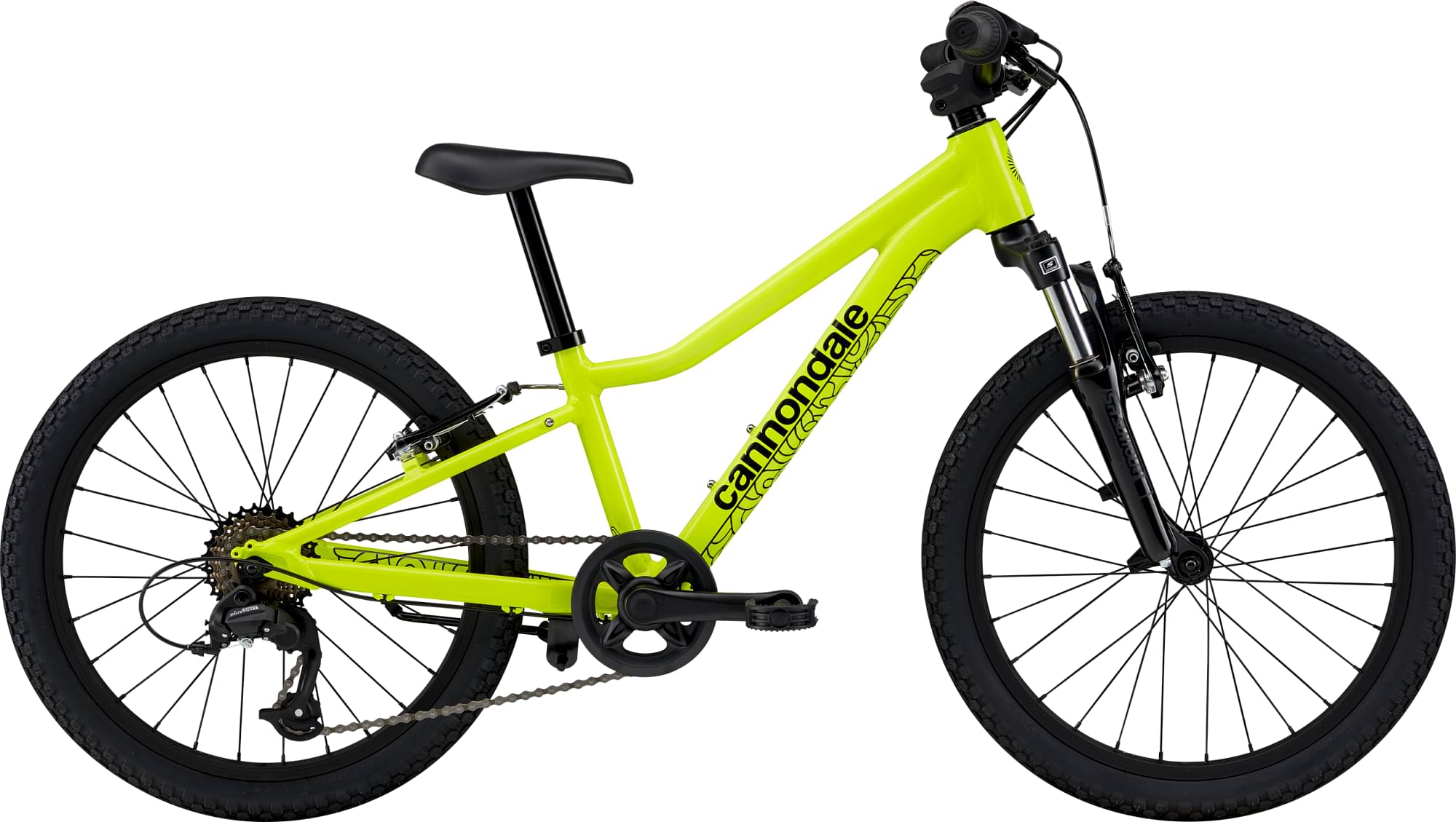

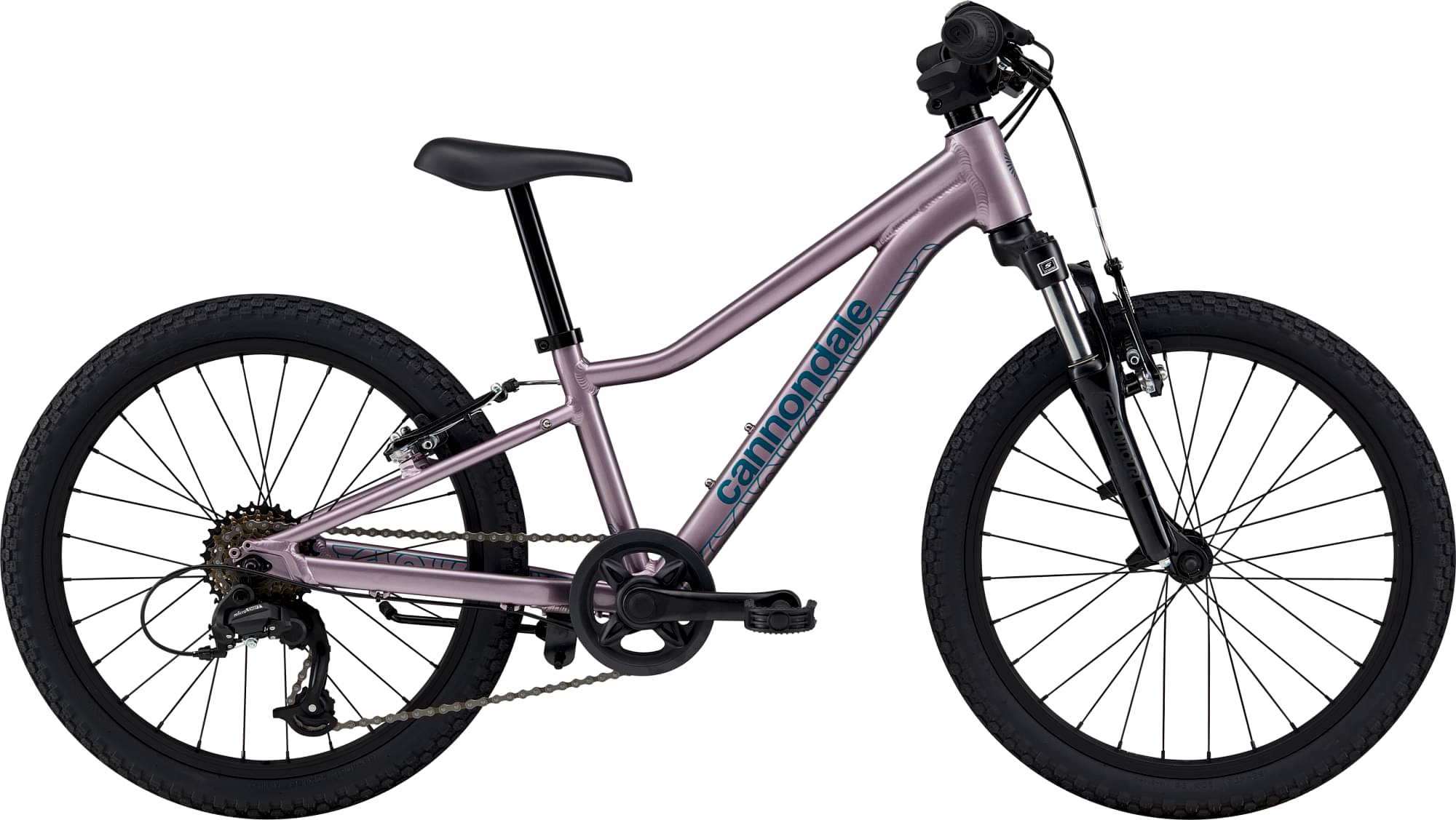

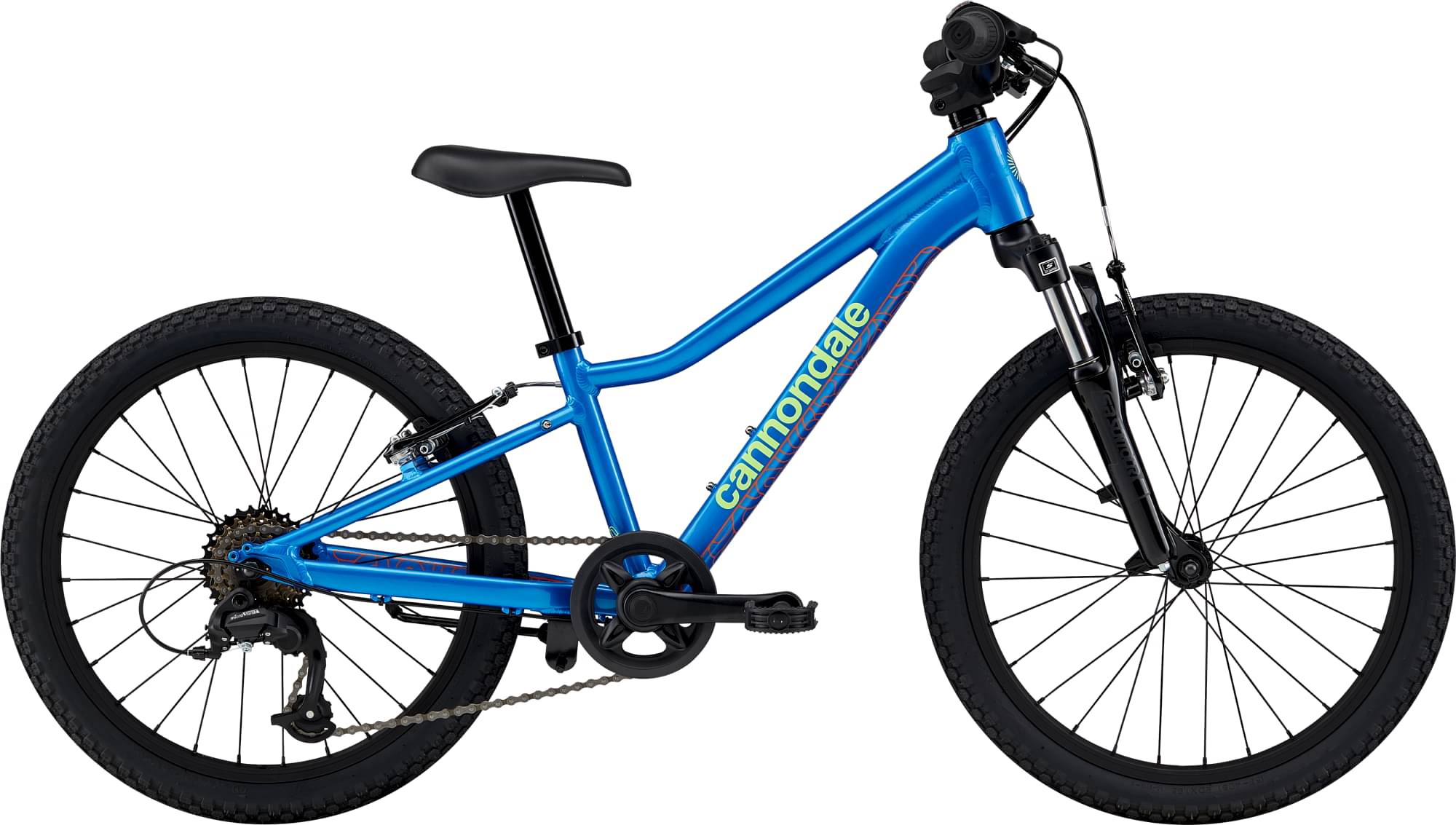

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 40mm -
Fork Suntour XCT
-
Groupset microSHIFT M21 -
Suspension Hardtail -
Drivetrain 1 × 7 -
Brakes Rim
Sizing
Recommended size guide.
OS
116cm - 129cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C3 Alloy, rim brakes, rack/fender mounts
Suspension Fork
SunTour XCT-JR 20, 40mm travel, 1-1/8" steerer, coil, w/ canti mounts
Drivetrain
Rear Derailleur
microSHIFT M21S
Shift Levers
microSHIFT, low-torque Twist Shift, 7-speed
Cassette
Sunrace, 14-28, 7-speed
Crank
Prowheel, Pro-V30, 130mm length, 30T
Bottom Bracket
Cartridge, square taper
Chain
KMC Z7, 7-speed
Pedals
Wellgo Composite Platform w/ reflectors, 1/2"
Wheels
Front Hub
(F) KT Alloy, nutted axle / (R) KT Alloy, 7-speed freehub
Rear Hub
(F) KT Alloy, nutted axle / (R) KT Alloy, 7-speed freehub
Rims
Cannondale, lightweight alloy, 20", 28h
Spokes
Steel, 14g Black
Tires
Innova 20x1.95", multi-use tread
Brakes
Brakes
Promax V-Brake
Brake Levers
Alloy, linear pull
Cockpit
Stem
Forged and machined aluminum, 30mm w/ fitted stem cover
Handlebar
Lightweight Alloy, 25.4mm, 580mm
Grips
Cannondale Kid's Comfort
Headset
FSA, Alloy, 1-1/8"
Seat
Saddle
Cannondale Kid's Comfort
Seatpost
One-piece, clamp-less, Alloy, 25.4mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | OS |
|---|---|
| Wheels | 20" |
| Rider Min Height | 116 cm |
| Rider Max Height | 129 cm |
