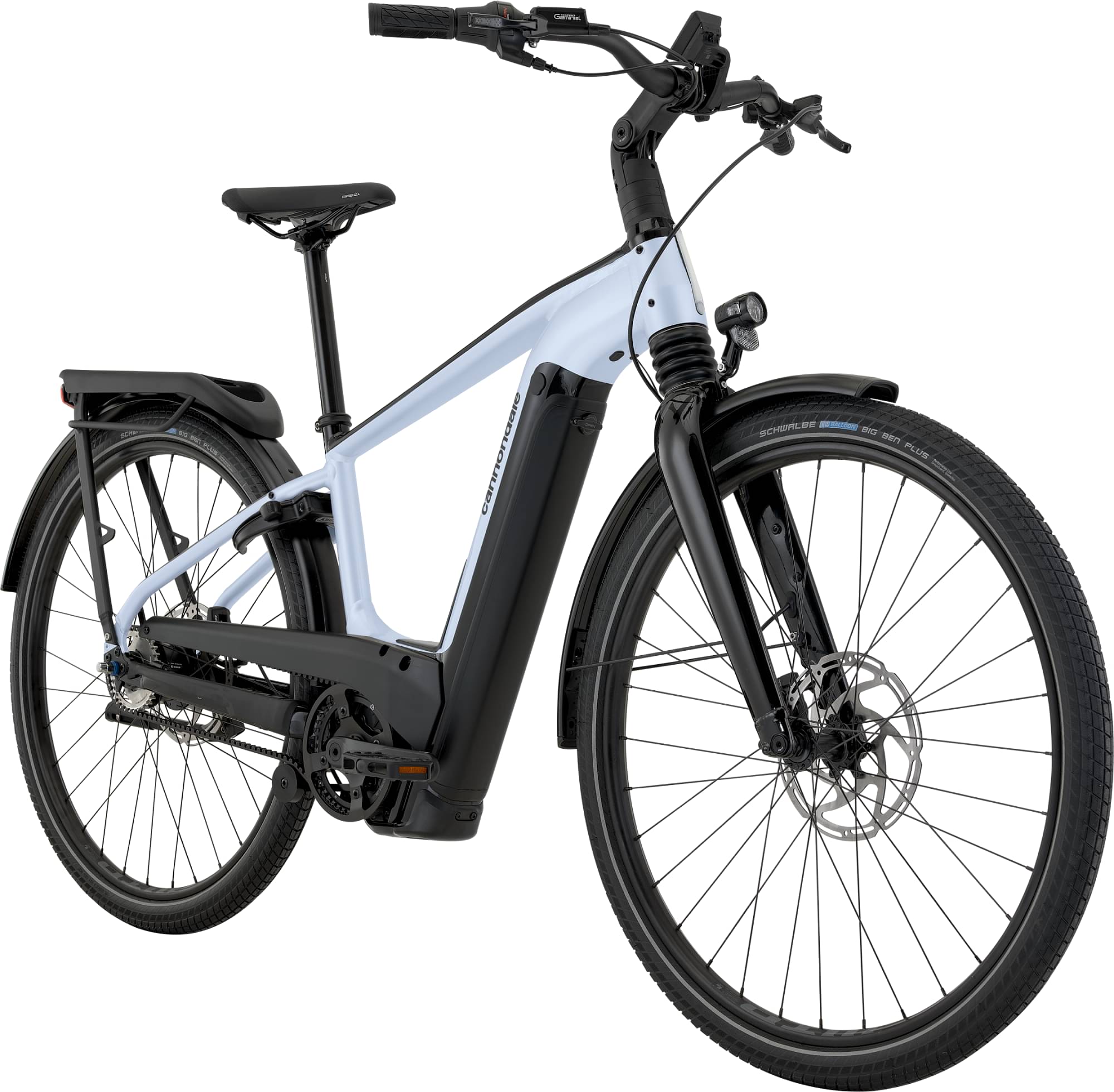

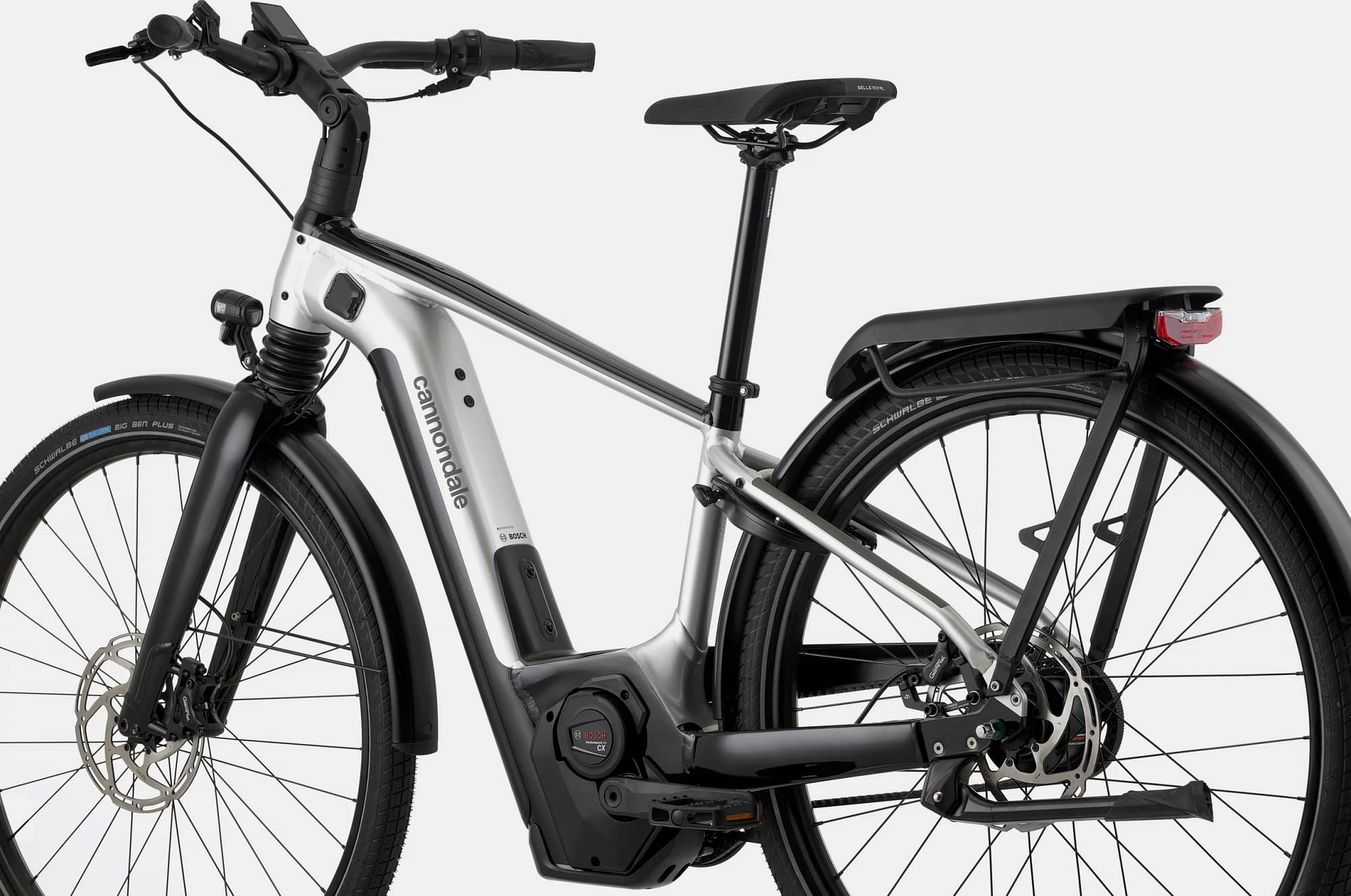

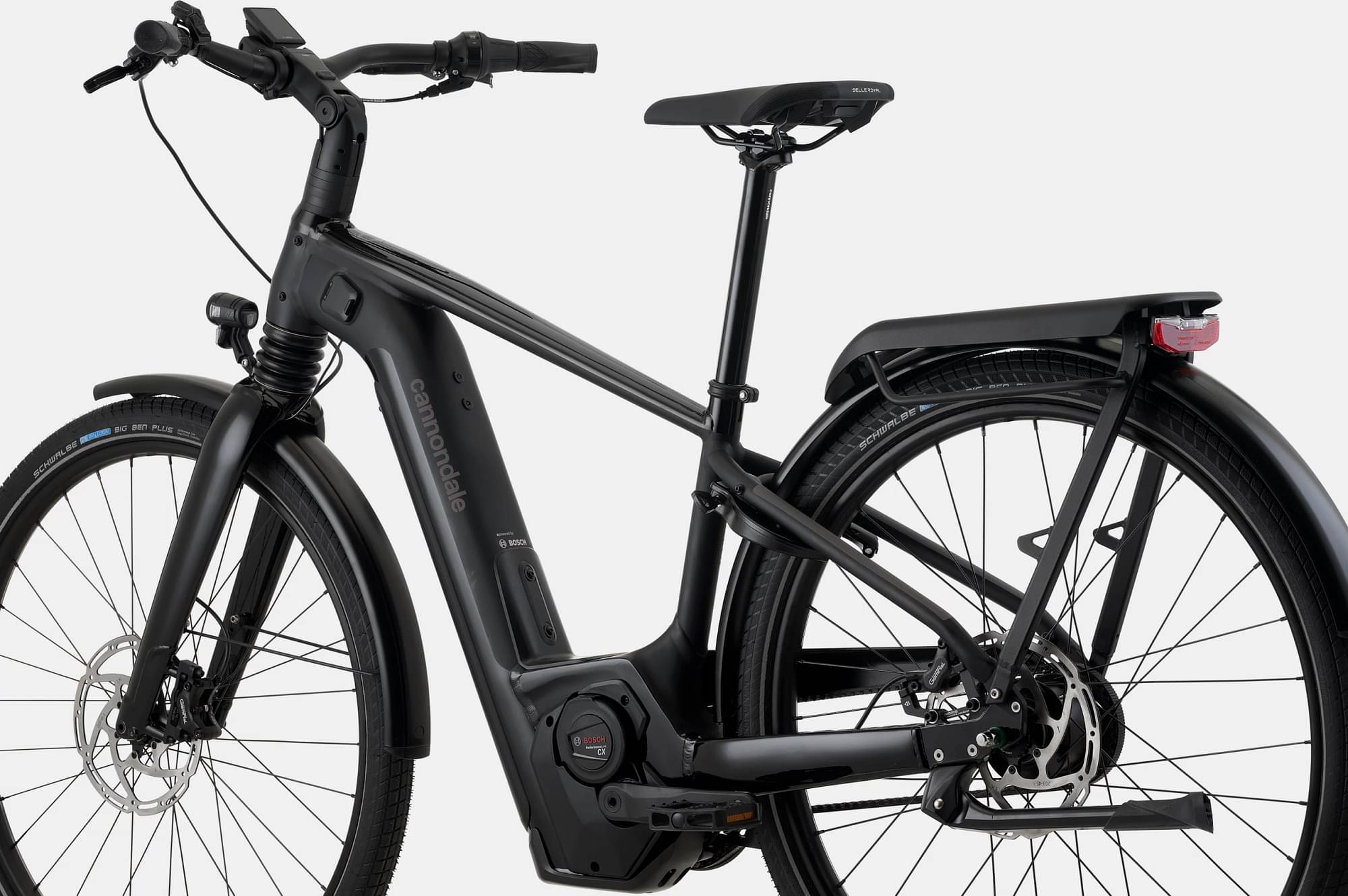

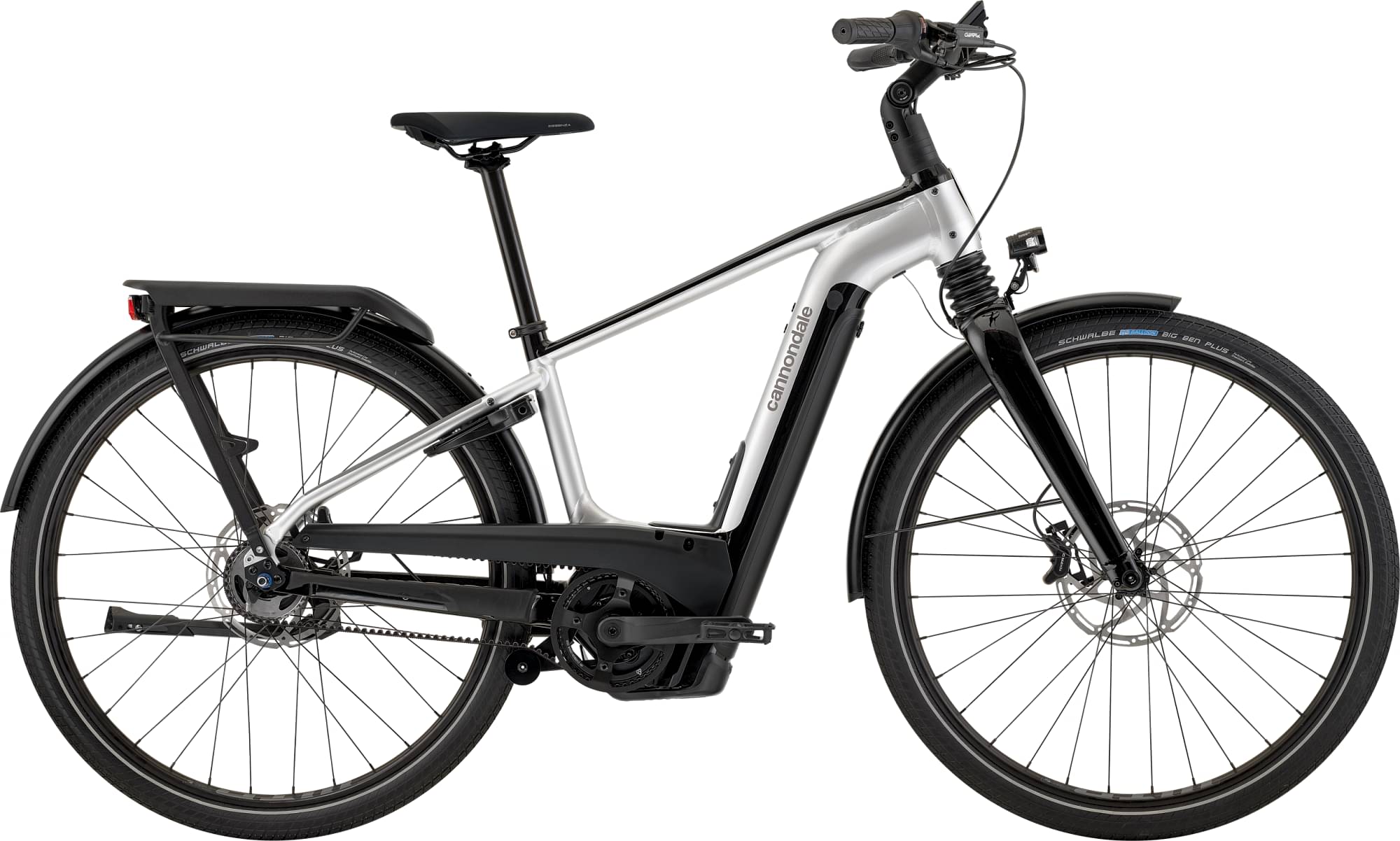

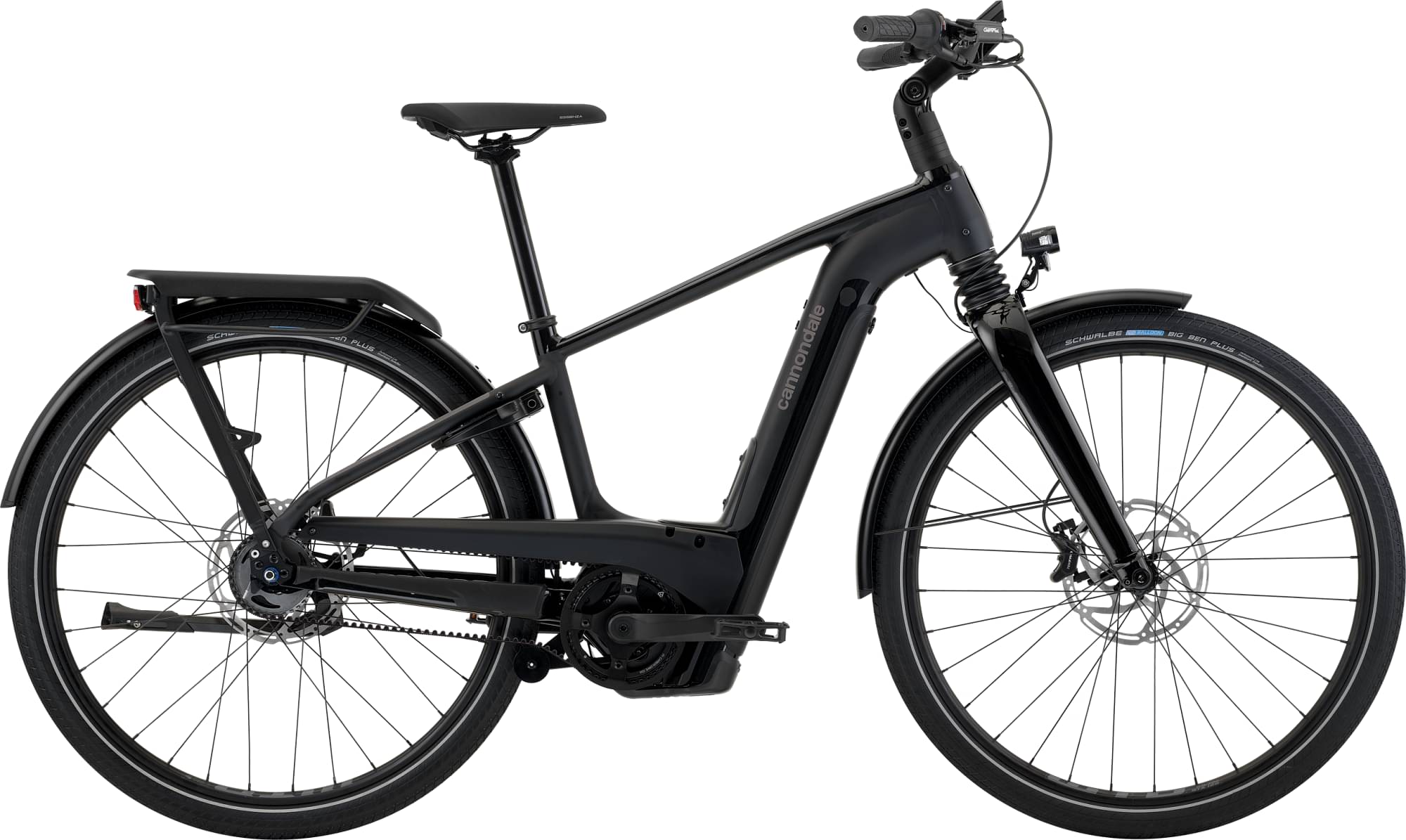

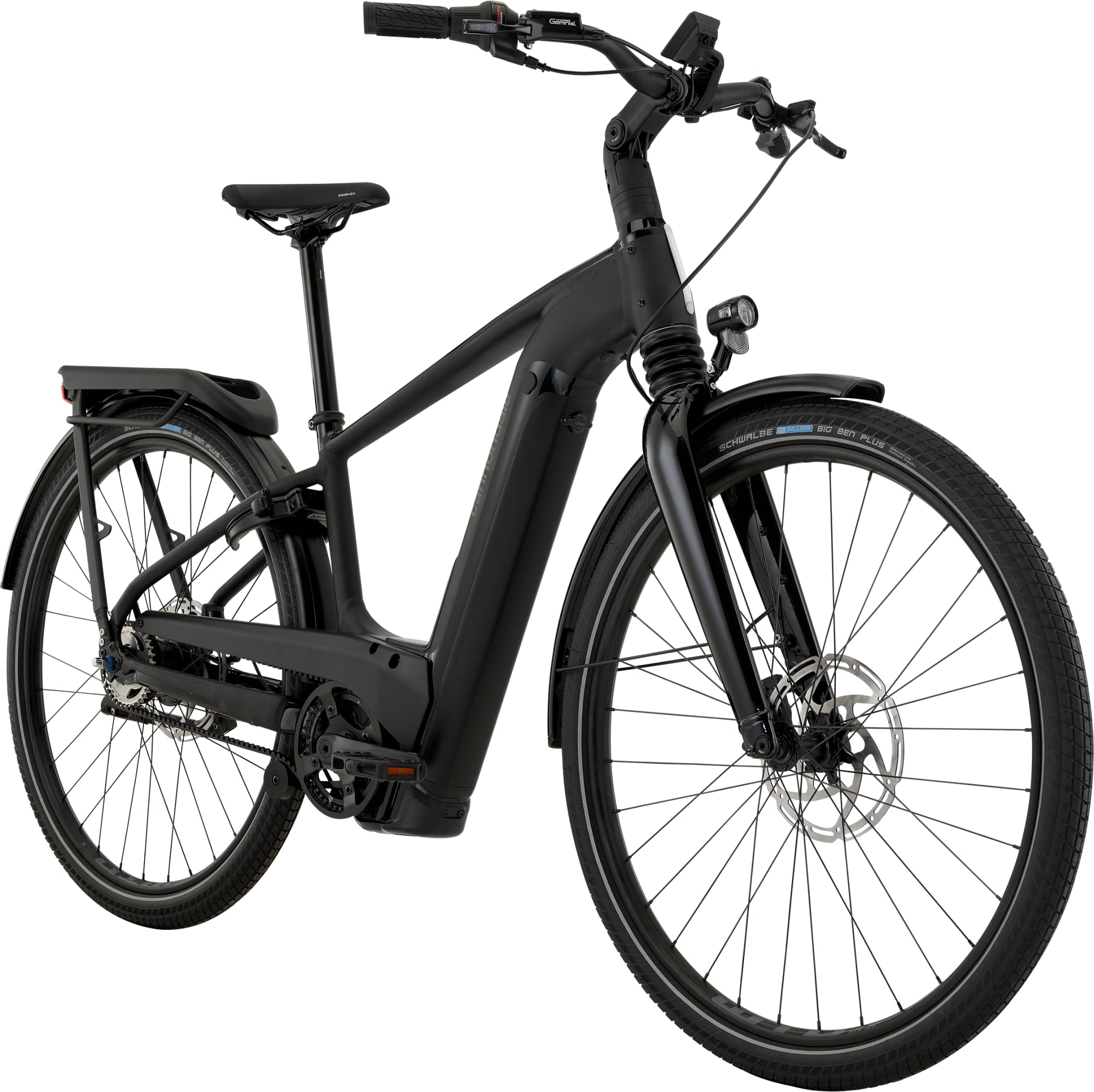

Cannondale Mavaro 2 2024
2024 E-bike
Estimate price |
5,001$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 750Wh -

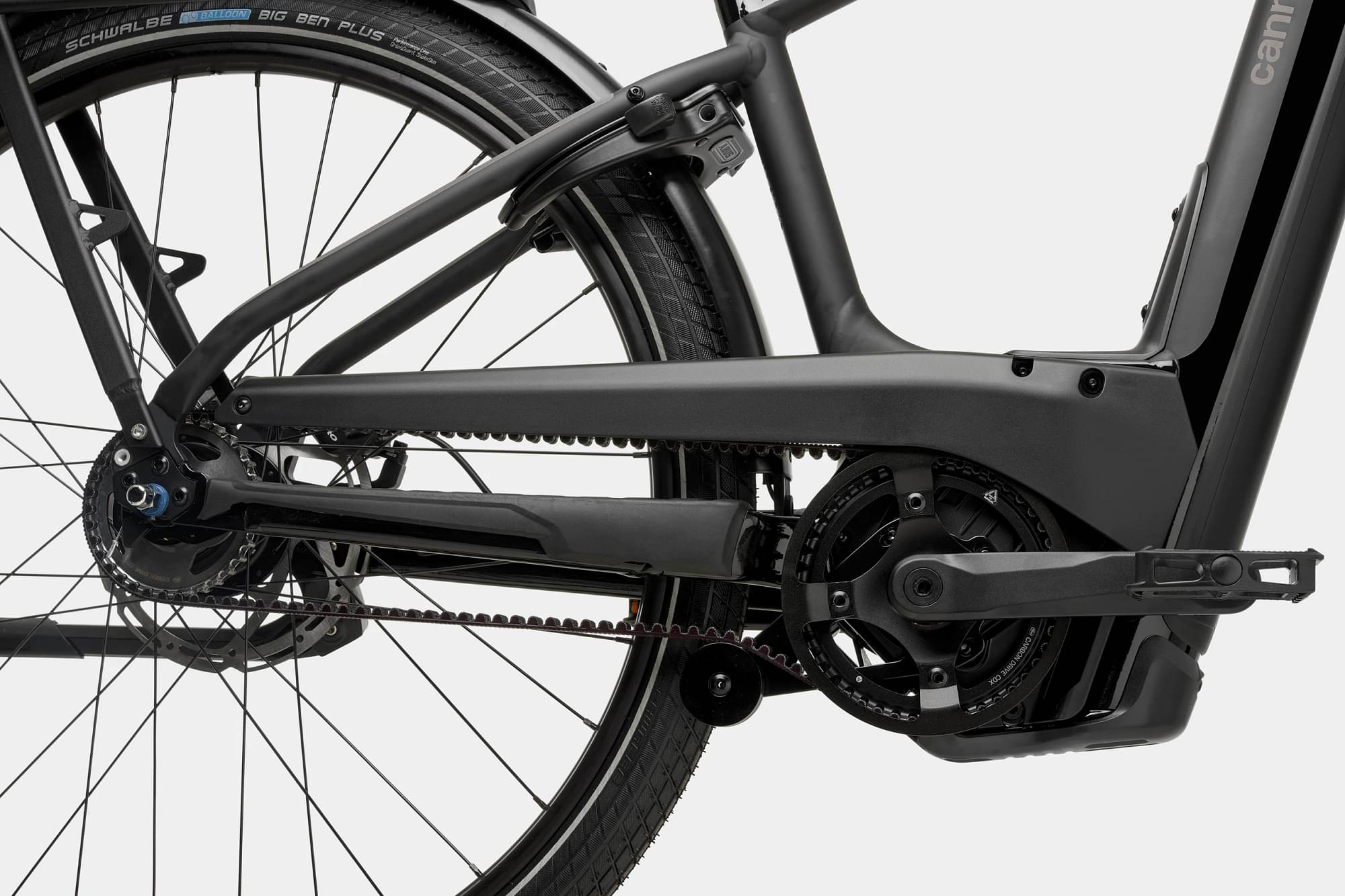

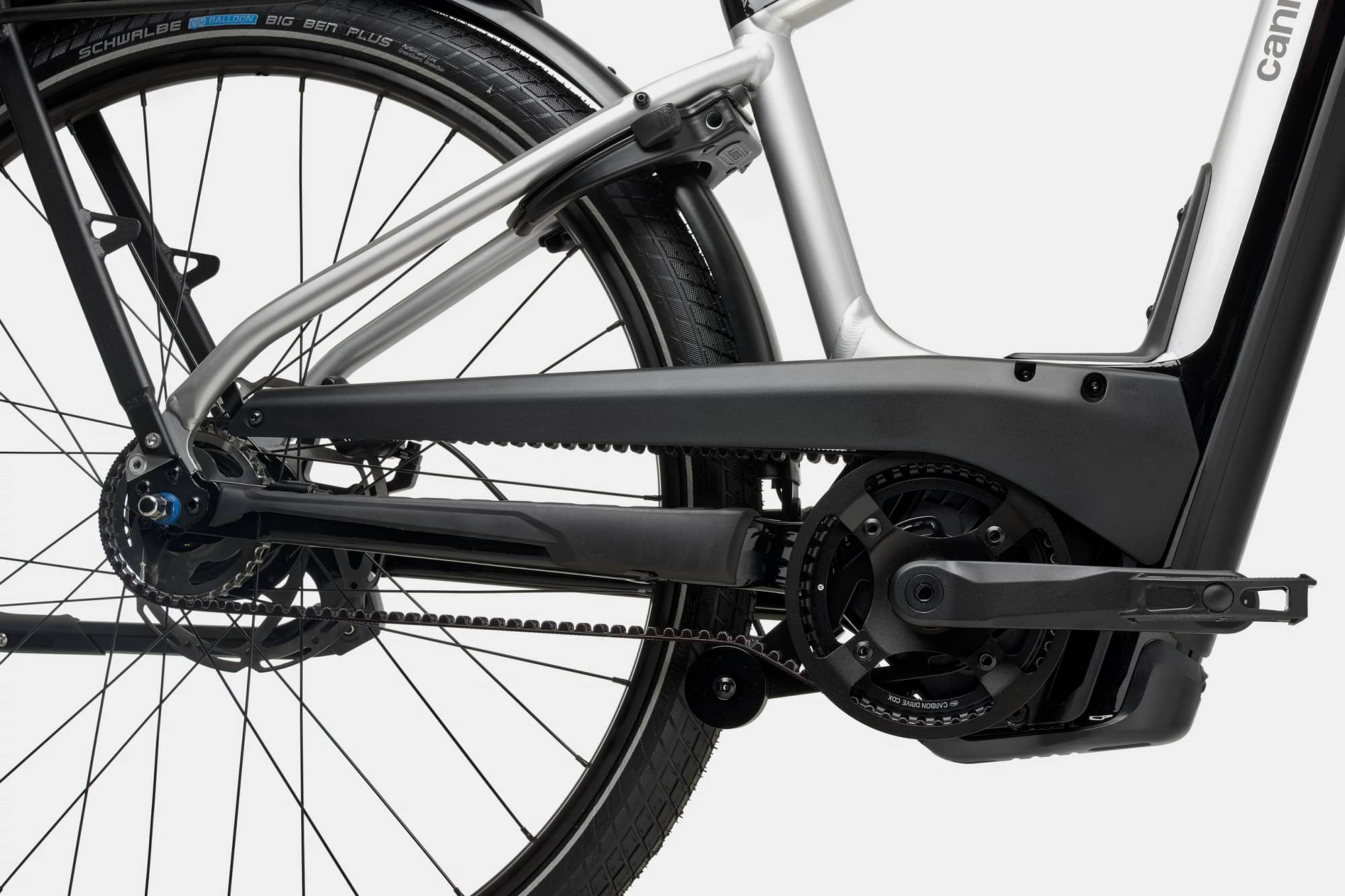

Drivetrain Belt Drive, Internally Geared Hub -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
SM
149cm - 170cm
MD
165cm - 185cm
LG
180cm - 200cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

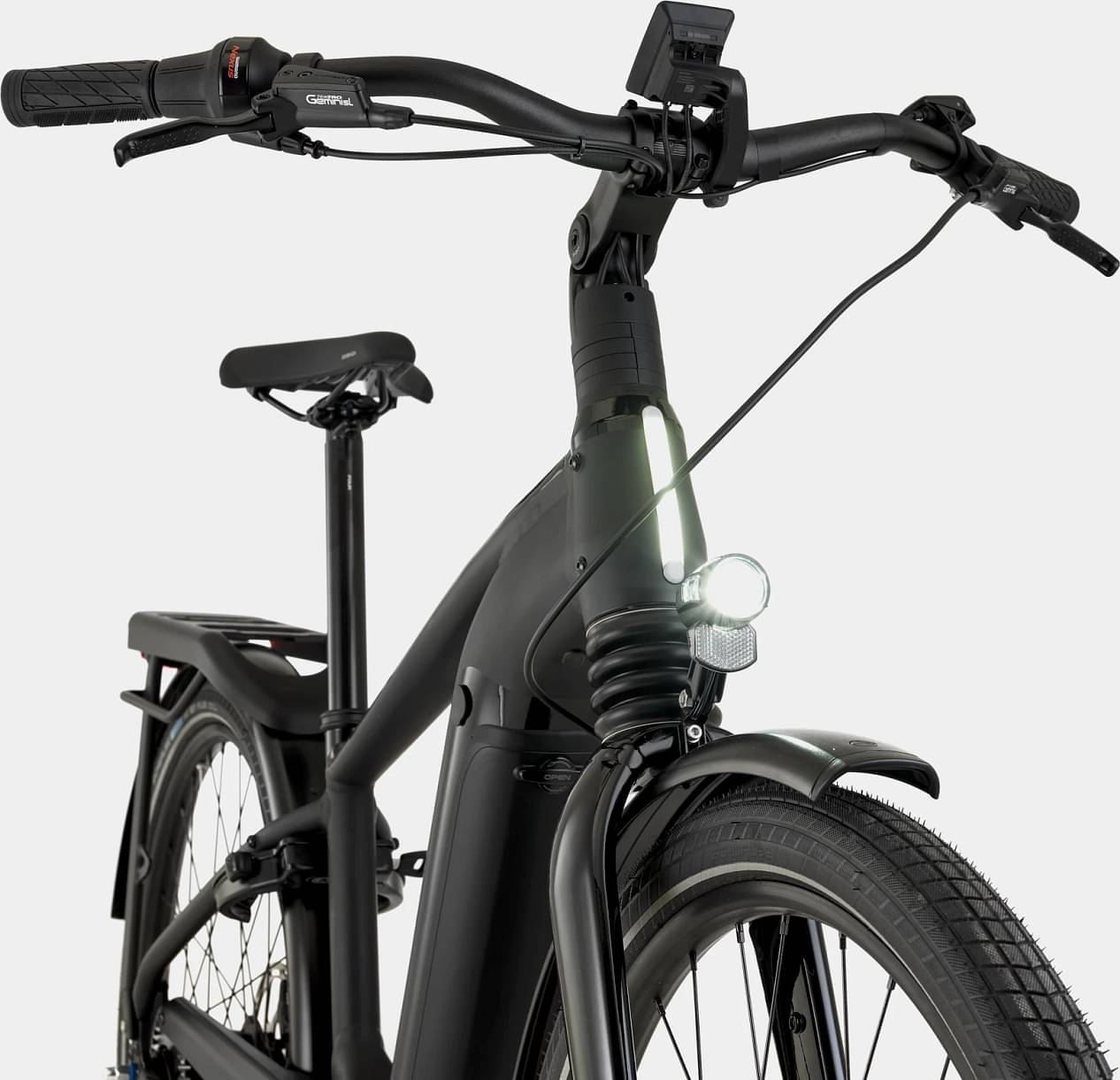

SmartForm C1 Alloy, removable 750Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection
Suspension Fork
Cannondale HeadShok, 50mm travel, Quad Cage needle bearing internals, coil spring, twin chamber semi open-bath oil damping, post mount disc, 110x15mm thru-axle
Drivetrain
Shift Levers
Shimano Nexus Revoshift, 5-speed twist shifter
Cassette
Gates CDX, 34T
Crank
Gates Bosch E-bike, w/ 46T sprocket
Bottom Bracket
Bosch, press-fit
Chain
Gates CDX high performance carbon drive belt
Pedals
Cannondale Fitness
Wheels
Front Hub
Shimano MT400, 15x110mm thru-axle
Rear Hub
Nexus 5-speed internal gear hub
Rims
WTB STX i30 TCS, 32h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
Continental Contact Cruiser, 29x2.2" 55-622 (M,L,XL), Urban Contact 27.5x2.2" 55-584 (S)
Brakes
Brakes
Tektro M535 4-piston hydraulic disc, 203/203mm rotors
Brake Levers
Tektro M535 hydraulic disc

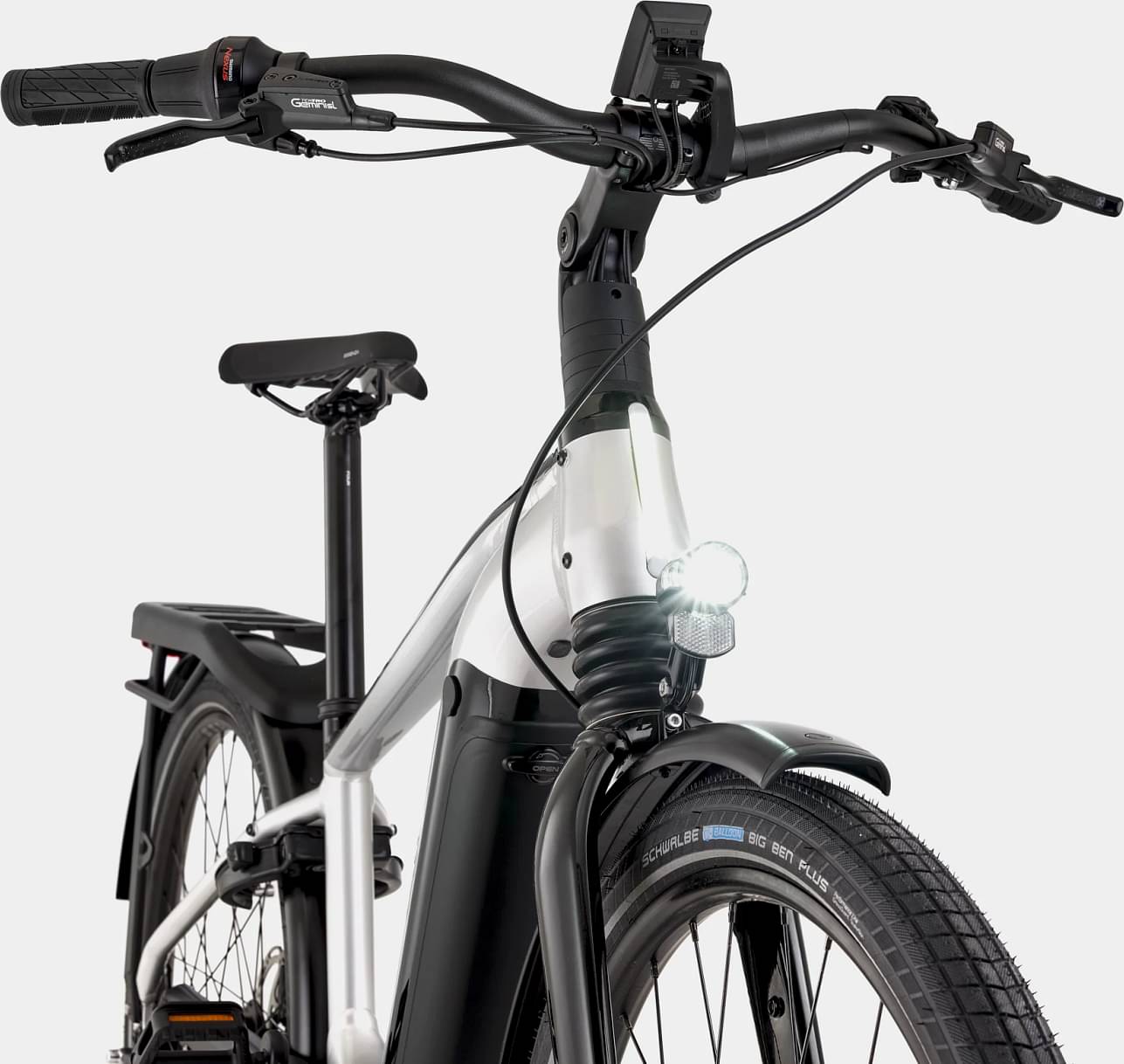

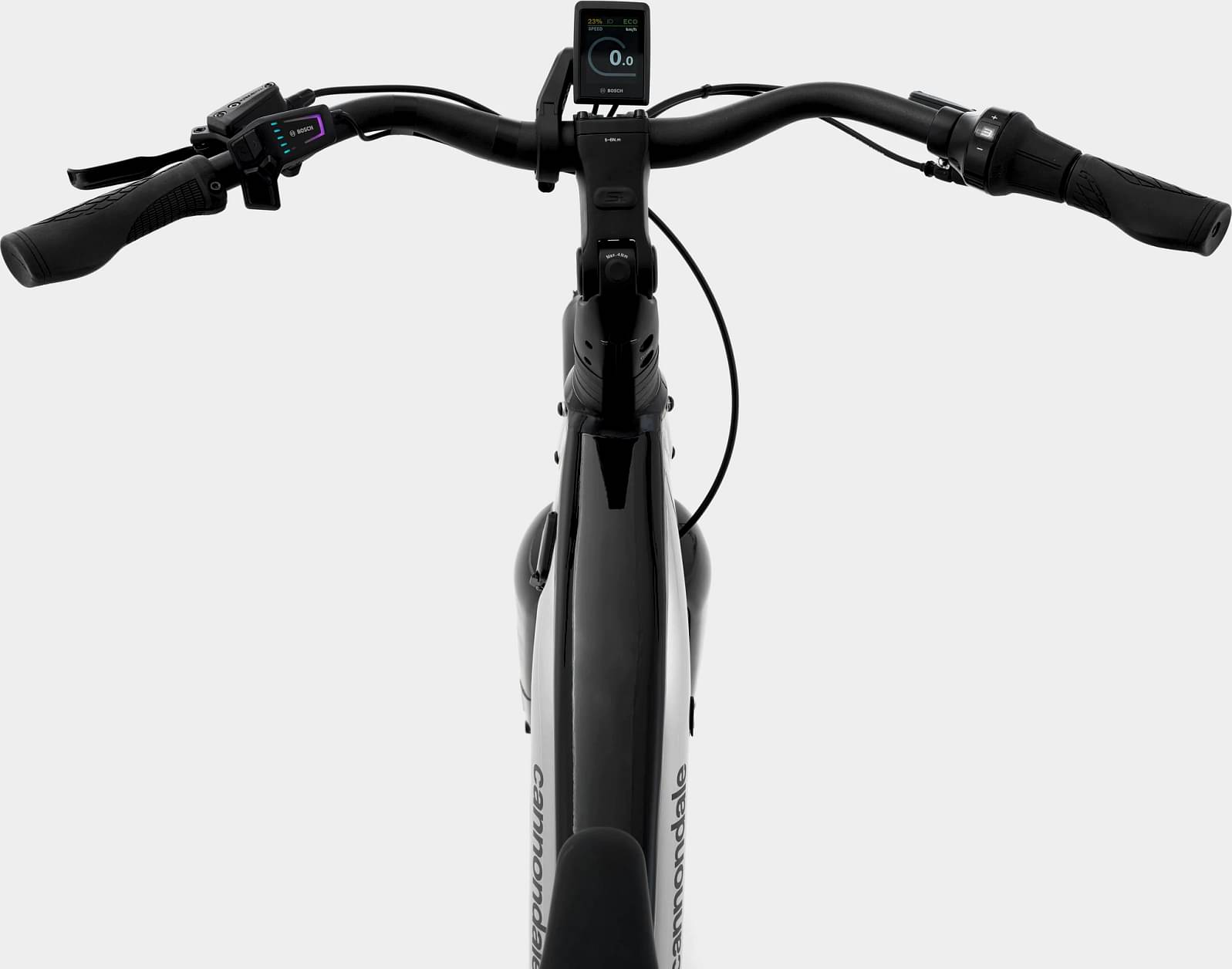

Cockpit
Stem
Cannondale Urban Intellimount, adjustable, internal cable routing, SP-Connect compatible phone mount

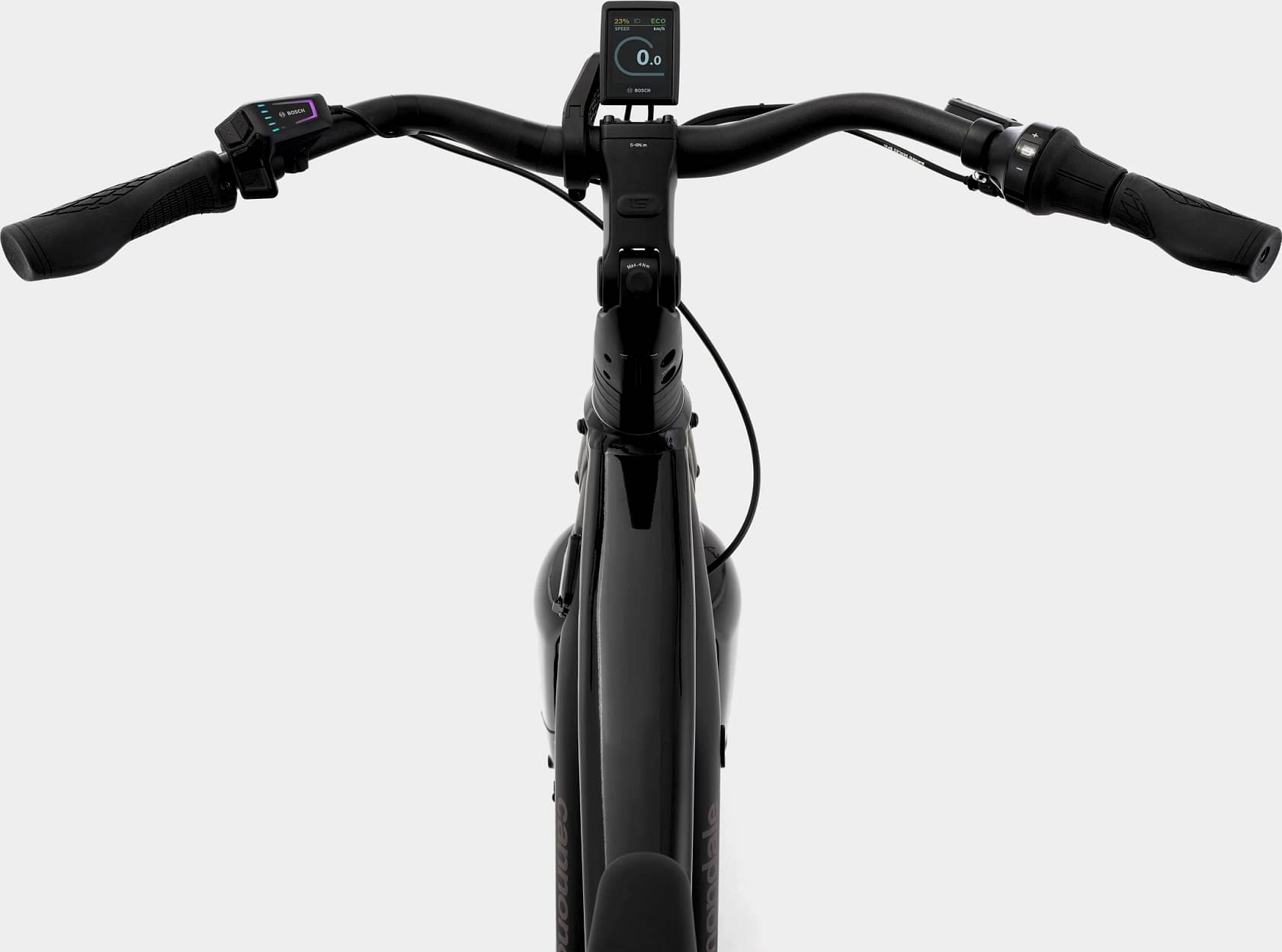

Handlebar
Cannondale Low-Rise Urban, butted 6061 Alloy, 31.8mm, 25mm rise, 35° sweep, 680mm
Grips
Cannondale Ergo Fitness Dual Density, Lock-on
Headset
Integrated Sealed Bearing, Tapered, internal cable routing
Seat
Saddle

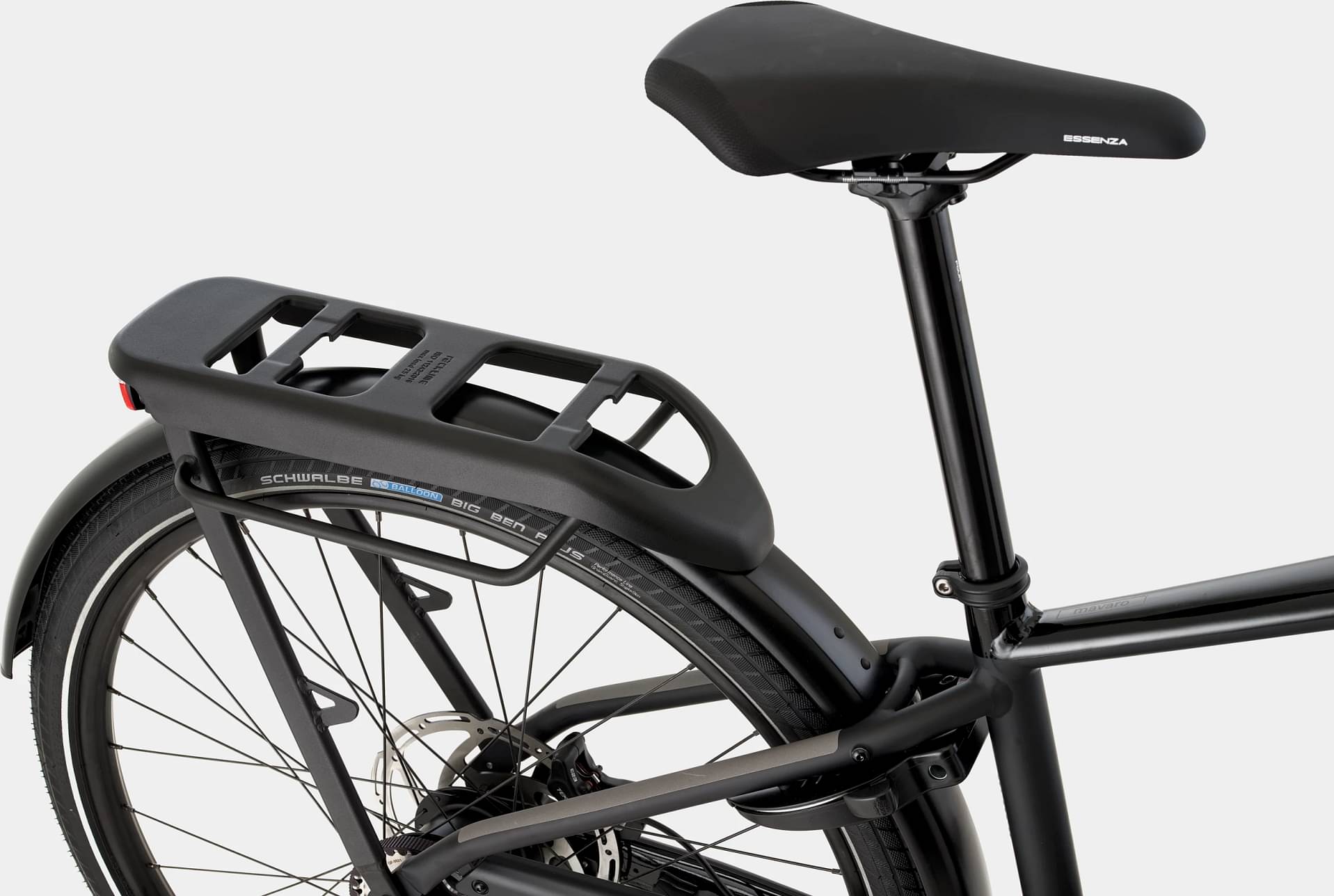

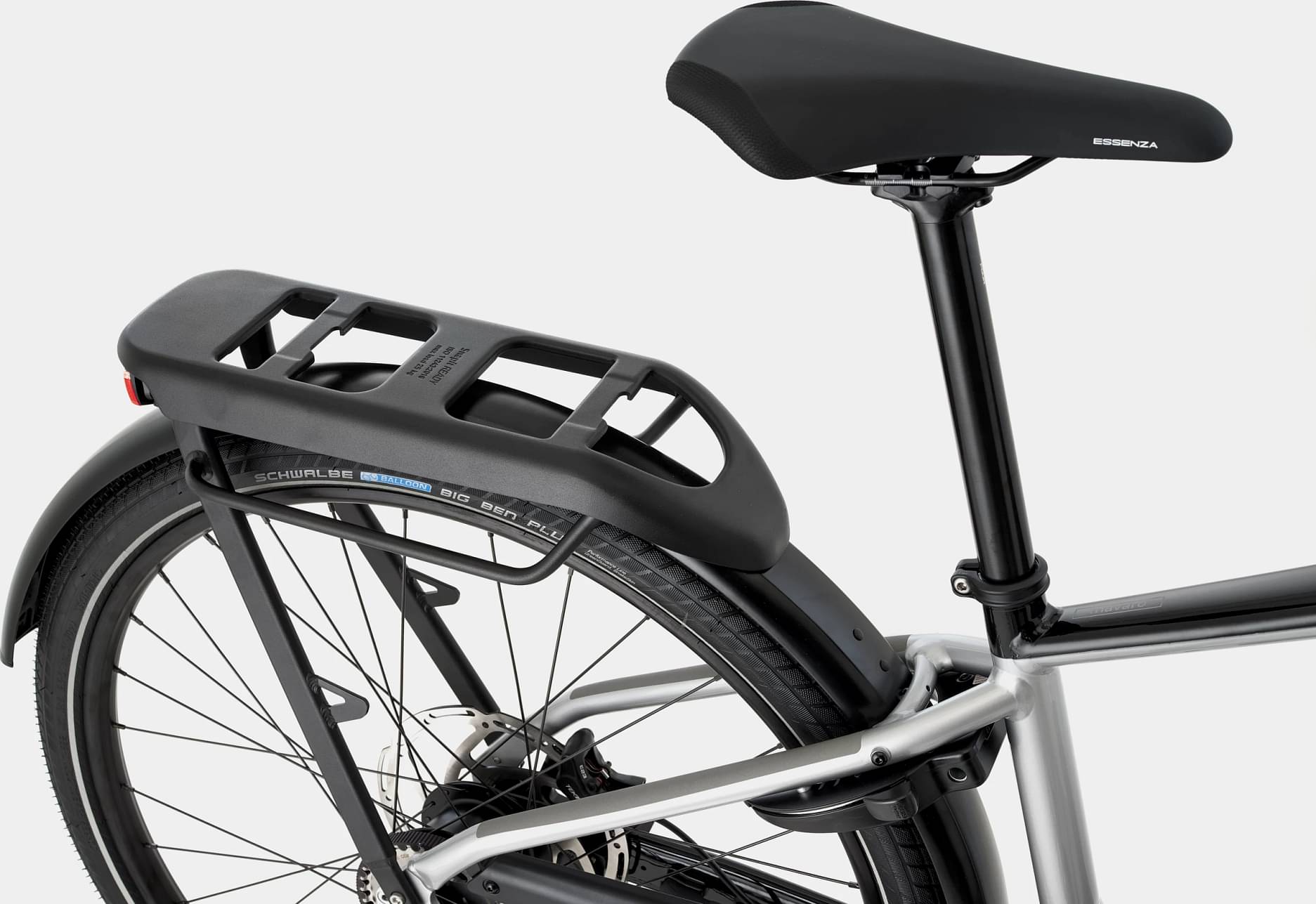

Selle Royal Essenza
Seatpost
Cannondale 4, 6061 Alloy, 31.6
Motor & Battery
Motor

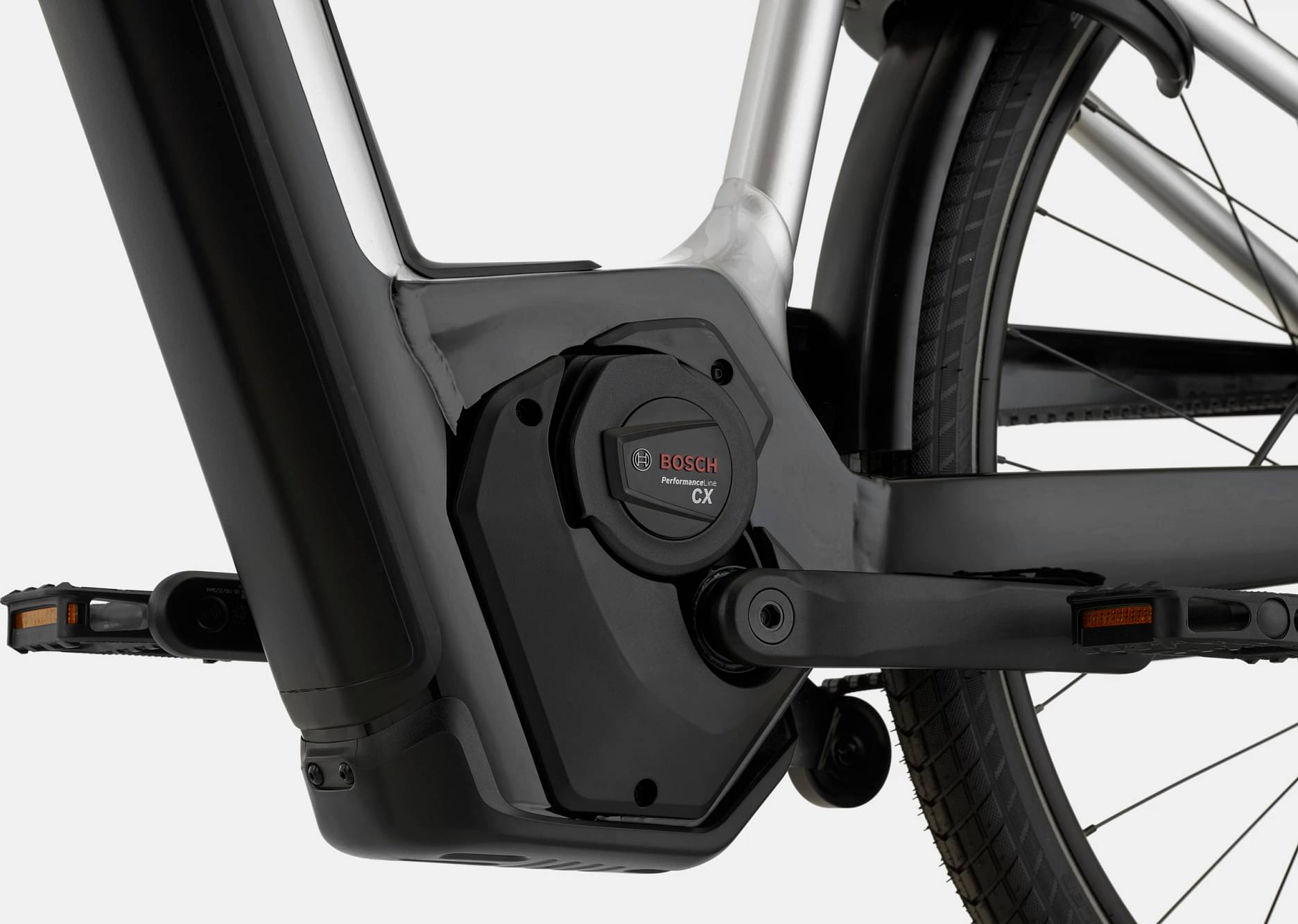

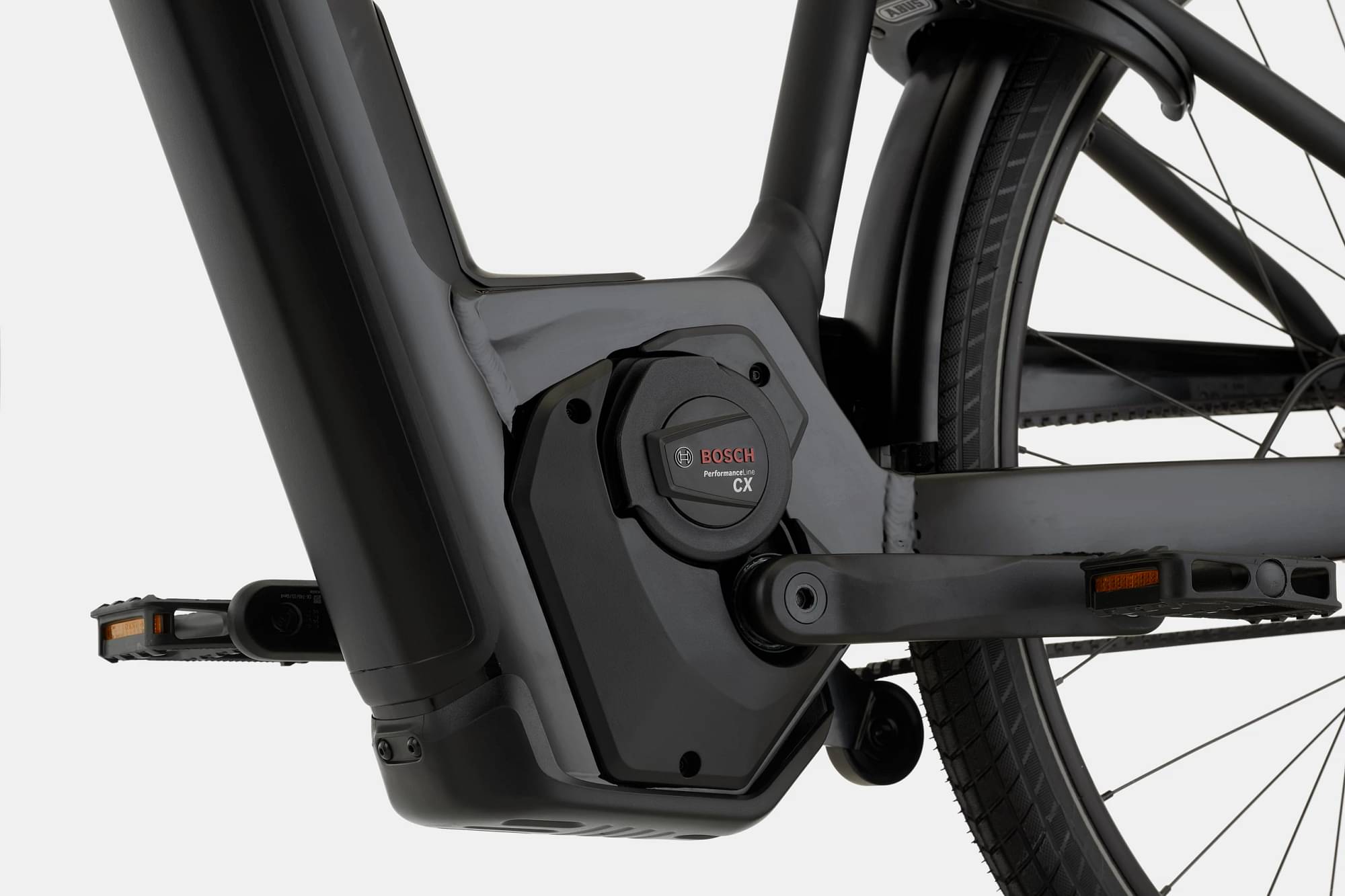

Bosch Performance Line CX 250W
Battery
Bosch PowerTube, 750Wh
Charger
Bosch 4A
Fit data

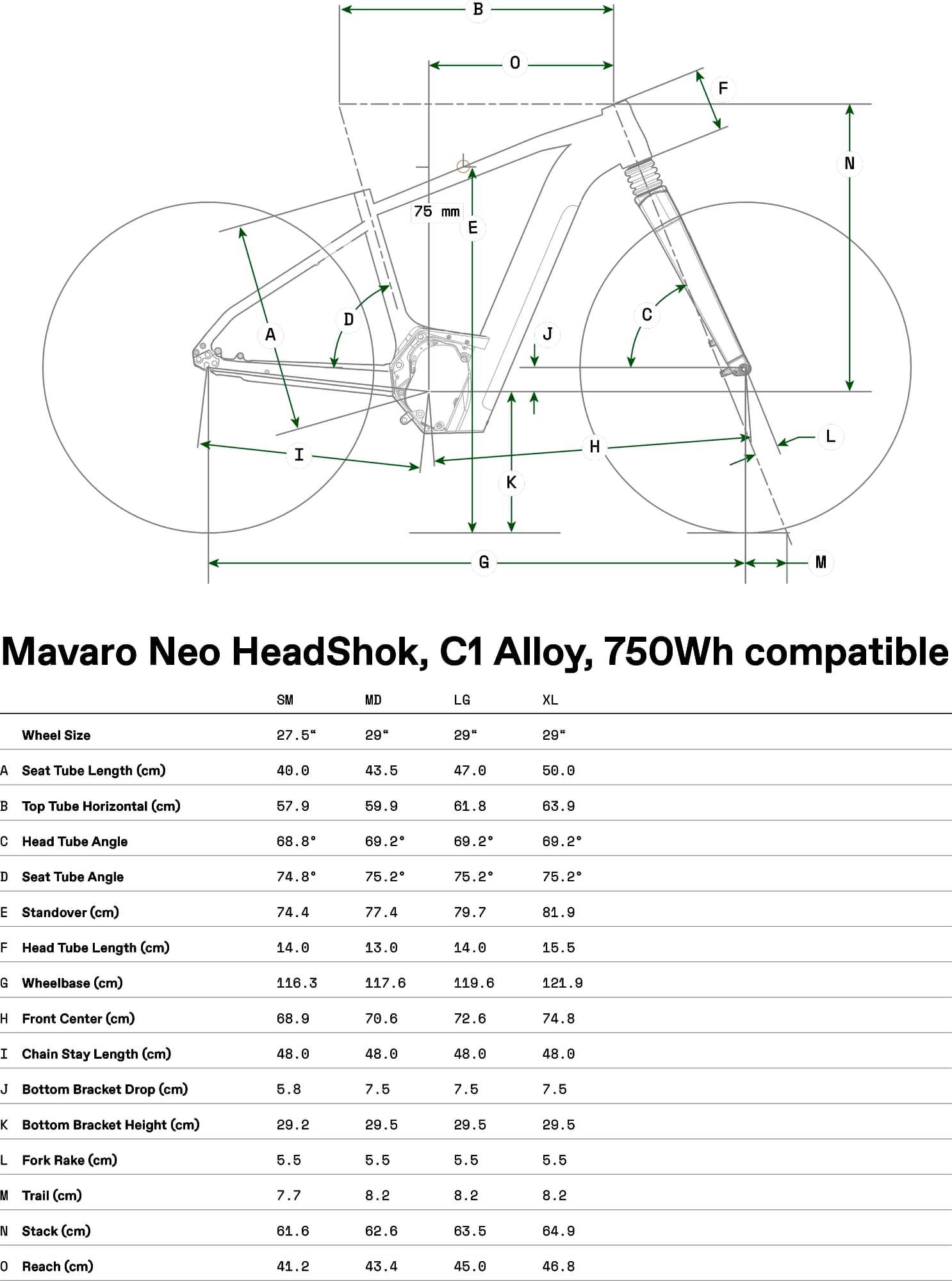

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 149 cm | 165 cm | 180 cm | 185 cm |
| Rider Max Height | 170 cm | 185 cm | 200 cm | 200 cm |
