Cannondale Mavaro 2 2025
2025 E-bike
Estimate price |
5,816$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 600Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Tektro Gemini Hydraulic Disc
Sizing
Recommended size guide.
LG
175cm - 190cm
MD
170cm - 185cm
XL
180cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

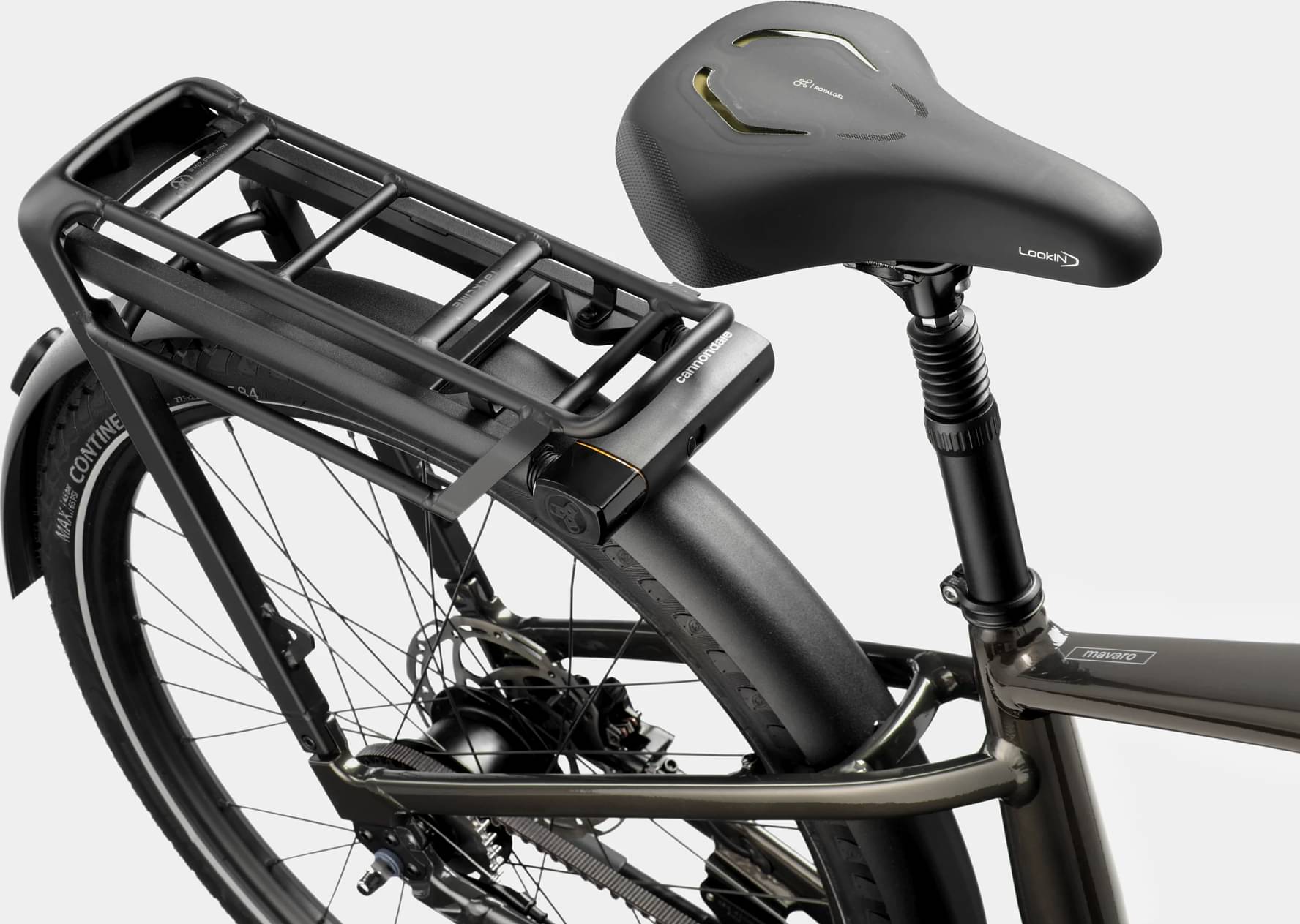

Mavaro, SmartForm C1 Alloy, removable 600Wh downtube battery, tapered headtube, internal cable routing, 135mm QR hub spacing, post mount disc brake, motor protection, integrated RackLock rack and fender - RackTime SnapIt 2.0 and child seat compatible
Suspension Fork
Cannondale HeadShok, 50mm travel, Quad Cage needle bearing internals, coil spring, twin chamber semi open-bath oil damping, post mount disc, 110x15mm thru-axle
Drivetrain
Shift Levers
Shimano Nexus Revoshift, 5-speed twist shifter
Cassette
Gates CDX, 34T
Crank
Gates Bosch E-bike, w/ 46T sprocket
Bottom Bracket
Bosch, press-fit
Chain
Gates CDX high performance carbon drive belt
Pedals
Cannondale Fitness Alloy
Wheels
Front Hub
(F) Shimano TC500, 15x110mm thru-axle / (R) Shimano Nexus Inter-5E, 5-speed internal gear hub

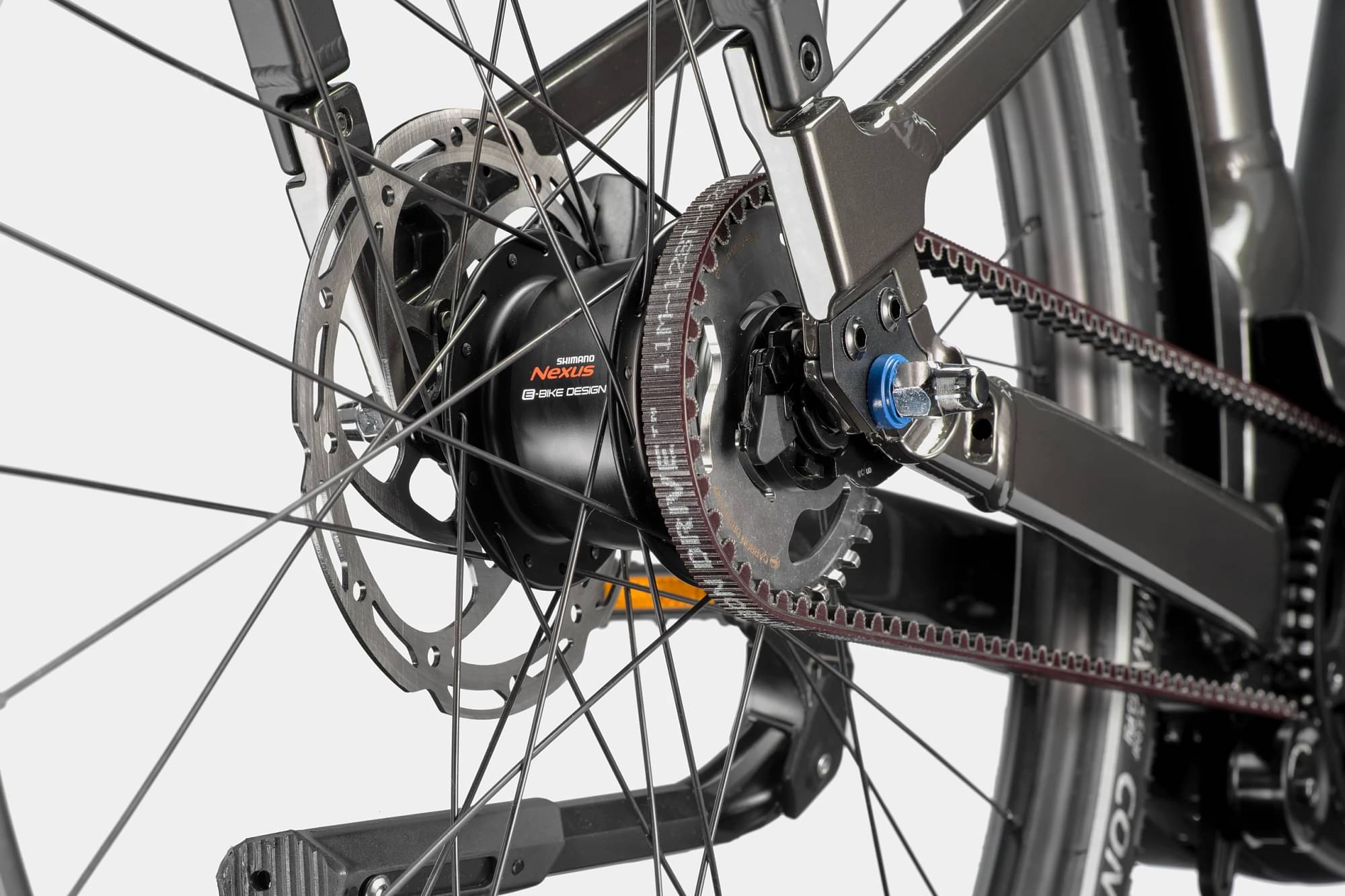

Rear Hub
(F) Shimano TC500, 15x110mm thru-axle / (R) Shimano Nexus Inter-5E, 5-speed internal gear hub
Rims
Alloy, double wall, 32 hole, 25mm internal width, disc-specific
Spokes
Stainless Steel, 14g
Tires
Continental eContact Plus w/ reflective sidewalls 27.5x2.20" 55-584 (MD), 29x2.20" 55-622 (LG, XL)
Brakes
Brakes
Tektro HD-M530 Gemini, 4-piston hydraulic disc, 203mm TR rotor (Front), 2-piston hydraulic disc, 180mm TR rotor (Rear)
Brake Levers
Tektro HD-M530 Gemini hydraulic disc
Cockpit
Stem
Cannondale Urban w/ Intellimount, Alloy, 31.8mm clamp, 60mm, +30°, Acros ICR, w/ SP Connect SPC+ Stem Mount & Kiox mount

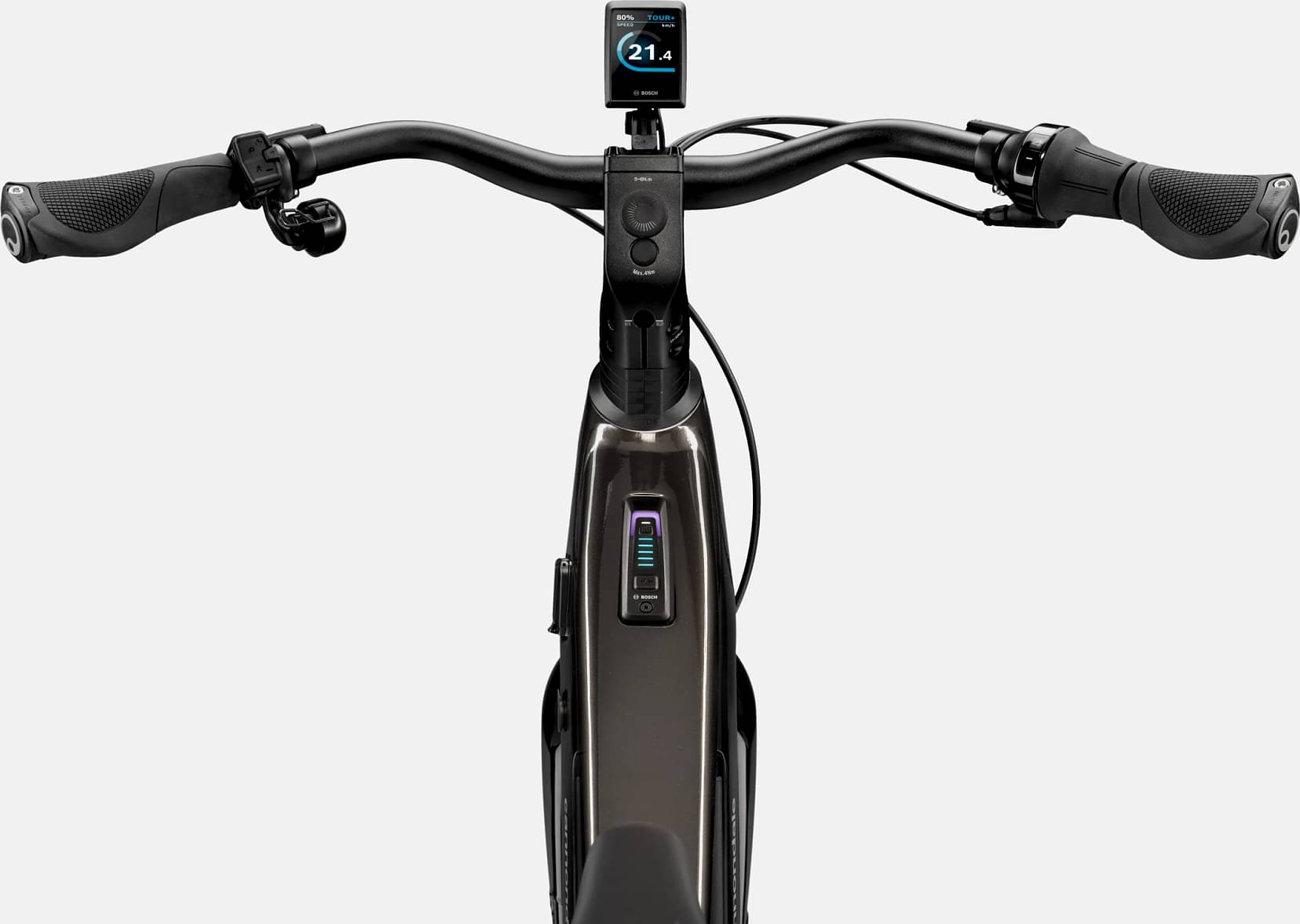

Handlebar
Cannondale Urban Ergo Bar, 6061 Alloy, 25mm rise, 35° sweep, 0° rise, 680mm
Grips
Ergon GC10
Headset
Acros integrated cable routing, 1.8" sealed bearings with tapered reducers
Seat
Saddle
Selle Royal Essenza
Seatpost
Linear Suspension Seatpost, 31.6, 350mm
Motor & Battery

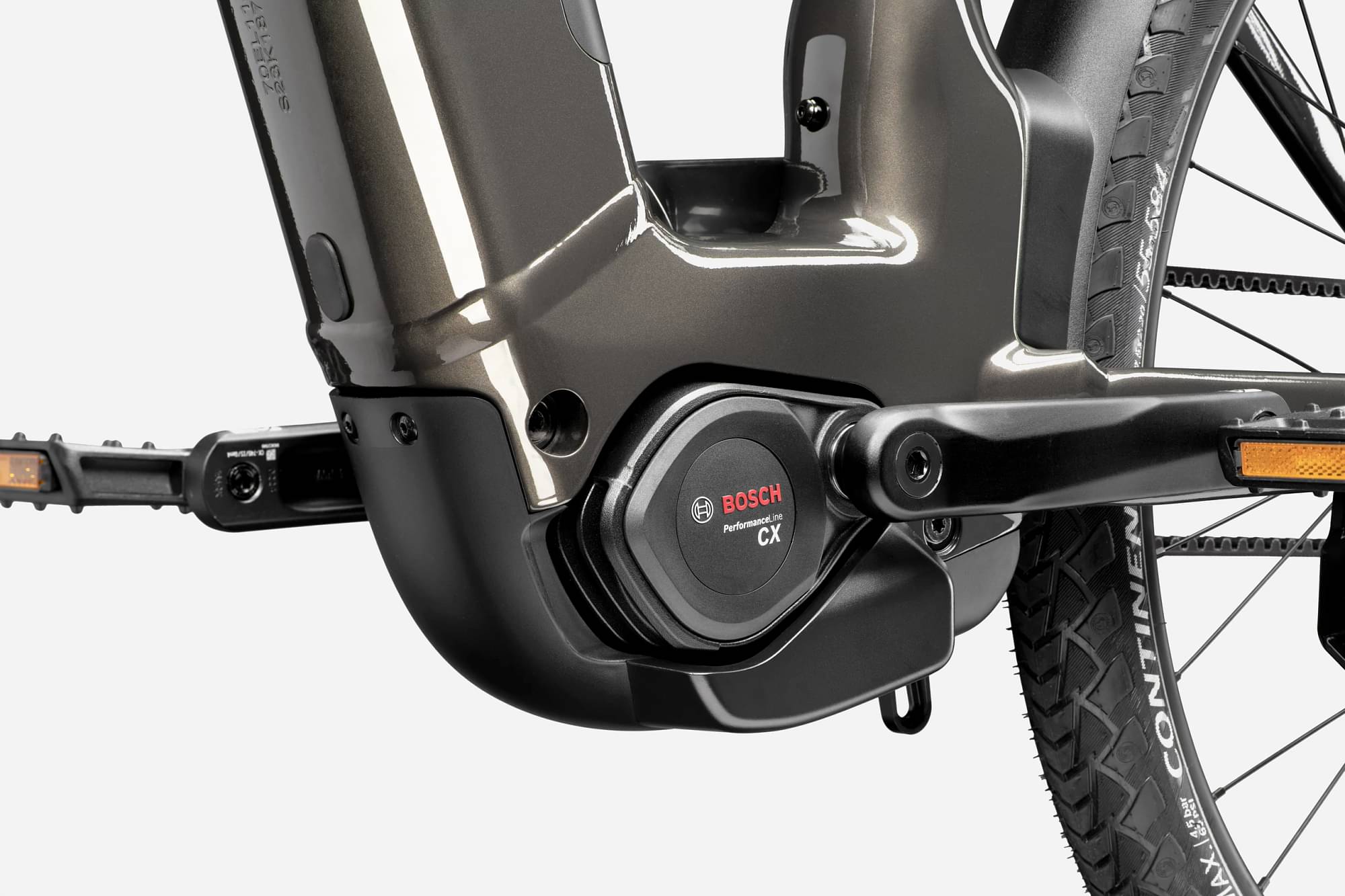

Motor
Bosch Performance Line CX 250W MY25
Battery
Bosch PowerTube, 600Wh
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | LG | MD | XL |
|---|---|---|---|
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 175 cm | 170 cm | 180 cm |
| Rider Max Height | 190 cm | 185 cm | 200 cm |
