Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 600W 63Nm mid-drive -
Battery Bosch PowerTube, 625Wh -

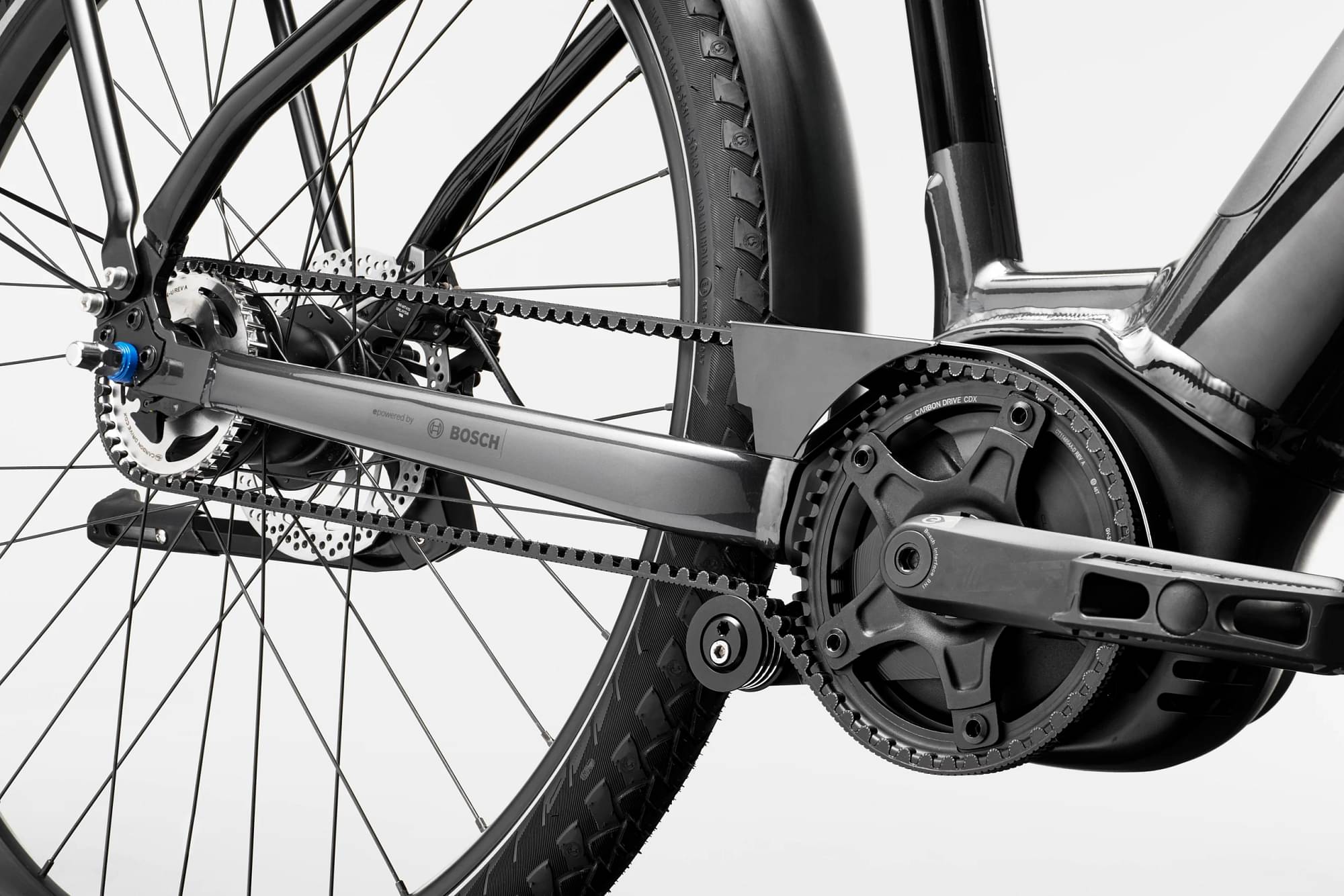

Drivetrain Belt Drive, Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
149cm - 170cm
MD
165cm - 185cm
LG
180cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy, low step-thru, removable 625Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection

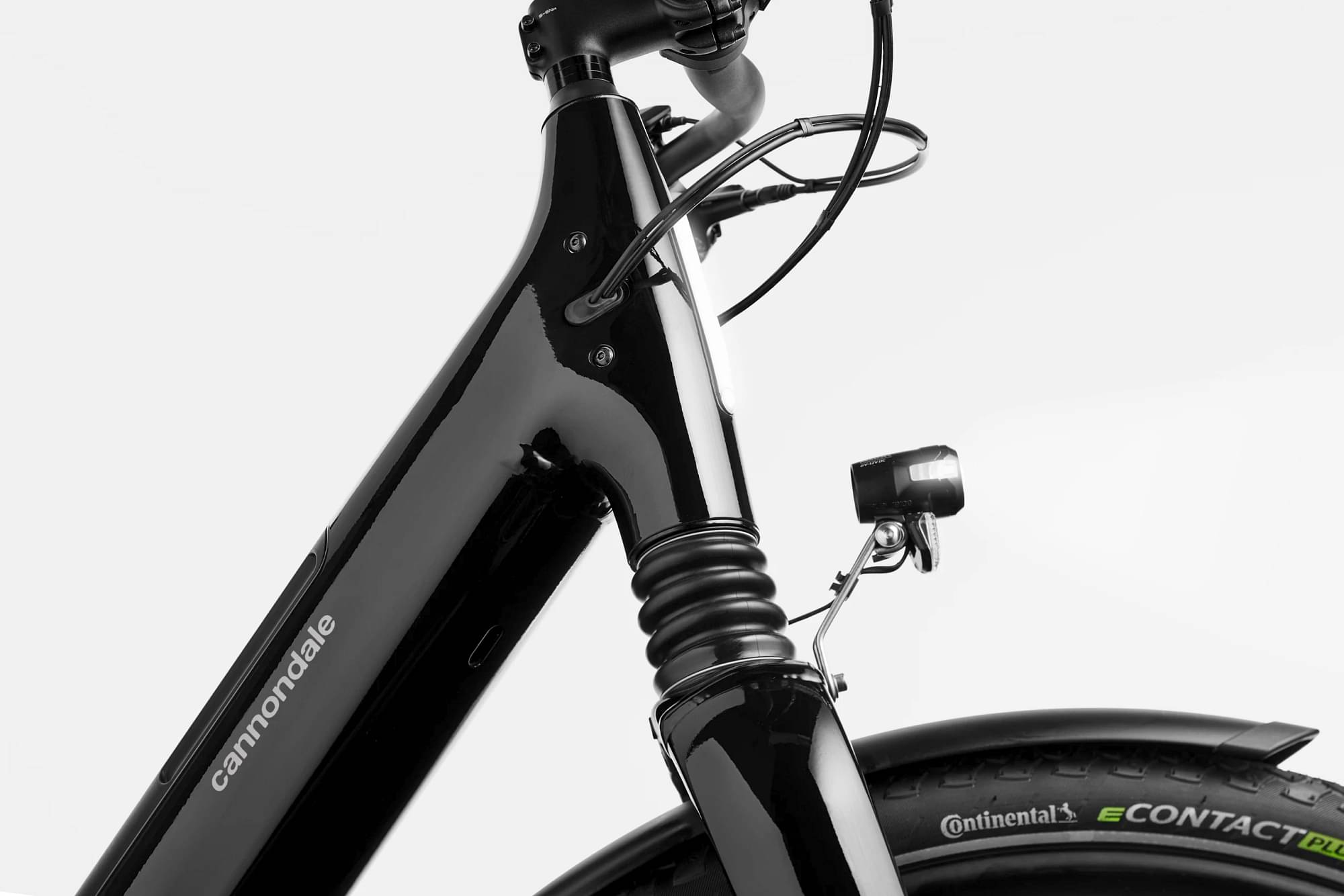

Suspension Fork
Cannondale HeadShok, 50mm travel, Quad Cage needle bearing internals, coil spring, twin chamber semi open-bath oil damping, post mount disc, 110x15mm thru-axle
Drivetrain
Shift Levers
Shimano Nexus Revoshift, 5-speed twist shifter
Cassette
Gates CDX 34T
Crank
FSA for Bosch
Bottom Bracket
Bosch, press-fit
Chain
Gates Carbon Belt
Pedals
Cannondale Fitness
Wheels
Front Hub
(F) Shimano MT400B, 110x15mm thru-axle / (R) Shimano Nexus i5e, 5-speed internal gear hub
Rear Hub
(F) Shimano MT400B, 110x15mm thru-axle / (R) Shimano Nexus i5e, 5-speed internal gear hub
Rims
Alloy, double wall, 32 hole, 25mm internal width, disc-specific
Spokes
Stainless Steel, 14g
Tires
Continental eContact Plus w/ reflective sidewalls 27.5x2.20" 55-584 (SM), 29x2.20" 55-622 (MD-XL)
Brakes
Brakes
Shimano MT400 hydraulic disc, 180/180mm RT30 rotors
Brake Levers
Shimano MT400 hydraulic disc
Cockpit
Stem
Cannondale 3 with Intellimount, Alloy, 31.8mm clamp
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm
Grips
Cannondale Ergo Fitness Dual Density, Lock-on
Headset
Semi-Integrated, Tapered; 1-1/8"-1-1/2"
Seat
Saddle
Fizik Essenza Moderate
Seatpost
Cannondale 3, 6061 Alloy, 31.6
Motor & Battery
Motor
Bosch Performance Line, Smart System, 25km/h
Battery
Bosch PowerTube, 625Wh
Charger
Bosch 4A
Fit data

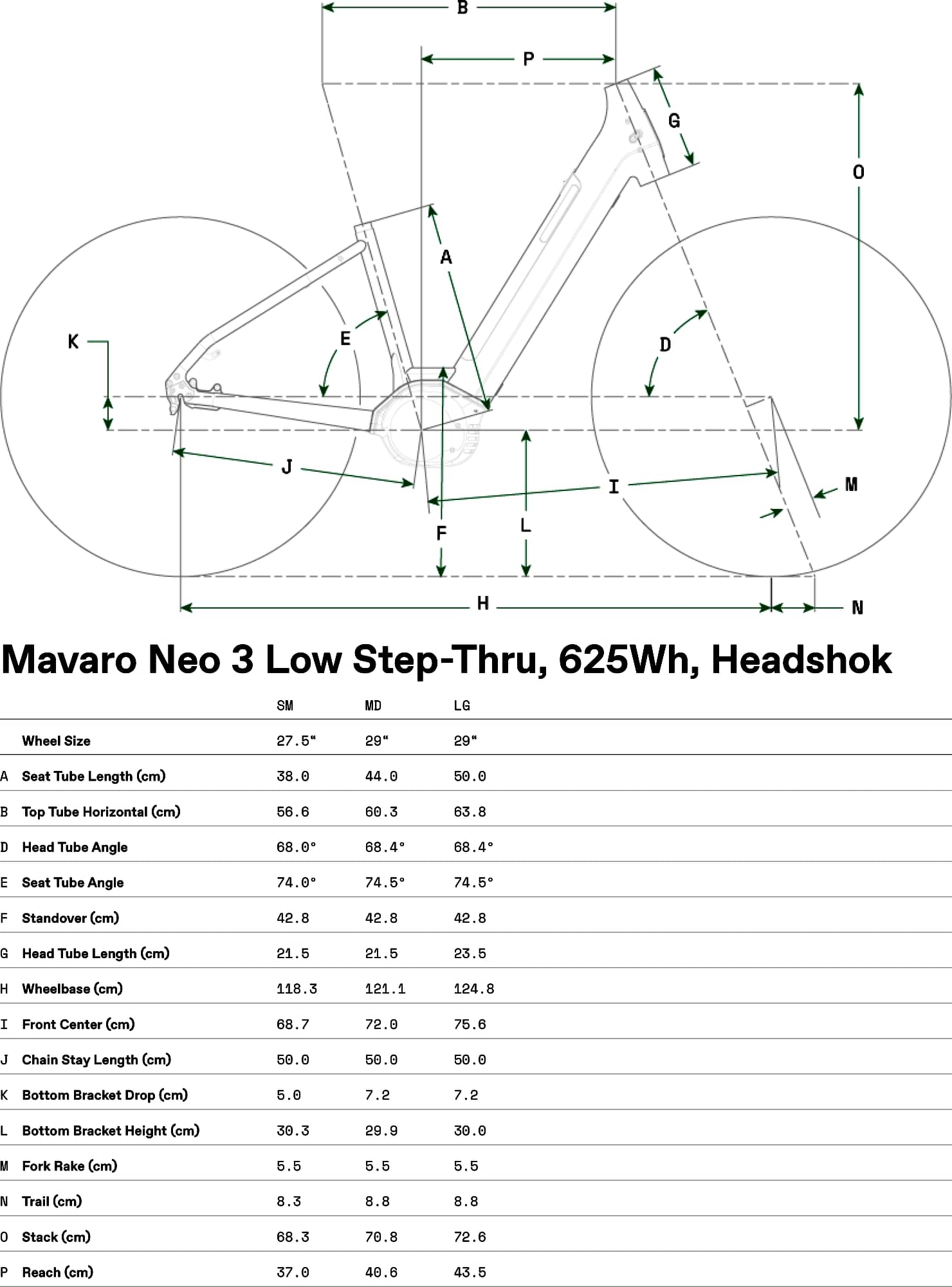

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 149 cm | 165 cm | 180 cm |
| Rider Max Height | 170 cm | 185 cm | 200 cm |
