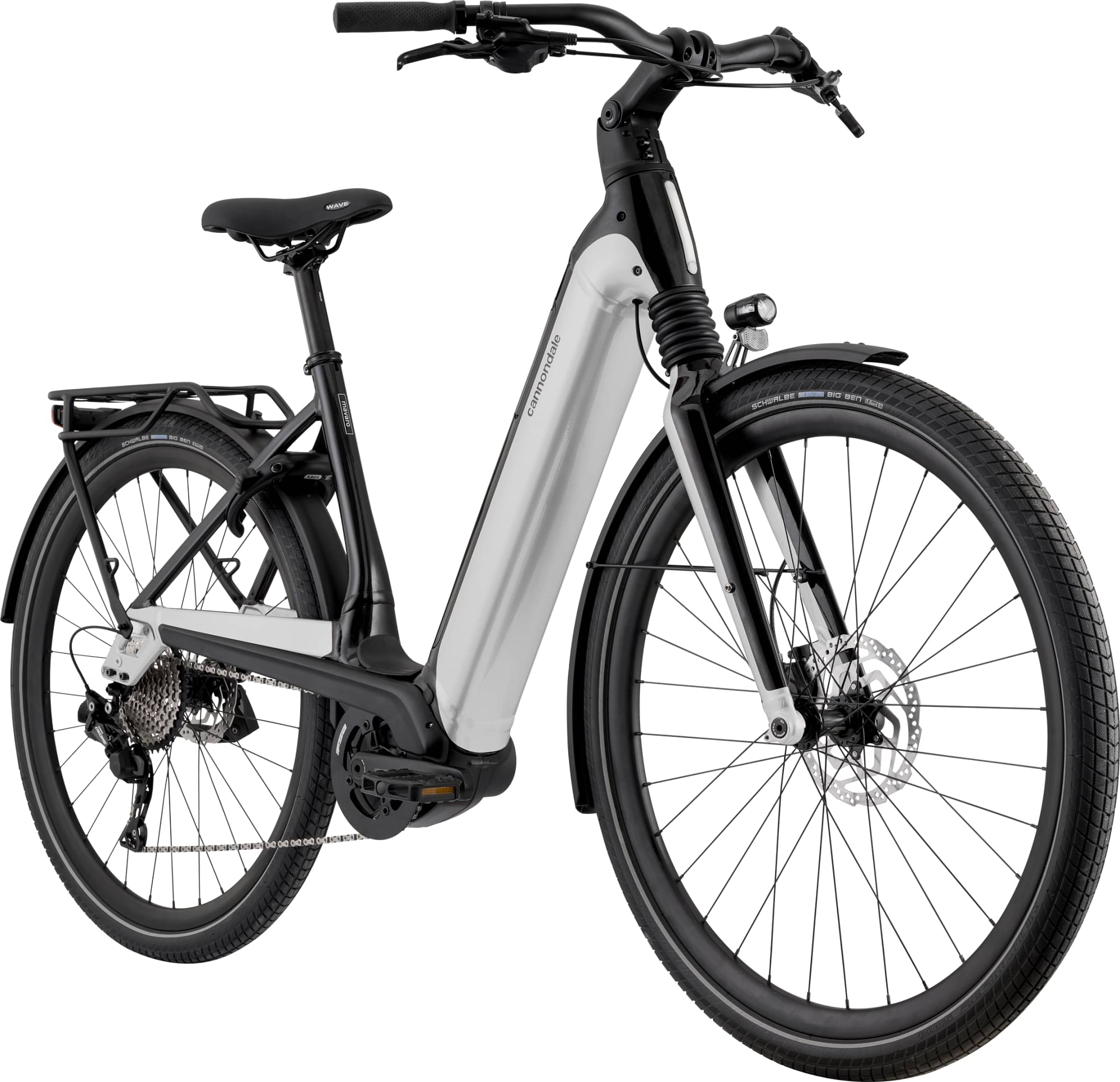

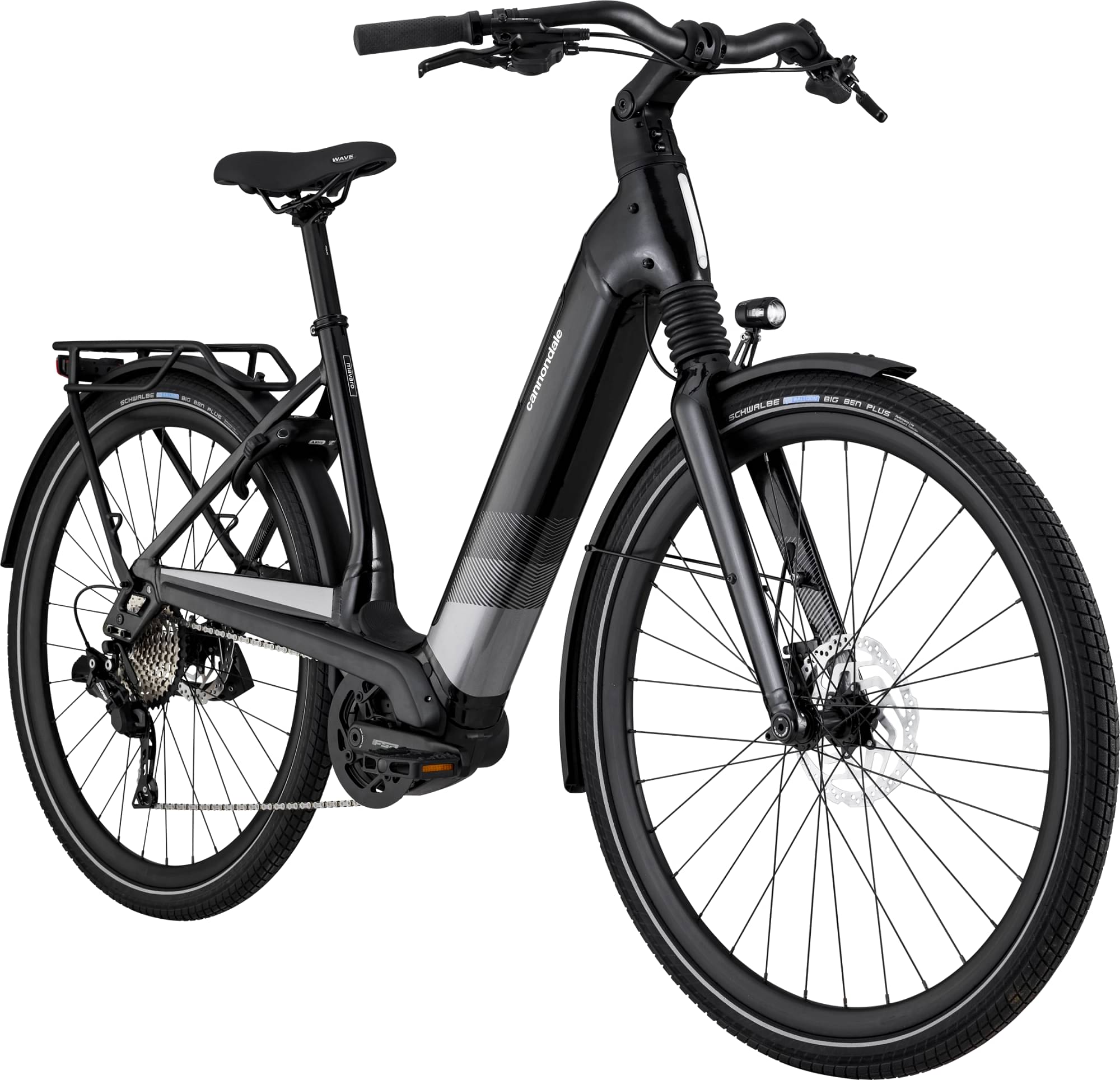

Cannondale Mavaro 5 2024
2024 E-bike
Estimate price |
4,187$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerTube, 500Wh -
Drivetrain 1 × 10 -
Brakes TRP Hydraulic Disc
Sizing
Recommended size guide.
SM
149cm - 170cm
MD
165cm - 185cm
LG
180cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mavaro Si SmartForm C1 Alloy step-thru frame, removable downtube battery, fully internal cable routing, 135x9mm sliding dropout, post mount disc, headtube waterbottle mounts, integrated daytime running light, HDT child seat/cargo mount compatible
Suspension Fork
HeadShok DL50, 50mm, Isolated Damper Technology, OPI, 15x100 thru-axle
Drivetrain

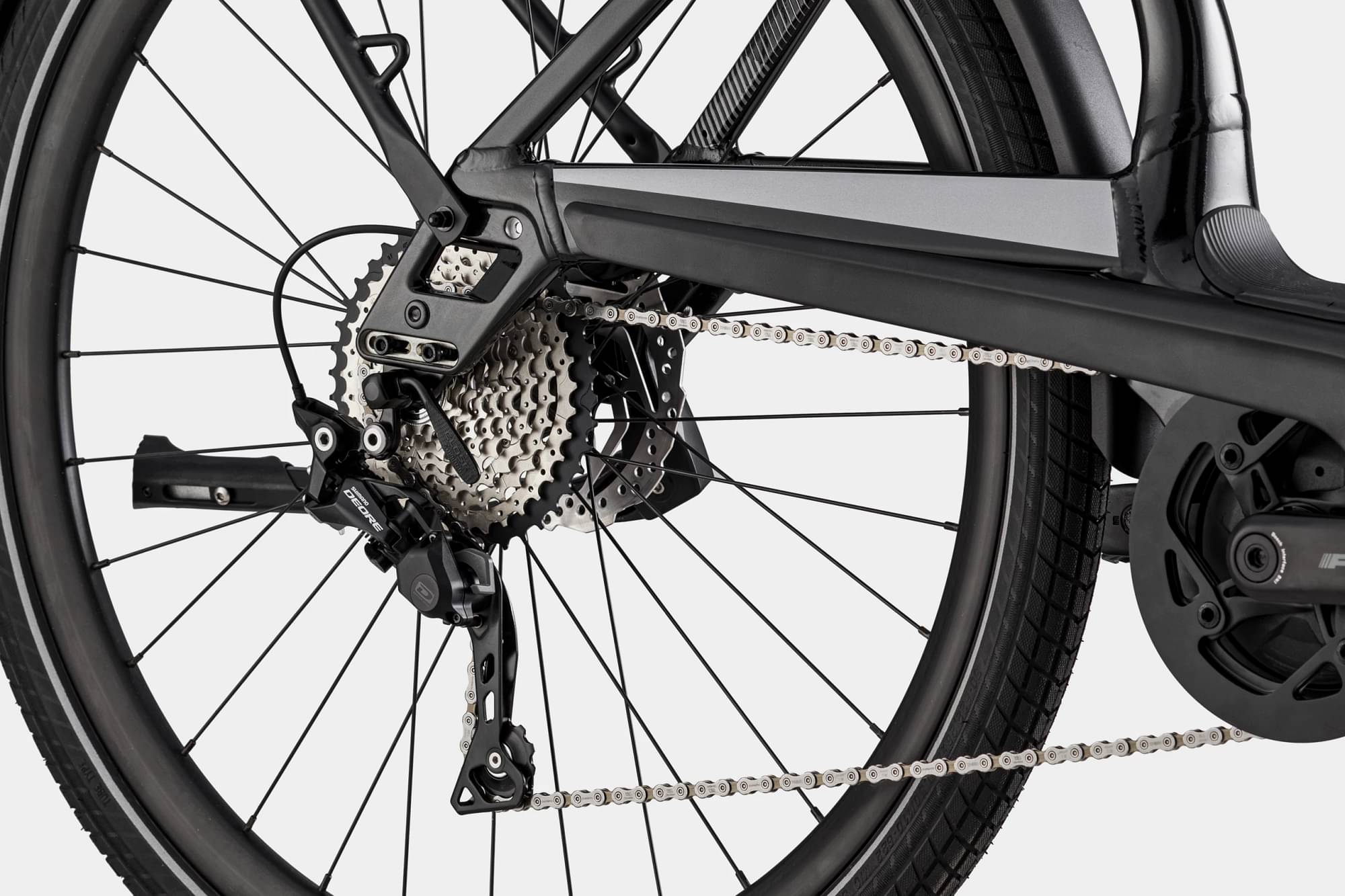

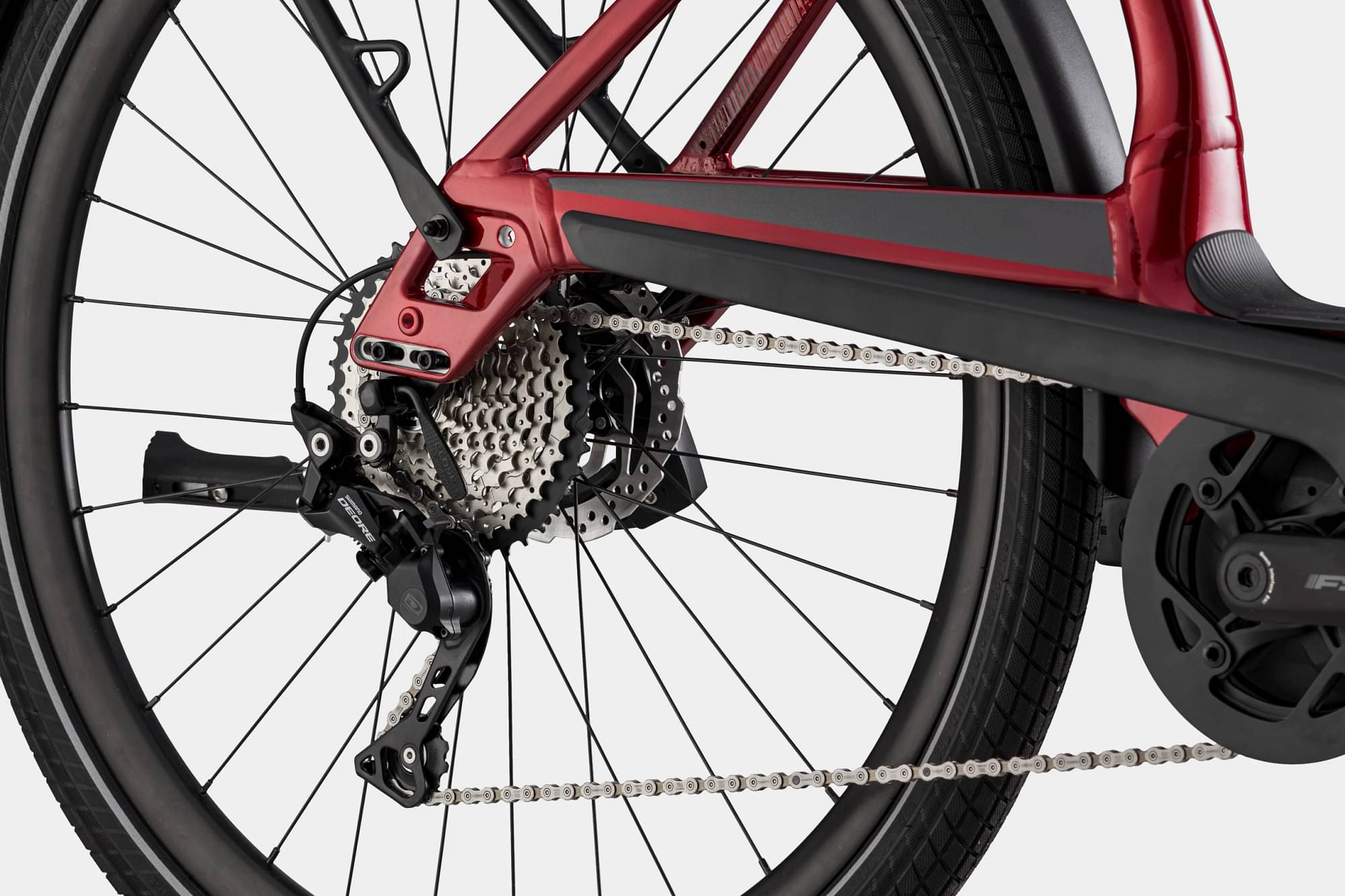

Rear Derailleur
Shimano Deore M6000
Shift Levers
Shimano Deore M6000, 10-speed
Cassette
Shimano HG500, 11-42, 10-speed
Crank
FSA Bosch E-Bike, 38T
Bottom Bracket
Bosch, press-fit
Chain
Shimano Deore, 10-speed
Pedals
Cannondale Urban
Wheels
Front Hub
Shimano MT400, 15x100mm thru-axle
Rear Hub
Shimano FH-TX505
Rims
Cannondale 2, double wall
Spokes
DT Swiss Champion
Tires
Schwalbe Big Ben, 28x2.00" (50-622), K-Guard puncture protection, reflective sidewalls
Brakes
Brakes
TRP Slate G4 4 Piston hydraulic disc, 180/160mm rotors
Brake Levers
TRP hydraulic disc

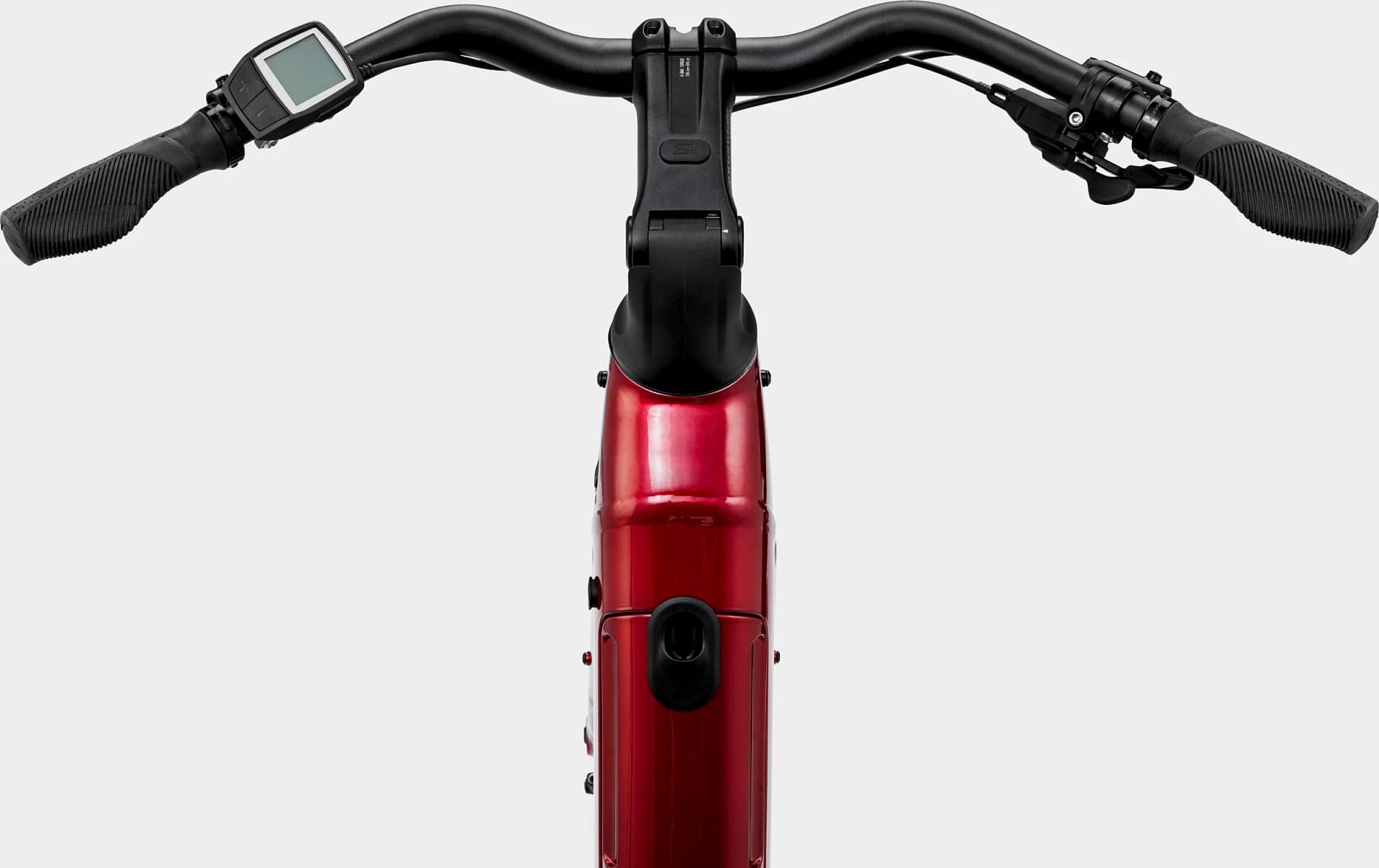

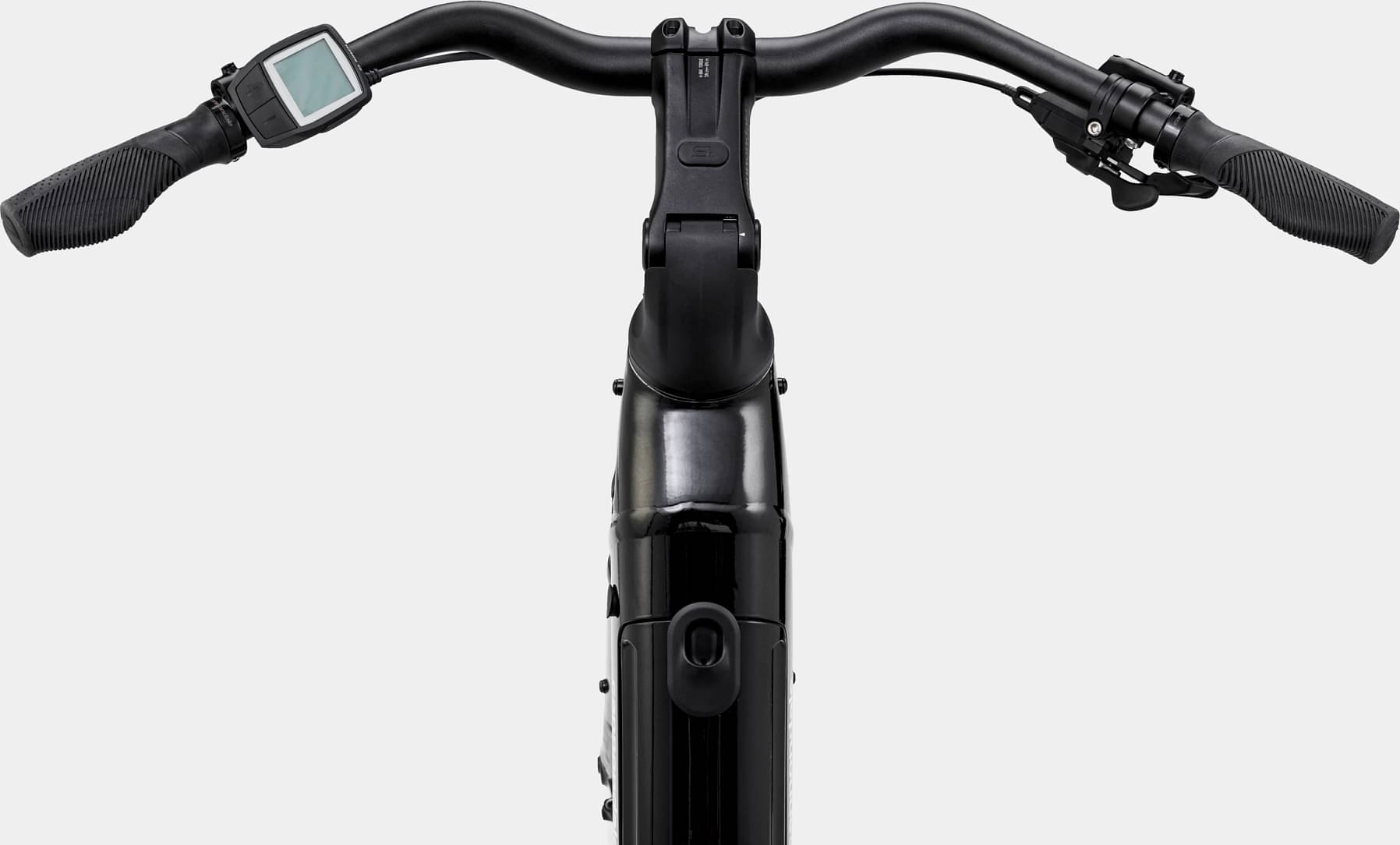

Cockpit
Stem
Cannondale 1 Adjustable Si Stem w/ Integrated Cable Routing and SP-connect Mount
Handlebar
Cannondale Low-Rise Urban, butted 6061 Alloy, 31.8mm, 25mm rise, 35° sweep, 680mm
Grips
Cannondale Ergo Performance, Lock-On
Headset
Cannondale HeadShok
Seat
Saddle
Selle Royal Wave
Seatpost
Cannondale 4, 6061 Alloy, 31.6, 300 (SM), 350mm (MD), 400mm (LG)
Motor & Battery
Motor

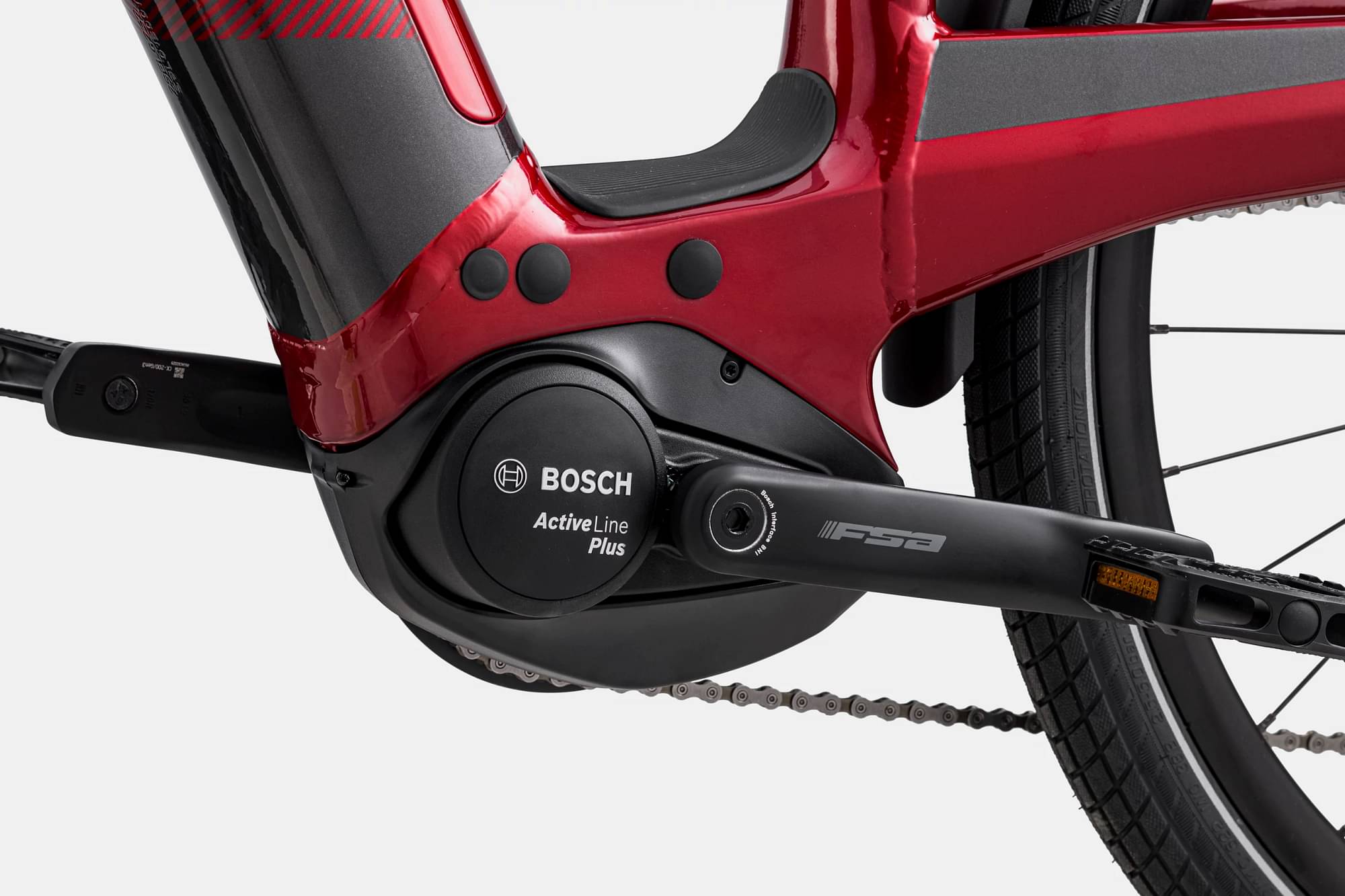

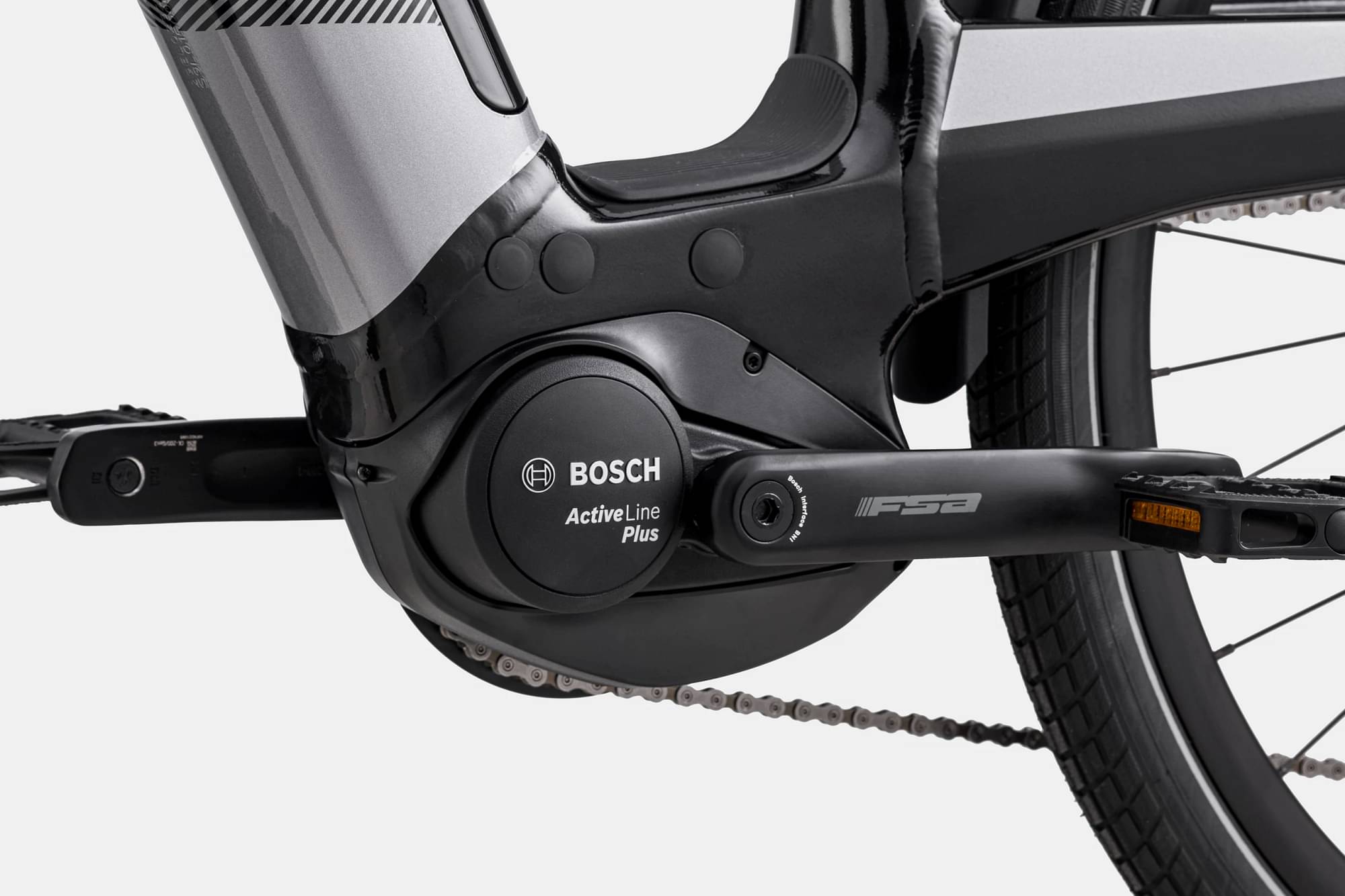

Bosch Active Line Plus 250W
Battery
Bosch PowerTube, 500Wh
Charger
Bosch 2A
Fit data

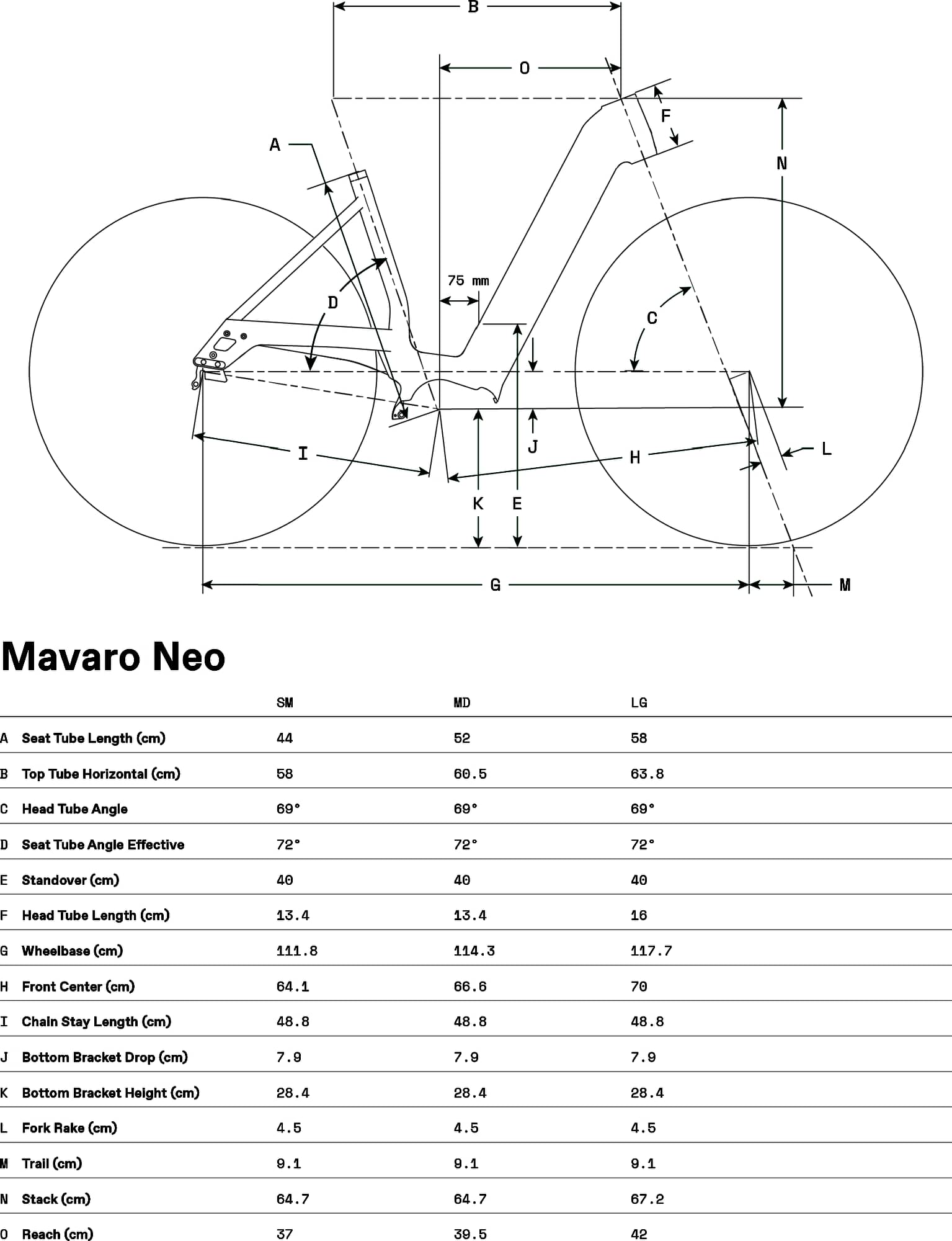

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 149 cm | 165 cm | 180 cm |
| Rider Max Height | 170 cm | 185 cm | 200 cm |
