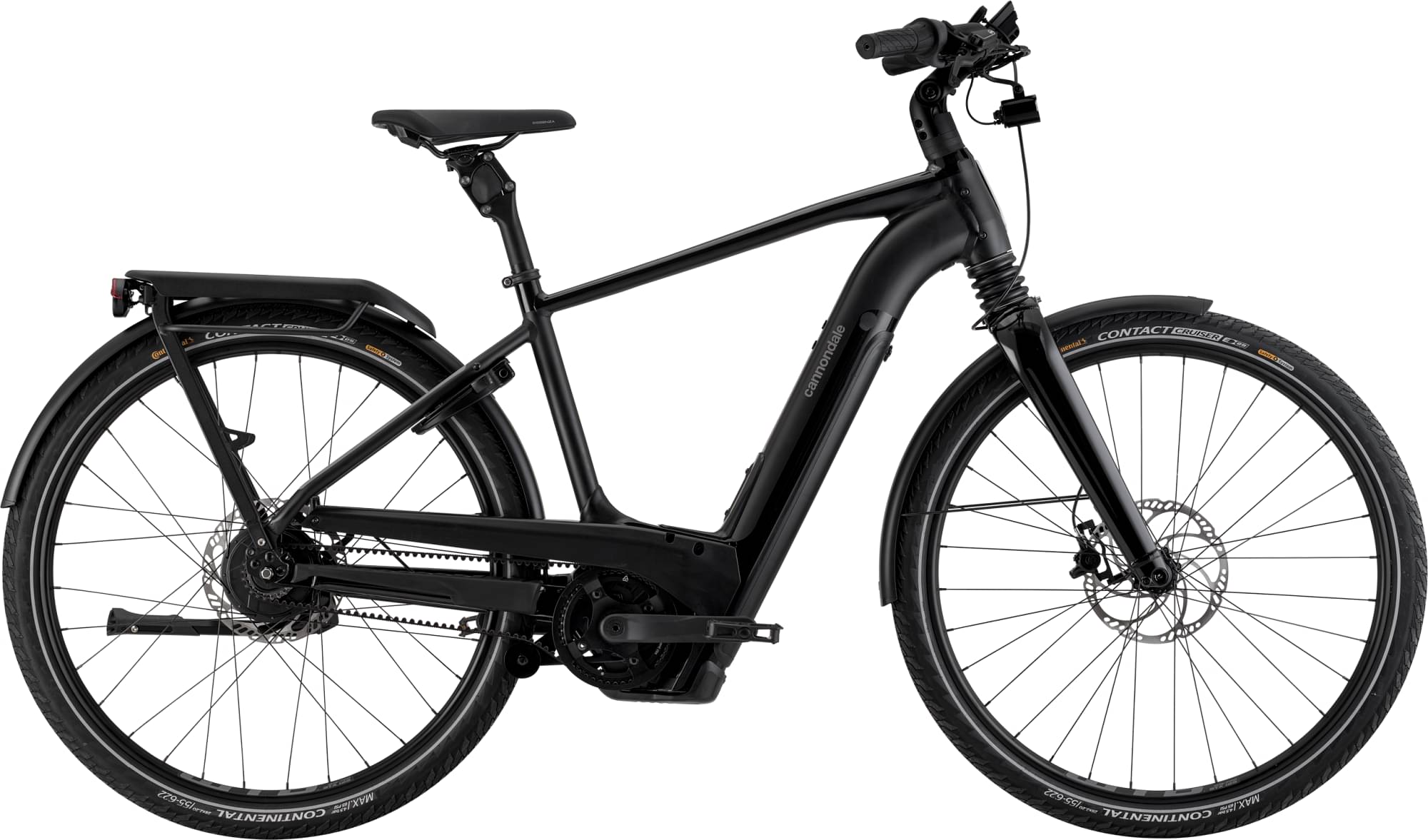

Cannondale Mavaro Neo 1 2024
2024 E-bike
Estimate price |
6,766$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Groupset Gates -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 750Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
149cm - 170cm
MD
165cm - 180cm
LG
175cm - 190cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C1 Alloy, removable 750Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection
Suspension Fork
Cannondale HeadShok, 50mm travel, Quad Cage needle bearing internals, coil spring, twin chamber semi open-bath oil damping, post mount disc, 110x15mm thru-axle
Drivetrain
Shift Levers
Enviolo Trekking stepless controller, twist style
Cassette
Gates CDX, 22T
Crank
Gates Bosch E-bike, w/ 46T sprocket
Bottom Bracket
Bosch, press-fit
Chain
Gates CDX high performance carbon drive belt
Pedals
Cannondale Fitness
Wheels
Front Hub
Shimano MT400, 15x110mm thru-axle
Rear Hub
Enviolo Trekking, continuously variable transmission, wide range internal hub
Rims
WTB STX i30 TCS, 32h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
Continental eContact Plus, 29x2.2" 55-622 (M,L,XL), 27.5x2.2" 55-584 (S)
Brakes
Brakes
Magura MT C 2-piston hydraulic disc, MDR-C rotors, 203mm/203mm
Brake Levers
Magura MT C hydraulic disc
Cockpit
Stem
Cannondale Urban Intellimount, adjustable, internal cable routing, SP-Connect compatible phone mount
Handlebar
Cannondale Urban Backsweep
Grips
Cannondale Ergo Fitness Dual Density, Lock-on
Headset
Integrated Sealed Bearing, Tapered, internal cable routing
Seat
Saddle
Selle Royal Essenza
Seatpost
Parallelogram Suspension Seatpost, 31.6, 300mm (SM), 350mm (MD), 400mm (LG, XL)
Motor & Battery
Motor
Bosch Performance Line CX 250W
Battery
Bosch PowerTube, 750Wh
Charger
Bosch 4A
Fit data

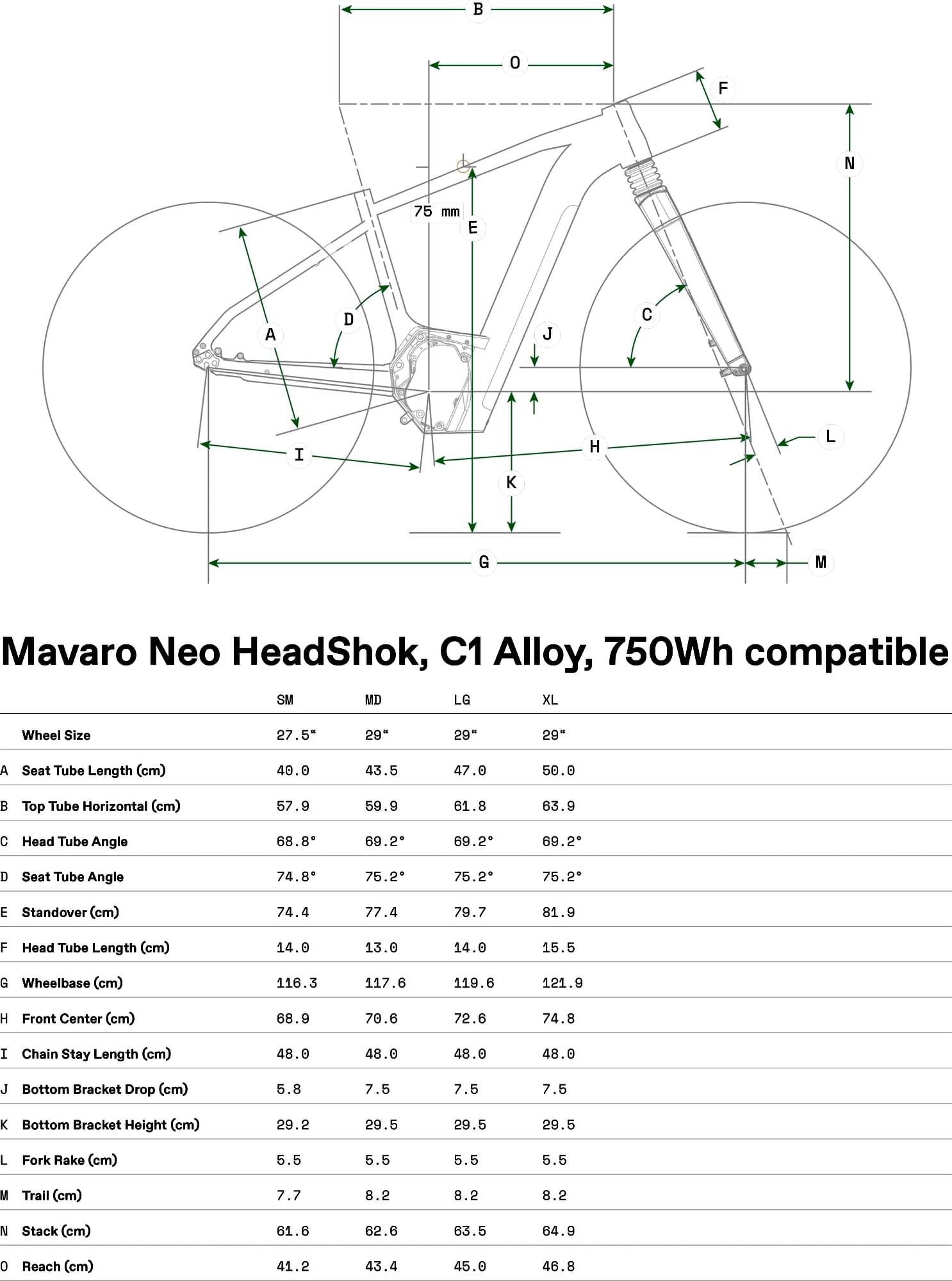

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 149 cm | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 170 cm | 180 cm | 190 cm | 200 cm |
