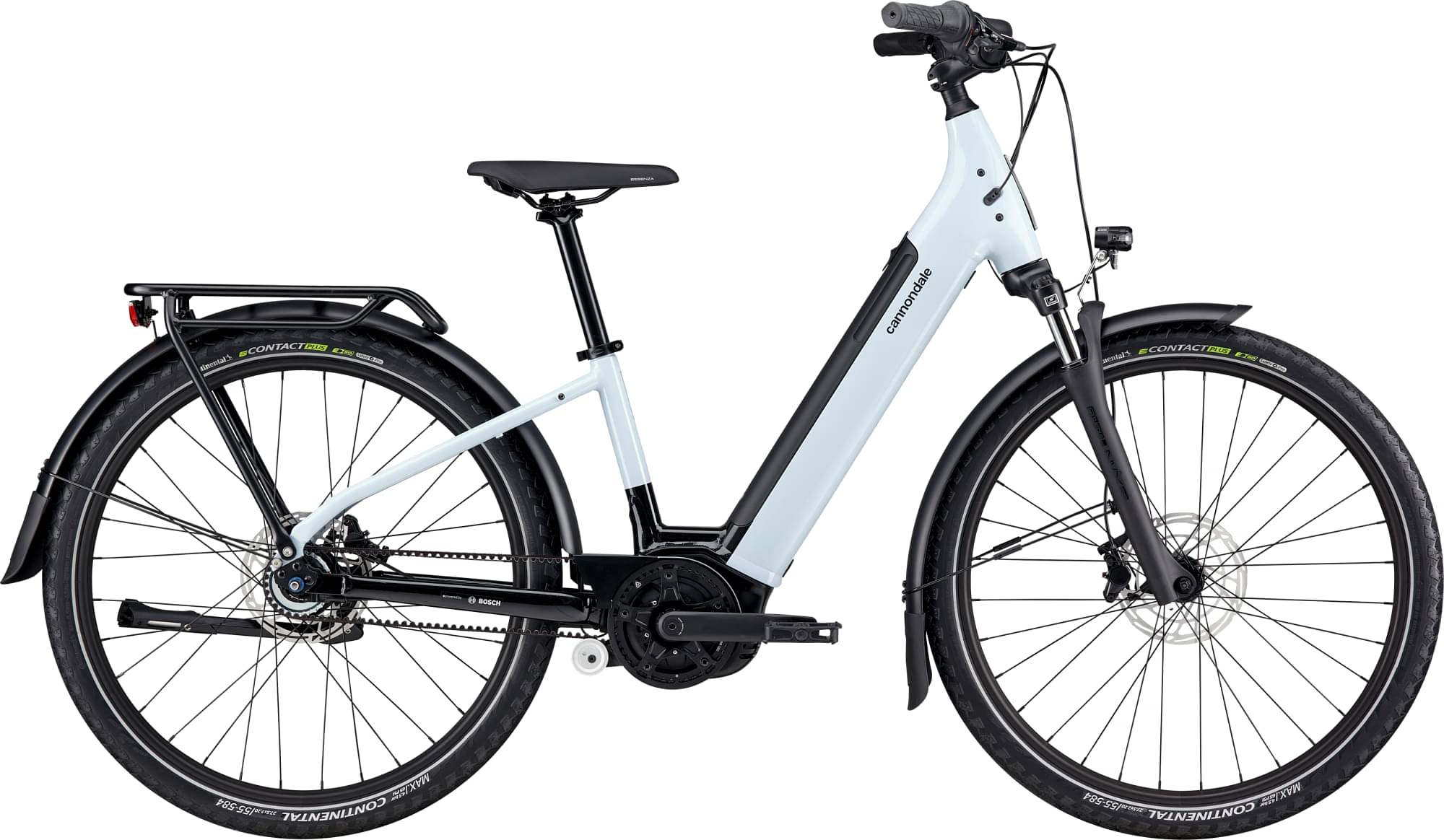

Cannondale Mavaro Neo 3 Low StepThru 2024
2024 E-bike
Estimate price |
5,234$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour MOBIE
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 600W 50Nm mid-drive -
Battery Bosch PowerTube, 500Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
149cm - 170cm
MD
165cm - 185cm
LG
180cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy, low step-thru, removable 500Wh downtube battery, integrated headtube reflector, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection
Suspension Fork
SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset
Drivetrain
Shift Levers
Shimano Nexus, 7-speed, twist style
Cassette
Gates CDC 26T
Crank
FSA for Bosch
Bottom Bracket
Bosch, press-fit
Chain
Gates CDX Carbon Belt
Pedals
Cannondale Fitness
Wheels
Front Hub
(F) Shimano MT400B, 110x15mm thru-axle / (R) Shimano Nexus 7, 7-speed internal gear hub
Rear Hub
(F) Shimano MT400B, 110x15mm thru-axle / (R) Shimano Nexus 7, 7-speed internal gear hub
Rims
Alloy, double wall, 32 hole, 25mm internal width, disc-specific
Spokes
Stainless Steel, 14g
Tires
Continental eContact Plus w/ reflective sidewalls 27.5x2.20" 55-584 (SM), 29x2.20" 55-622 (MD-XL)
Brakes
Brakes
Riderever Attack-U-OE, 2-piston hydraulic disc, 180/180 rotors
Brake Levers
Riderever Attack-U-OE, hydraulic disc
Cockpit
Stem
Cannondale 3, Alloy, 31.8mm clamp
Handlebar
Cannondale E-Series Alloy, ergo backsweep, 680mm
Grips
Cannondale Ergo Fitness Dual Density, Lock-on
Headset
Semi-Integrated, Tapered; 1-1/8"-1-1/2"
Seat
Saddle
Fizik Essenza Moderate M
Seatpost
Cannondale 3, 6061 Alloy, 31.6
Motor & Battery
Motor
Bosch Active Line Plus, Smart System, 20mph
Battery
Bosch PowerTube, 500Wh
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 149 cm | 165 cm | 180 cm |
| Rider Max Height | 170 cm | 185 cm | 200 cm |
