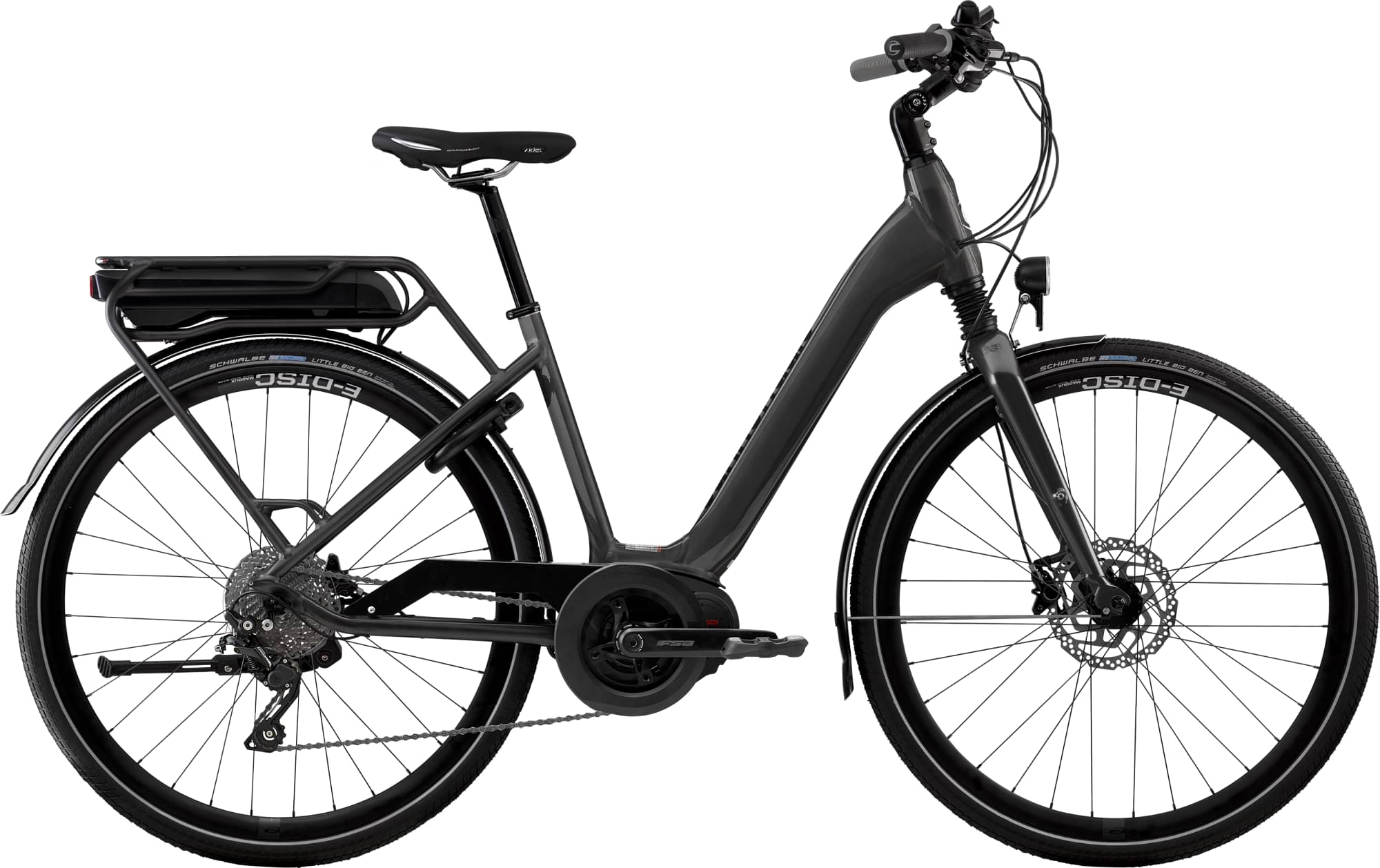

Cannondale Mavaro Neo Performance City 2024
2024 E-bike
Estimate price |
4,243$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerPack, 500Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mavaro Si City Step-thru, SmartForm C2 Alloy, Integrated Rack
Suspension Fork
HeadShok Fatty DL50 XL, 50mm, Isolated Damper Technology, OPI
Drivetrain
Rear Derailleur
Shimano Deore M6000
Shift Levers
Shimano Deore M6000, 10-speed
Cassette
Shimano HG50, 11-36, 10-speed
Crank
FSA Bosch E-bike, 170mm, 38T
Bottom Bracket
Bosch, press-fit
Chain
Shimano HG54-10, 10-speed
Pedals
Cannondale Urban Pedal
Wheels
Front Hub
Shimano HB-TX505, 100x9mm QR front
Rear Hub
Shimano HB-TX505, 135x9mm QR
Rims
Cannondale C2, double wall
Spokes
DT Swiss Champion
Tires
Schwalbe Little Big Ben, 28x1.5”, K-Guard puncture protection, reflective sidewalls
Brakes
Brakes
Shimano M200 hydraulic disc, 180/160mm RT10 rotors
Brake Levers
Shimano M200 hydraulic disc
Cockpit
Stem
Cannondale Adjustable HeadShok
Handlebar
Cannondale E-Series Alloy, ergo backsweep, 680mm
Grips
Cannondale Ergo
Headset
Cannondale HeadShok
Seat
Saddle
Selle Royal Ariel
Seatpost
Cannondale C3, 6061 Alloy, 27.2x300mm
Motor & Battery
Motor
Bosch Performance Cruise 250W
Battery
Bosch PowerPack, 500Wh
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 53cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.672 mm | 1.601 mm | 1.589 mm | 1.589 mm |
| Bottom Bracket Height | 286 mm | 286 mm | 286 mm | 286 mm |
| Front Center | 642 mm | 644 mm | 651 mm | 665 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 79 mm | 80 mm | 75 mm | 61 mm |
| Stack | 637 mm | 637 mm | 637 mm | 637 mm |
| Reach | 381 mm | 398 mm | 401 mm | 401 mm |
| Top Tube Length | 570 mm | 570 mm | 578 mm | 590 mm |
| Seat Tube Angle | 73.5 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 440 mm | 470 mm | 530 mm | 580 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 160 mm | 160 mm | 160 mm | 160 mm |
| Chainstay Length | 473 mm | 473 mm | 473 mm | 473 mm |
| Wheelbase | 1109 mm | 1107 mm | 1115 mm | 1129 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm |
| Wheels | 700 | 700 | 700 | 700 |
