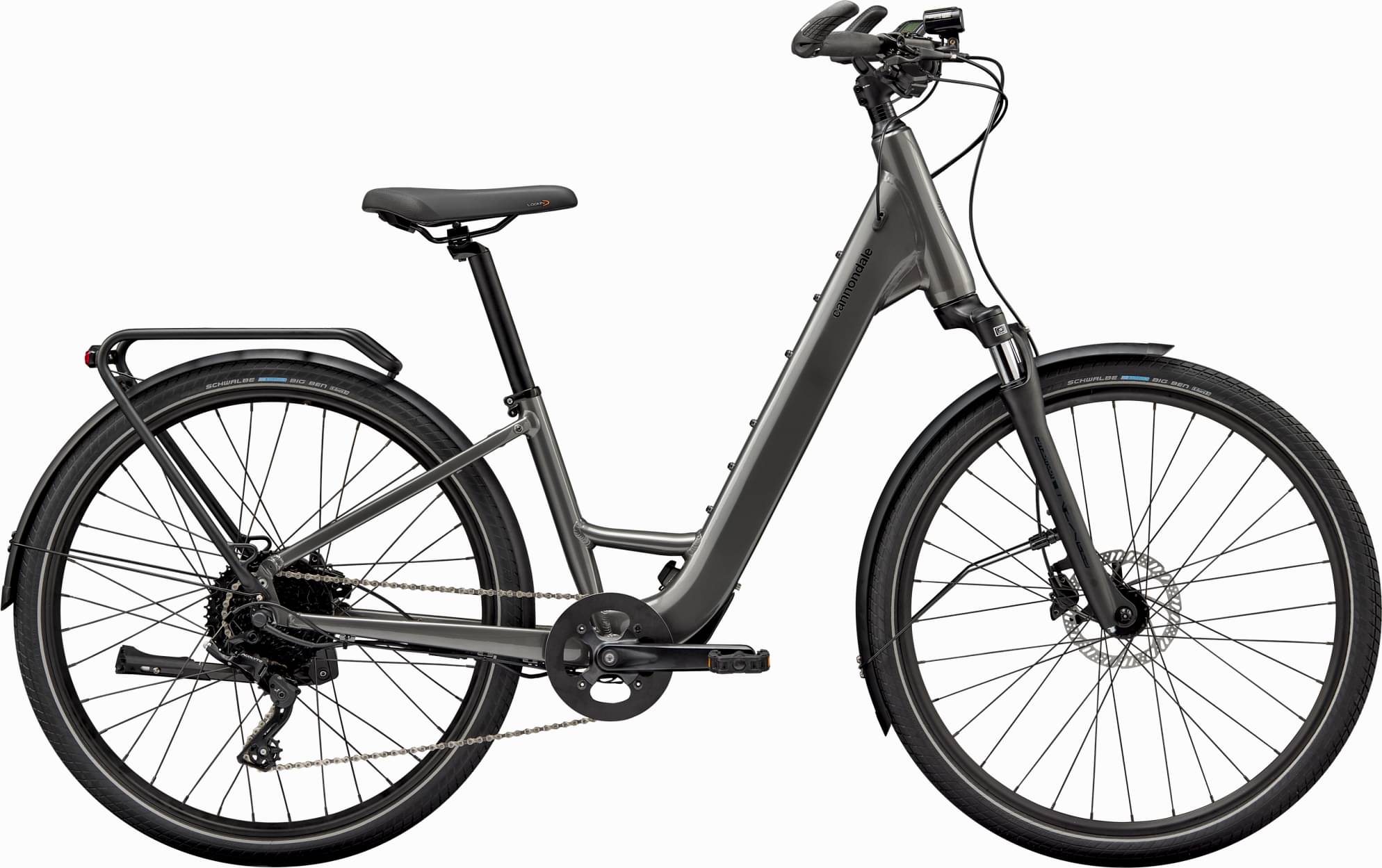

Cannondale Mavaro SL 1 Low StepThru 2024
2024 E-bike
Estimate price |
2,907$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour NEX
-
Groupset microSHIFT Acolyte -
Suspension Hardtail -
Motor Bafang 350W hub-drive -
Battery Darfon, 360Wh -
Drivetrain 1 × 8 -
Brakes Tektro HD Hydraulic Disc
Sizing
Recommended size guide.
SM
149cm - 165cm
LG
175cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C3 Alloy, low step-thru, integrated downtube battery, internal cable routing, tapered headtube, 18mm two-bolt kickstand mount
Suspension Fork
SR Suntour NEX custom crown, DS, 50 mm travel
Drivetrain
Rear Derailleur
microSHIFT Acolyte
Shift Levers
microSHIFT Acolyte, trigger style, 8-speed
Cassette
microSHIFT, 12-42, 8-speed
Crank
Samox, 38T
Bottom Bracket
Darfon Cadence Sensor 73-122MM
Chain
KMC X8, 8-speed
Pedals
Cannondale Urban
Wheels
Front Hub
(F) Formula / (R) Bafang G020 350W hub motor
Rear Hub
(F) Formula / (R) Bafang G020 350W hub motor
Rims
Alloy, double wall, 36 hole, disc specific
Spokes
DT Swiss Champion, 13g
Tires
Schwalbe Big Ben, 27.5x2.0"
Brakes
Brakes
Tektro HD-275 hydraulic disc, 160/160mm rotors
Brake Levers
Tektro hydraulic disc
Cockpit
Stem
Cannondale Intellimount, 31.8
Handlebar
Cannondale Riser, 6061 Alloy, 8° sweep, 4° rise, 680mm
Grips
Ergon GP3
Headset
Integrated, 1-1/8 to 1.5"
Seat
Saddle
Selle Royal Lookin Comfort
Seatpost
Cannondale 3, 6061 Alloy, 31.6x350mm
Motor & Battery
Motor
Bafang G020 Hub, 350W
Battery
Darfon, 360Wh
Charger
Darfon, 36V 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG |
|---|---|---|
| Wheels | 650 | 650 |
| Rider Min Height | 149 cm | 175 cm |
| Rider Max Height | 165 cm | 190 cm |
