Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox 35 Gold RL
-
Groupset SX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 500Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 165cm
MD
162cm - 175cm
LG
172cm - 185cm
XL
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
160mm travel, BallisTec Carbon Front Triangle, SmartForm C1 Alloy Swingarm, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, Ai offset drivetrain, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube
Suspension Fork
RockShox 35 Gold RL, 160mm, DebonAir, 15x110, tapered steerer, 51mm offset
Rear Shock
RockShox Deluxe Select R, DebonAir
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle, 12-speed
Cassette
SRAM PG-1210, SX Eagle, 11-50, 12-speed
Crank
FSA Bosch E-bike w/ custom Ai offset, 160mm, 34T
Bottom Bracket
Cannondale AI, 83mm, press-fit
Chain
SRAM SX Eagle, 12-speed
Pedals
Not Included
Wheels
Front Hub
Formula, 15x110mm
Rear Hub
Formula 12x148mm
Rims
WTB ST i29 TCS, 32h, tubeless ready
Spokes
DT Swiss Champion
Tires
(F) Maxxis Minion DHF, 27.5/29x2.6", 3C compound, EXO+, tubeless ready / (R) Maxxis Minion DHII, 27.5/29x2.6", 3C compound, EXO+, tubeless ready
Brakes
Brakes
SRAM Guide RE hydraulic disc, 4-piston, 220/200mm Centerline rotors
Brake Levers
SRAM Guide RE hydraulic disc
Cockpit
Stem
Cannondale 3, 3D Forged 6061 alloy, 1-1/8", 31.8, 0°
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Grips
Cannondale Locking Grips
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Fabric Scoop Shallow Sport, steel rails
Seatpost
TranzX dropper, internal routing, 31.6, 80mm (XS), 100mm (S), 120mm (M), 130mm (L-XL)
Motor & Battery
Motor
Bosch Performance Line CX 250W
Battery
Bosch PowerTube, 500Wh
Charger
Bosch 4A
Fit data

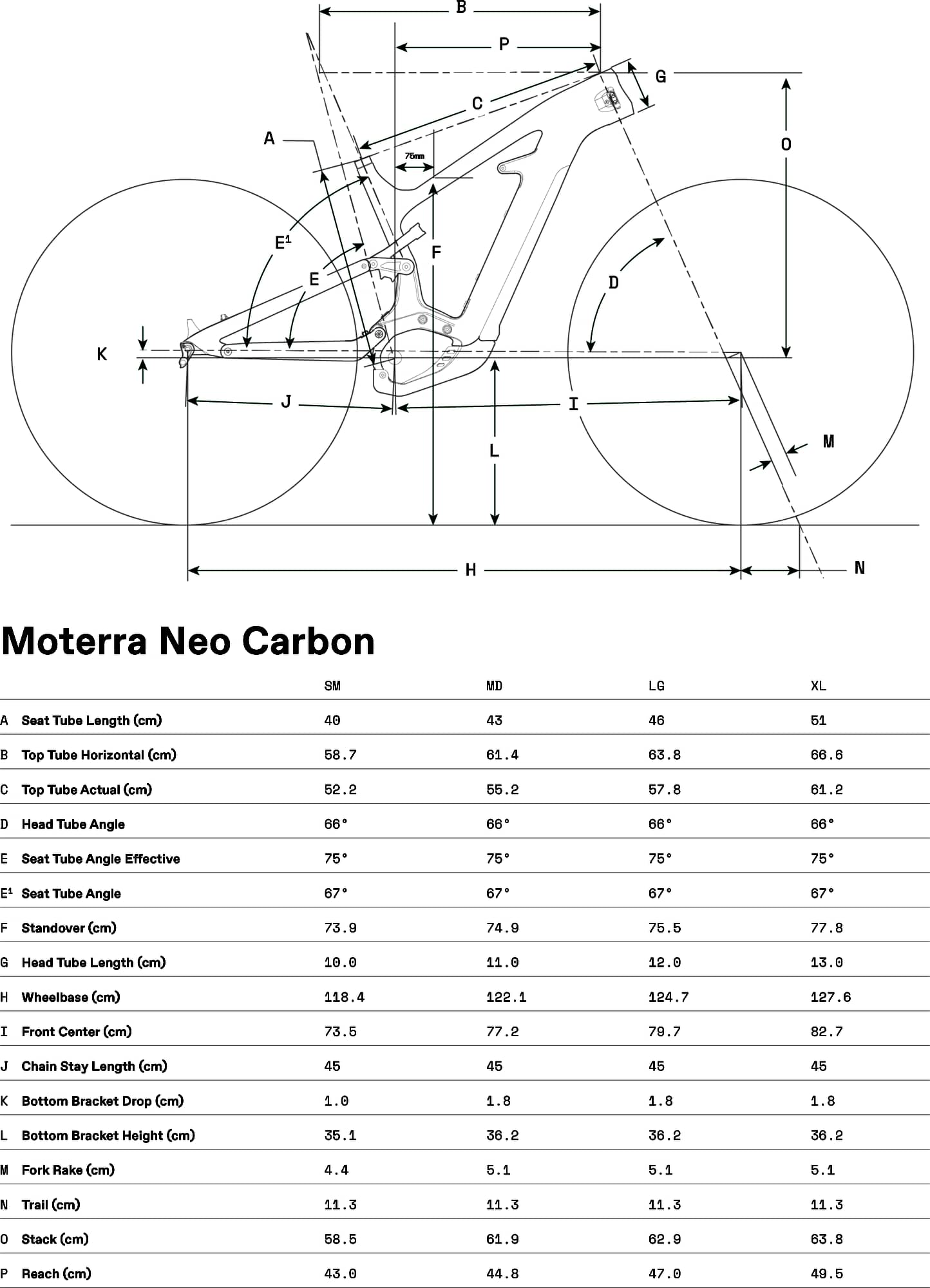

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 162 cm | 172 cm | 182 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 195 cm |
