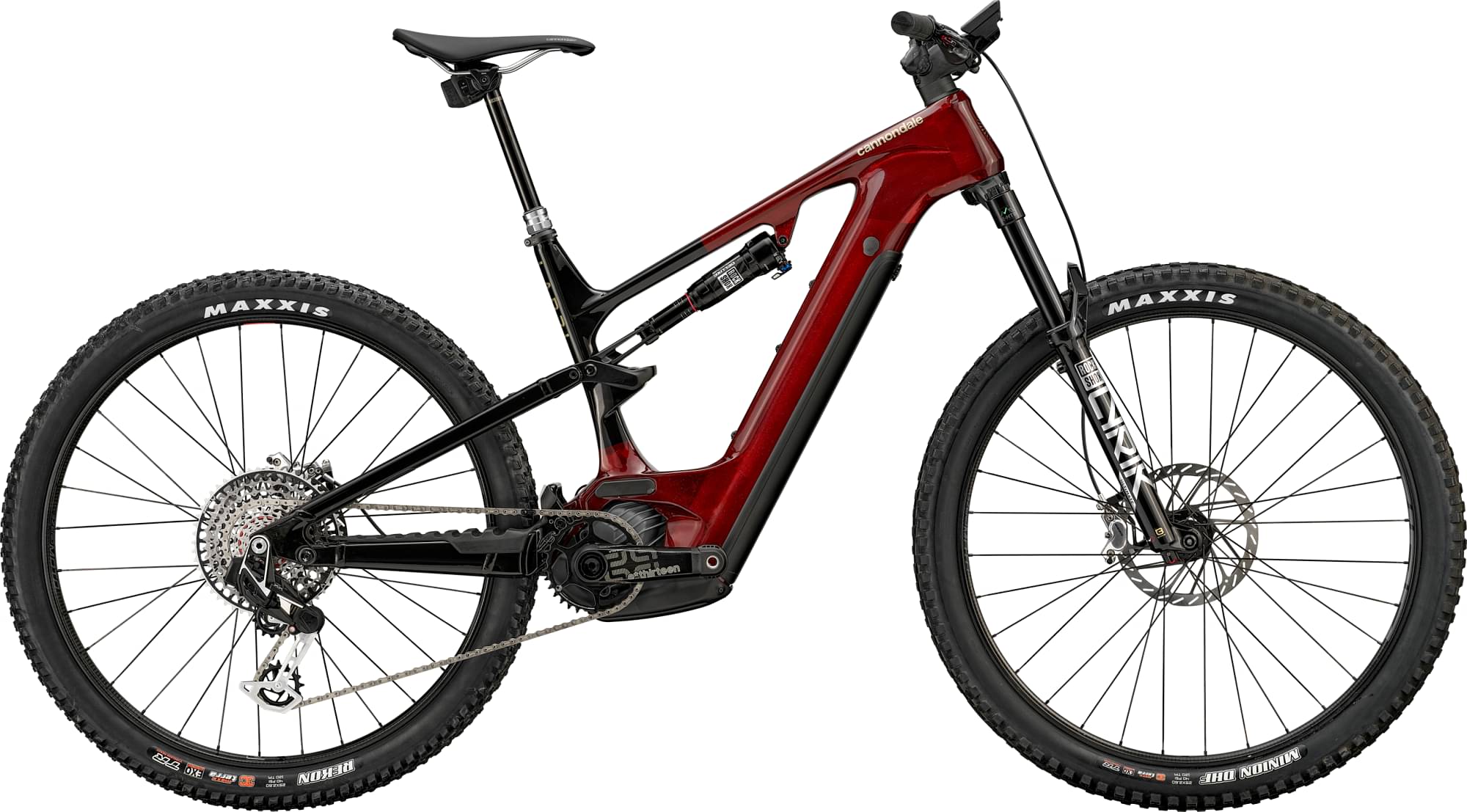

Cannondale Moterra Neo LAB71 2024
2024 E-bike
Estimate price |
14,909$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox Lyrik Ultimate
-
Groupset XX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 750Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
162cm - 175cm
LG
172cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lab71 Edition Full Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount
Suspension Fork
RockShox Lyrik Ultimate, Charger 3, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 42mm offset
Rear Shock
RockShox Deluxe Select +, DebonAir, 2-Pos mode adjust, adjustable rebound
Drivetrain
Rear Derailleur
SRAM XX Eagle AXS T-Type
Shift Levers
SRAM AXS T-Type Ultimate Pod Controller
Cassette
SRAM XX Eagle T-Type, 10-52, 12-speed
Crank
E*THIRTEEN E*Spec Race Carbon, 160mm, 34T
Chain
SRAM XX Eagle T-Type, Flattop
Pedals
Not included
Wheels
Front Hub
(F) Zipp ZM2, 15x110mm thru-axle / (R) Zipp ZM2, 12x148mm thru-axle
Rear Hub
(F) Zipp ZM2, 15x110mm thru-axle / (R) Zipp ZM2, 12x148mm thru-axle
Rims
Zipp 3Zero Moto, carbon, 32h, 30mm inner width, 37.5mm outer width, 29" (27.5 rear, size small)
Spokes
Zipp 3Zero Moto
Tires
(F) Maxxis Minion DHF, 29x2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29x2.6", (size Small - 27.5x2.6") EXO, tubeless ready
Brakes
Brakes
SRAM Code Ultimate Stealth 4-piston hydraulic disc, 220/200mm rotors
Brake Levers
SRAM Code Ultimate Stealth hydraulic disc, carbon levers
Cockpit
Stem
Cannondale, 3D Forged 6061 Alloy, 1-1/8", 35.0, internal cables
Handlebar
HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm
Grips
Cannondale TaperRidge
Headset
Acros, integrated, 1-1/8 to 1.8", sealed bearings
Seat
Saddle
Cannondale Scoop Shallow Race, Ti rails
Seatpost
SRAM Reverb AXS, 31.6, 125mm (S), 150mm (M), 170mm (L-XL)
Motor & Battery
Motor
Bosch Performance Line CX Race
Battery
Bosch PowerTube, 750Wh
Charger
Bosch 4A
Fit data

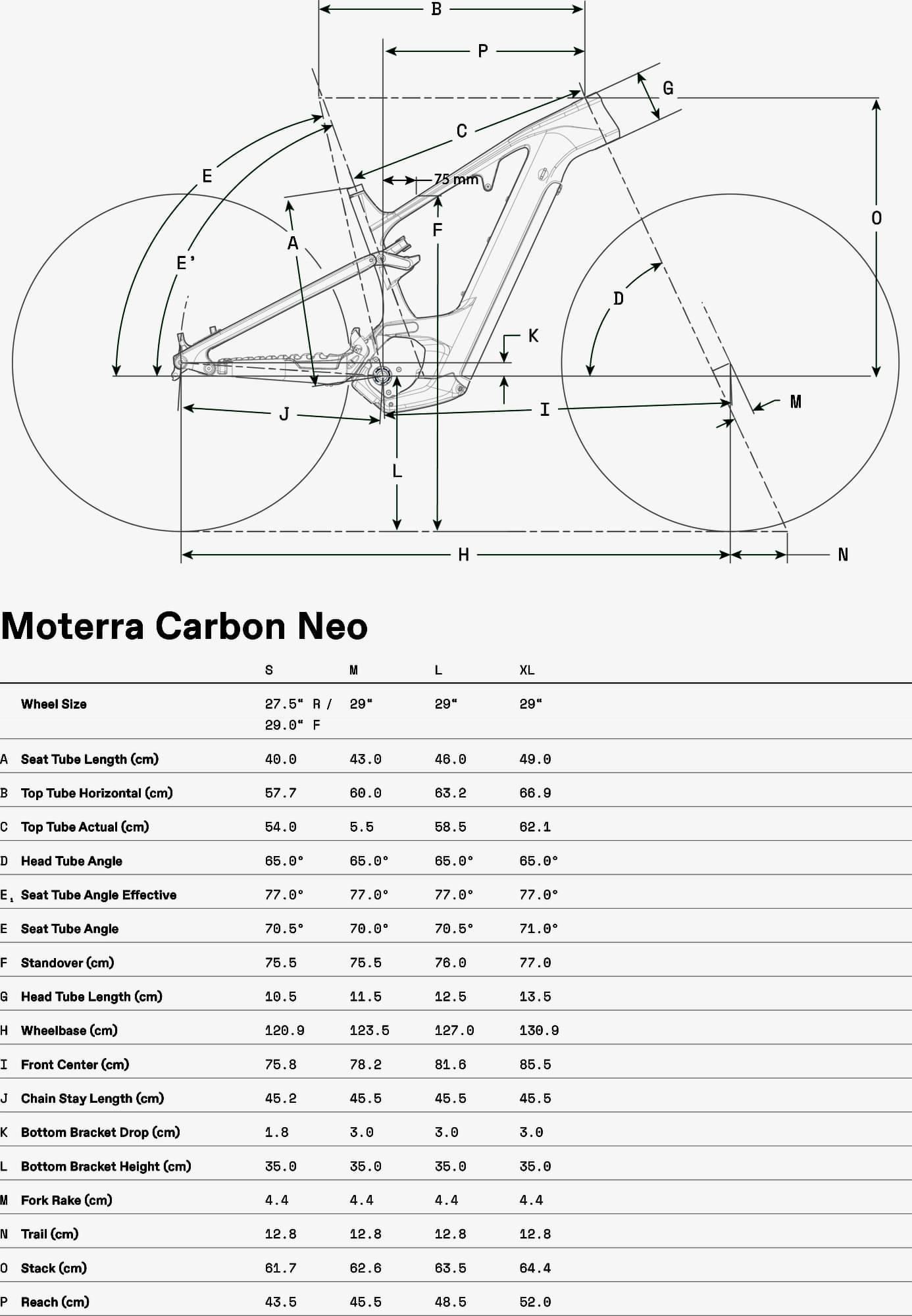

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 29" | 29" |
| Rider Min Height | 162 cm | 172 cm |
| Rider Max Height | 175 cm | 185 cm |
