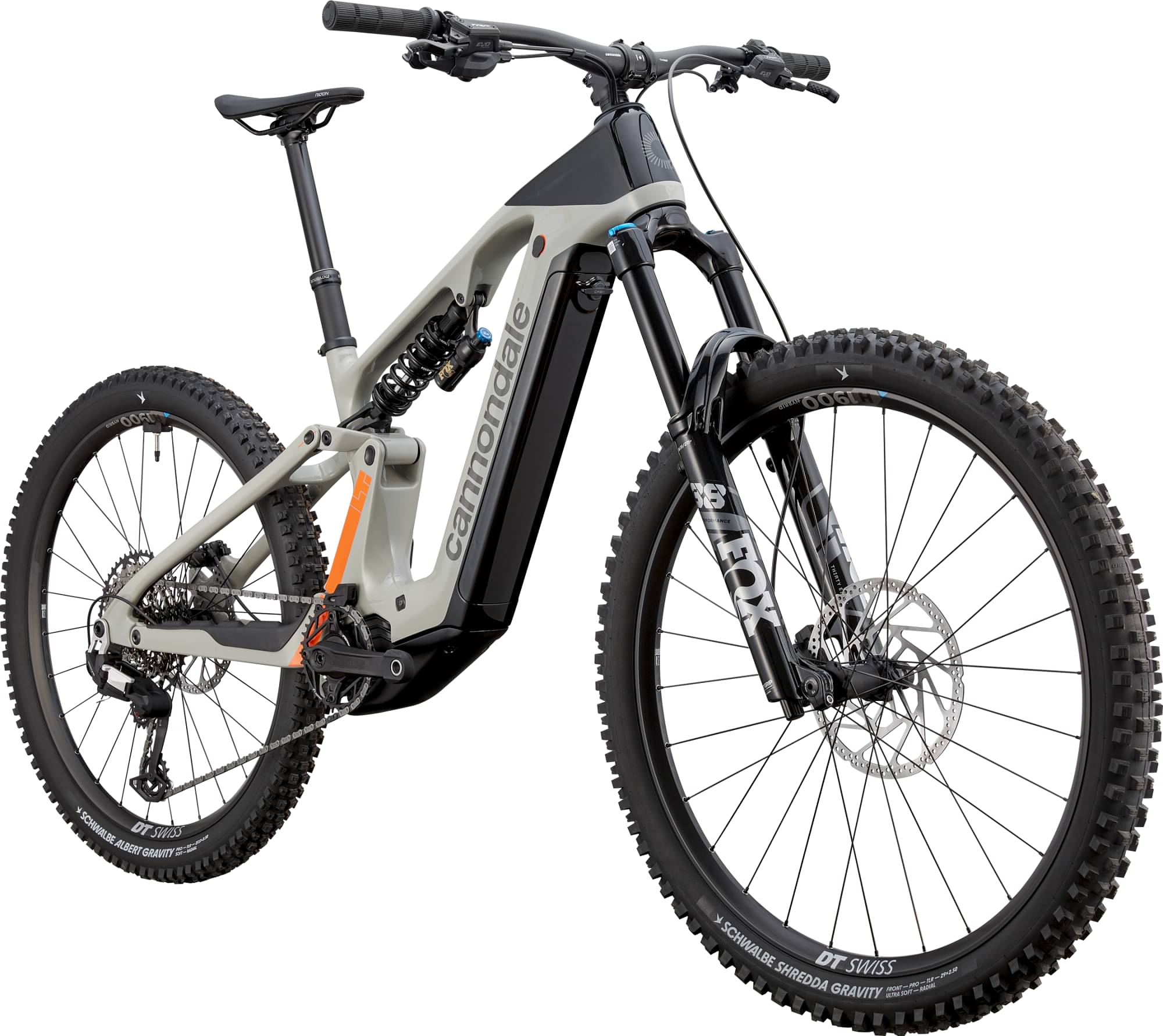

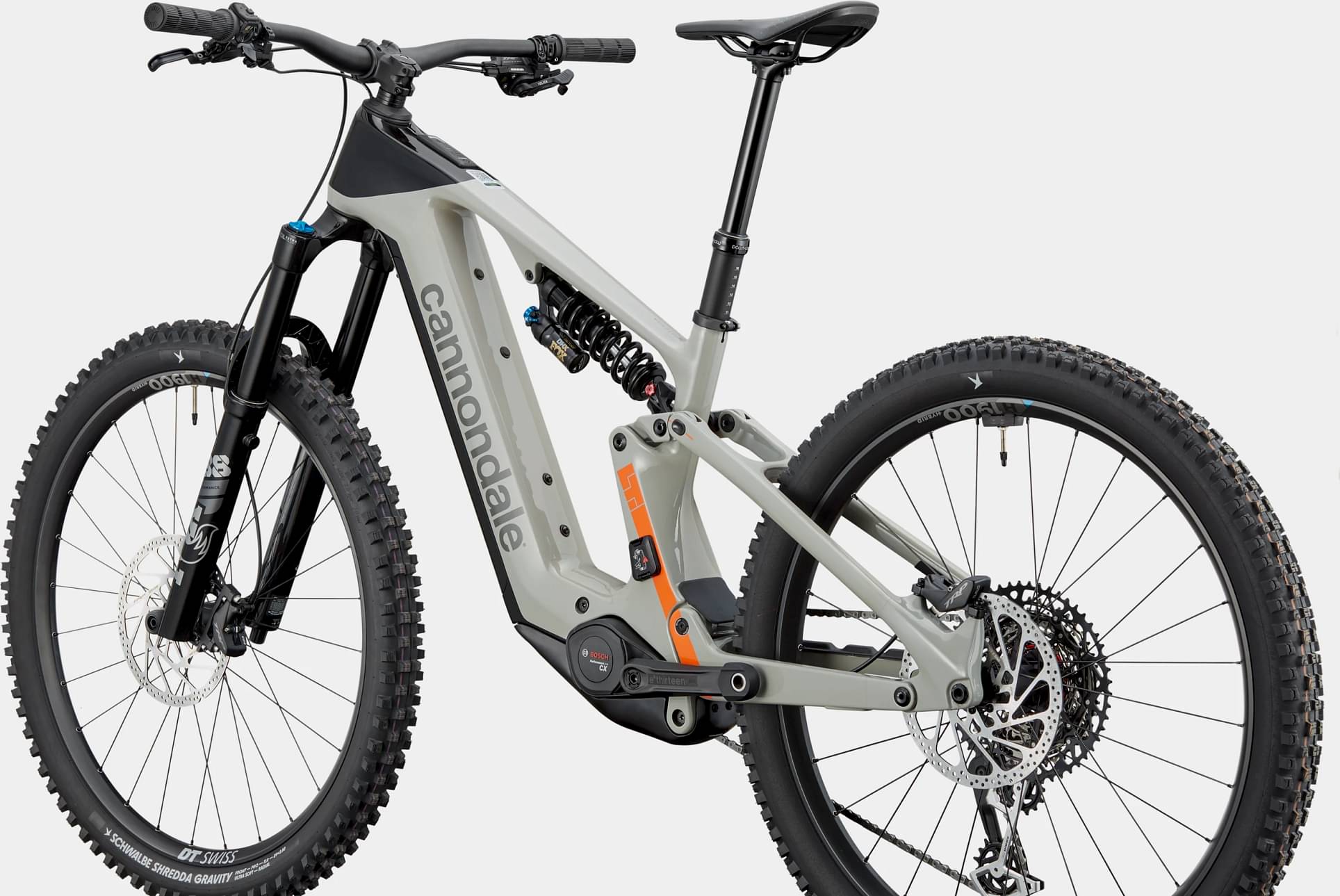

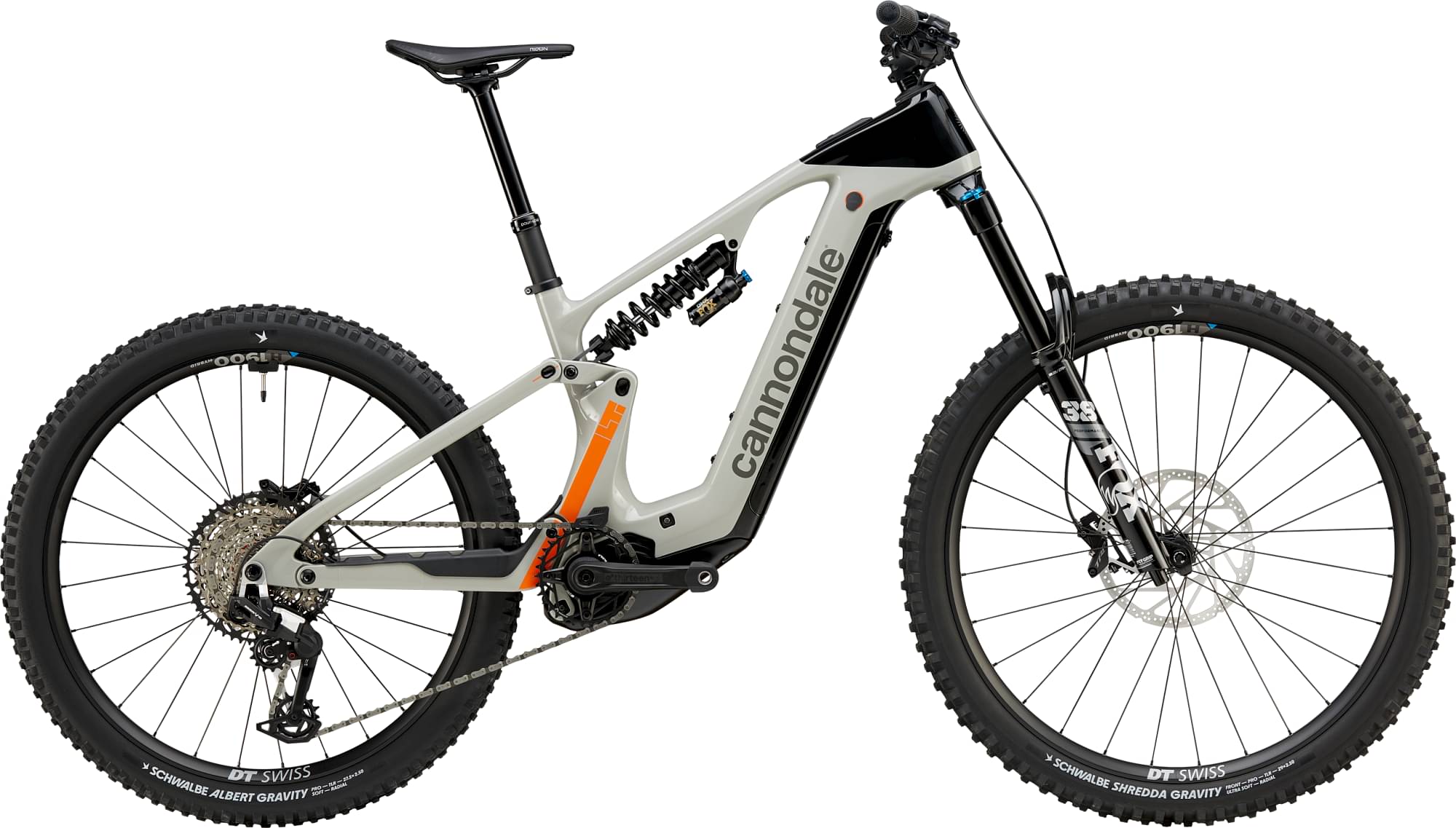

Cannondale Moterra Neo LT 1 2025
2025 E-bike
Estimate price |
8,608$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 165mm -
Fork Fox Performance Float 38
-
Groupset Eagle 90 Transmission -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube, 800Wh -
Drivetrain 1 × 12 -
Brakes TRP Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 165cm
MD
162cm - 175cm
LG
172cm - 185cm
XL
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Moterra LT Carbon, 27.5" rear wheel, 29" front wheel, 165mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube
Suspension Fork
Fox Float Performance 38, 170mm, Grip Damper 3Pos, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
Rear Shock
Fox DHX Performance, Coil, 2 pos adj, 230x65mm
Drivetrain

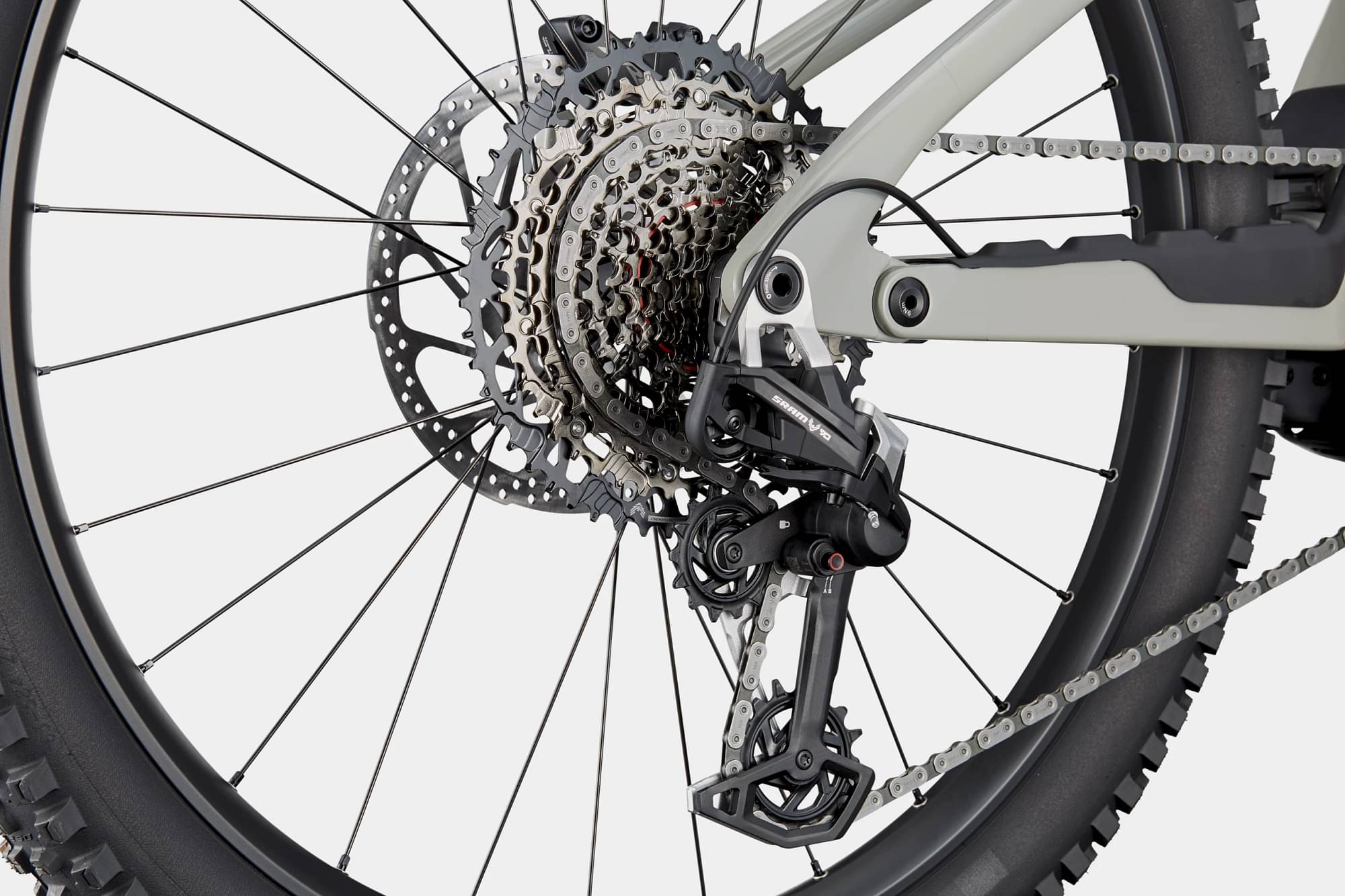

Rear Derailleur
SRAM Eagle 90, T-Type
Shift Levers
SRAM Eagle 90, T-Type, 12-speed
Cassette
SRAM Eagle 70 T-Type, 10-52, 12-speed
Crank
e*thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T
Chain
SRAM Eagle 70 T-Type, 12-speed
Pedals
Not Included
Wheels
Front Hub
(F) DT Swiss 370, 15x110mm thru-axle / (R) DT Swiss 370 Ratchet System 18, 12x148mm thru-axle, 6-bolt
Rear Hub
(F) DT Swiss 370, 15x110mm thru-axle / (R) DT Swiss 370 Ratchet System 18, 12x148mm thru-axle, 6-bolt
Rims
DT Swiss H 1900 Spline, 30mm inner width, TC (tubeless ready)
Spokes
DT Swiss Competition, straight pull
Tires
(F) Schwalbe Shredda Front, 29x2.5", Radial casing, Addix Ultra Soft Foldable, tubeless ready / (R) Schwalbe Albert, 27.5x2.5", Radial casing, Addix Soft Foldable, tubeless ready
Brakes
Brakes
TRP EVO Pro 4-piston hydraulic disc, 220/203mm rotors, 2.3mm thickness
Brake Levers
TRP EVO Pro hydraulic disc
Cockpit
Stem
Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°

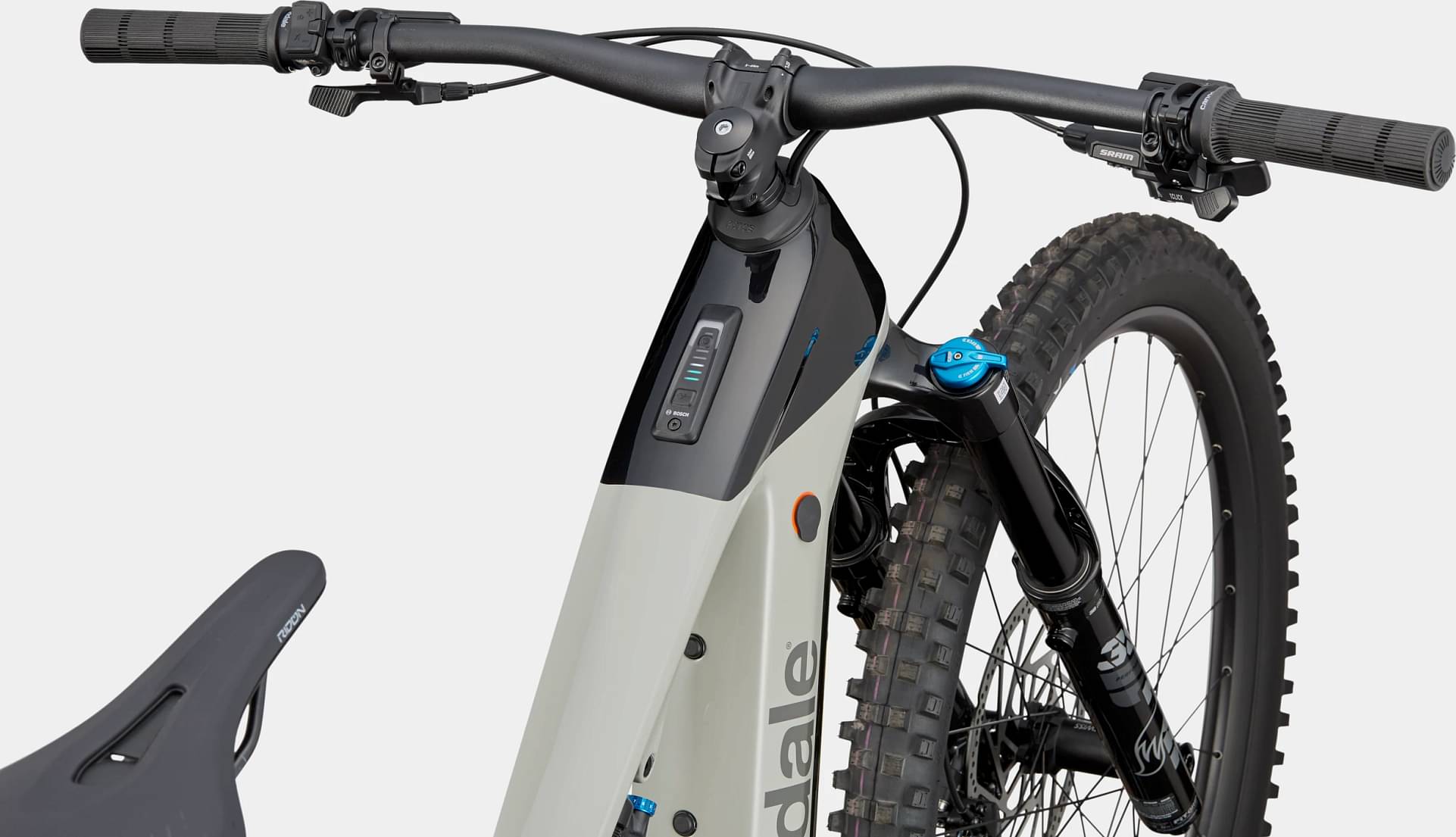

Handlebar
Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
Grips
Cannondale TaperRidge
Headset
Acros ICR, 1.5" to 1.8", sealed bearings
Seat
Saddle
Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail
Seatpost
Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
Motor & Battery

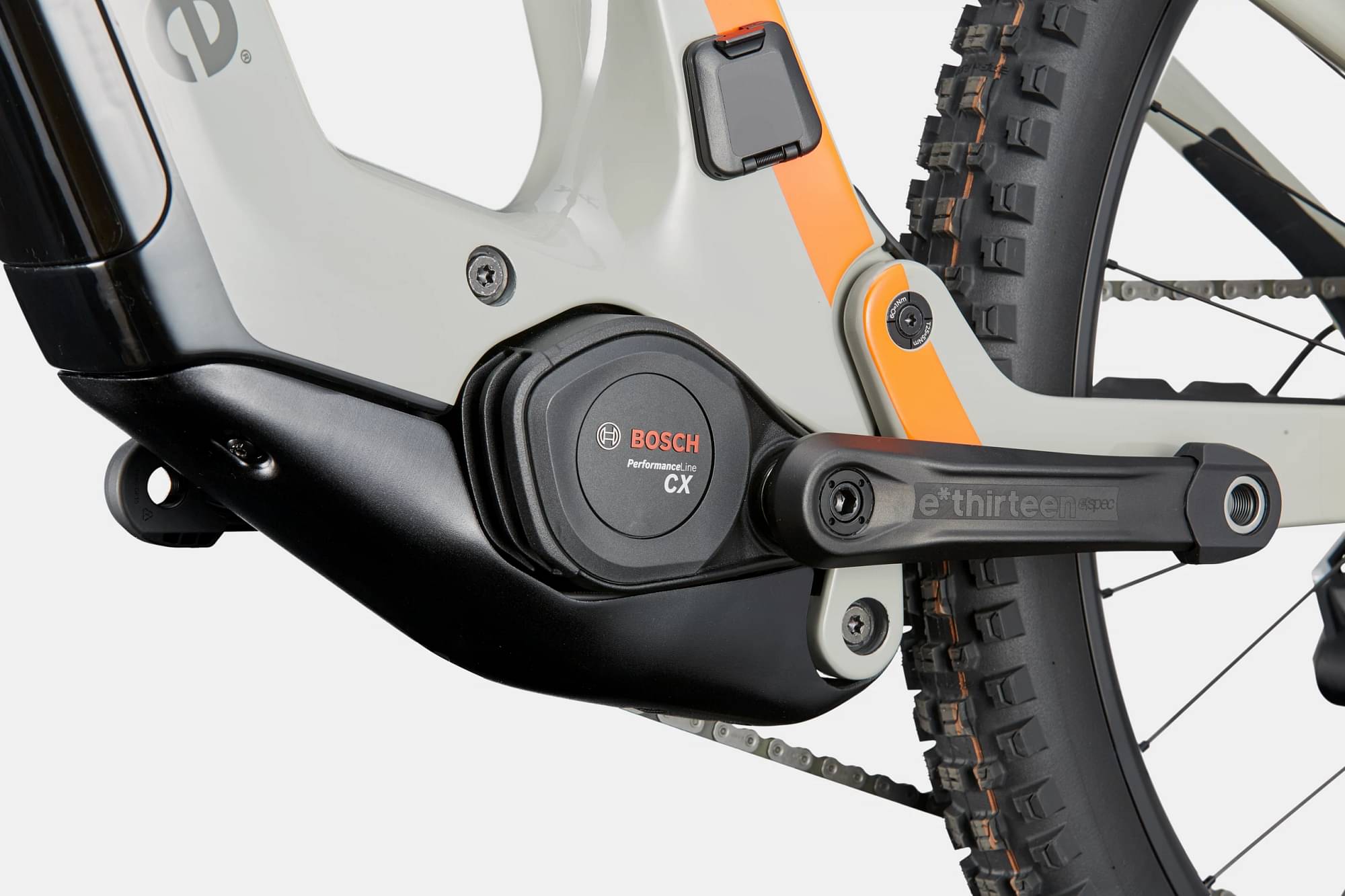

Motor
Bosch Performance Line CX
Battery
Bosch PowerTube, 800Wh
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 162 cm | 172 cm | 182 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 195 cm |
