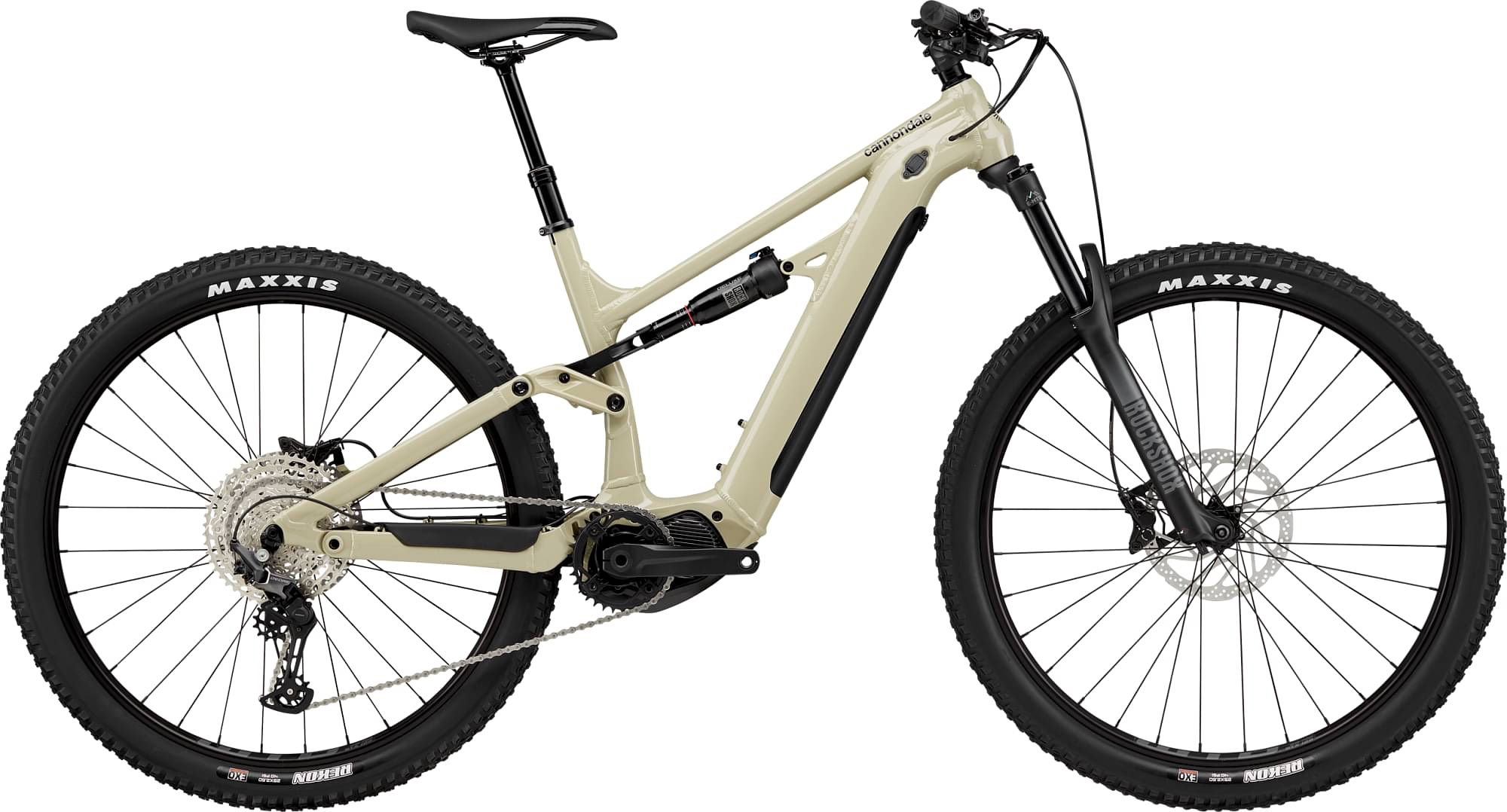

Cannondale Moterra Neo S2 2024
2024 E-bike
Estimate price |
5,160$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox 35 Silver
-
Groupset Deore, FSA -
Suspension Full -
Motor Shimano hub-drive -
Battery Shimano BT-E8036, 630Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 165cm
MD
162cm - 175cm
LG
172cm - 185cm
XL
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
150mm travel, SmartForm C2 Alloy, Cannondale Tuned Suspension, removable downtube battery, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube
Suspension Fork
RockShox 35 Silver TK, 150mm, Coil, 15x110mm thru-axle, tapered steerer, 44mm offset, rack and fender compatible
Rear Shock
RockShox Deluxe Select +, DebonAir, 2-Pos mode adjust, adjustable rebound
Drivetrain
Rear Derailleur
Shimano Deore M6100 SGS
Shift Levers
Shimano Deore M6100, 12-speed
Cassette
Shimano Deore, Hyperglide, 10-51, 12-speed
Crank
FSA E-Bike, 165mm, Shimano 12-speed, 34T
Chain
Shimano M6100 Hyperglide, 12-speed
Pedals
Not included
Wheels
Front Hub
(F) Shimano MT400, 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
Rear Hub
(F) Shimano MT400, 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
Rims
WTB STX i25 TCS, 32h
Spokes
Stainless Steel, 14g
Tires
Maxxis Rekon, 29x2.6", EXO
Brakes
Brakes
Shimano MT420, 4-piston hydraulic disc, 203/203mm Deore RT30 rotors
Brake Levers
Shimano MT420 hydraulic disc
Cockpit
Stem
Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 6°
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Grips
Cannondale Locking Grips
Headset
Integrated, 1-1/8 to 1.5", sealed bearings
Seat
Saddle
Cannondale Stage 3
Seatpost
TranzX dropper, internal routing, 31.6, 130mm (S), 150mm (M-XL)
Motor & Battery
Motor
Shimano EP801
Battery
Shimano BT-E8036, 630Wh
Charger
Shimano Battery Charger 2A
Fit data

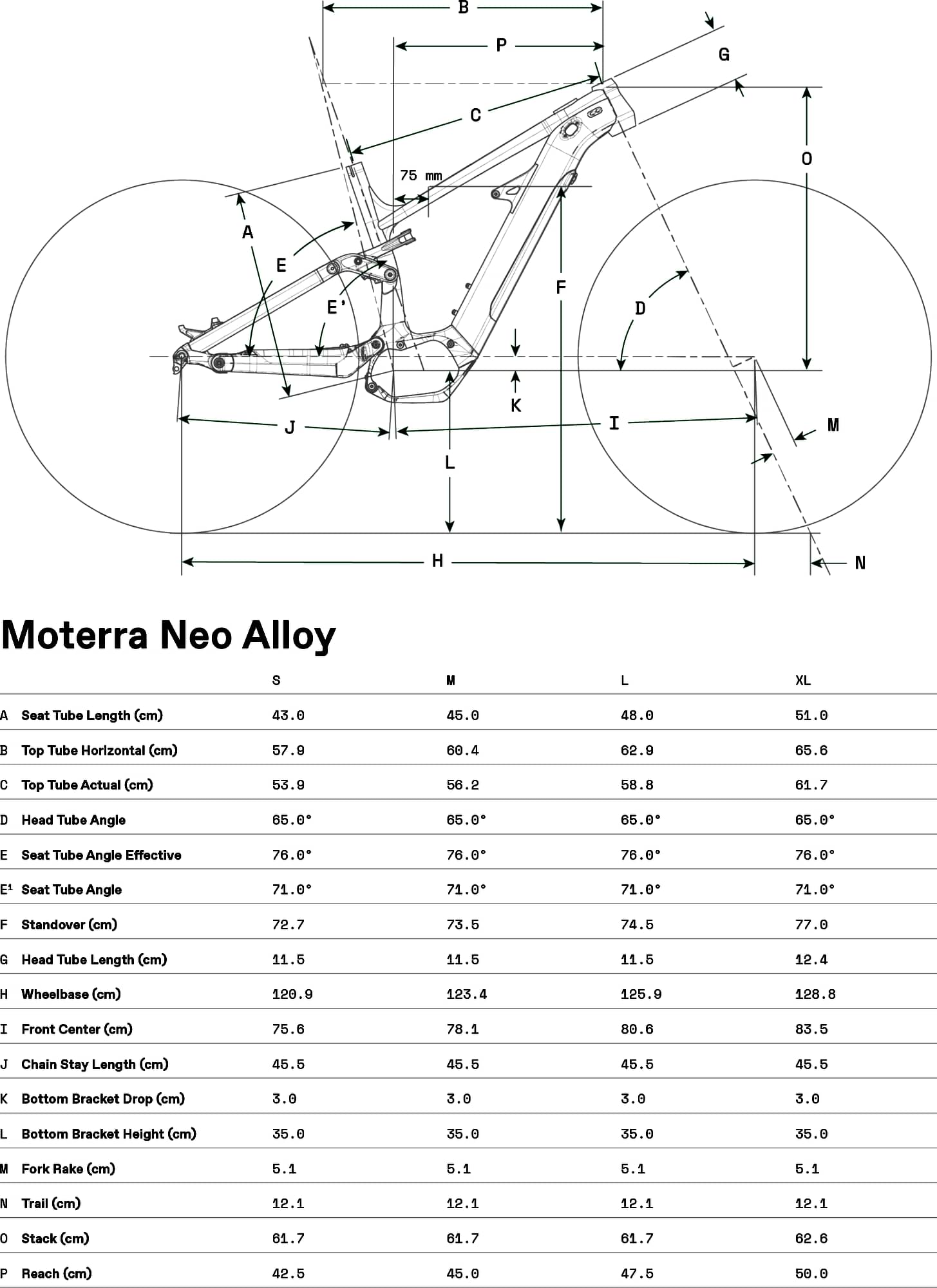

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 162 cm | 172 cm | 182 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 195 cm |
