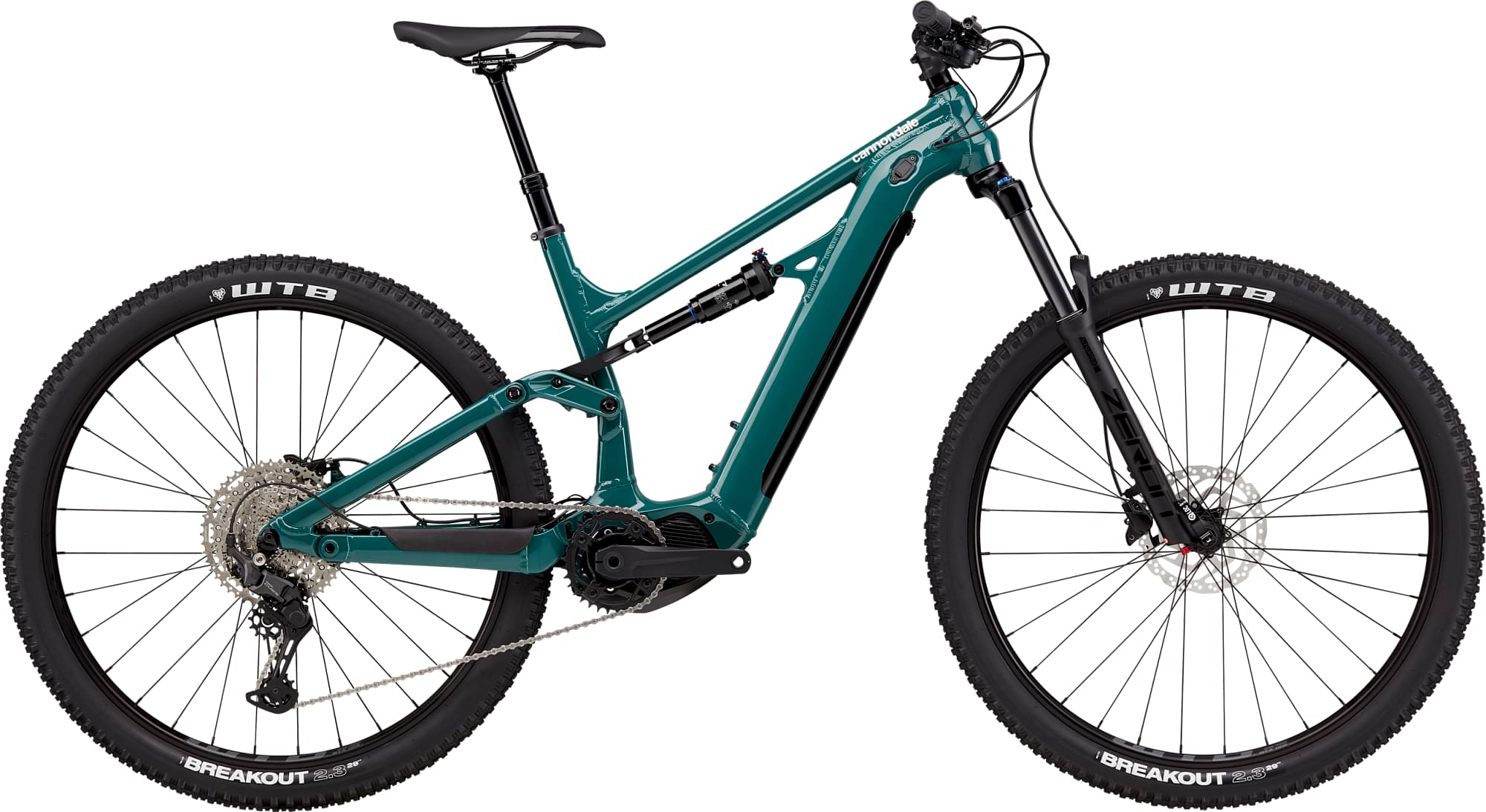

Cannondale Moterra Neo S3 2023
2023 E-bike
Estimate price |
4,500$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 150mm -
Fork Suntour Zeron
-
Groupset CUES -
Suspension Full -
Motor Shimano 600W 85Nm mid-drive -
Battery Shimano BT-EN8036, 630Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 165cm
MD
162cm - 175cm
LG
172cm - 185cm
XL
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
150mm travel, SmartForm C2 Alloy, Cannondale Tuned Suspension, removable downtube battery, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube
Suspension Fork
SR Suntour Zeron 36 Boost, 140mm, Air, rebound adjust,tapered steerer, 44 mm offset
Rear Shock
X-Fusion O2 Pro Air, adjustable rebound, lock-out
Drivetrain
Rear Derailleur
Shimano CUES U6000, 11-speed
Shift Levers
Shimano CUES U6000, trigger style, 11-speed
Cassette
Shimano CUES LG400, 11-50, 11-speed
Crank
FSA E-Bike for Shimano, 165mm, 34T
Chain
Shimano LG500 Linkglide, 11-speed
Pedals
Not included
Wheels
Front Hub
(F) Shimano TC500, 15x110mm thru-axle, centerlock / (R) Shimano TC500, 12x148mm thru-axle, centerlock
Rear Hub
(F) Shimano TC500, 15x110mm thru-axle, centerlock / (R) Shimano TC500, 12x148mm thru-axle, centerlock
Rims
WTB STX i25 TCS, 32h
Spokes
Stainless Steel, 14g
Tires
WTB Breakout Comp, 29x2.3", DNA compound
Brakes
Brakes
Shimano MT200 hydraulic disc, 180/180mm RT10 rotors
Brake Levers
Shimano MT200 hydraulic disc
Cockpit
Stem
Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 6°
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Grips
Cannondale Locking Grips
Headset
Integrated, 1-1/8 to 1.5", sealed bearings
Seat
Saddle
Cannondale Stage 3
Seatpost
TranzX dropper, internal routing, 31.6, 120mm (S), 130mm (M-XL)
Motor & Battery
Motor
Shimano EP6
Battery
Shimano BT-EN8036, 630Wh
Charger
Shimano Battery Charger 2A
Fit data

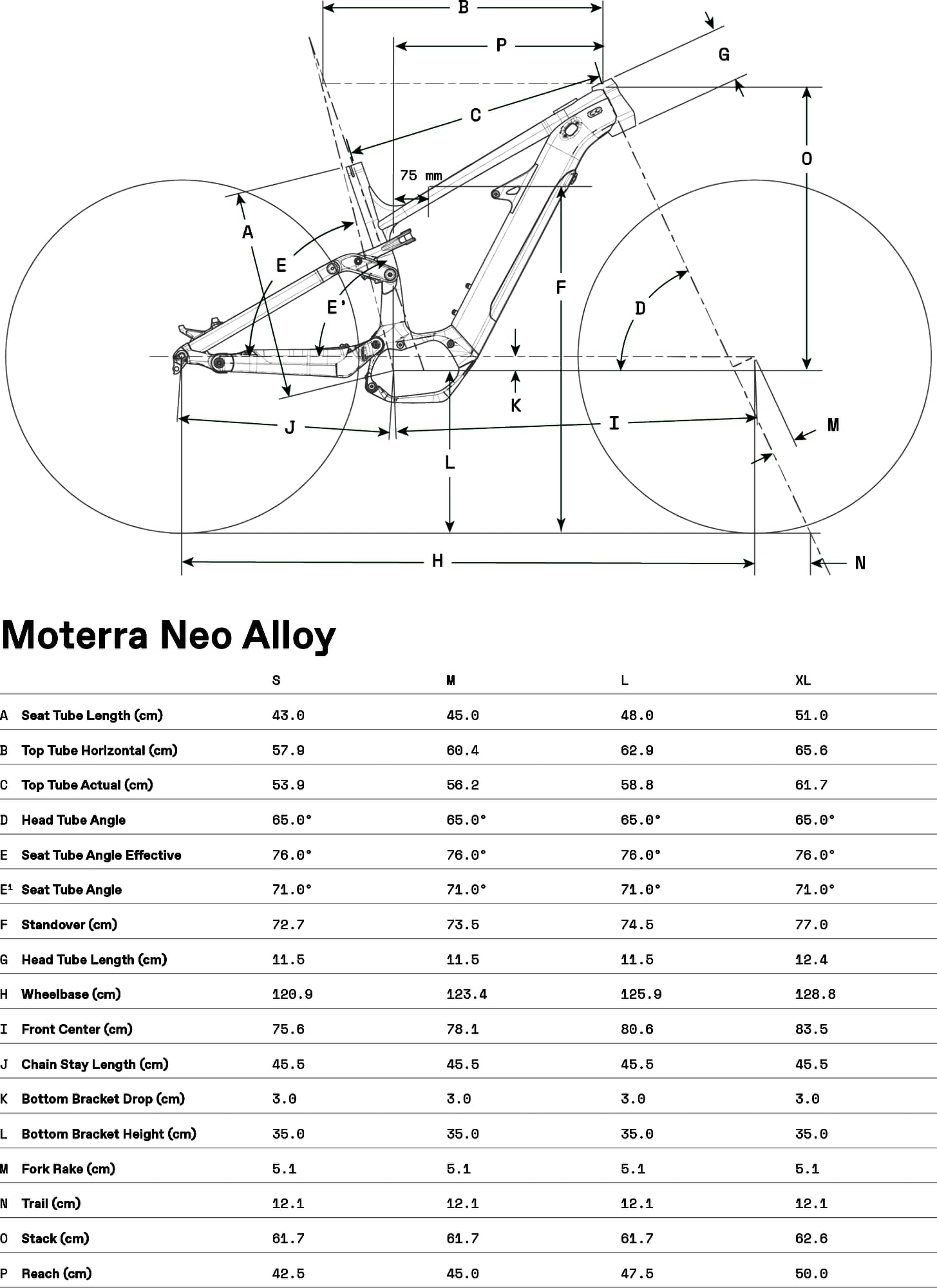

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 162 cm | 172 cm | 182 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 195 cm |
