Cannondale Moterra Neo SL 2 2024
2024 E-bike
Estimate price |
9,174$
Weight | 20.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Float 36
-
Groupset XT, Deore -
Suspension Full -
Motor Shimano 85Nm mid-drive -
Battery Custom 601Wh battery -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 165cm
MD
162cm - 175cm
LG
172cm - 185cm
XL
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Moterra SL, Series 1 Carbon construction, 150mm travel, Proportional Response Tuned Suspension, FlexPivot Chainstay, direct mount internal battery, engineered plastic skid plate, 55mm chainline, DirectLine internal cable routing, 29” FlipChip, 148x12mm Maxle thru-axle, UDH hanger, 200mm native post mount brake, tapered headtube, angle adjust headset
Suspension Fork
Fox Performance 36, 160mm travel, Grip Damper, 3-position adjust, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
Rear Shock
Fox Float X Performance Elite, 2 pos adj, EVOL LV, 210x55mm
Drivetrain
Rear Derailleur
Shimano XT
Shift Levers
Shimano Deore M6100, 12-speed
Cassette
Shimano Deore 6100, 10-51, 12-speed
Crank
e*thirteen e*spec Plus, 165mm, 34T
Chain
Shimano Deore 6100, 12-speed
Pedals
Not Included
Wheels
Front Hub
(F) Formula DC-71132h, 15x110mm / (R) DT Swiss 370 Hybrid, 32h, 12x148mm
Rear Hub
(F) Formula DC-71132h, 15x110mm / (R) DT Swiss 370 Hybrid, 32h, 12x148mm
Rims
WTB KOM Tough i30, 30mm inner width, TCS tubeless ready
Spokes
DT Swiss Champion
Tires
(F) Maxxis DHF, 29x2.5 ", 2C, EXO, tubeless ready / (R) Maxxis Dissector , 27.5x2.4", 2C, EXO, tubeless ready
Brakes
Brakes
Shimano Deore 6120 4-piston hydraulic disc, 203mm RT66 rotors
Brake Levers
Shimano Deore hydraulic disc
Cockpit
Stem
Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°
Handlebar
Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
Grips
Cannondale TaperRidge
Headset
Acros Adjustable Angle (1.2°)
Seat
Saddle
Fizik Terra Ridon X5, 145mm, Wingflex, S-Alloy Mobius rail 7x7mm
Seatpost
Cannondale DownLow Dropper, internal routing, 31.6, 150mm (S), 170mm (M-XL)
Motor & Battery
Motor
Shimano EP801, 85Nm, Custom Tuned, Eco, Trail 1, Trail 2, Boost Modes
Battery
Custom 601Wh battery
Charger
Custom 4A
Fit data

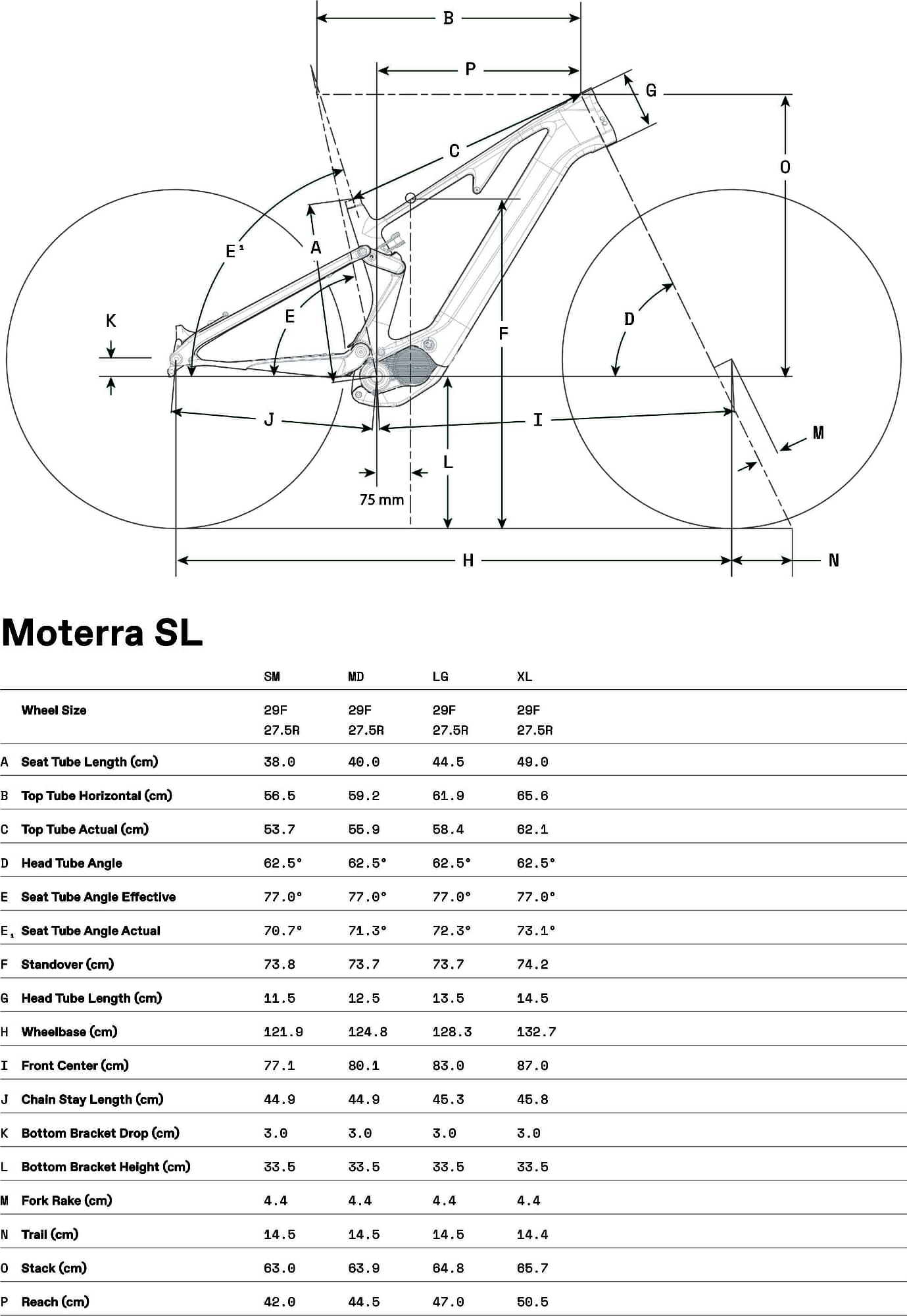

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 162 cm | 172 cm | 182 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 195 cm |
