Cannondale Moterra Neo SL 2 2025
2025 E-bike
Estimate price |
7,561$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Float 36
-
Groupset XT -
Suspension Full -
Motor Shimano 600W 85Nm mid-drive -
Battery Custom 601Wh battery -
Drivetrain 1 × 12 -
Brakes Magura MT5 Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 165cm
MD
162cm - 175cm
LG
172cm - 185cm
XL
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Moterra SL Carbon, 150mm travel, Proportional Response Tuned Suspension, FlexPivot Chainstay, direct mount internal battery, engineered plastic skid plate, 55mm chainline, internal cable routing, 29” FlipChip, 148x12mm Maxle thru-axle, UDH hanger, 200mm native post mount brake, angle adjust headset
Suspension Fork
Fox Performance 36, 160mm travel, Grip Damper, 3-position adjust, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
Rear Shock
Fox Float X Performance Elite, 2 pos adj, EVOL LV, 210x55mm
Drivetrain

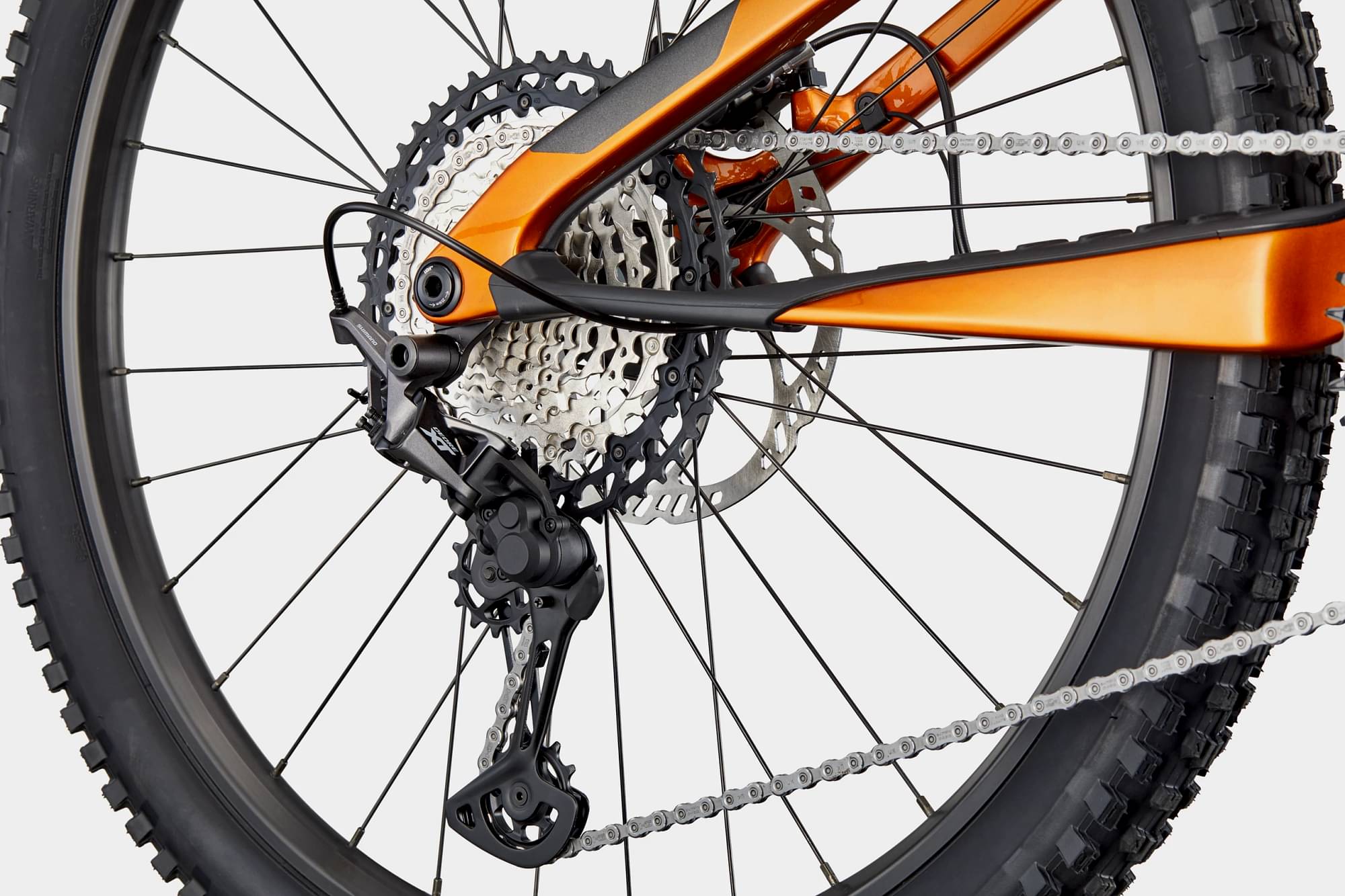

Rear Derailleur
Shimano XT
Shift Levers
Shimano XT, 12-speed
Cassette
Shimano XT, 10-51, 12-speed

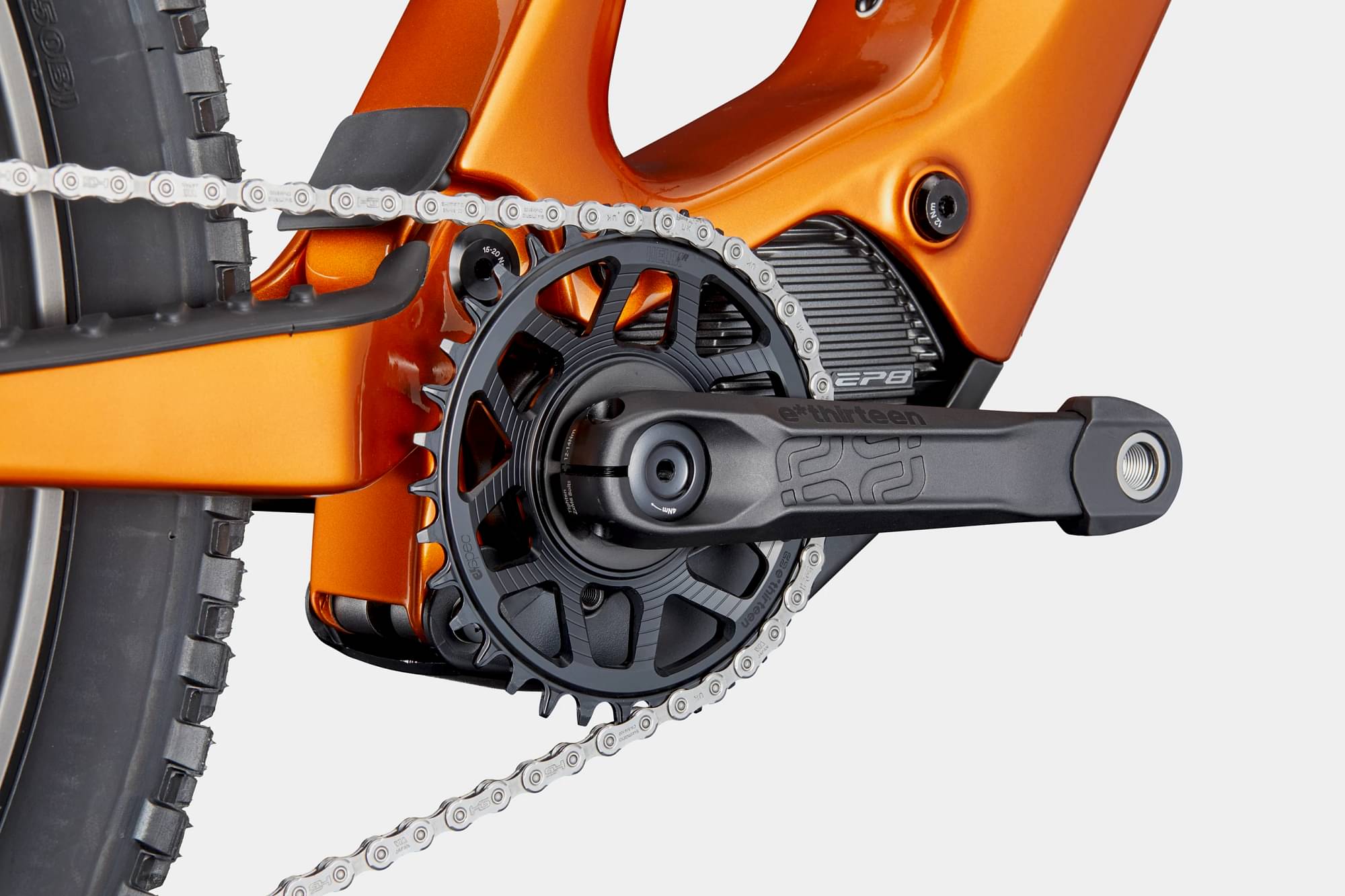

Crank
e*thirteen e*spec Plus, 160mm (S/M), 165mm (L/XL), 34T
Chain
Shimano XT, 12-speed
Pedals
Not Included
Wheels
Front Hub
Formula DC-71132h, 15x110mm
Rear Hub
DT Swiss 370 Hybrid, 32h, 12x148mm
Rims
WTB KOM Trail i30, 30mm inner width, TCS tubeless ready
Spokes
DT Swiss Champion
Tires
(F) Maxxis DHF, 29x2.5", 3C, EXO+, tubeless ready / (R) Maxxis Dissector, 27.5x2.4", 3C, EXO+, tubeless ready
Brakes
Brakes
Magura MT5 4-piston hydraulic disc, 203/203mm Storm HC 6-bolt rotors
Brake Levers
Magura MT5 hydraulic disc
Cockpit
Stem
Cannondale 1, 7075 Alloy, 1-1/8", 35mm, 0°
Handlebar
Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm
Grips
Cannondale TaperRidge
Headset
Acros Adjustable Angle (1.2°)
Seat
Saddle
Fizik Terra Aidon X5, Mobius S alloy rail
Seatpost
Cannondale DownLow Dropper, internal routing, 31.6, 150mm (S), 170mm (M-L), 200mm (XL)
Motor & Battery
Motor
Shimano EP801, 85Nm, Custom Tuned, Eco, Trail 1, Trail 2, Boost Modes
Battery
Custom 601Wh battery
Charger
Custom 4A
Fit data

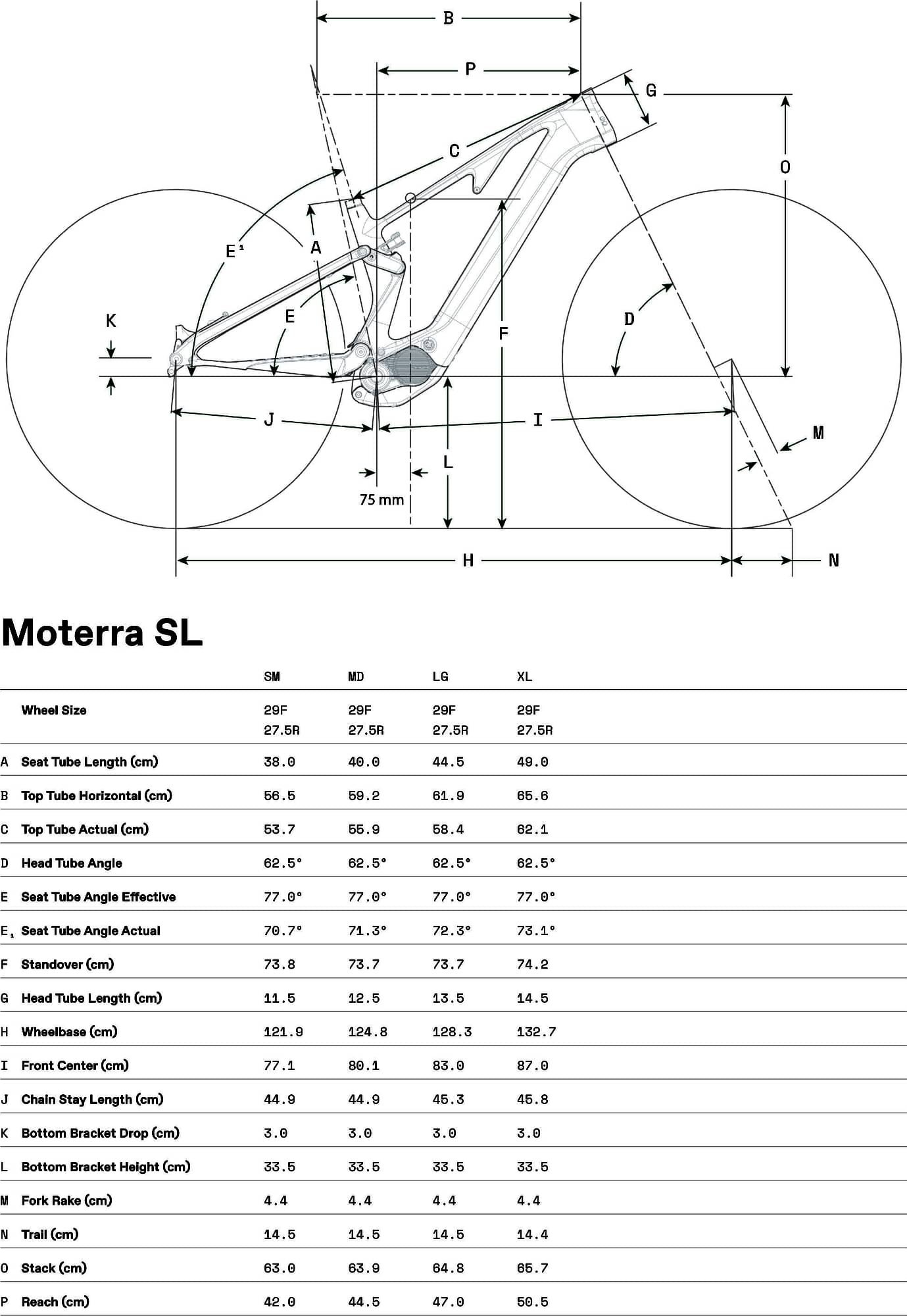

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 162 cm | 172 cm | 182 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 195 cm |
