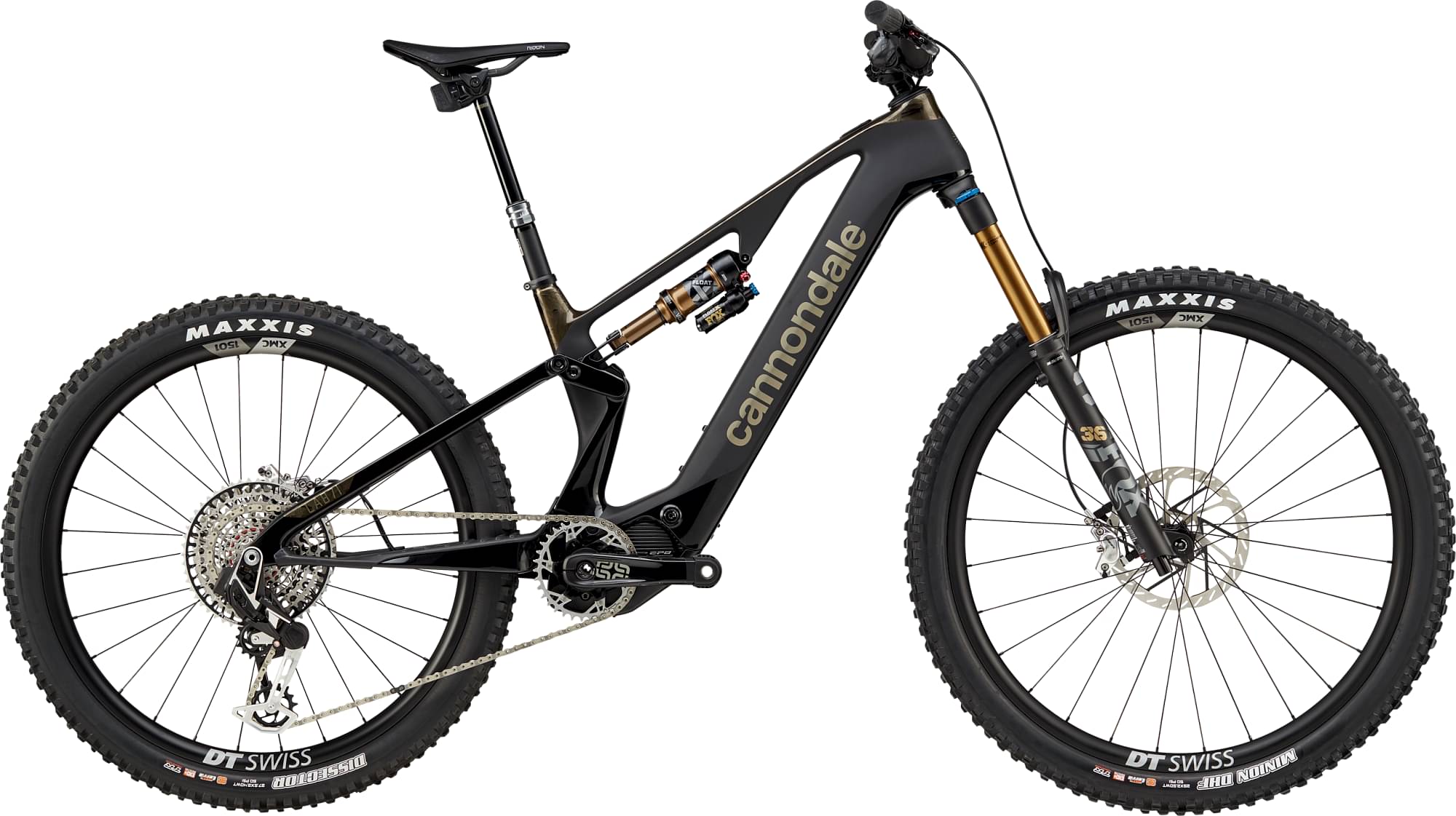

Cannondale Moterra Neo SL LAB71 2024
2024 E-bike
Estimate price |
16,056$
Weight | 19.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset XX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Motor Shimano 85Nm mid-drive -
Battery Custom 601Wh battery -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 165cm
MD
162cm - 175cm
LG
172cm - 185cm
XL
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
LAB71 Moterra SL, Series 1 Carbon construction, 150mm travel, Proportional Response Tuned Suspension, FlexPivot Chainstay, direct mount internal battery, engineered plastic skid plate, 55mm chainline, DirectLine internal cable routing, 29” FlipChip, 148x12mm Maxle thru-axle, UDH hanger, 200mm native post mount brake, tapered headtube, angle adjust headset
Suspension Fork
Fox Float Factory 36, 160mm travel, Grip2 Damper, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
Rear Shock
Fox Float X Factory, 2 pos adj, EVOL LV, 210x55mm
Drivetrain
Rear Derailleur
SRAM XX Eagle AXS, T-Type
Shift Levers
SRAM Eagle AXS T-Type Ultimate Pod Controller
Cassette
SRAM XX Eagle, T-Type, 10-52, 12-speed
Crank
e*thirteen e*spec Race Carbon - Gen 4, 165mm, 34T
Chain
SRAM XX Eagle, T-Type, Flattop
Pedals
Not Included
Wheels
Front Hub
(F) DT Swiss 240, 15x110mm / (R) DT Swiss 240 Ratchet EXP 36, 12x148mm
Rear Hub
(F) DT Swiss 240, 15x110mm / (R) DT Swiss 240 Ratchet EXP 36, 12x148mm
Rims
DT Swiss XMC 1501, carbon, 30mm inner width, hookless, TSS tubeless ready
Spokes
DT Swiss Competition Race
Tires
(F) Maxxis DHF, 29x2.5 ", 3C, EXO+, tubeless ready / (R) Maxxis Dissector , 27.5x2.4", 3C, EXO+, tubeless ready
Brakes
Brakes
SRAM Code Ultimate Stealth, 200mm HS2 rotors
Brake Levers
SRAM Code Ultimate Stealth
Cockpit
Stem
OneUp Stem, 6061 Alloy, 1-1/8", 35mm, 0°
Handlebar
OneUp Carbon Ebar, 35mm clamp, 35mm Rise, 8° sweep, 5° rise, 780mm
Grips
Cannondale TaperRidge
Headset
Acros Adjustable Angle (1.2°)
Seat
Saddle
Fizik Terra Ridon X1, 145mm, Wingflex, Carbon Mobius rail 7x10mm
Seatpost
RockShox Reverb AXS, 31.6, 150mm (S), 170mm (M-XL)
Motor & Battery
Motor
Shimano EP801, 85Nm, Custom Tuned, Eco, Trail 1, Trail 2, Boost Modes
Battery
Custom 601Wh battery
Charger
Custom 4A
Fit data

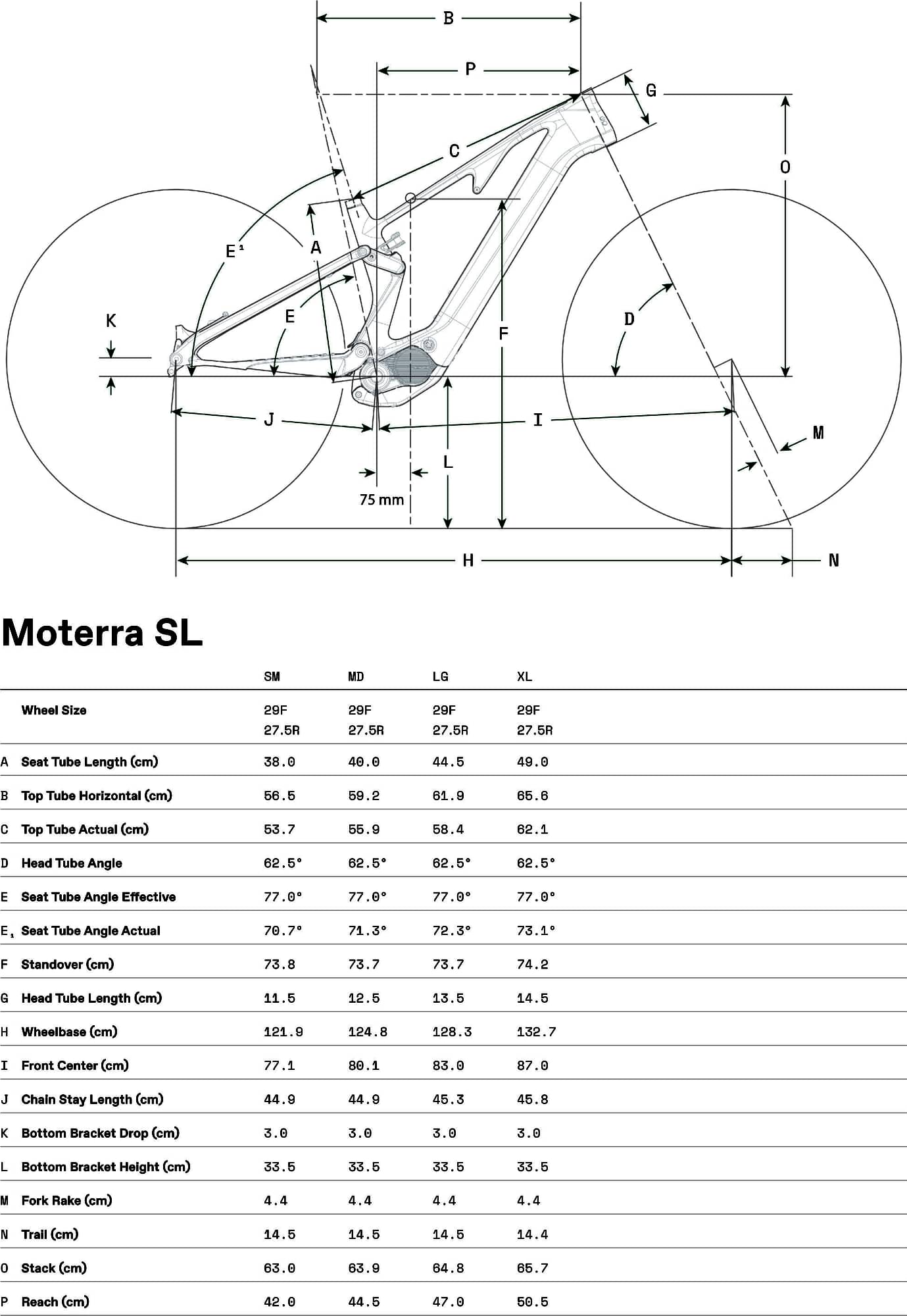

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 162 cm | 172 cm | 182 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 195 cm |
