Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tourney -
Suspension Rigid -
Drivetrain 2 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
157cm - 170cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
182cm - 195cm
XXL
193cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C3 Alloy, SAVE, tapered head tube, Straightshot hidden cable routing, flat mount disc, rack/fender mounts, 360° reflectivity
Suspension Fork
Chromoly, 1-1/8" steerer, OutFront offset, flat mount disc, mid-blade mounts
Drivetrain
Rear Derailleur
Shimano Tourney
Front Derailleur
Shimano Tourney, 31.8mm clamp
Shift Levers
Shimano M315 Rapidfire Plus, 7-speed
Cassette
Shimano HG200, 12-32, 7-speed
Crank
Shimano Tourney, 46/30
Bottom Bracket
Cartridge, square taper
Chain
KMC Z7, 7-speed
Pedals
Cannondale Fitness
Wheels
Front Hub
Shimano, Alloy, Sealed, QR
Rear Hub
Shimano, Alloy, Sealed, QR
Rims
Cannondale Disc, double wall w/eyelet, 32h
Spokes
Stainless Steel, 14g
Tires
Schwalbe Spicer PLUS PunctureGuard, 700x35c, reflective strip
Brakes
Brakes
Promax mechanical disc, 160/160mm rotors
Brake Levers
Promax BL42
Cockpit
Stem
6061 Alloy, 31.8, 8°
Handlebar
6061 Alloy Double-butted, 25mm rise, 8° sweep, 6° rise, 640mm
Grips
Cannondale Ergo Fitness
Headset
Integrated, 1-1/4"-1-1/8"
Seat
Saddle
Cannondale Fitness Ergo Double Density
Seatpost
6061 Alloy, 27.2x350mm
Fit data

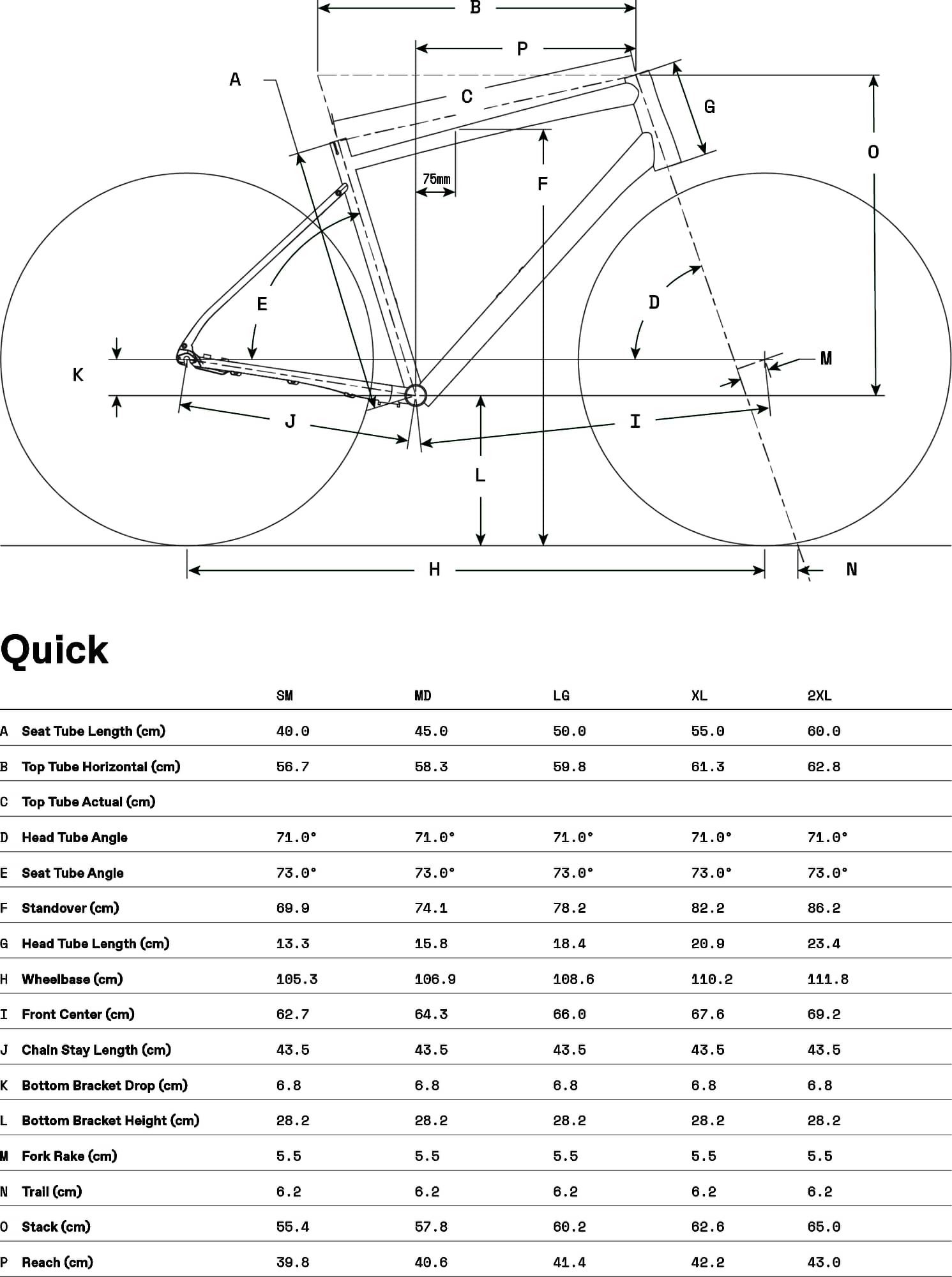

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 175 cm | 182 cm | 193 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 195 cm | 205 cm |
