Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour NEX
-
Groupset Shimano -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 160cm
SM
157cm - 170cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Quick CX, SmartForm C3 Alloy, tapered head tube, Straightshot hidden cable routing, post mount disc, rack/fender mounts
Suspension Fork
Suntour NEX-E25, 50mm travel, 1-1/8" alloy steerer, coil, hydraulic lockout, custom crown
Drivetrain

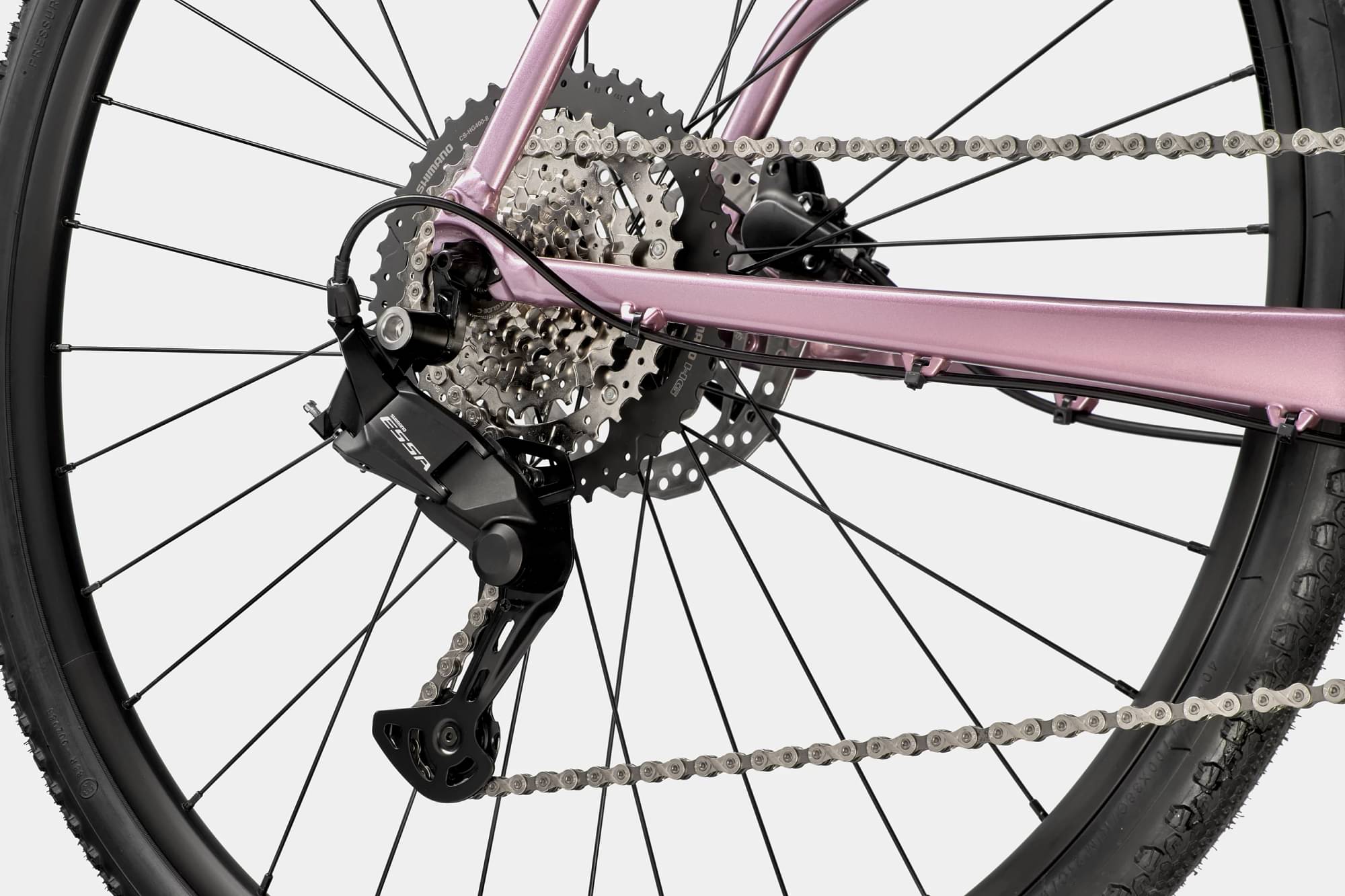

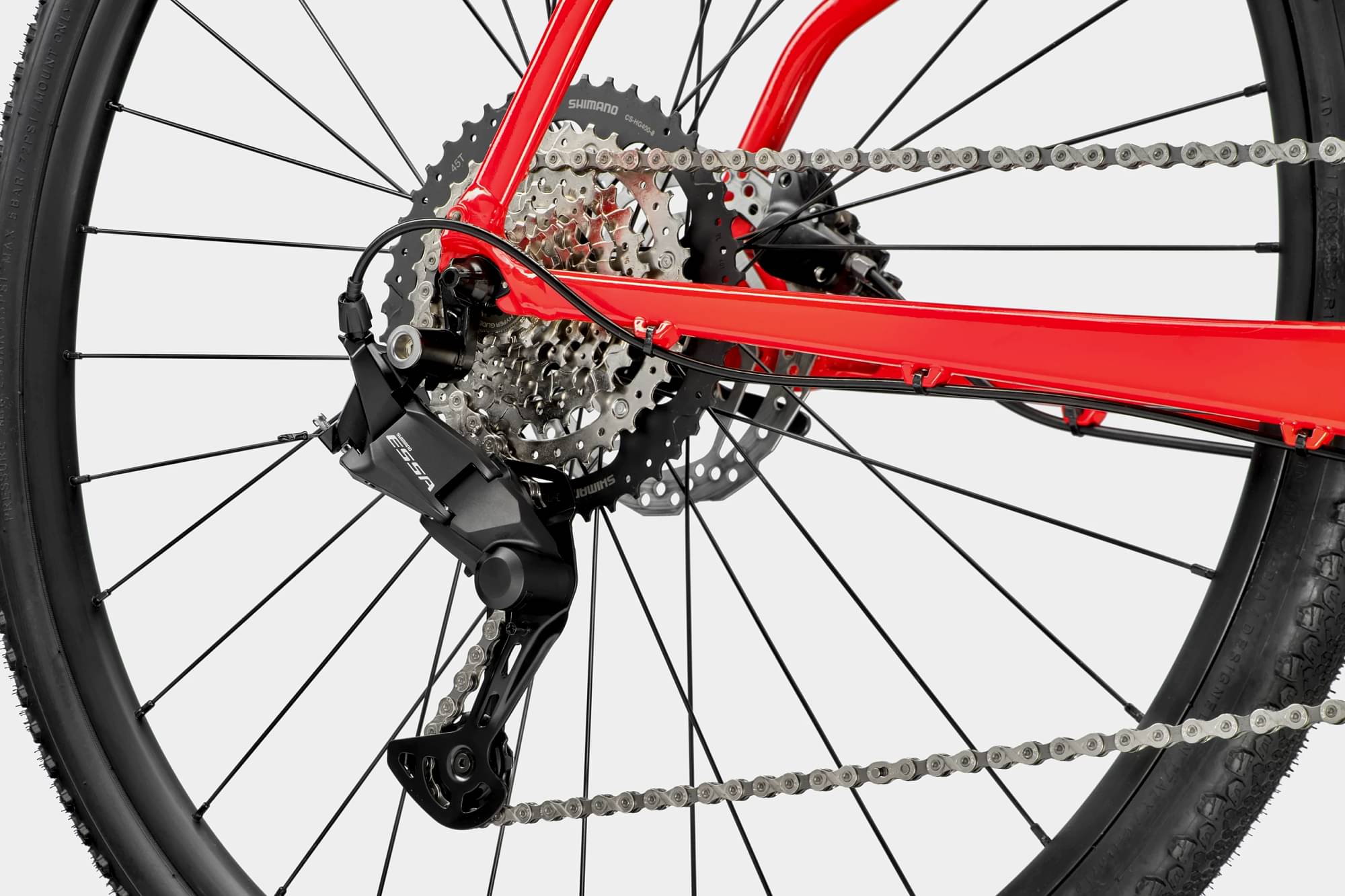

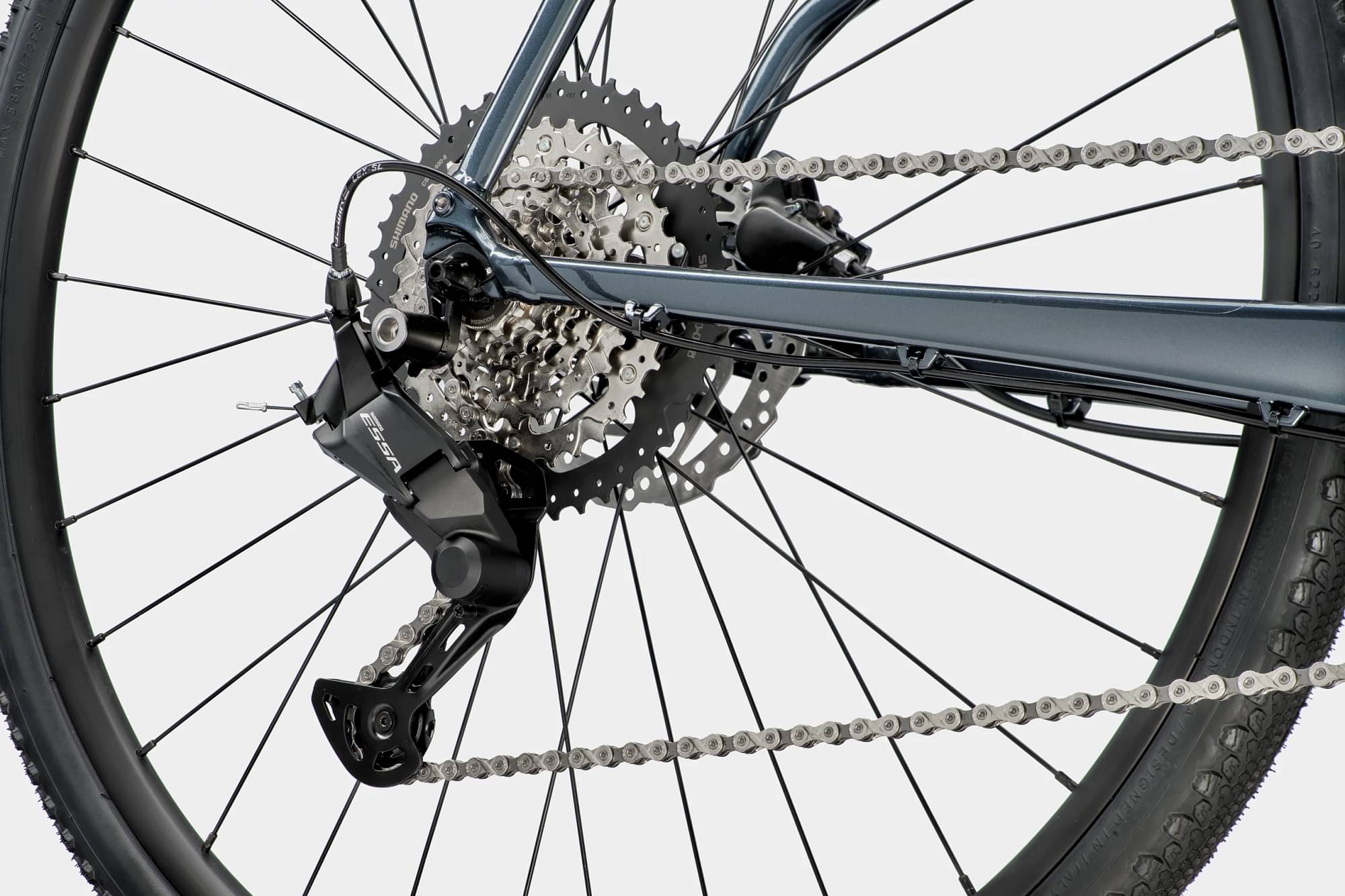

Rear Derailleur
Shimano Essa U2000
Shift Levers
Shimano ST-EF505, 8-speed
Cassette
Shimano HG400, 11-45, 8-speed
Crank
Shimano Essa, 40T
Bottom Bracket
Shimano UN101
Chain
KMC X8, 8-speed
Pedals
Cannondale Platform
Wheels
Front Hub
Shimano QC-300, QR
Rear Hub
Shimano QC-300, QR
Rims
DC 4.0, double wall w/eyelet, 32h
Spokes
Stainless Steel, 14g
Tires
Vittoria Terreno Dry, 700x40c
Brakes
Brakes
Shimano MT200 hydraulic disc, 160/160mm rotors
Brake Levers
Shimano MT201 hydraulic disc

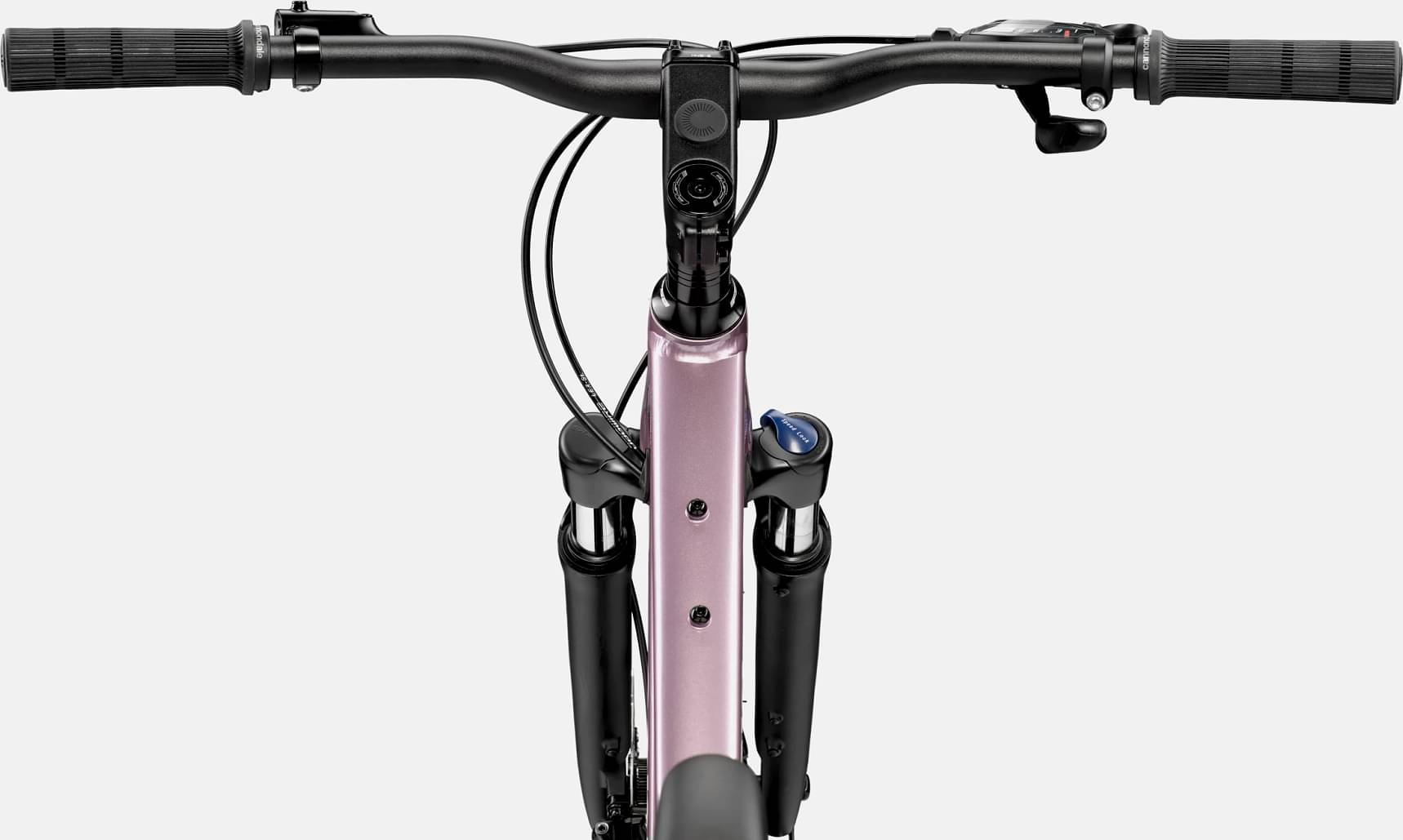

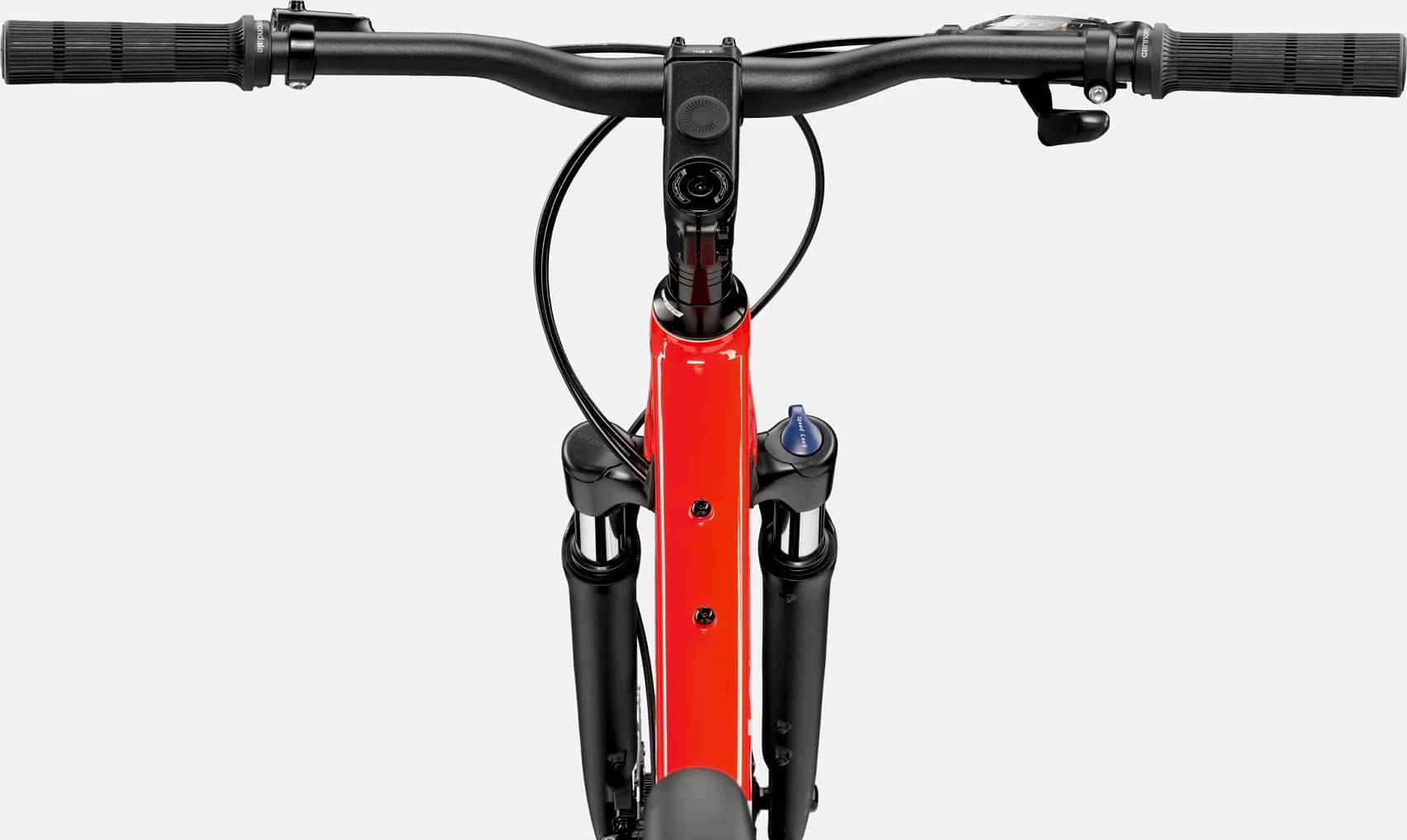

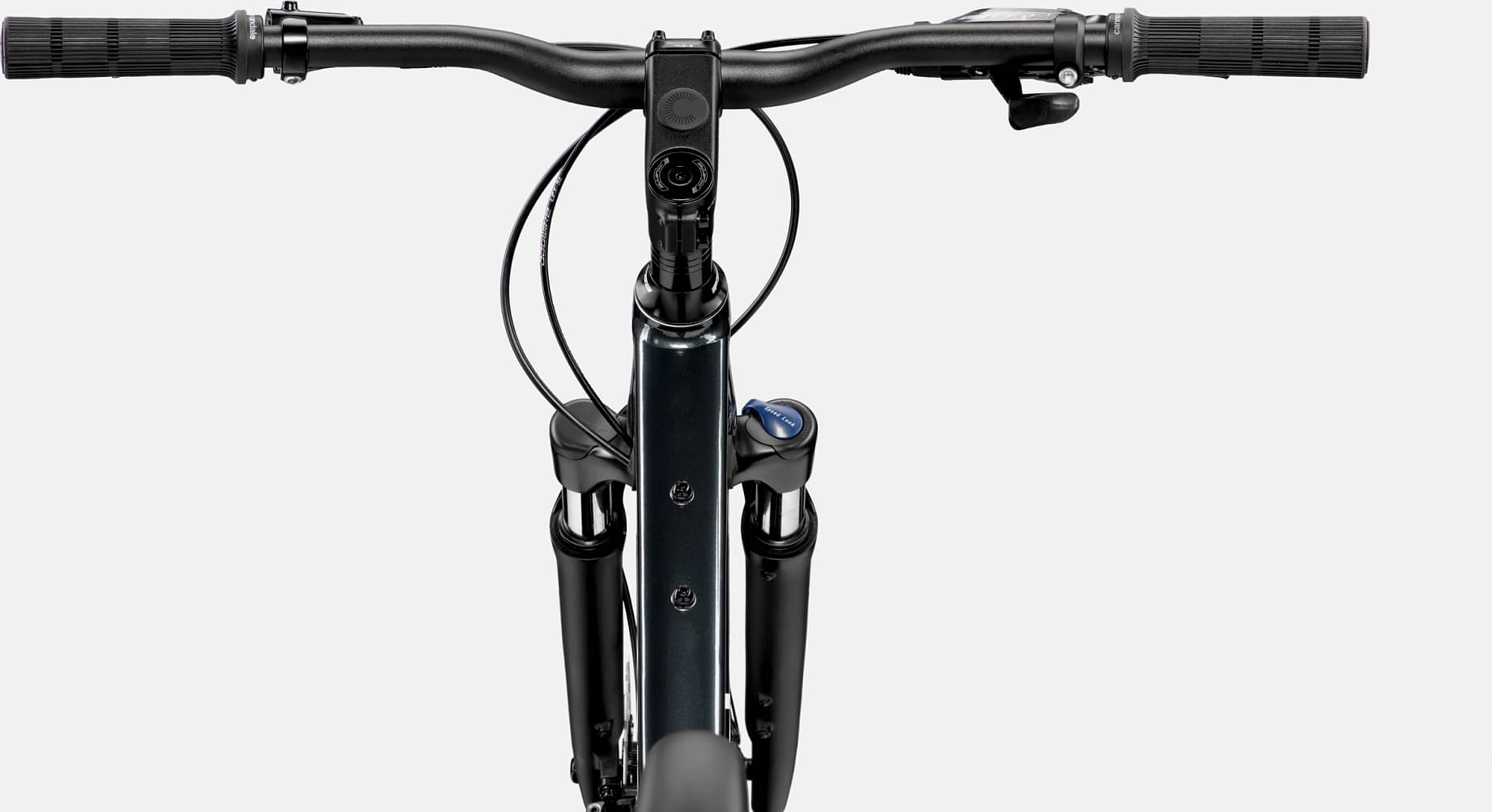

Cockpit
Stem
Cannondale 3 w/ Intellimount, Alloy, 31.8mm clamp, +6°, w/ SP Connect SPC+ Stem Mount
Handlebar
Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 700mm
Grips
Cannondale TaperRidge
Headset
FSA Orbit, Semi-integrated, 1-1/2"-1-1/8"
Seat

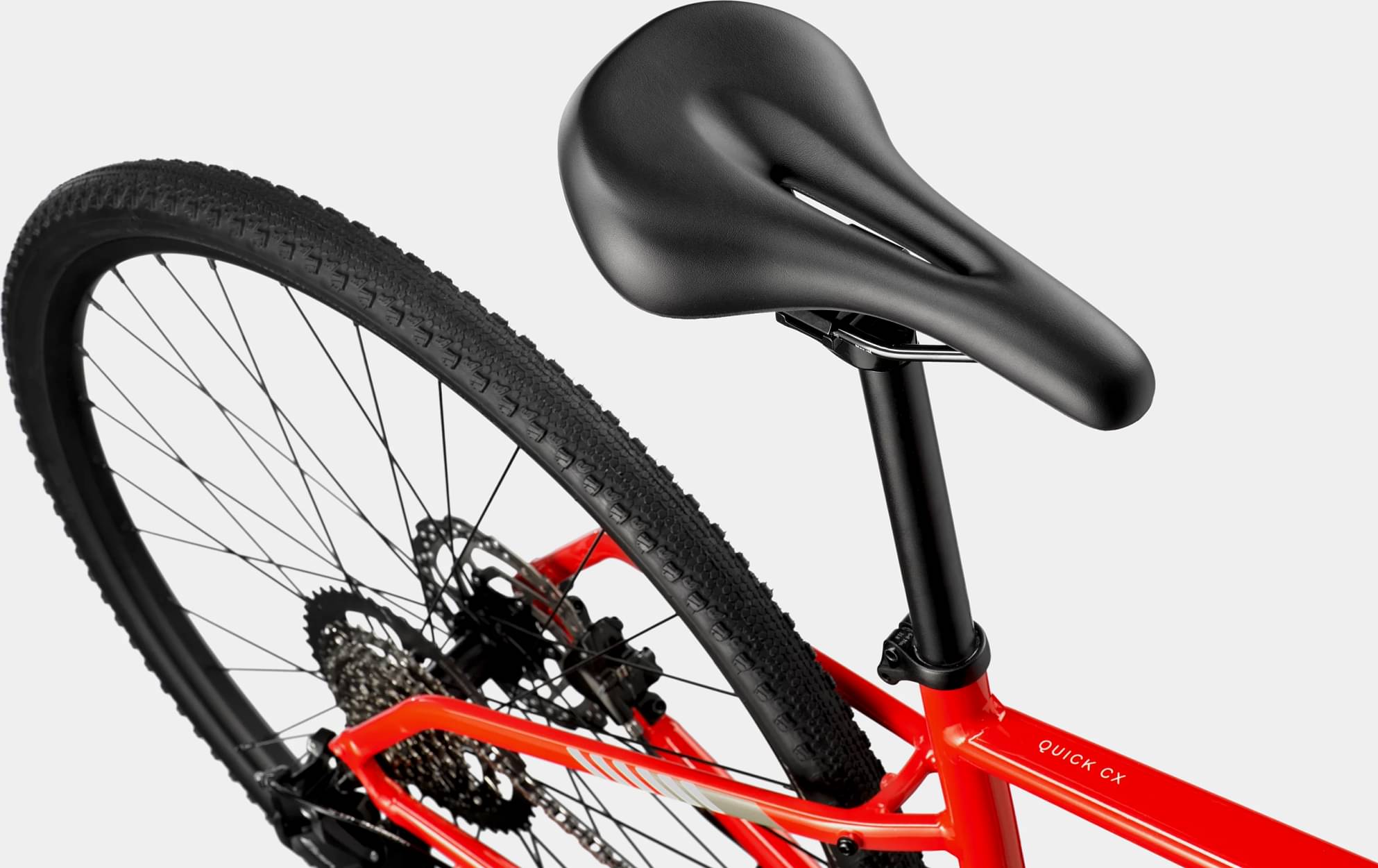

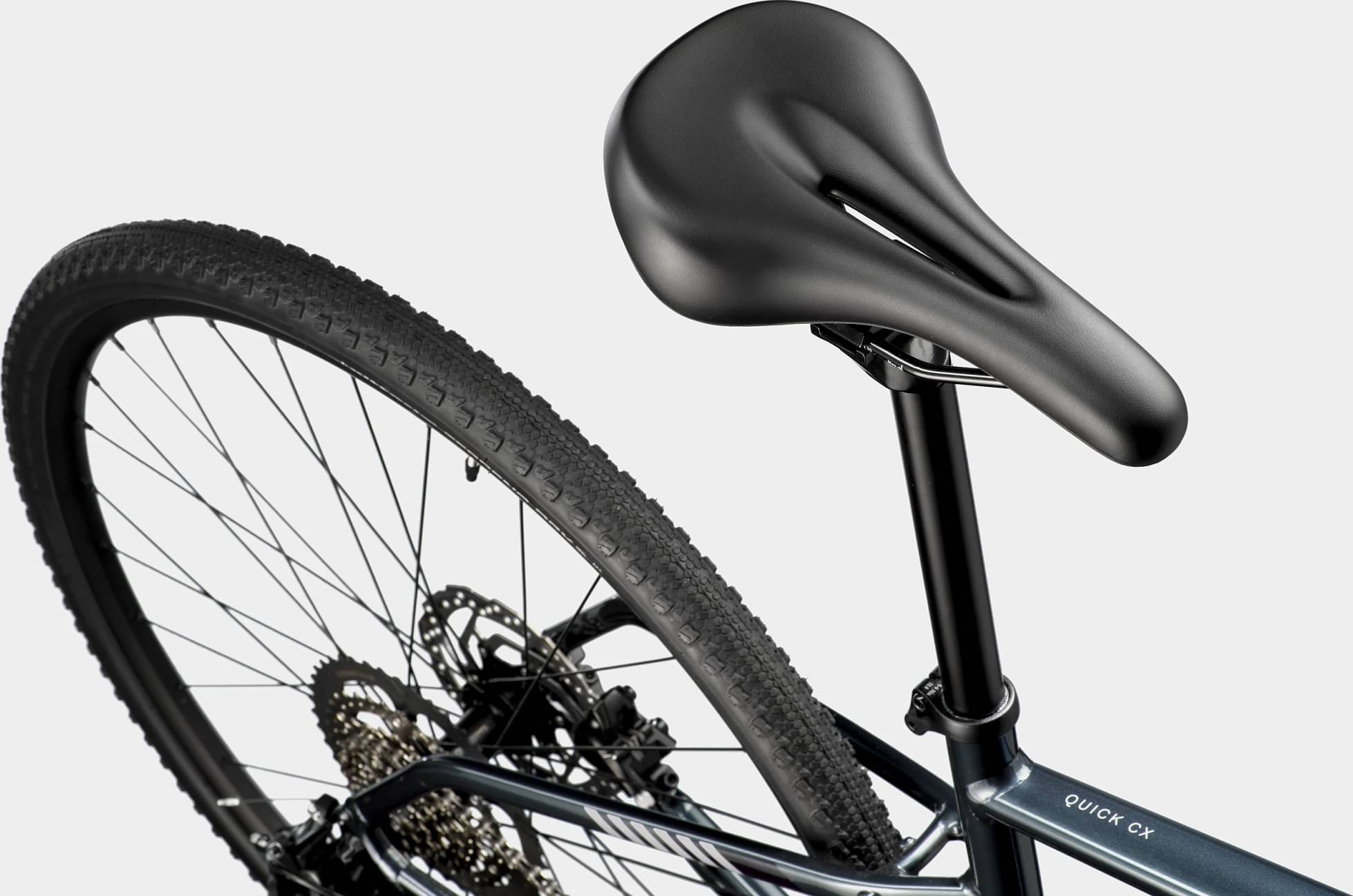

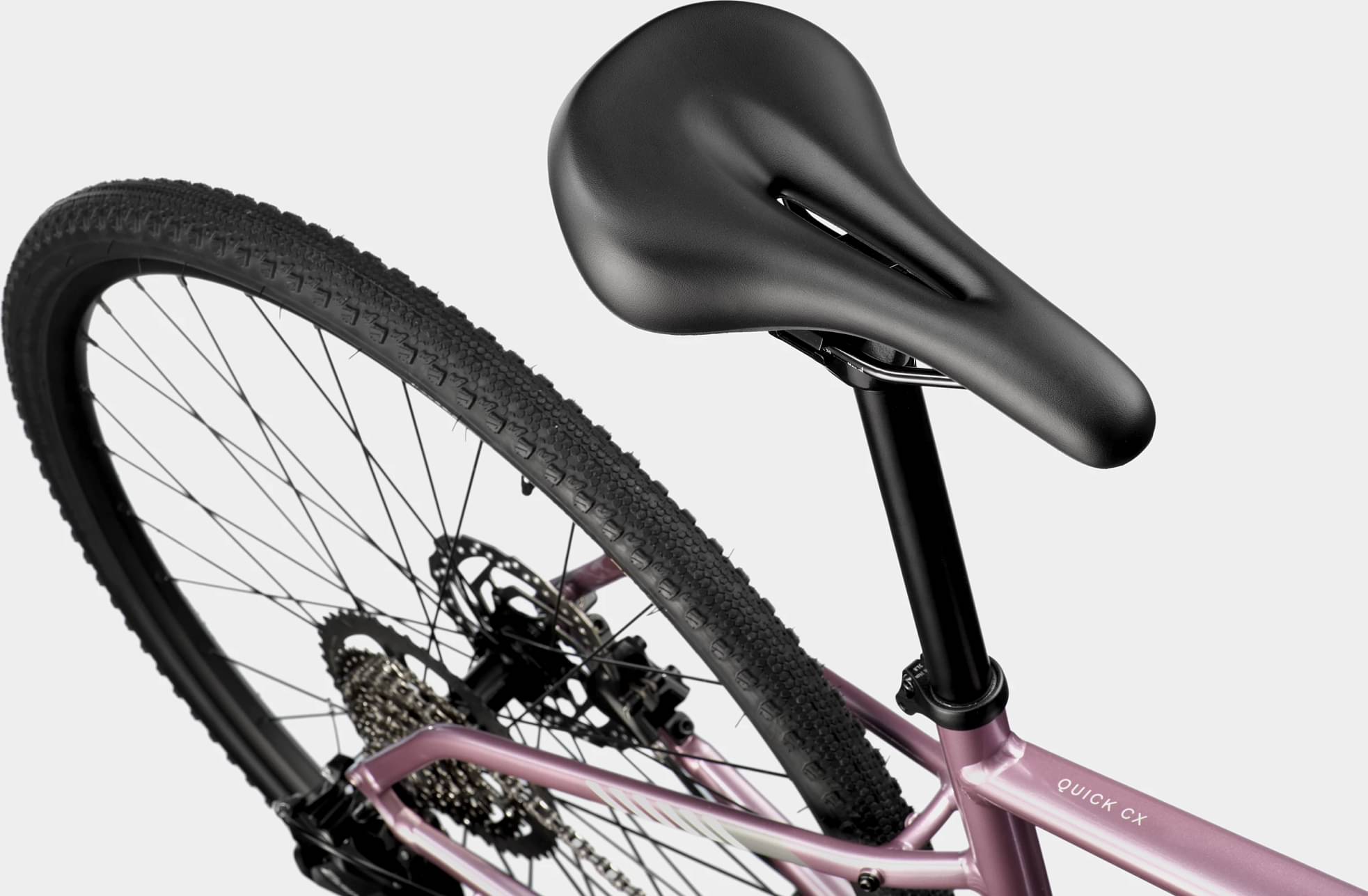

Saddle
Cannondale Fitness Ergo Double Density
Seatpost
6061 Alloy, 27.2x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 147 cm | 157 cm | 165 cm | 175 cm | 182 cm |
| Rider Max Height | 160 cm | 170 cm | 177 cm | 188 cm | 195 cm |
